Toyota Carina FF

1996-08 → 2001-12 · chassis AT21#,CT21#,ST215 · catalogue 231140 · Japan

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

8 part groups · 3 illustrations

Illustrations

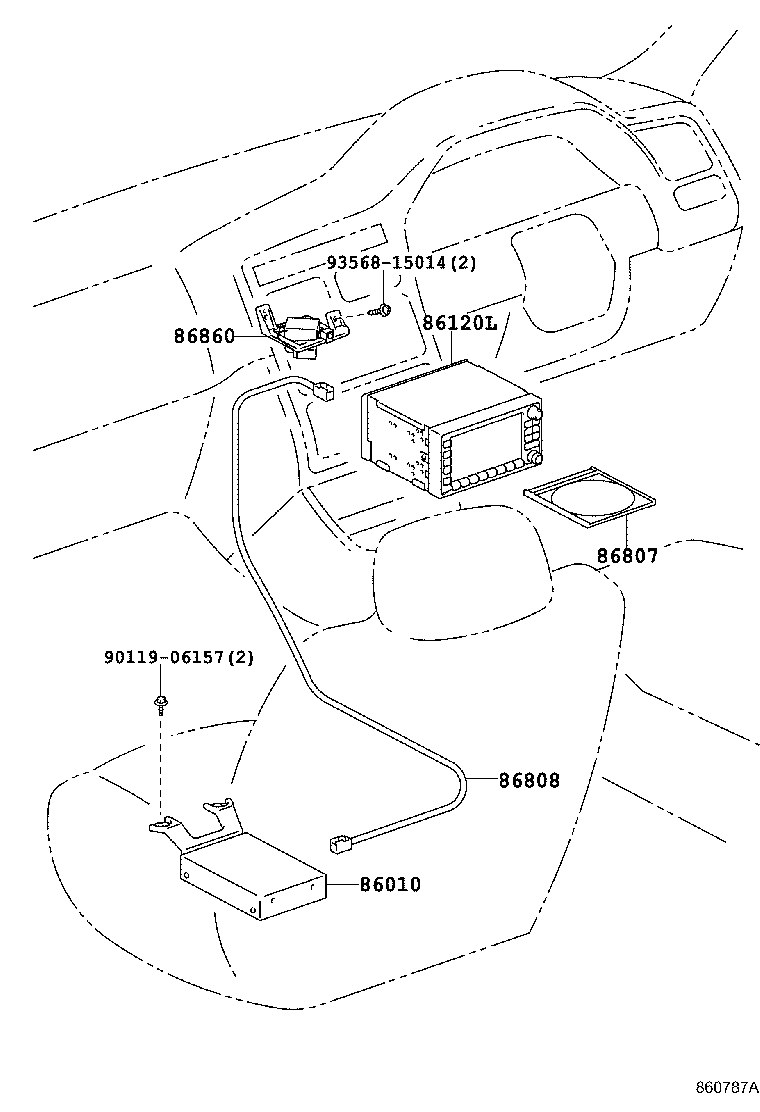

Figure 860090A 860090A 1996-08 → 1998-08 Figure 860787A 860787A 1998-08 → — Figure 860787A 860787A 2000-12 → —

Part groups

PNCDescription
86010 Tuner Assy, Television
86111 Multi-display
86120L Receiver Assy, Navigation
86807 Disc Kit, Cd-rom
86808 Cord Sub-assy, Navigation Antenna, NO.1
86845 Card, Navigation
86851 Receiver, Navigation
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
