Toyota Carina FF

1996-08 → 2001-12 · chassis AT21#,CT21#,ST215 · catalogue 231140 · Japan

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

24 part groups · 5 illustrations

Illustrations

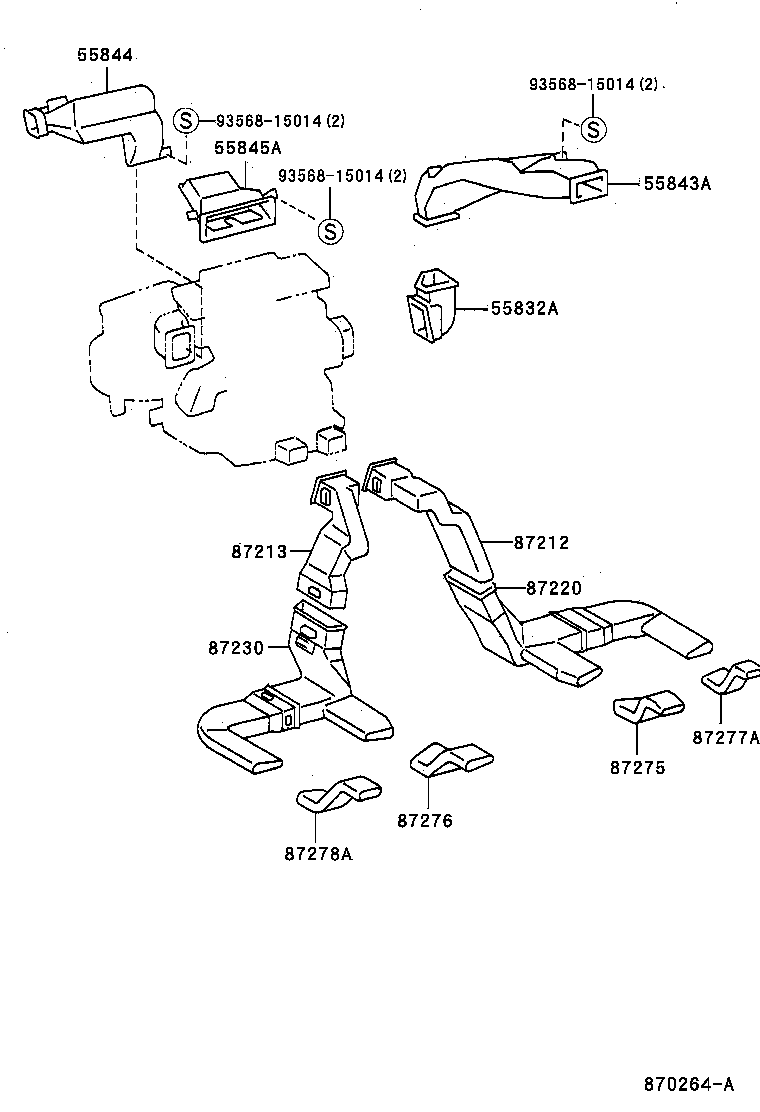

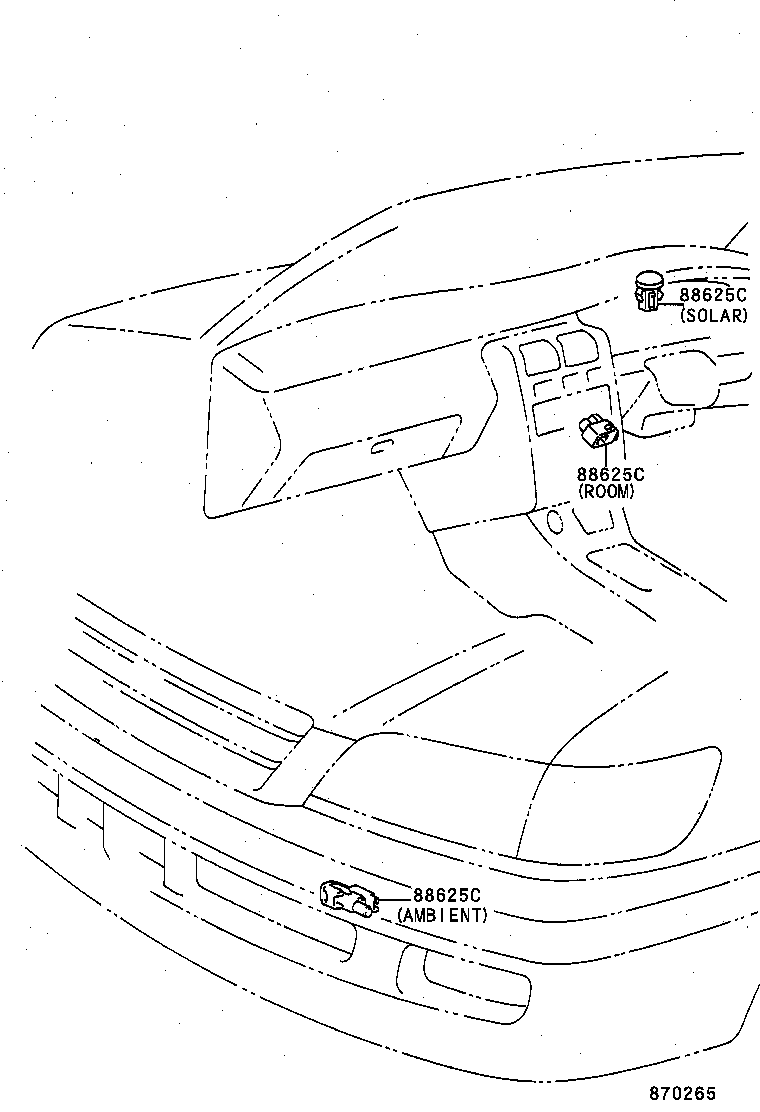

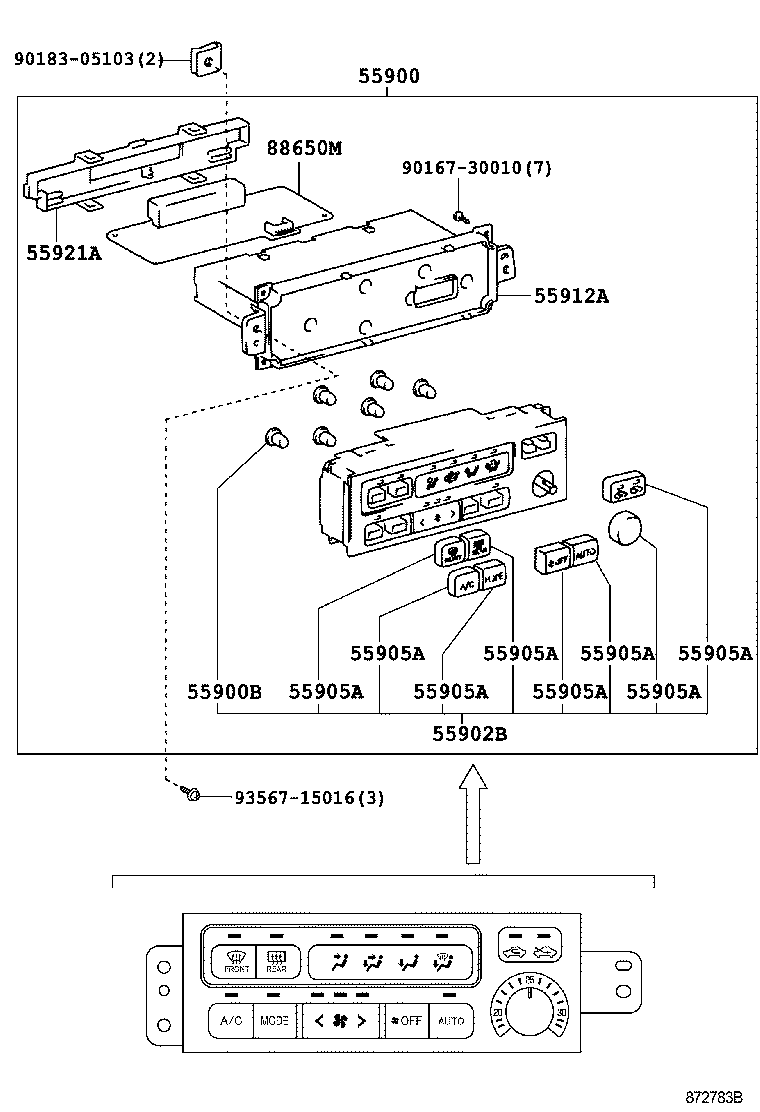

Figure 870263D 870263D 1996-08 → — Figure 872783B 872783B 1998-08 → — Figure 870264A 870264A 1996-08 → — Figure 870265 870265 1996-08 → 1997-04 Figure 870265 870265 1997-04 → —

Part groups

PNCDescription
55832A Connector, Instrument Panel Register, NO.2
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55905D Knob Sub-assy, Control
55909A Cable Sub-assy, Airmix Damper Control
55912A Housing, Heater Control
55921A Retainer, Heater Control
81942A Sheet, Heater Control Name, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87220 Duct Assy, Air
87230 Duct Assy, Air, Heater
87275 Duct, Floor Heater Air, NO.1 RH
87276 Duct, Floor Heater Air, NO.1 LH
87277A Duct, Floor Heater Air, NO.2 RH
87278A Duct, Floor Heater Air, NO.2 LH
88625C Thermistor, Cooler
88650B Amplifier Assy, Airconditioner
88650M Computer Assy, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
