Toyota Lexus CT200H

2010-12 → 2022-10 · chassis ZWA10 · catalogue 232110 · Japan

Supported model Data version 2023-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 6 illustrations

Illustrations

Figure 533357E

533357E 2010-12 → 2013-12

Figure 533358E

533358E 2010-12 → 2013-12

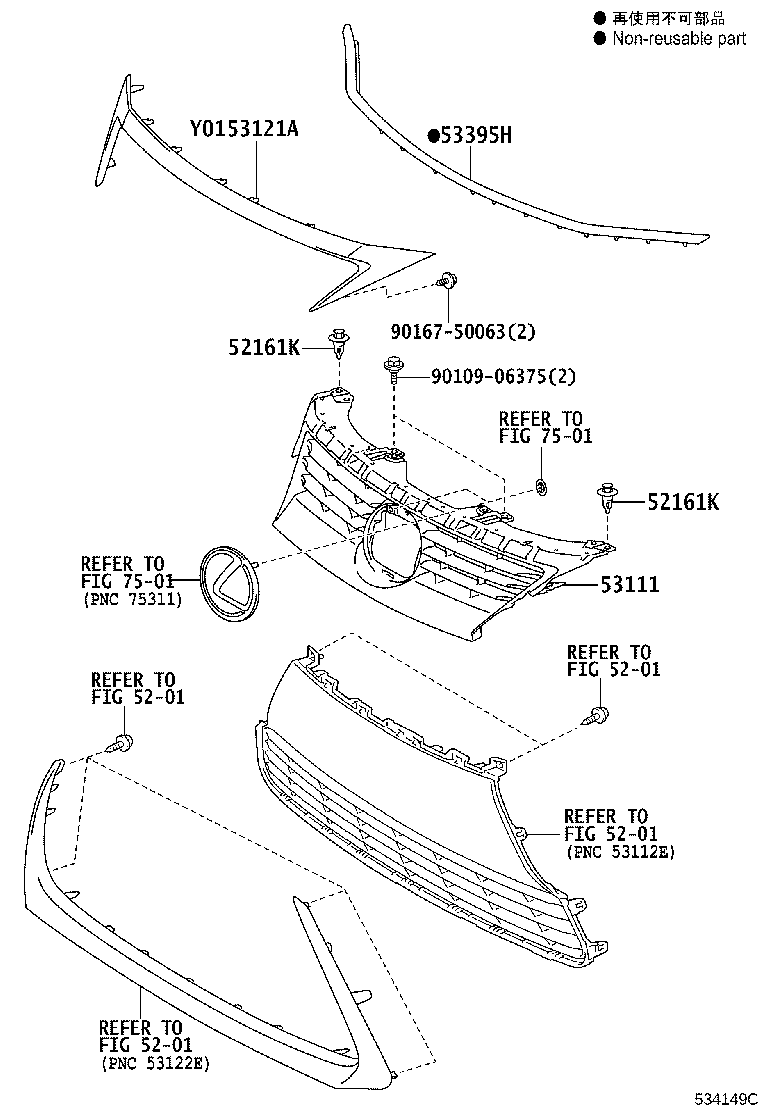

Figure 534149C

534149C 2013-12 → 2017-08

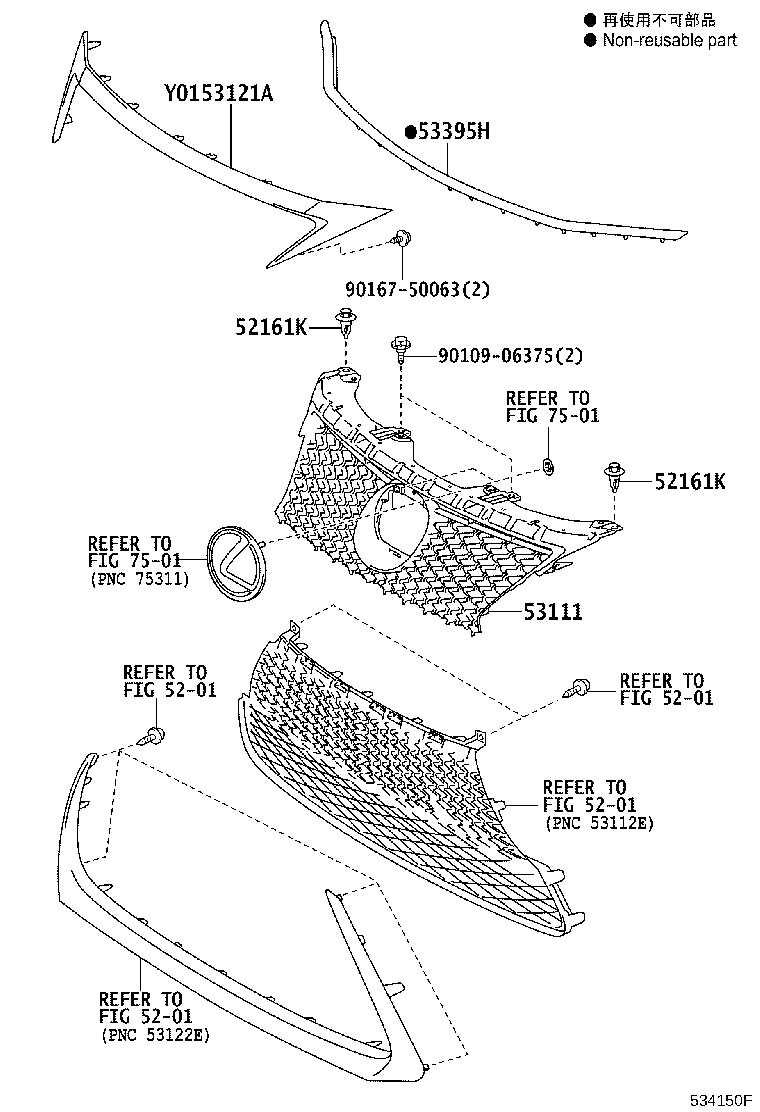

Figure 534150F

534150F 2013-12 → 2017-08

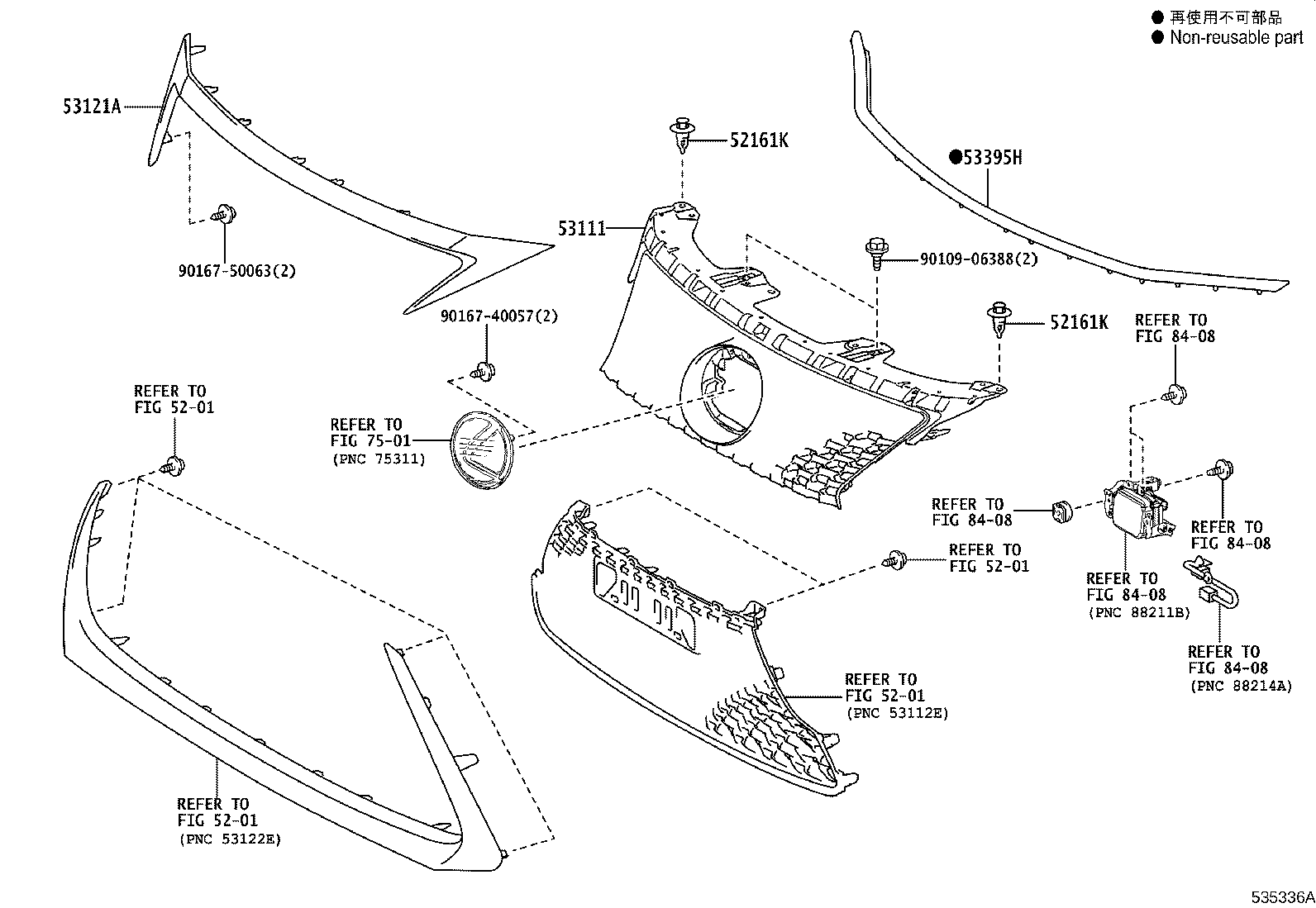

Figure 535336A

535336A 2017-08 → —

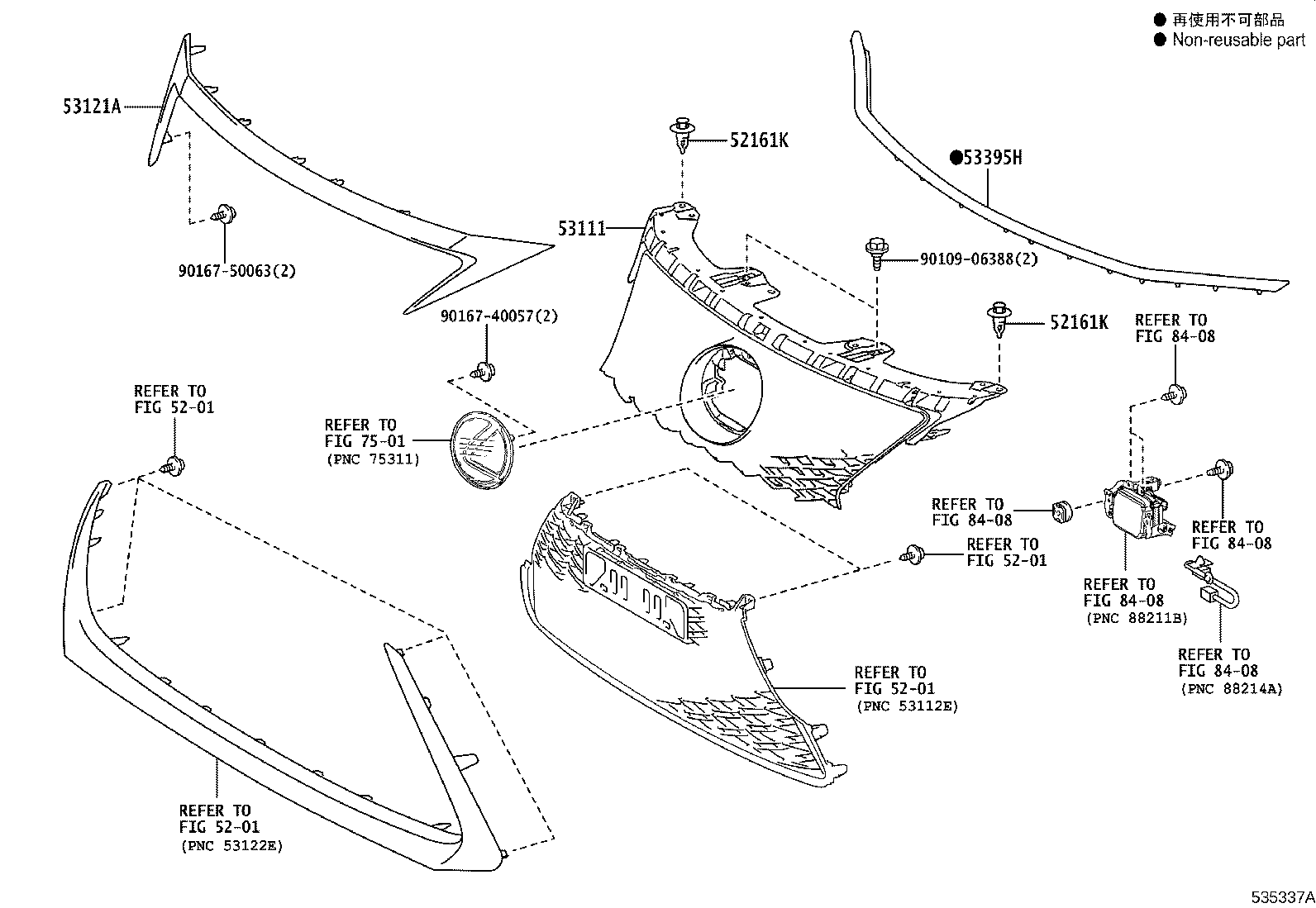

Figure 535337A

535337A 2017-08 → —

Part groups

PNC	Description
52161K	Piece, Front Bumper
53111	Grille, Radiator
53121A	Moulding, Radiator Grille
53395H	Seal, Hood TO Radiator Grille

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
