Toyota Lexus CT200H

2010-12 → 2022-10 · chassis ZWA10 · catalogue 232110 · Japan

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

26 part groups · 2 illustrations

Illustrations

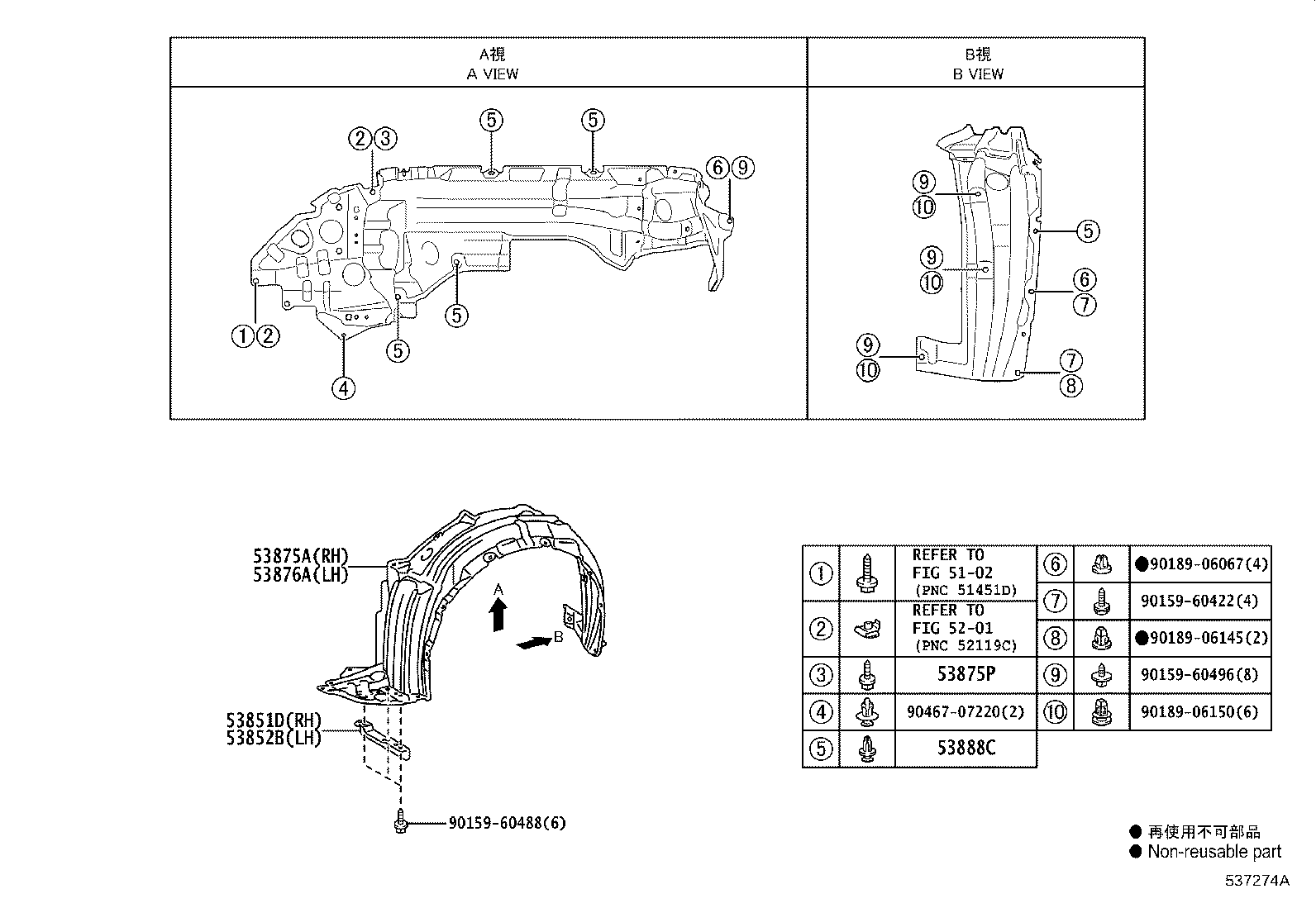

Figure 537273A 537273A 2010-12 → — Figure 537274A 537274A 2010-12 → —

Part groups

PNCDescription
53153K Guide, Radiator Grille Side Air, RH
53154L Guide, Radiator Grille Side Air, LH
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53381E Seal, Hood TO Radiator Support
53388D Seal, Hood TO Front Fender, RH
53389B Seal, Hood TO Front Fender, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53807D Reinforcement Sub-assy, Front Fender, Top RH
53808D Reinforcement Sub-assy, Front Fender, Top LH
53823E Protector, Front Side Panel, NO.2 RH
53824B Protector, Front Side Panel, NO.2 LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53875P Screw, NO.1
53876A Liner, Front Fender, LH
53882F Seal, Front Fender
53882N Clip(FOR FRONT FENDER SEAL)
53888C Spacer, Front Fender
55783D Pad, Cowl Top Silencer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
