Toyota Lexus CT200H

2010-12 → 2022-10 · chassis ZWA10 · catalogue 232110 · Japan

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

18 part groups · 3 illustrations

Illustrations

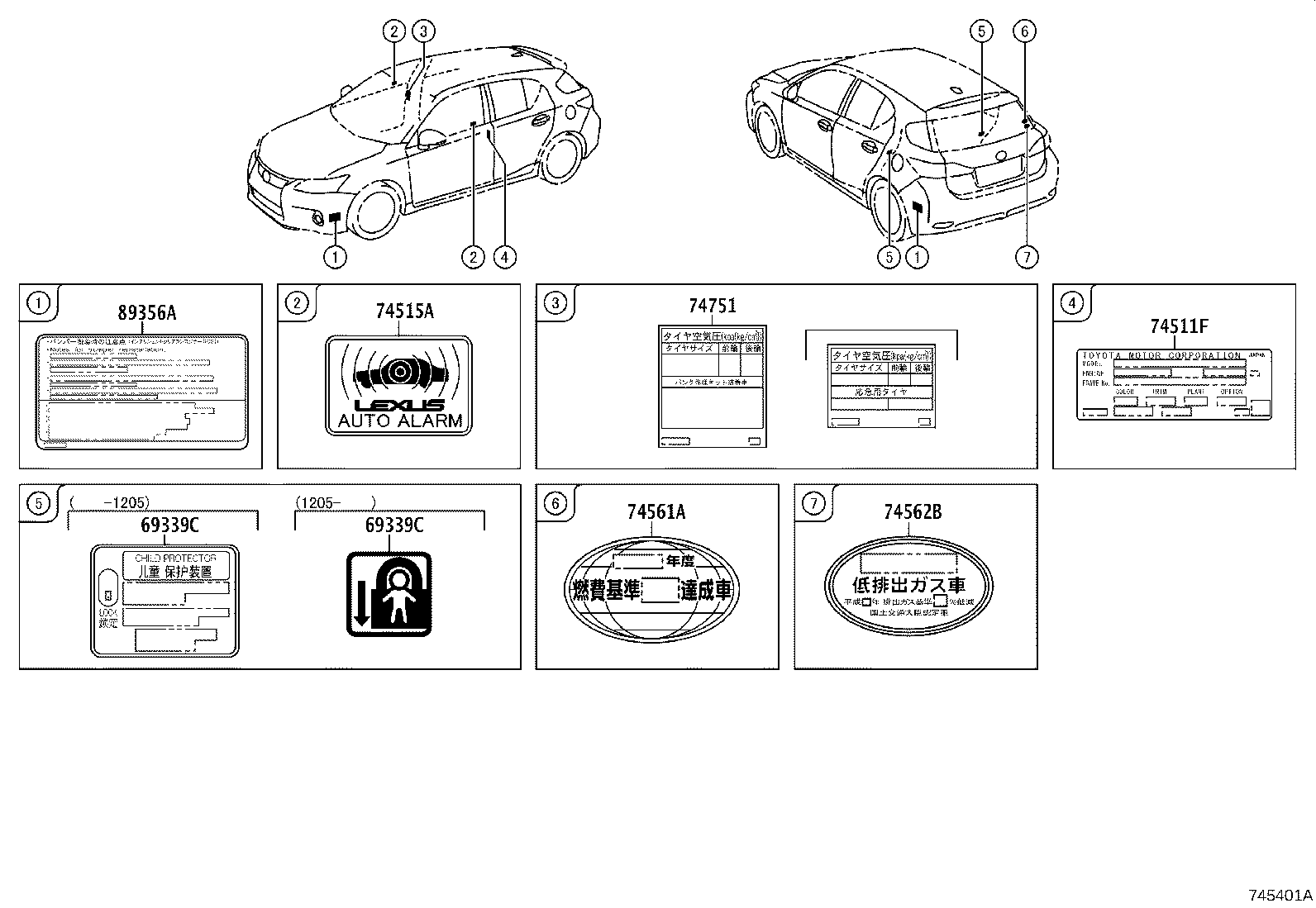

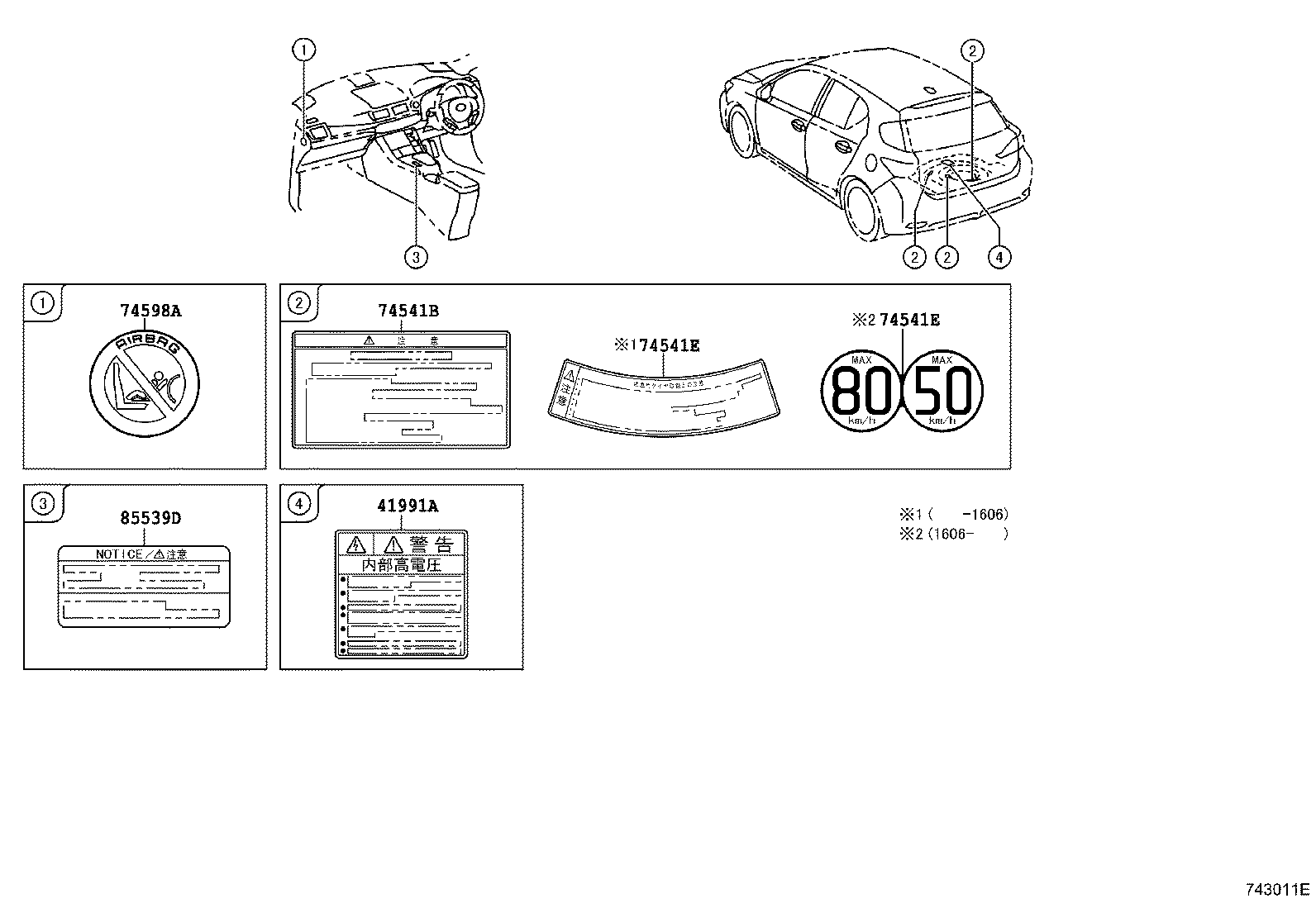

Figure 743010F 743010F 2010-12 → — Figure 745401A 745401A 2010-12 → — Figure 743011E 743011E 2010-12 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11293D Label, Engine Caution
11296C Label, Engine Service Information
16793B Label, Cooling Fan Information
41991A Plate, Caution
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515A Plate, Theft Warning
74541B Plate, Compact Spare Tire Caution
74541E Plate, Compact Spare Tire Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
85539D Label, Power Outlet Notice
88723E Label, Cooler Service Caution
89356A Label, Clearance Warning Information
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
