Toyota Lexus CT200H

2010-12 → 2022-10 · chassis ZWA10 · catalogue 232110 · Japan

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

85 part groups · 15 illustrations

Illustrations

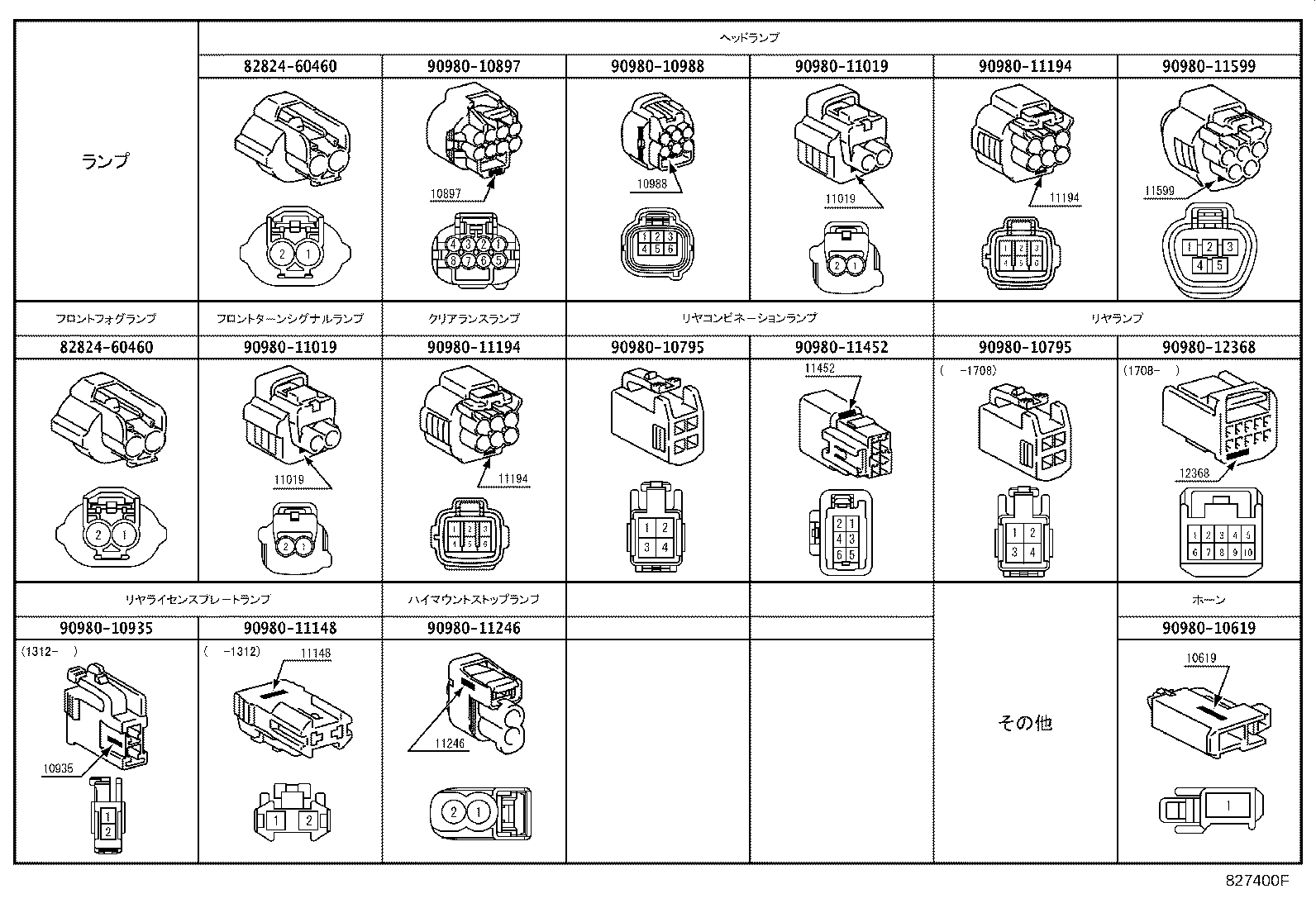

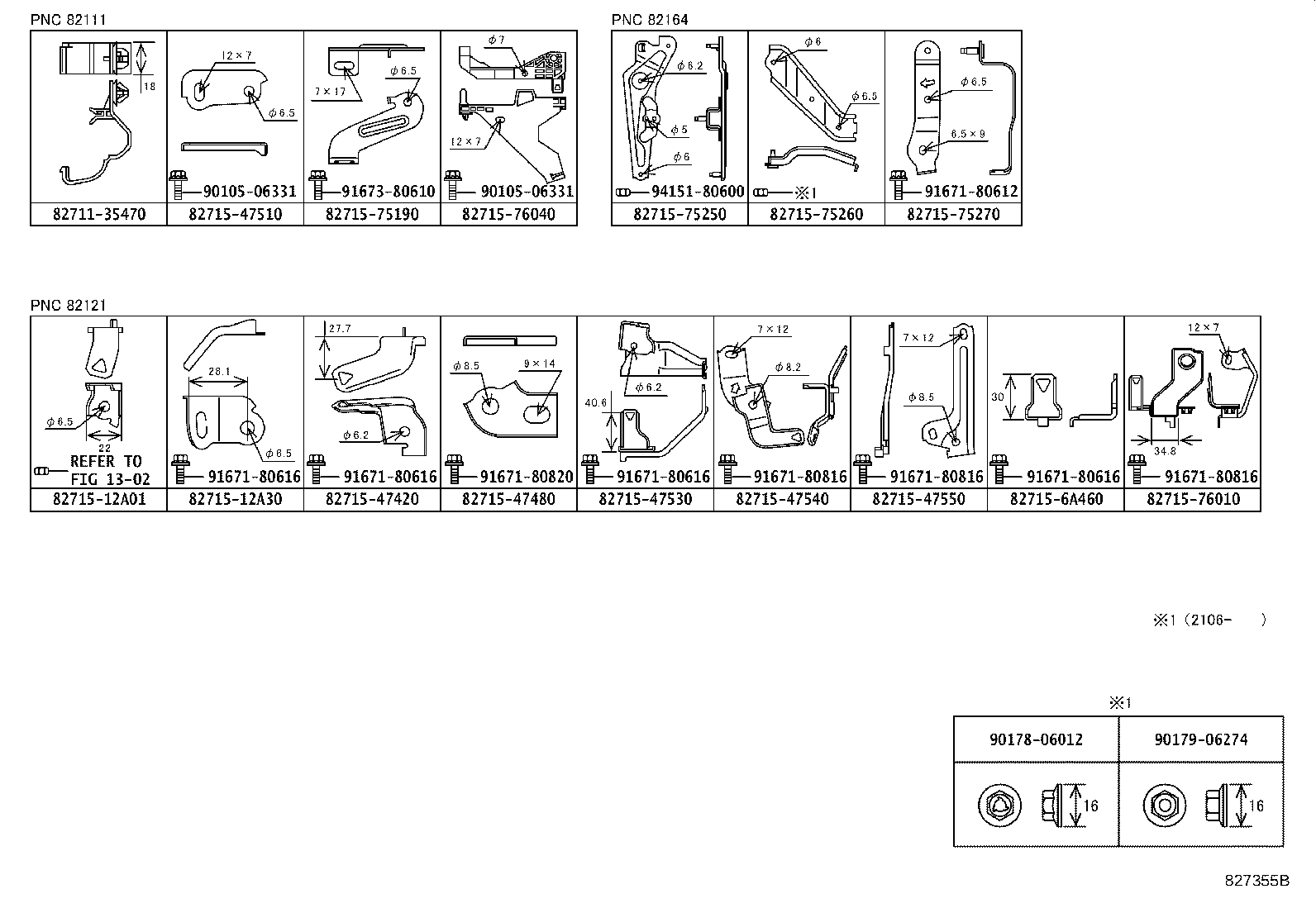

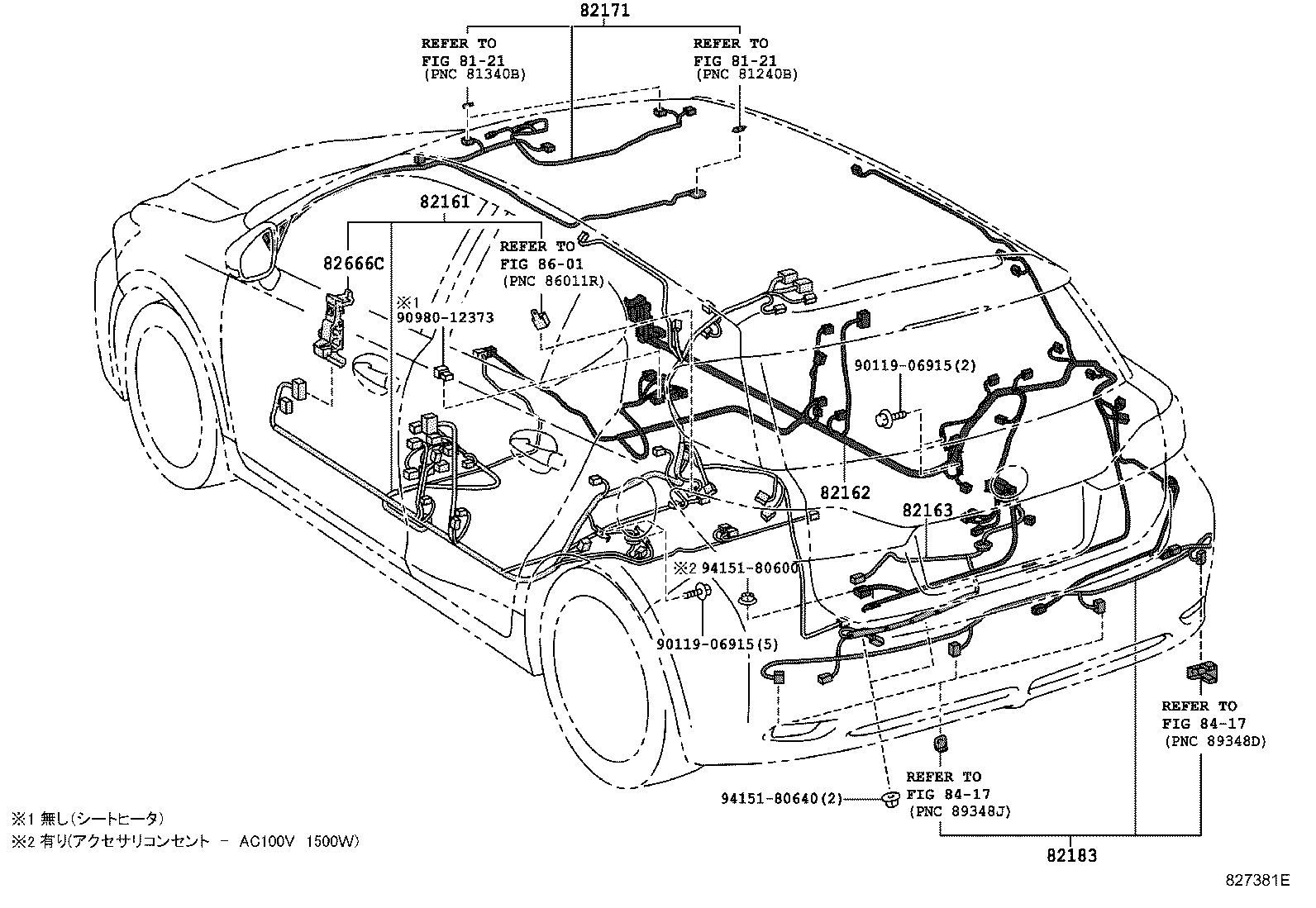

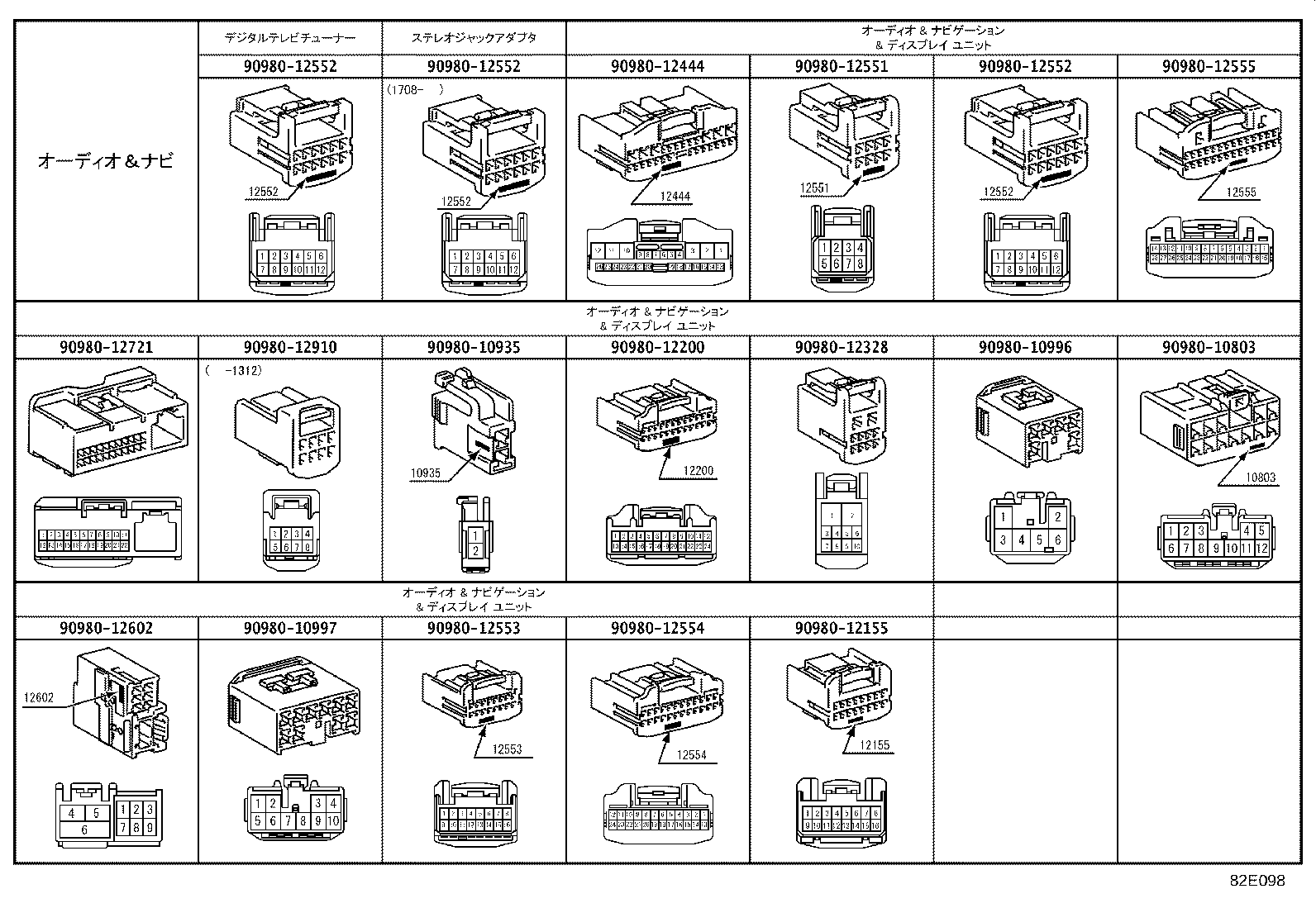

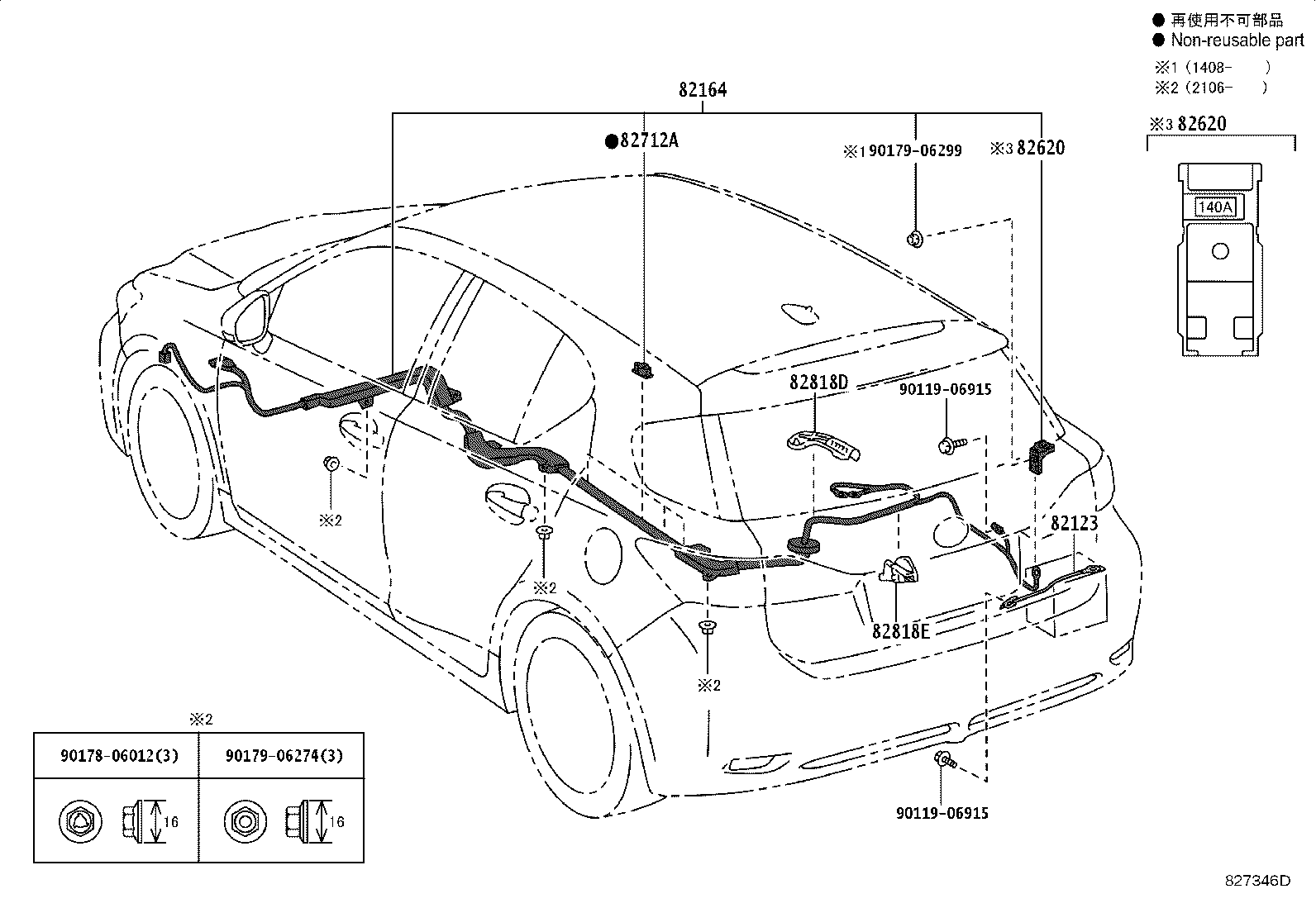

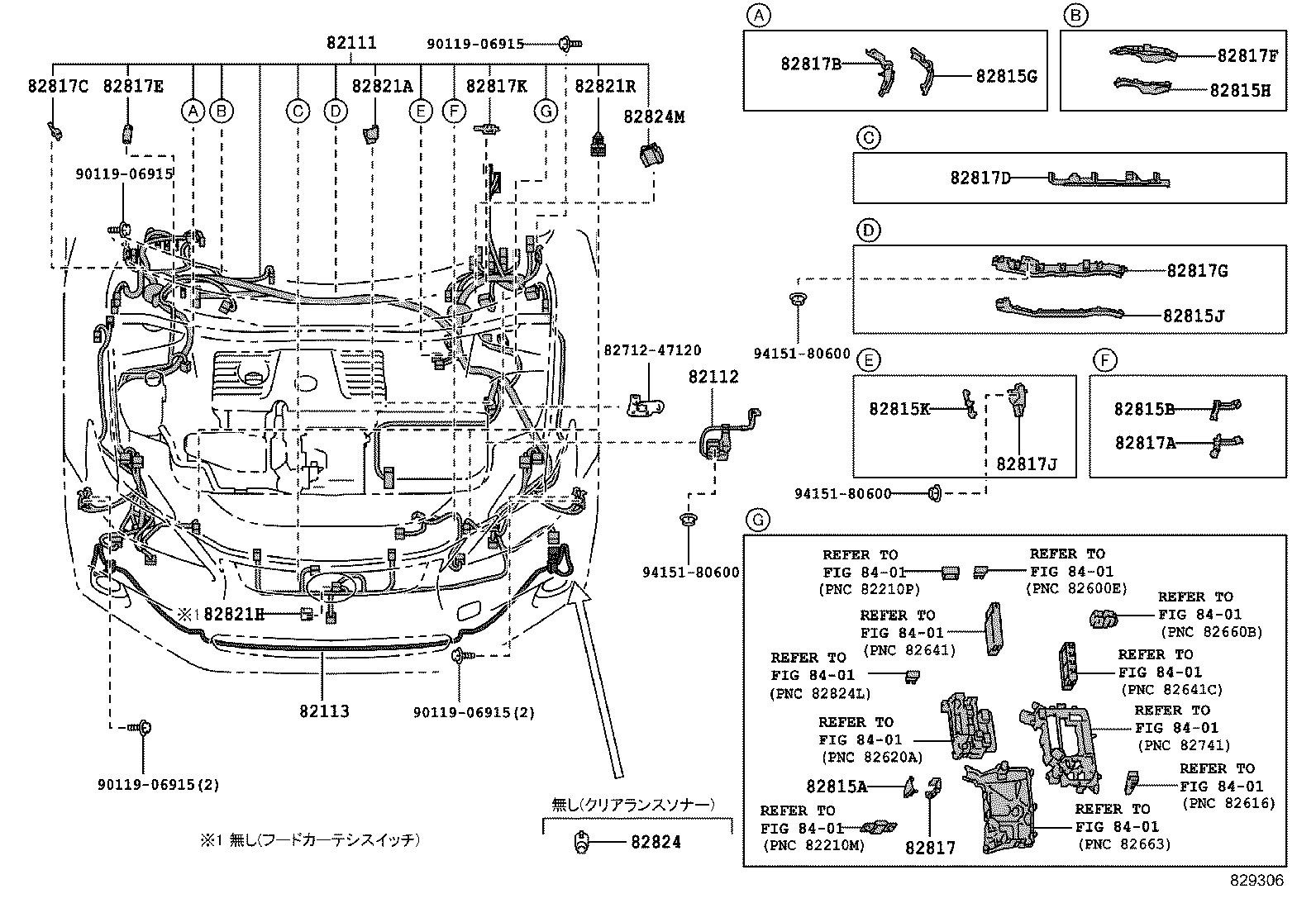

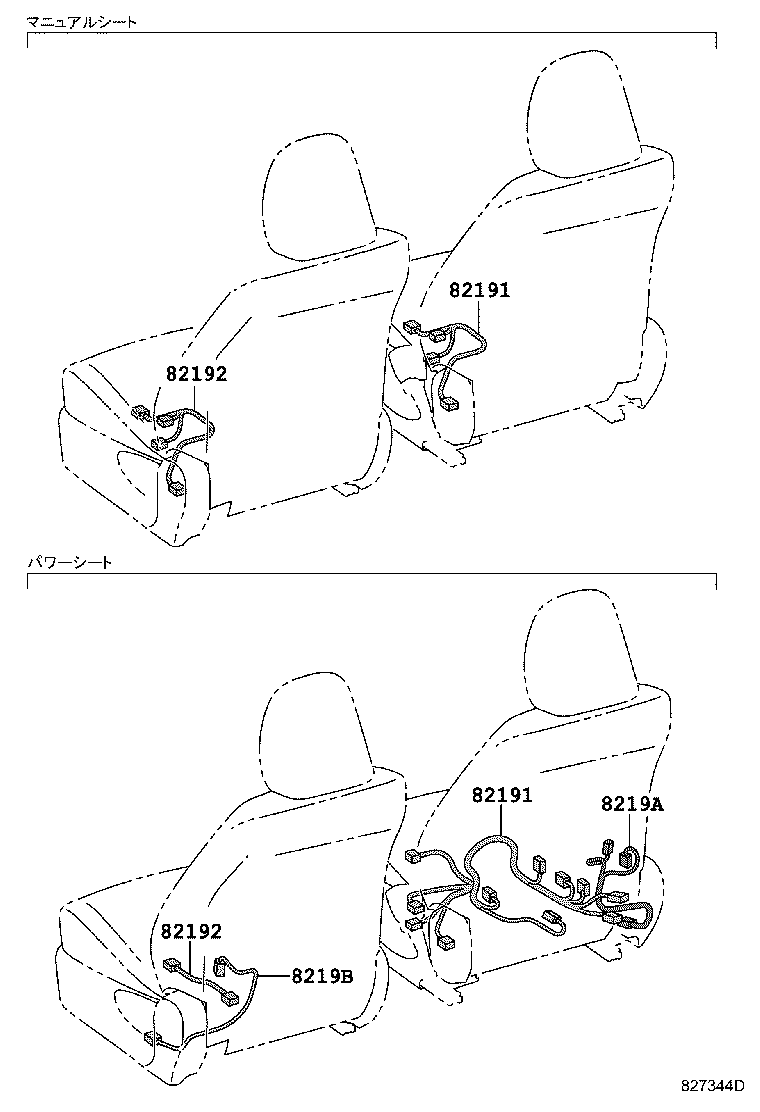

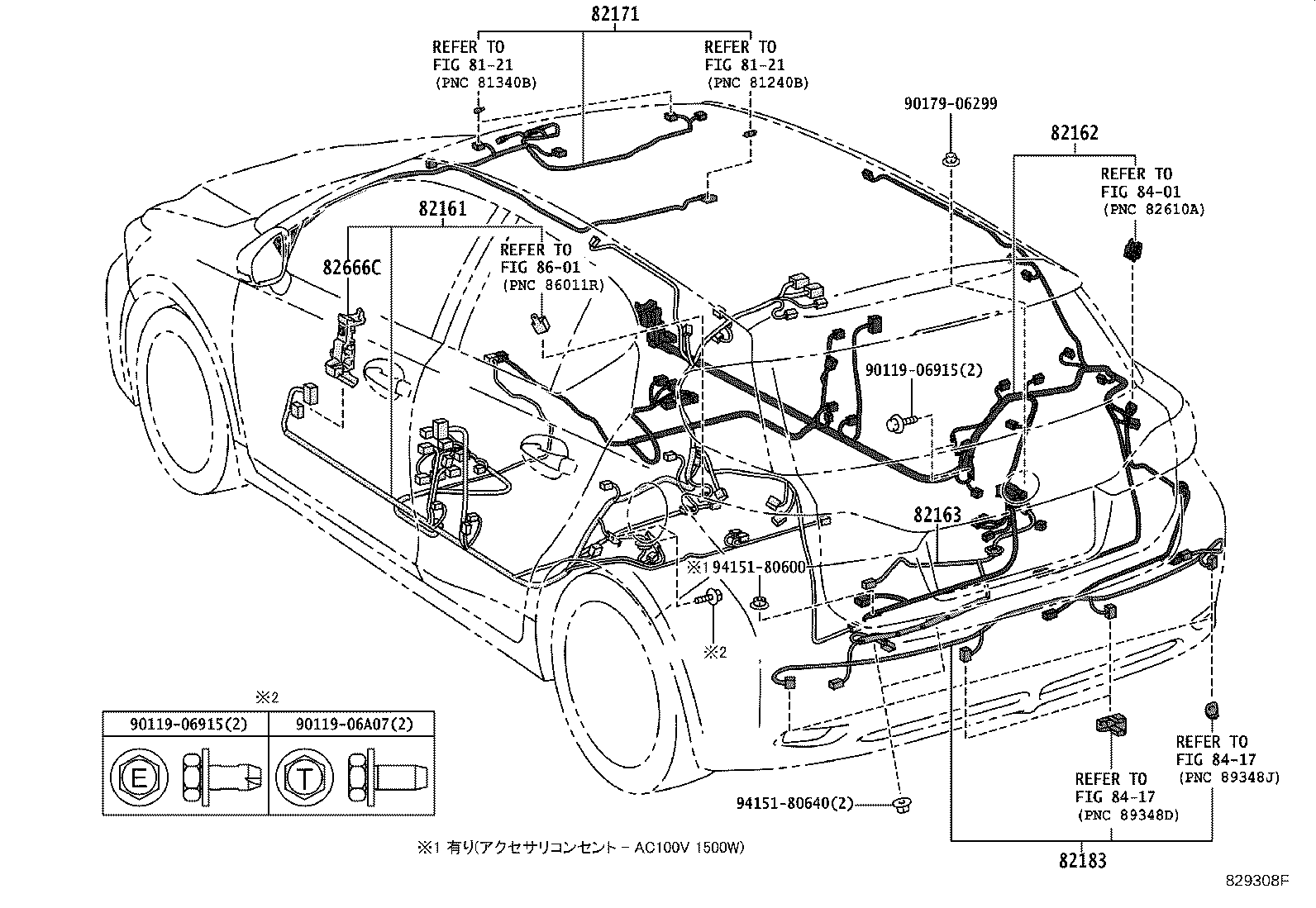

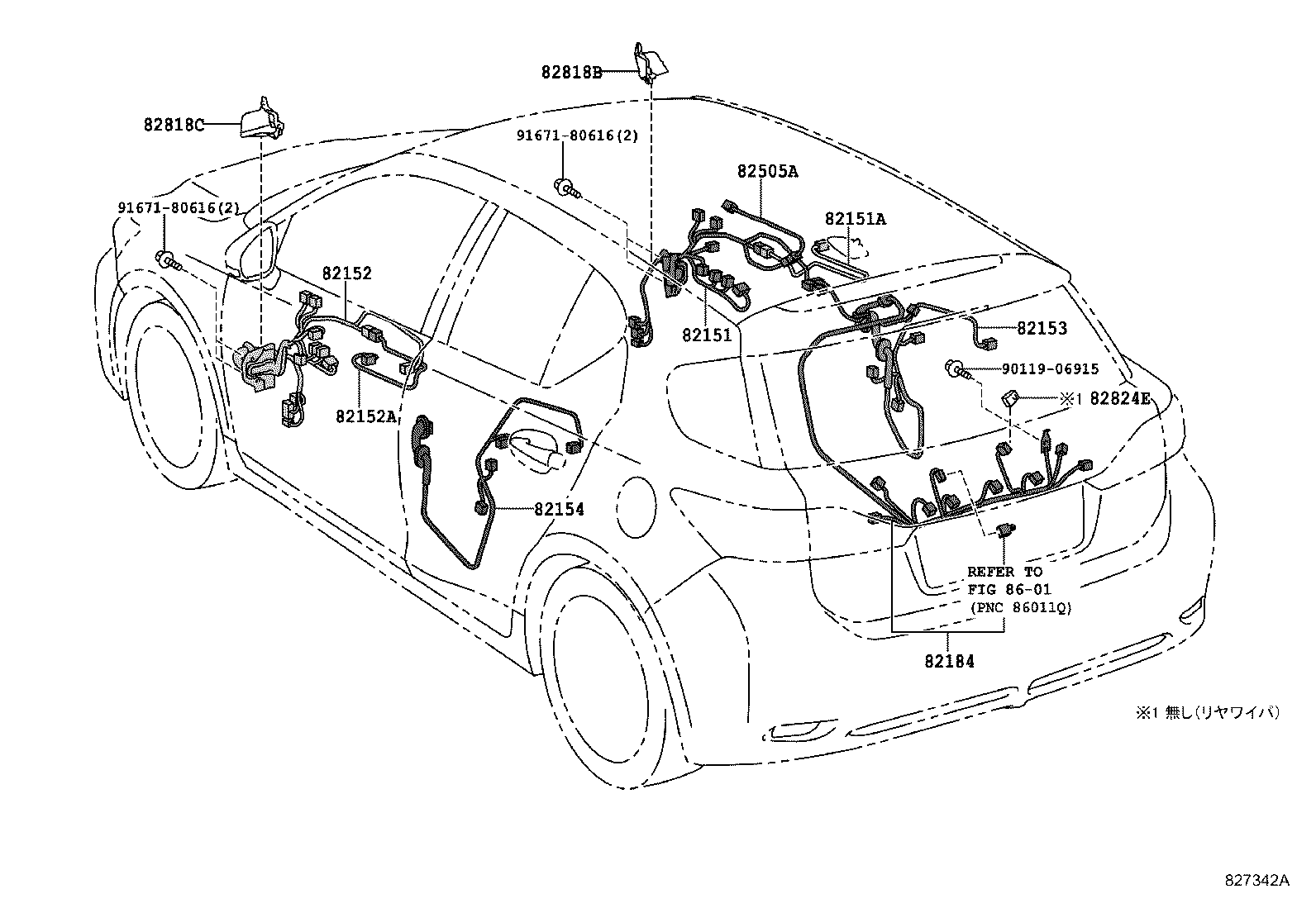

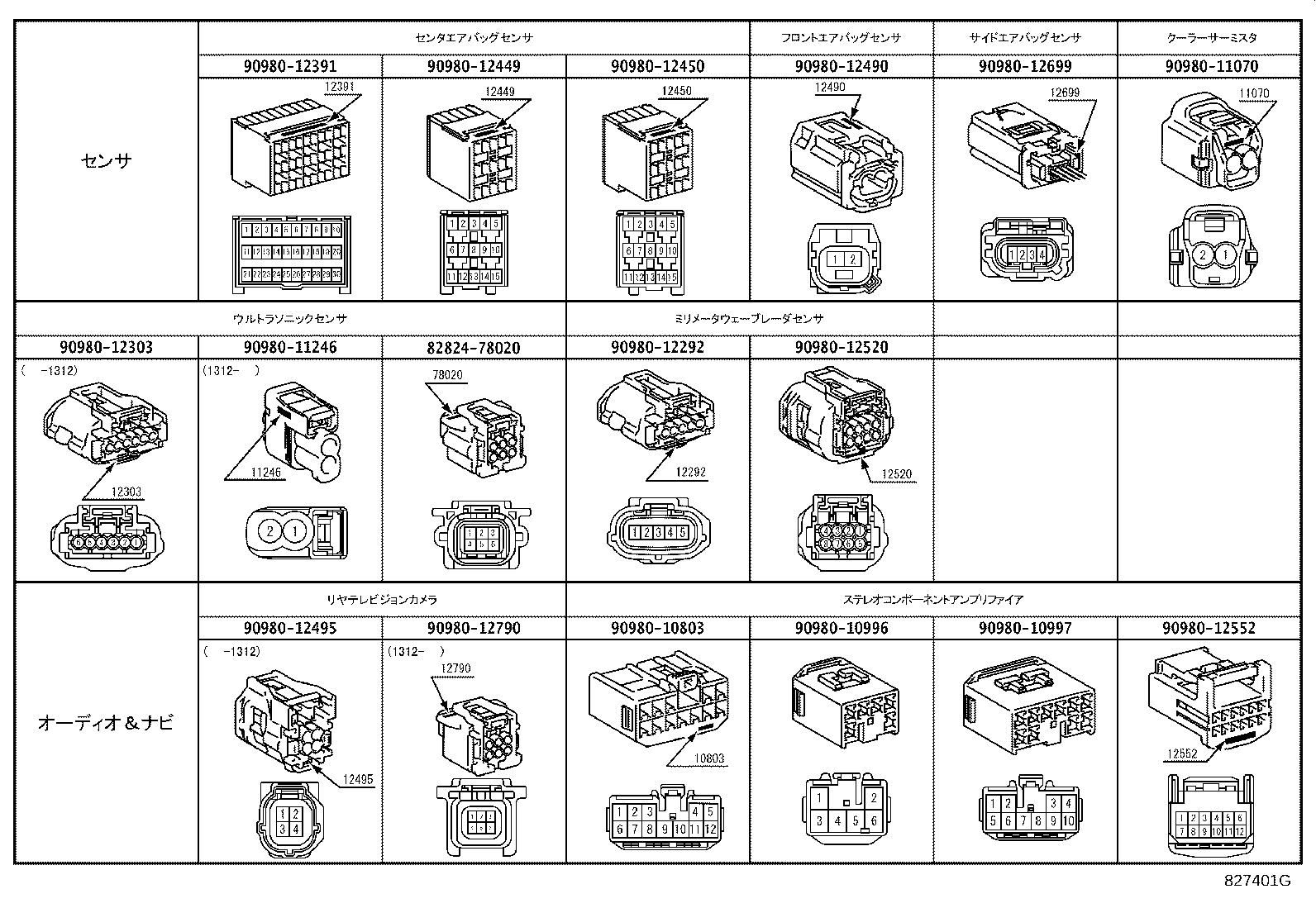

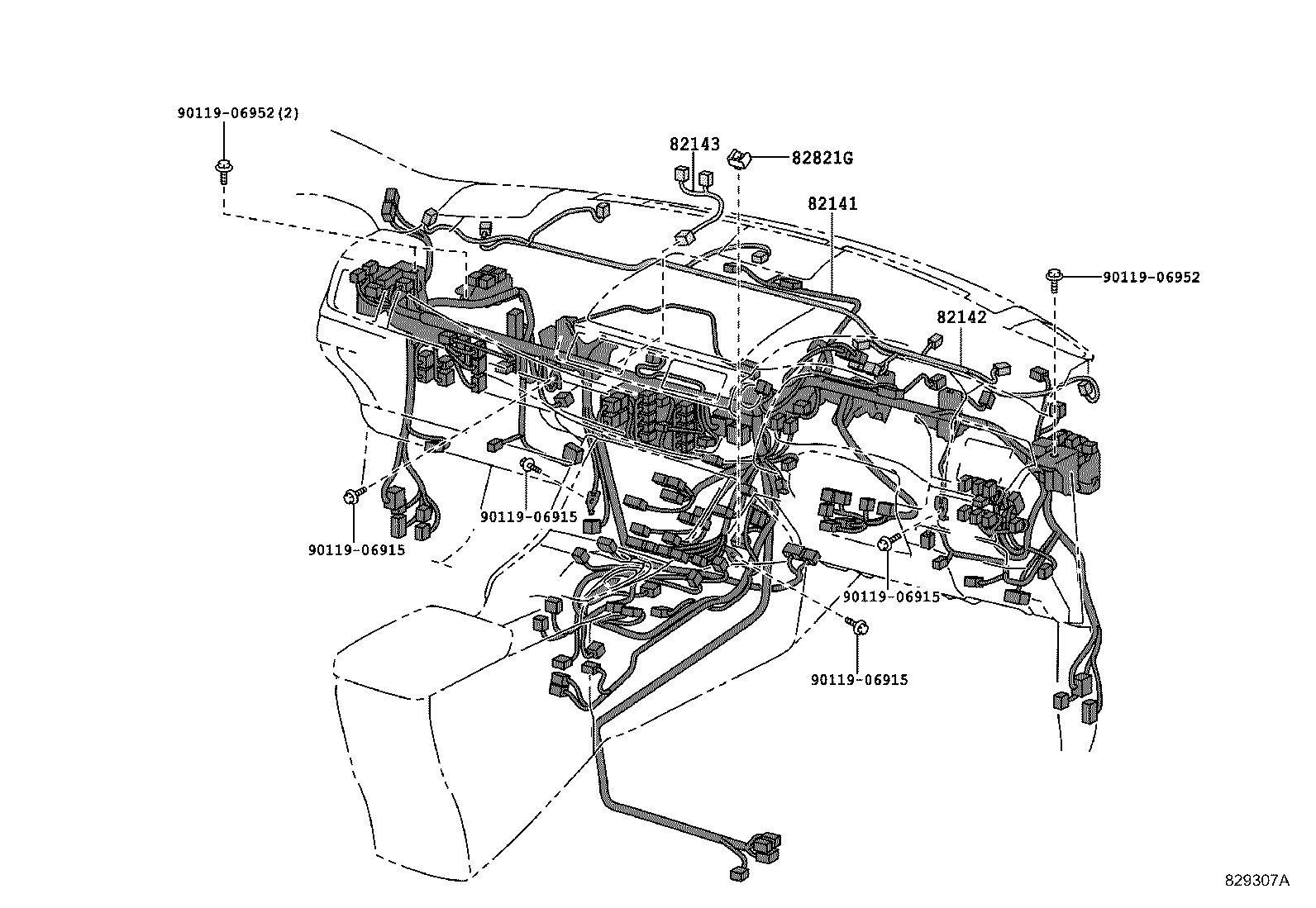

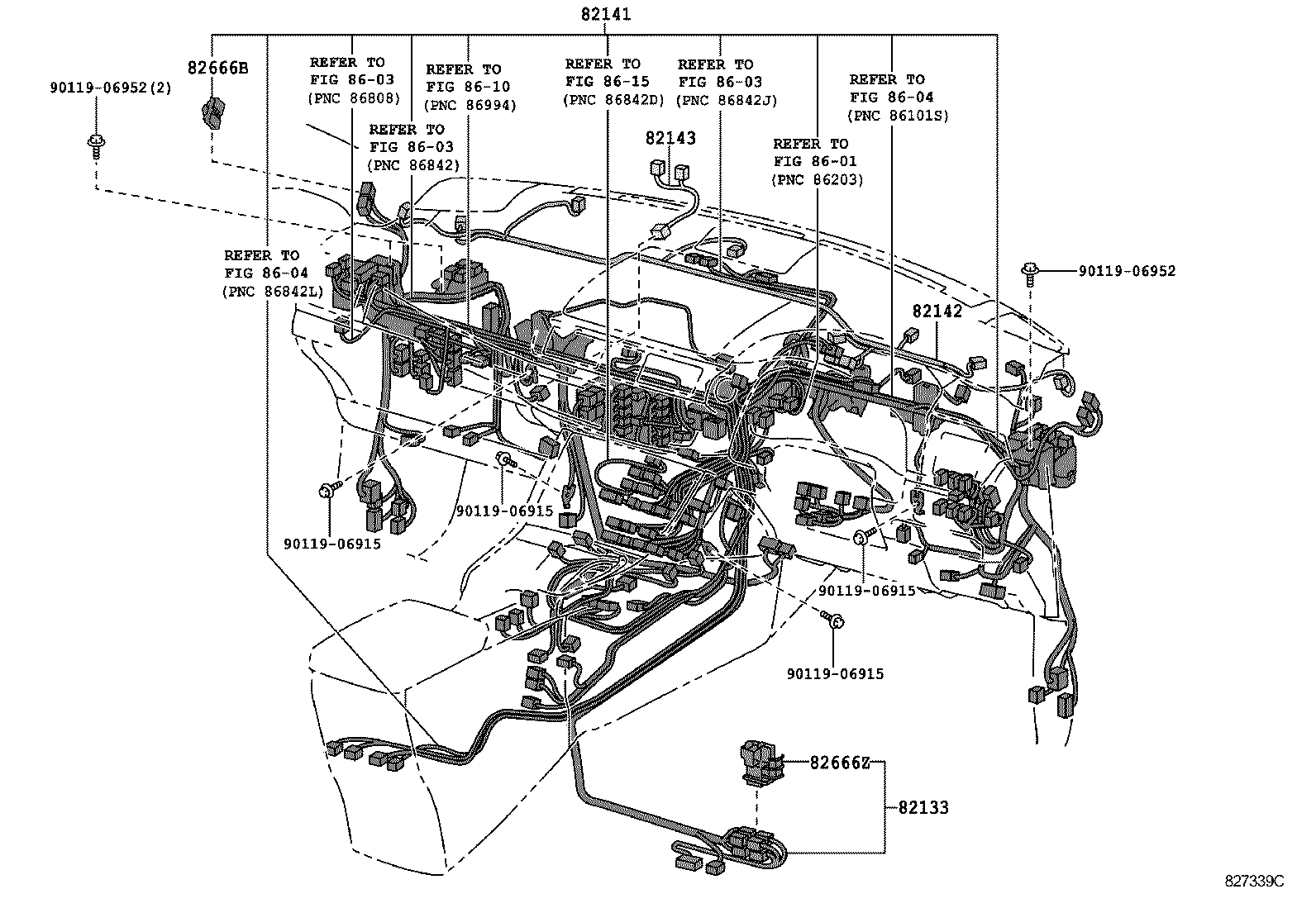

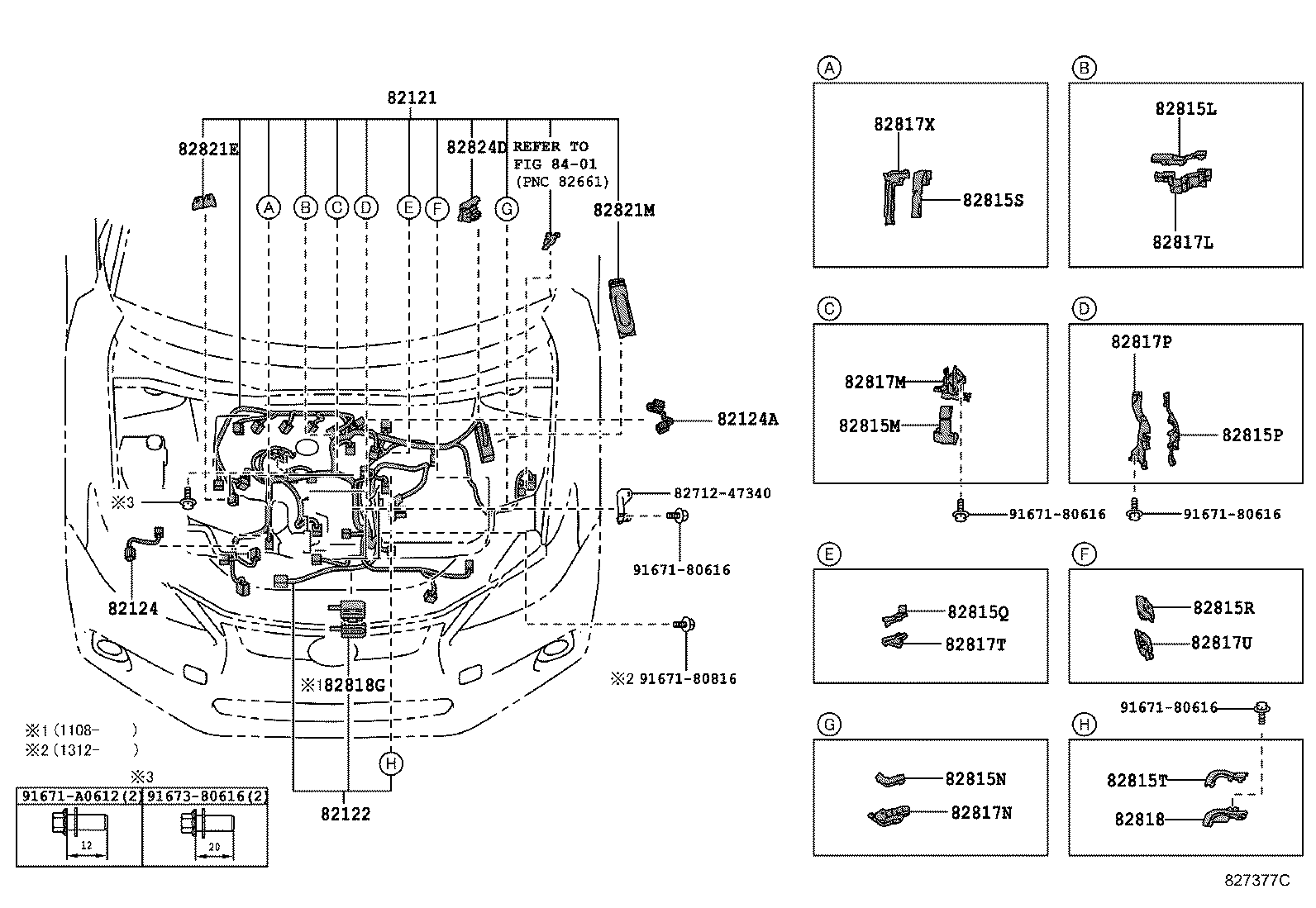

Figure 827337C 827337C 2010-12 → 2013-12 Figure 829306 829306 2013-12 → — Figure 827377C 827377C 2010-12 → — Figure 827339C 827339C 2010-12 → 2013-12 Figure 829307A 829307A 2013-12 → — Figure 827342A 827342A 2010-12 → — Figure 827381E 827381E 2010-12 → 2013-12 Figure 829308F 829308F 2013-12 → — Figure 827344D 827344D 2010-12 → — Figure 827346D 827346D 2010-12 → — Figure 827355B 827355B 2010-12 → — Figure 827391 827391 2010-12 → — Figure 827400F 827400F 2010-12 → — Figure 827401G 827401G 2010-12 → — Figure 82E098 82E098 2010-12 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82124A Wire, Engine, NO.5
82133 Wire, Cowl, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82171 Wire, Roof, NO.1
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
82505A Wiring Sub-assy, Front Door
82620 Block Assy, Fusible Link
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666Z Holder, Connector NO.19
82712A Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82821A Cover, Connector
82821E Cover, Connector
82821G Cover, Connector(FOR DIAGNOSIS)
82821H Cover, Connector
82821M Cover, Connector
82821R Cover, Connector
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824M Connector, Wiring Harness
86011G Condenser
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
