Toyota Lexus CT200H

2010-12 → 2022-10 · chassis ZWA10 · catalogue 232110 · Japan

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

25 part groups · 7 illustrations

Illustrations

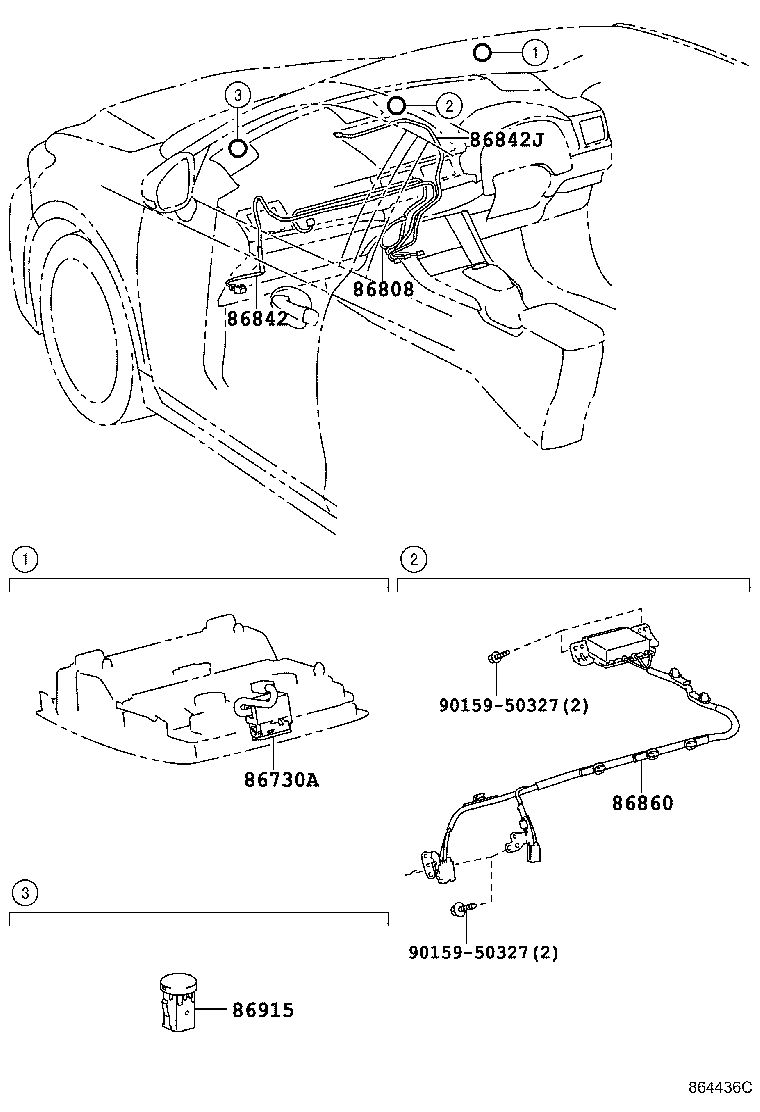

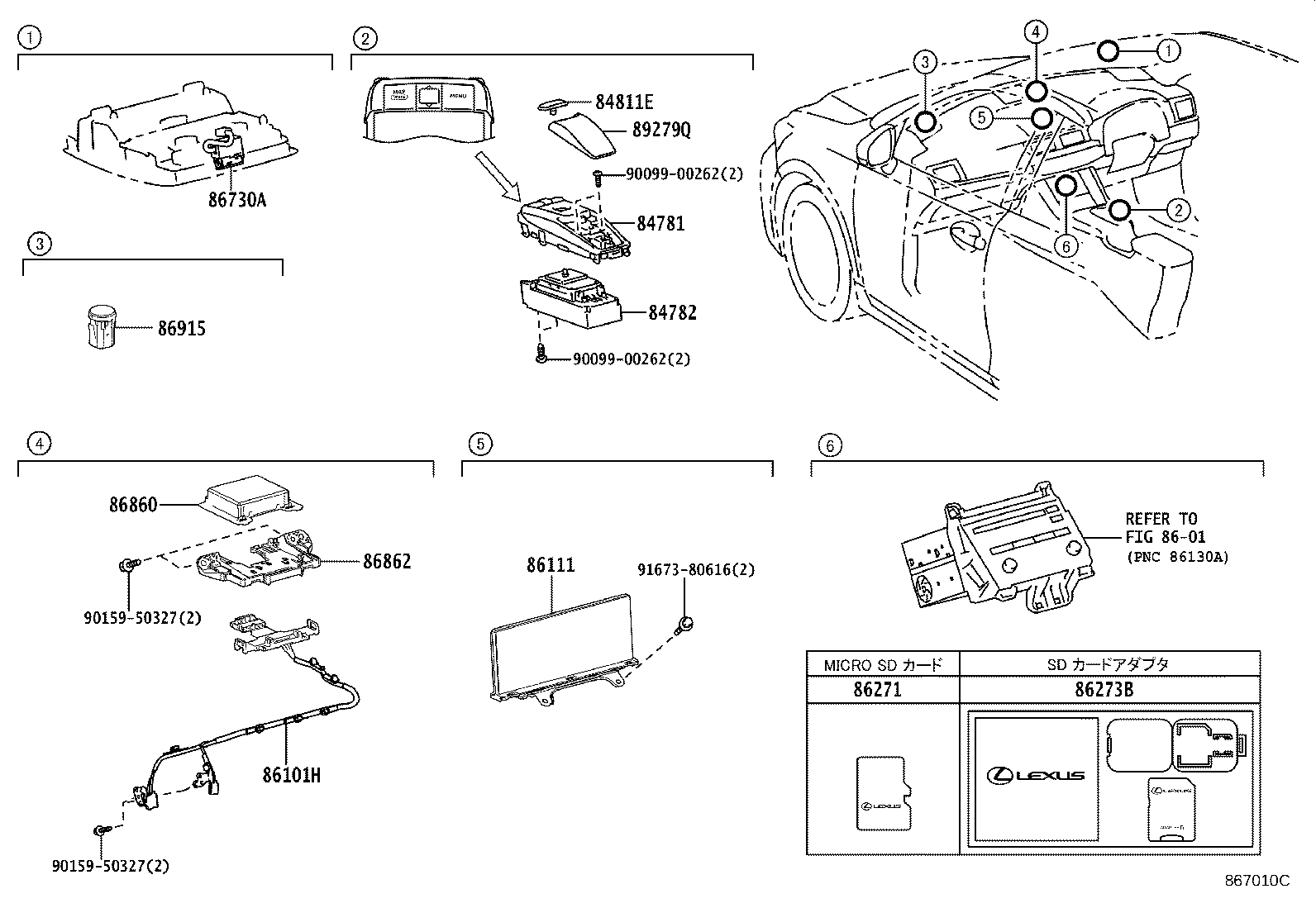

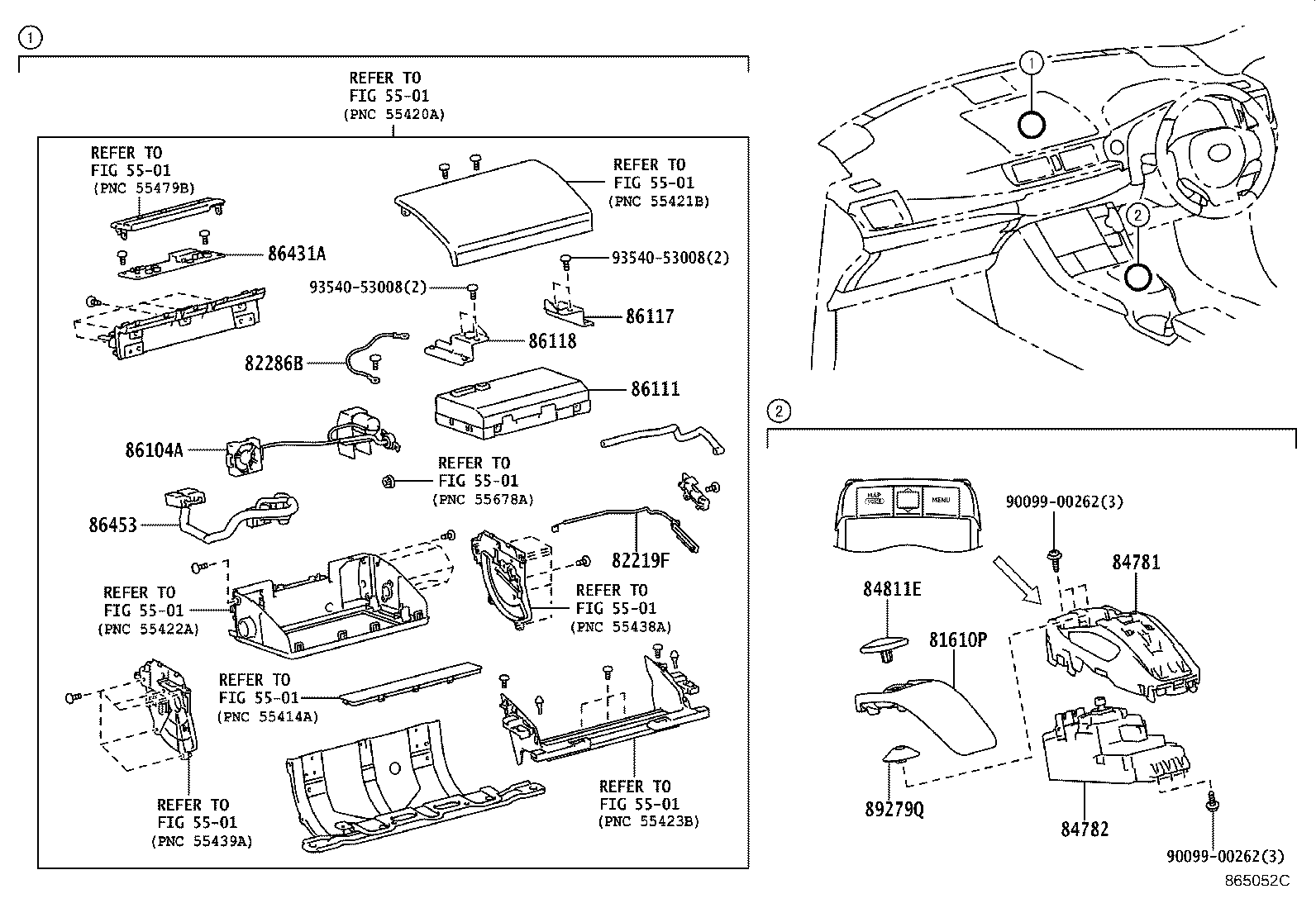

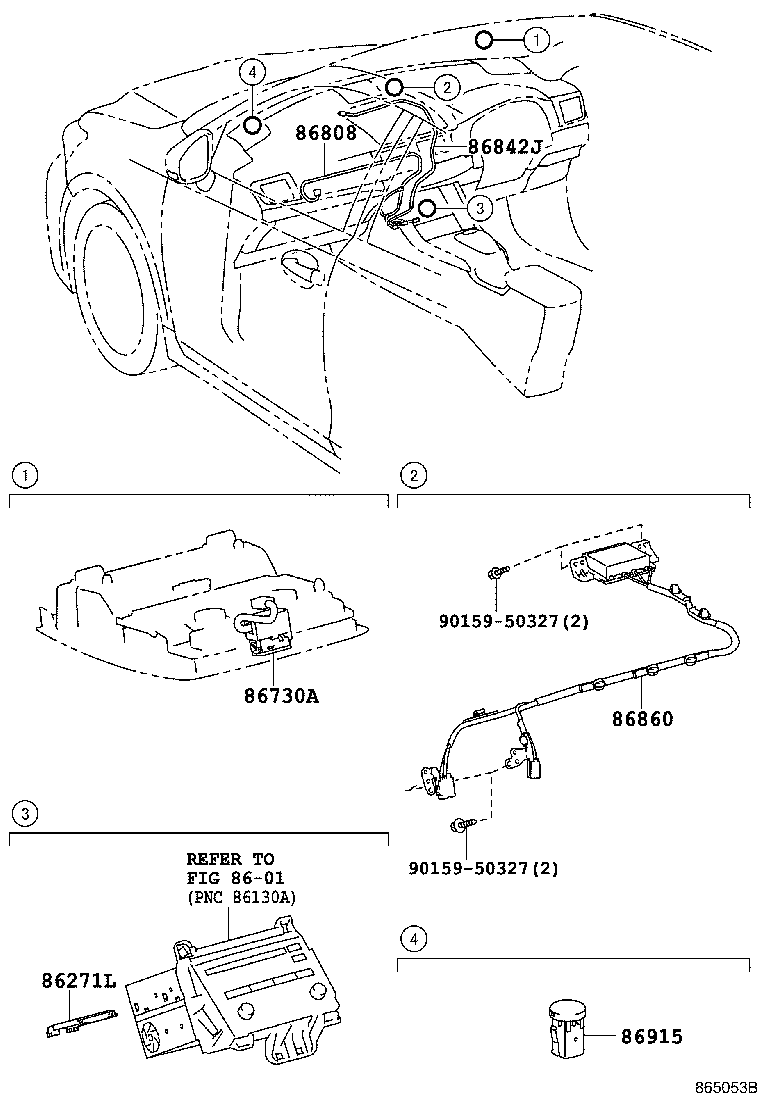

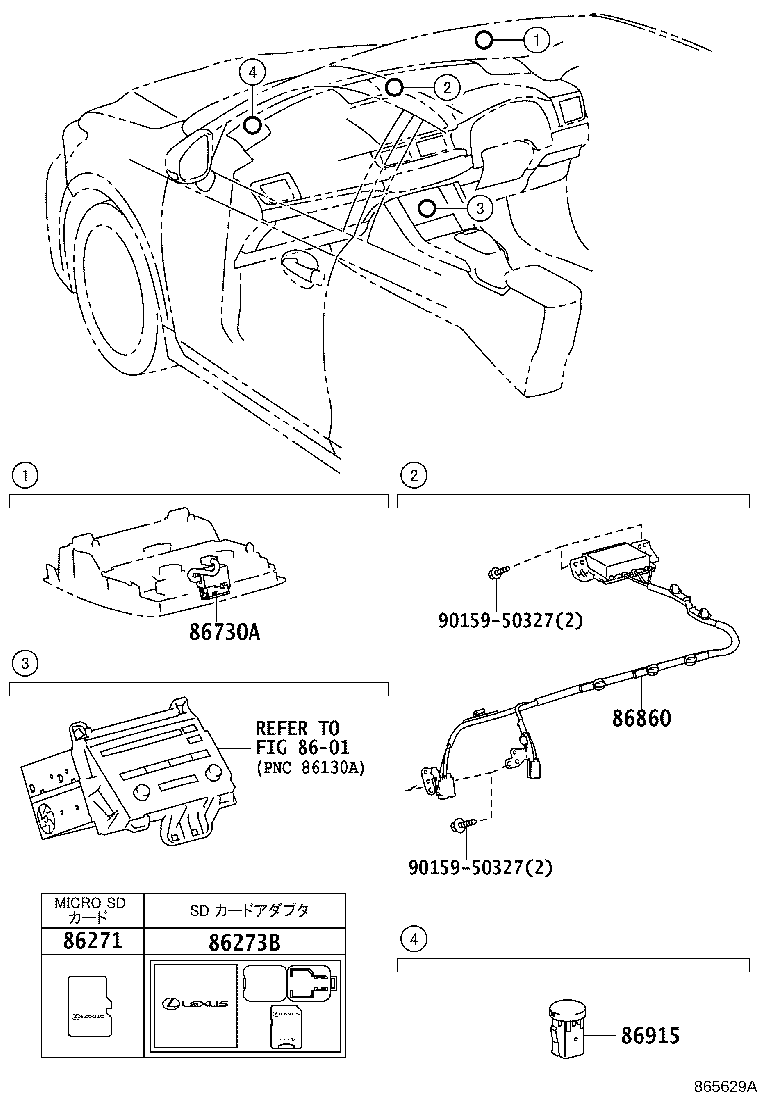

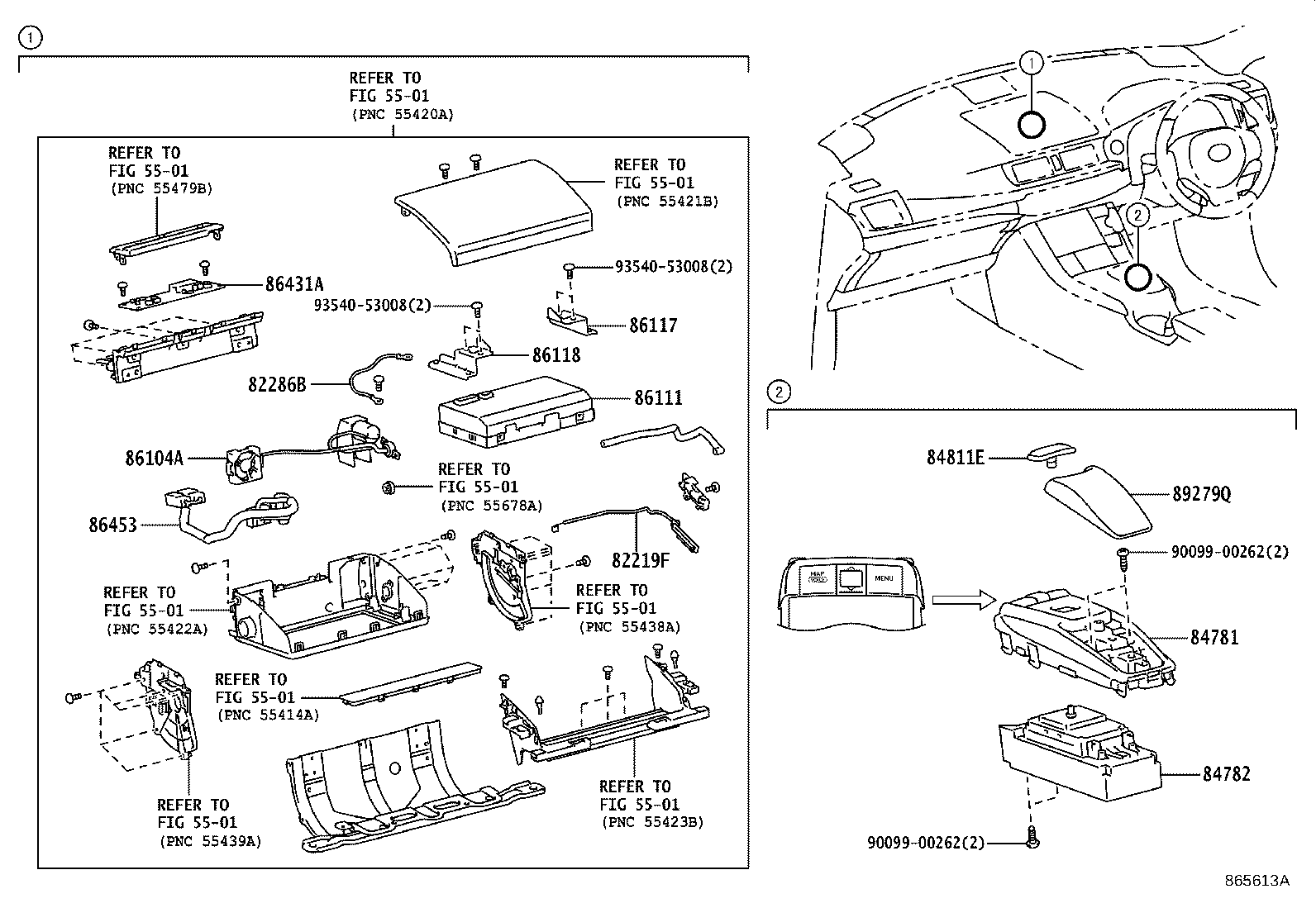

Figure 864471D 864471D 2010-12 → 2012-08 Figure 865052C 865052C 2012-08 → 2013-12 Figure 865613A 865613A 2013-12 → 2017-08 Figure 864436C 864436C 2010-12 → 2012-08 Figure 865053B 865053B 2012-08 → 2013-12 Figure 865629A 865629A 2013-12 → 2017-08 Figure 867010C 867010C 2017-08 → —

Part groups

PNCDescription
81610P Cover Assy, RH
82219F Wire, Sensor
82286B Wire, Earth, NO.2
84013D Panel Sub-assy, Integration
84781 Switch, Remote Operation
84782 Board, Remote Operation
84811E Knob, Switch
86101H Cord Sub-assy, Antenna
86104A Controller Sub-assy, Multi-display
86111 Multi-display
86117 Bracket, Multi-display Controller, A
86118 Bracket, Multi-display Controler, B
86271 Disc, Disc Player
86271L Hard Disc
86273B Adapter, Disc Player
86431A Board, Display Module
86453 Wire, Multi-media Module
86730A Microphone Assy, Telephone
86808 Cord Sub-assy, Navigation Antenna, NO.1
86842 Wire, Navigation, NO.1
86842J Wire, Navigation, NO.2
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
86915 Transceiver, Optical Beacon
89279Q Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
