Toyota Lexus CT200H

2010-12 → 2022-10 · chassis ZWA10 · catalogue 232110 · Japan

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Communication & Etc

4 part groups · 2 illustrations

Illustrations

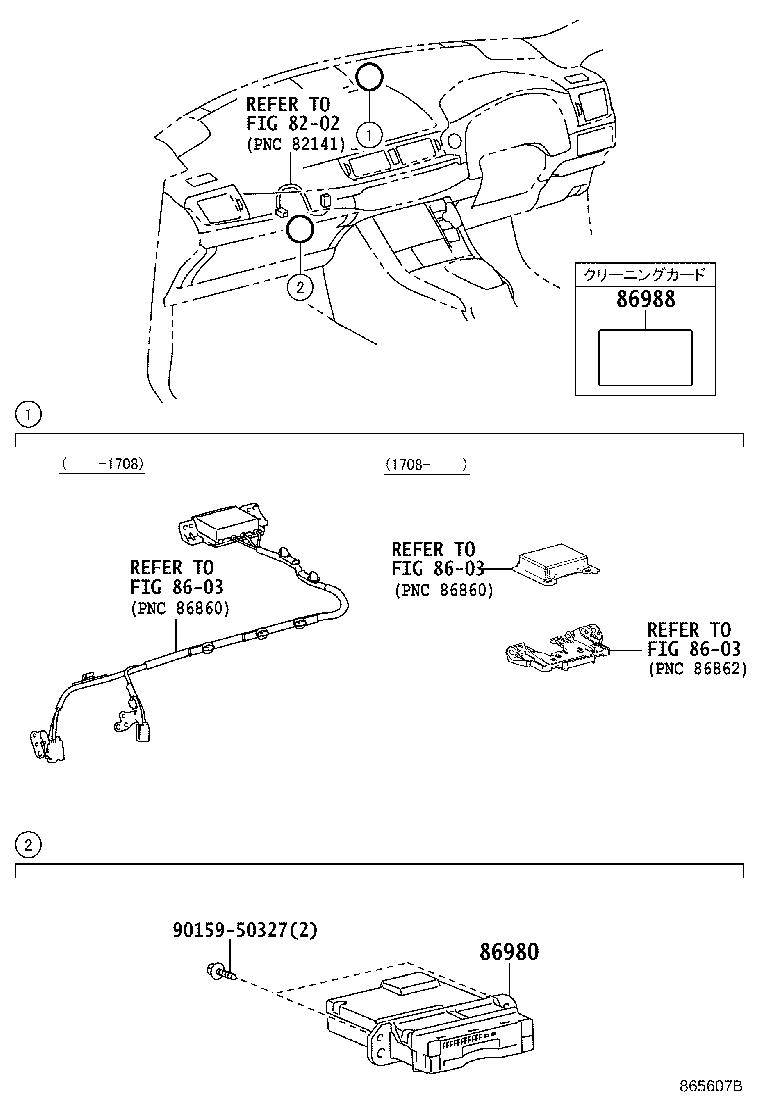

Figure 864417A 864417A 2010-12 → 2013-12 Figure 865607B 865607B 2013-12 → —

Part groups

PNCDescription
86980 Computer Assy, Toll Collection
86988 Card, Toll Collection Cleaning
86990 Antenna Assy, Toll Collection
86994 Wire, Toll Collection Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
