Toyota Altezza/Altezza Gita

1998-10 → 2005-07 · chassis GXE1#,JCE1#,SXE10 · catalogue 242110 · Japan

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

12 part groups · 5 illustrations

Illustrations

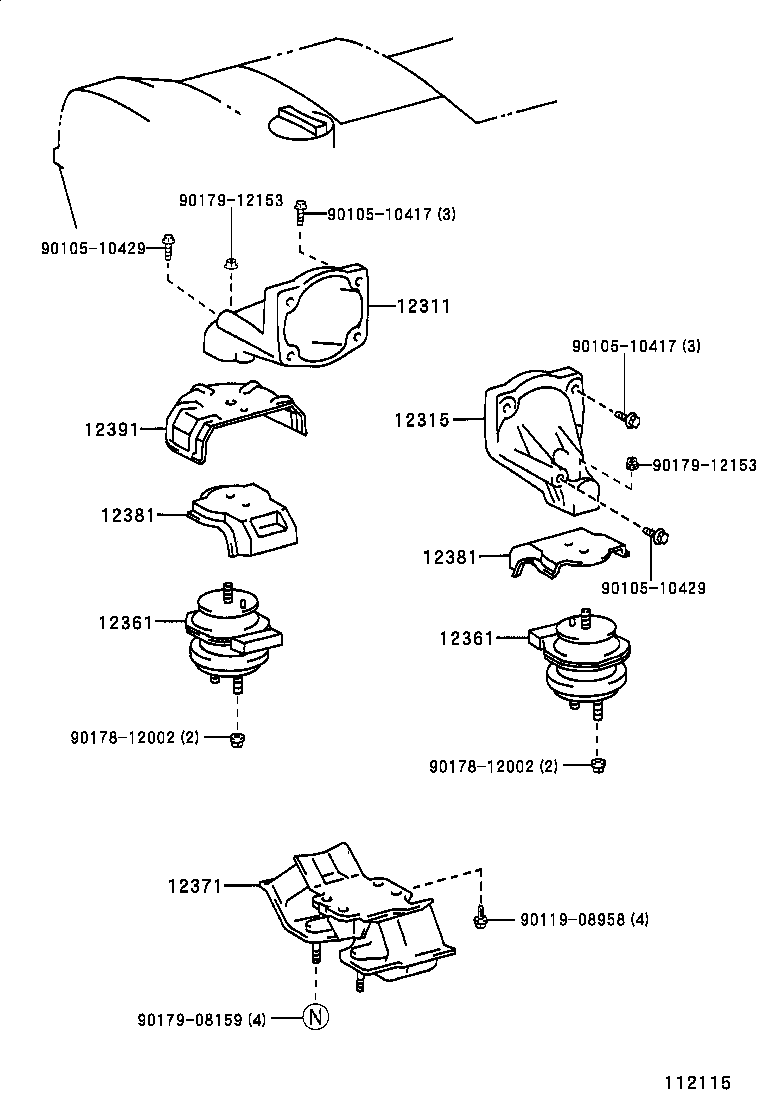

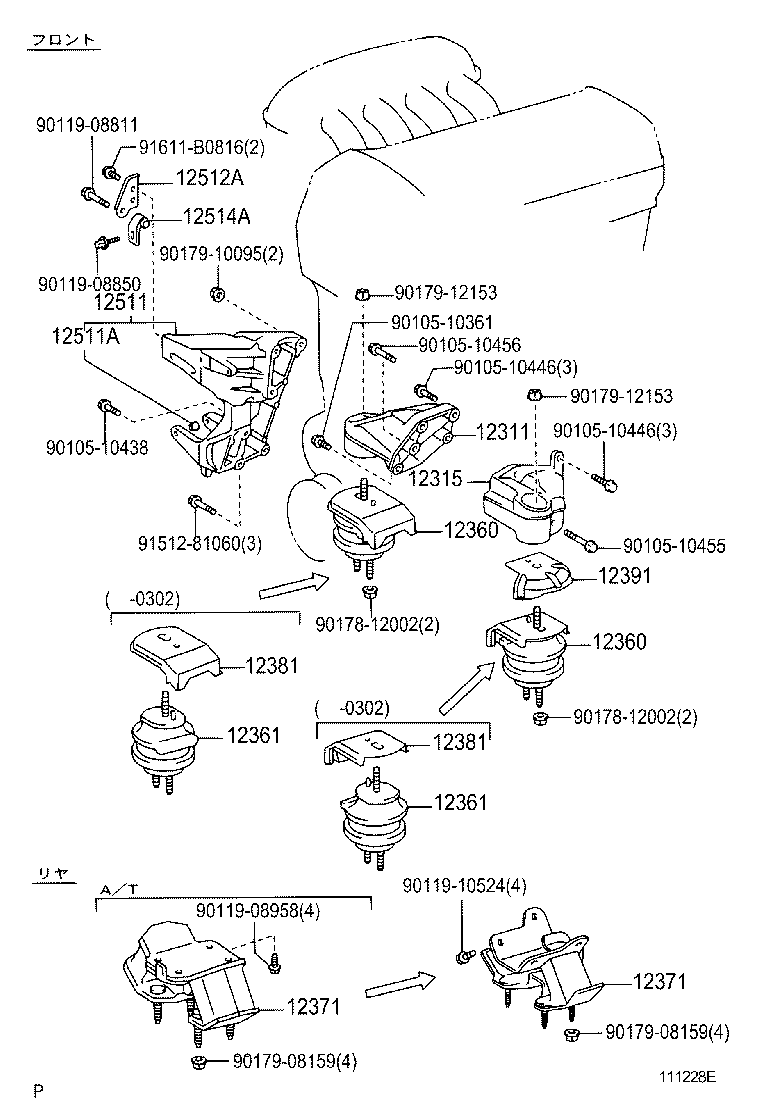

Figure 111255B 111255B 1998-10 → — Figure 111193B 111193B 2002-01 → — Figure 112115 112115 2001-06 → — Figure 112058C 112058C 2001-06 → — Figure 111228E 111228E 1998-10 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12360 Insulator Assy, Engine Mounting, Front
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12391 Insulator, Engine Mounting Front, Heat, RH
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
12512A Bracket, Alternator, NO.2
12514A Slider, Fan Belt Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
