Toyota Altezza/Altezza Gita

1998-10 → 2005-07 · chassis GXE1#,JCE1#,SXE10 · catalogue 242110 · Japan

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

14 part groups · 5 illustrations

Illustrations

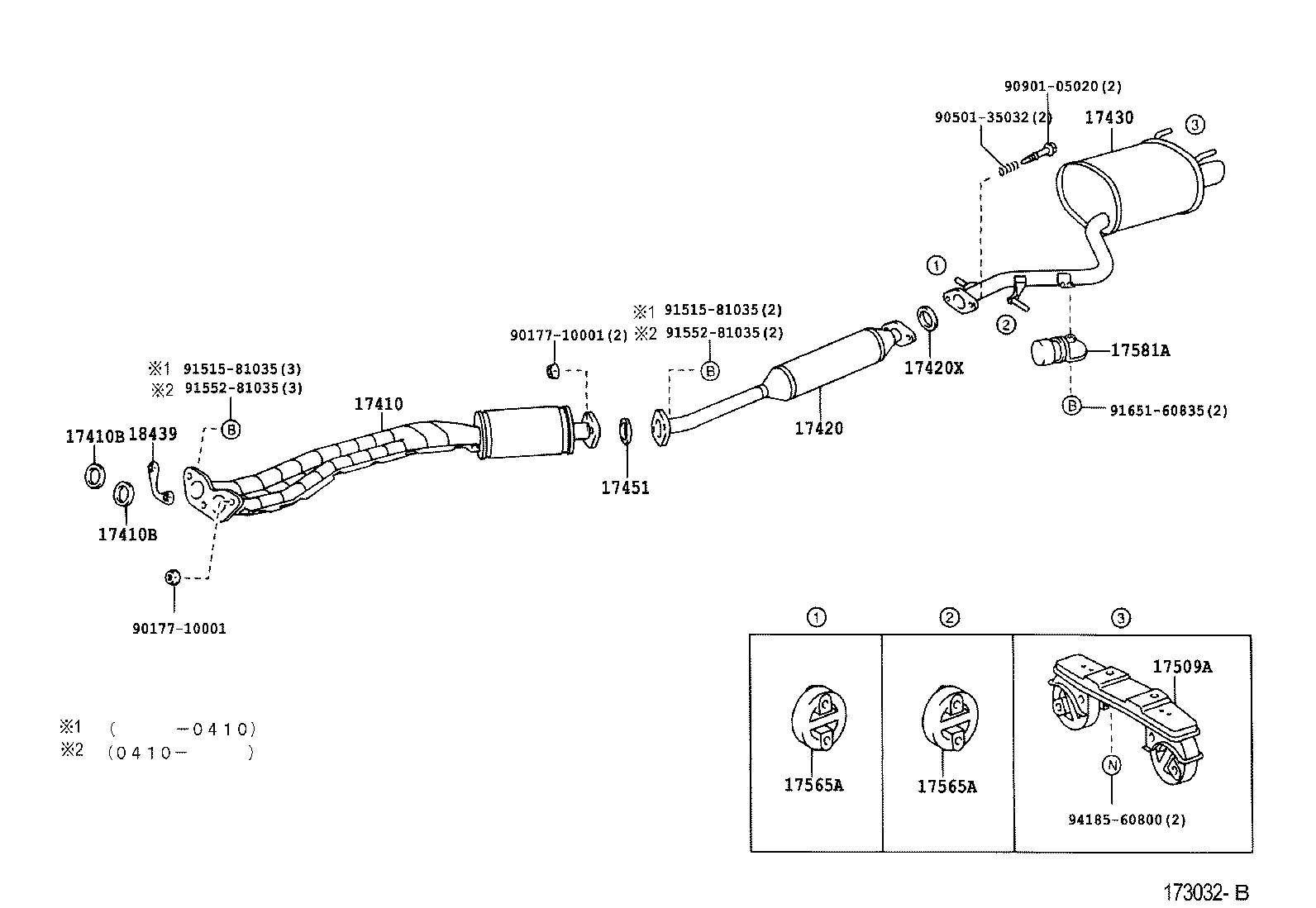

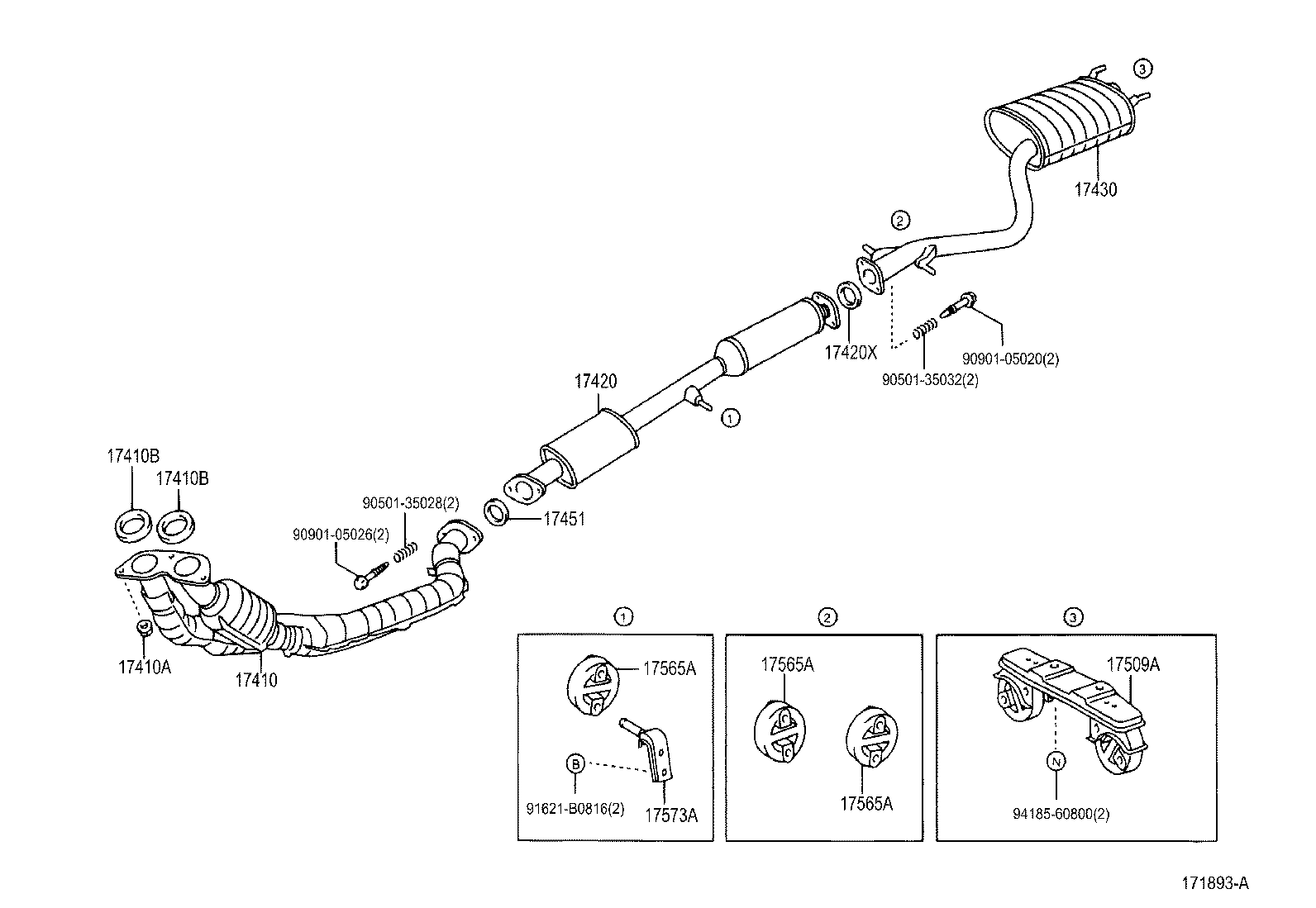

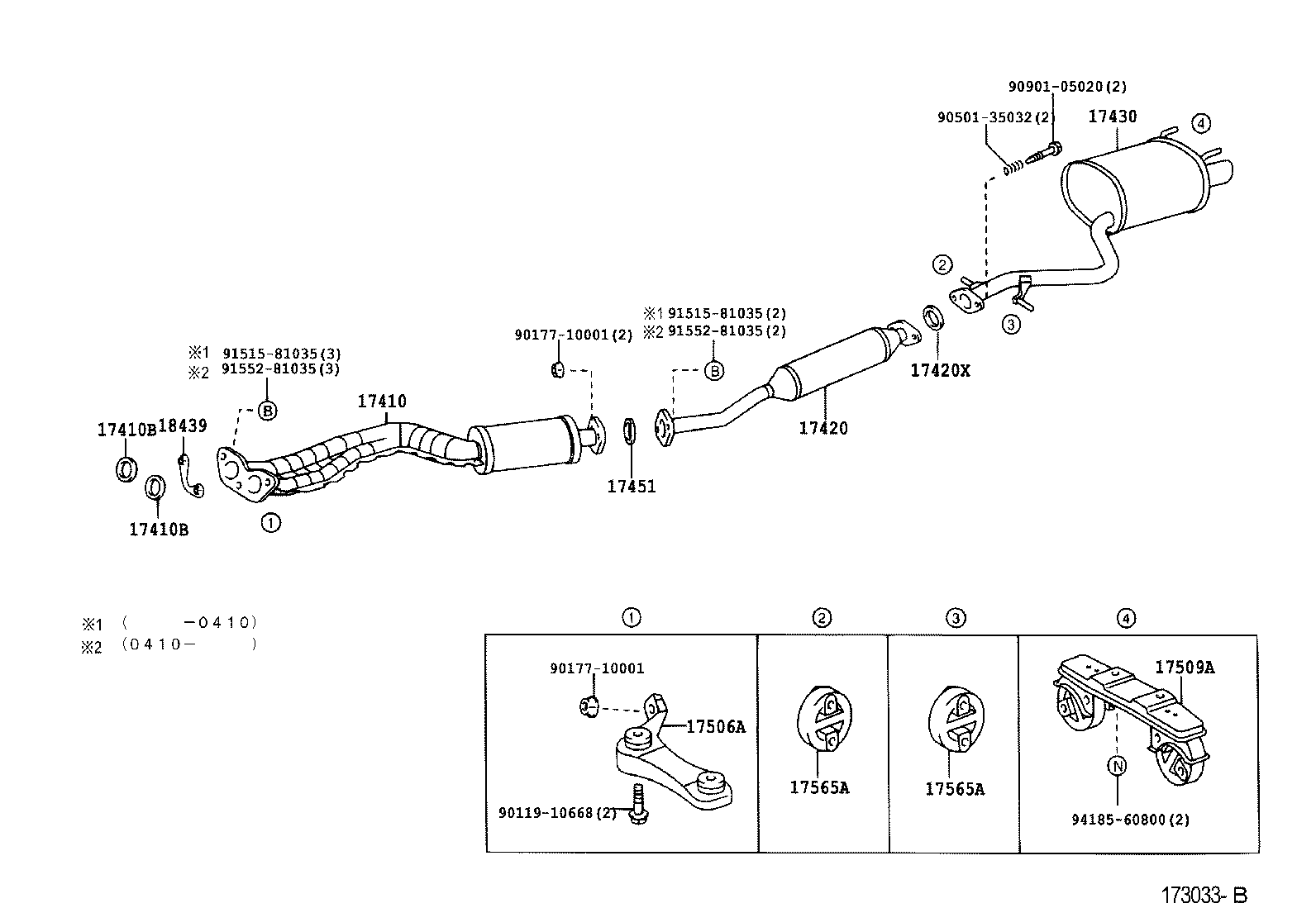

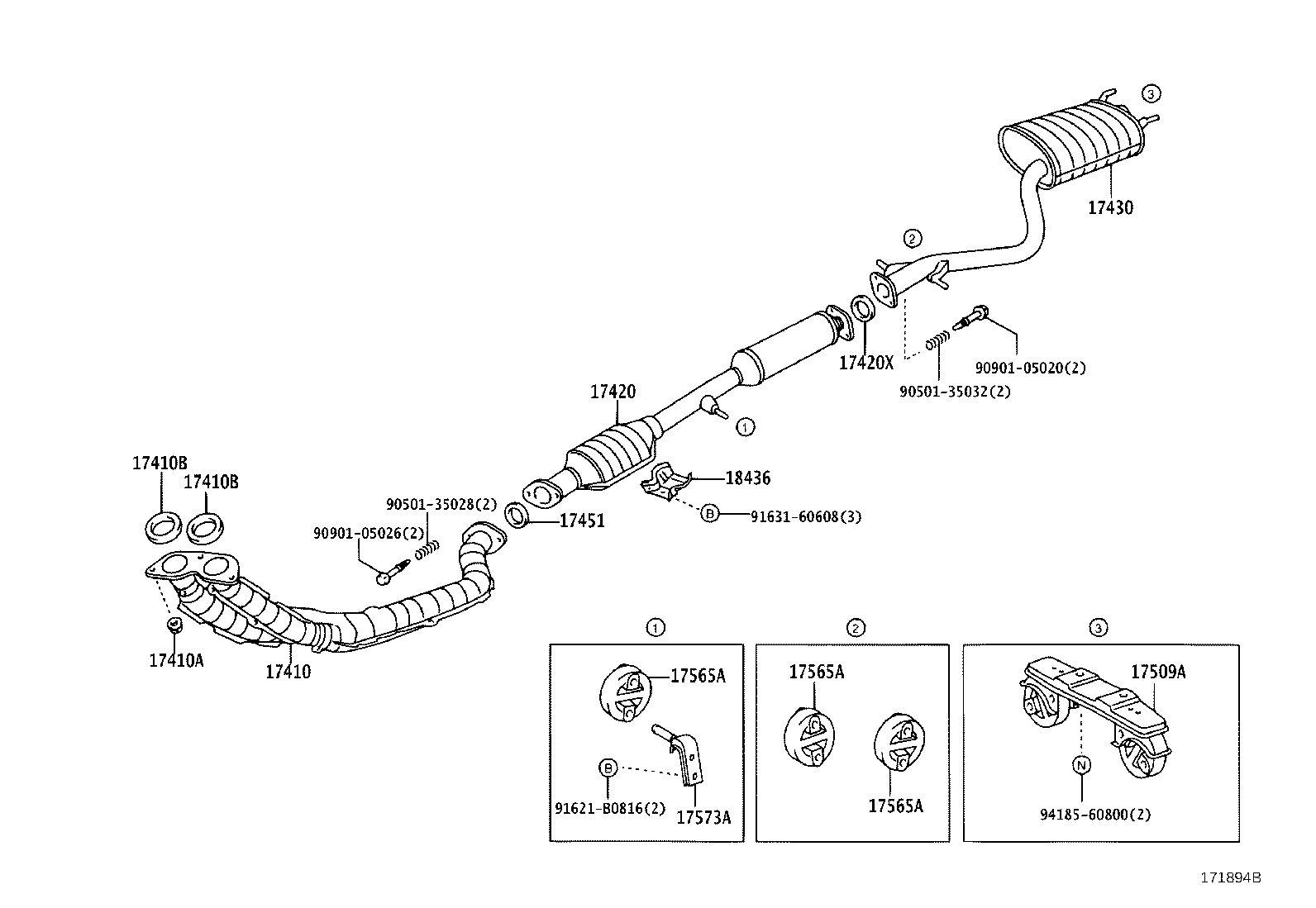

Figure 171895D 171895D 1998-10 → — Figure 171893A 171893A 1998-10 → — Figure 171894B 171894B 1998-10 → — Figure 173032B 173032B 2001-06 → — Figure 173033B 173033B 2001-06 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17565A Support, Exhaust Pipe, NO.4
17573A Bracket, Exhaust Pipe Support, NO.3
17581A Damper, Exhaust Pipe
18436 Protector, Monolithic Converter, NO.1
18439 Bracket, Convertor Protector, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
