Toyota Altezza/Altezza Gita
1998-10 → 2005-07 · chassis GXE1#,JCE1#,SXE10 · catalogue 242110 · Japan
Discontinued model
Data version 2006-01

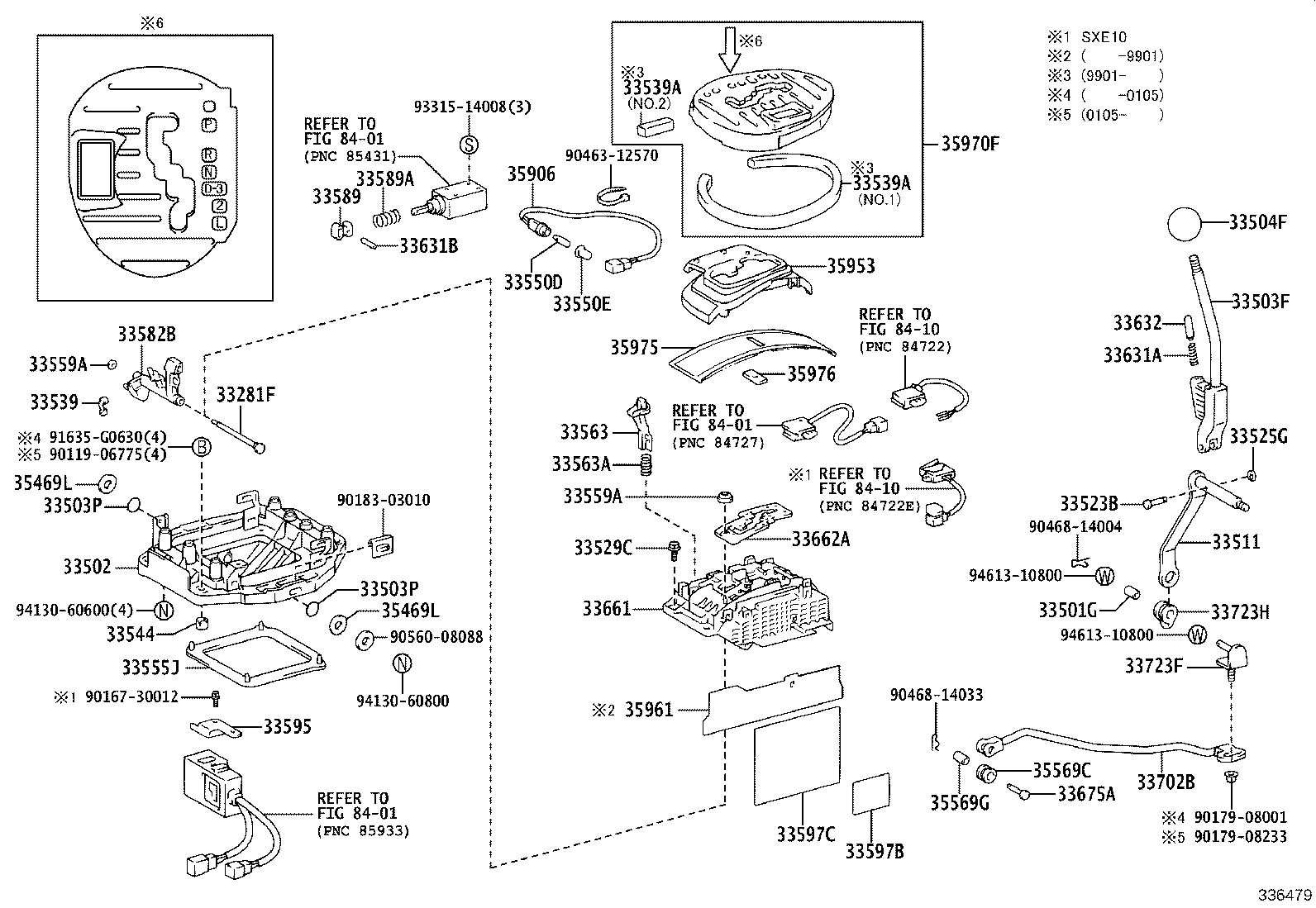

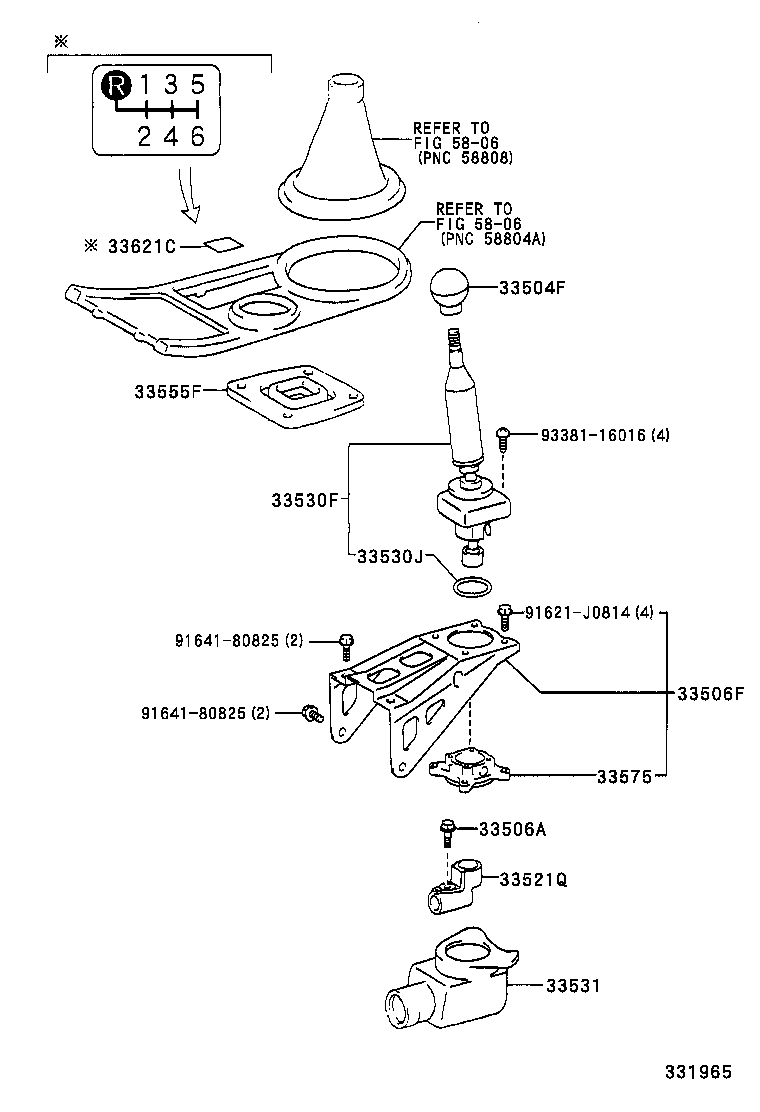

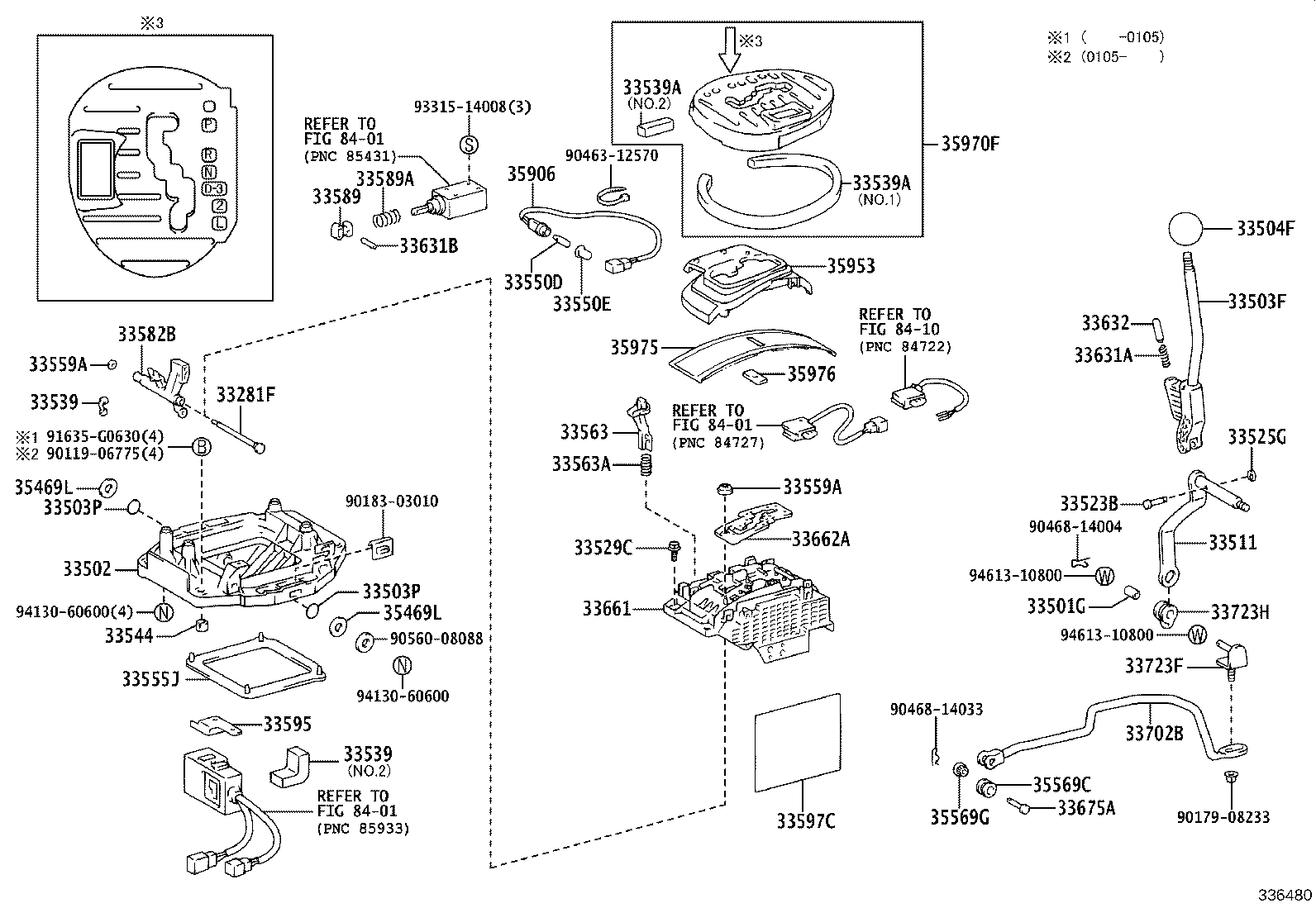

Shift Lever & Retainer
52 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 33281F | Pin, Lever Lock (FOR FLOOR SHIFT) |
| 33501G | Bush (FOR FLOOR SHIFT CONTROL SHAFT) |
| 33502 | Plate Sub-assy, Shift Lever |
| 33503F | Lever Sub-assy, Shift(FOR FLOOR SHIFT) |
| 33503P | Ring, O(FOR SHIFT LEVER) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33506A | Bolt (FOR CONTROL SHIFT LEVER RETAINER) |
| 33506F | Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT) |
| 33511 | Shaft, Control (FOR FLOOR SHIFT) |
| 33521Q | Housing, Shift Lever (FOR FLOOR SHIFT) |
| 33523B | Pin, Shift Lever (FOR FLOOR SHIFT) |
| 33525G | Ring, Shift Lever |
| 33529C | Bolt, Shift Lever |
| 33530F | Lever Assy, Shift (FOR FLOOR SHIFT) |
| 33530J | Ring, O (FOR SHIFT LEVER) |
| 33531 | Boot, Dust (FOR CONTROL SHIFT LEVER) |
| 33539 | Cushion, Shift Lever Anti-rattle |
| 33539A | Cushion(FOR POSITION INDICATOR HOUSING) |
| 33544 | Insert, Shift Lever, NO.1 |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33555F | Boot, Shift & Select Lever, NO.2 |
| 33555J | Seal, Shift Lever |
| 33559A | Nut, Shift Lever, NO.1 |
| 33563 | Button, Shift Lock Release |
| 33563A | Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON) |
| 33575 | Retainer, Control Shift Lever (FOR FLOOR SHIFT) |
| 33582B | Stopper, Shift Lock Plate (FOR FLOOR SHIFT) |
| 33589 | Link, Shift Lock Solenoid |
| 33589A | Spring, Compression (FOR SHIFT LOCK SOLENOID LINK) |
| 33595 | Bracket, Shift Lock Computer |
| 33597B | Seat, Shift Lever, NO.1 (FOR FLOOR SHIFT) |
| 33597C | Seat, Shift Lever NO.2 (FOR FLOOR SHIFT) |
| 33621C | Label, Control Lever Information |
| 33631A | Spring, Compression (FOR DETENT ROD) |
| 33631B | Pin, Slotted Spring (FOR DETENT ROD) |
| 33632 | Rod, Detent, NO.2 |
| 33661 | Housing, Shift Lever Guide |
| 33662A | Cushion, Shift Lever Guide |
| 33675A | Pin, W/Hole (FOR TRANSMISSION CONTROL ROD) |
| 33702B | Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT) |
| 33723F | Swivel, Connecting Rod (FOR FLOOR SHIFT) |
| 33723H | Grommet (FOR FLOOR SHIFT CONTROL SHAFT) |
| 35469L | Spacer, Shift Lever |
| 35569C | Grommet (FOR TRANSMISSION CONTROL ROD) |
| 35569G | Bush (FOR TRANSMISSION CONTROL ROD) |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35953 | Guide, Position Indicator Light |
| 35961 | Housing, Position Indicator Lamp |
| 35970F | Housing Assy, Position Indicator |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35976 | Cover, Slide, NO.2 (FOR POSITION INDICATOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
