Toyota Altezza/Altezza Gita

1998-10 → 2005-07 · chassis GXE1#,JCE1#,SXE10 · catalogue 242110 · Japan

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Valve Body & Oil Strainer (ATM)

200 part groups · 14 illustrations

Illustrations

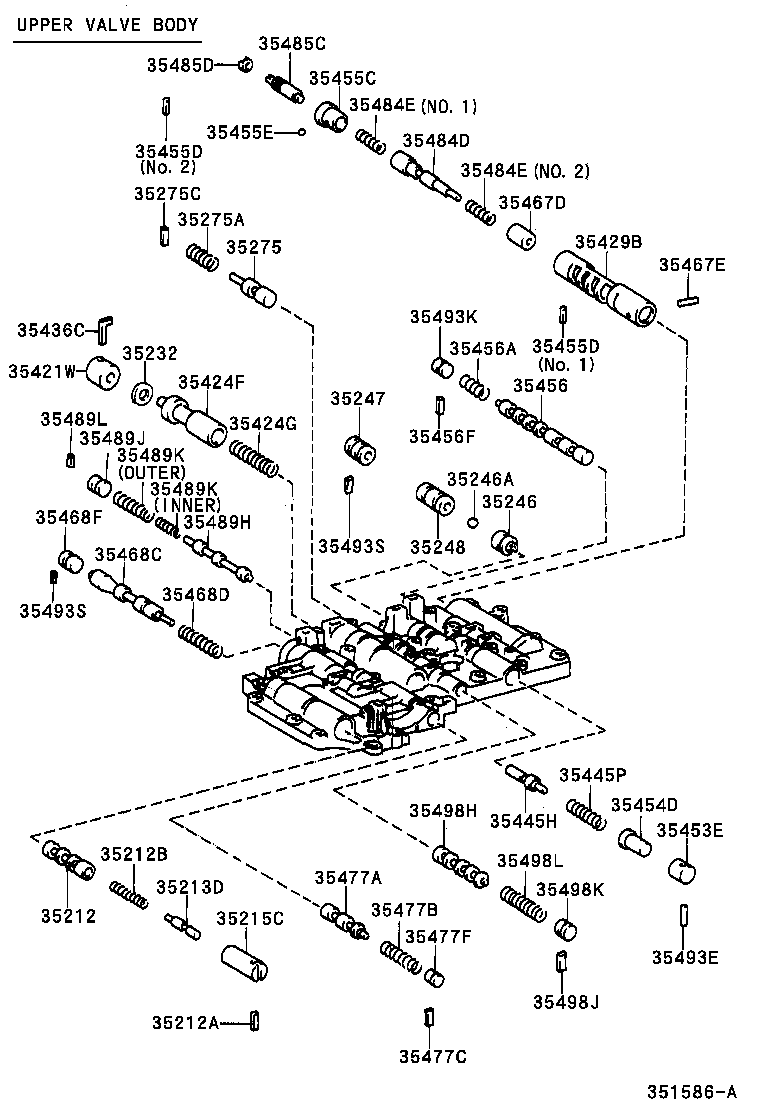

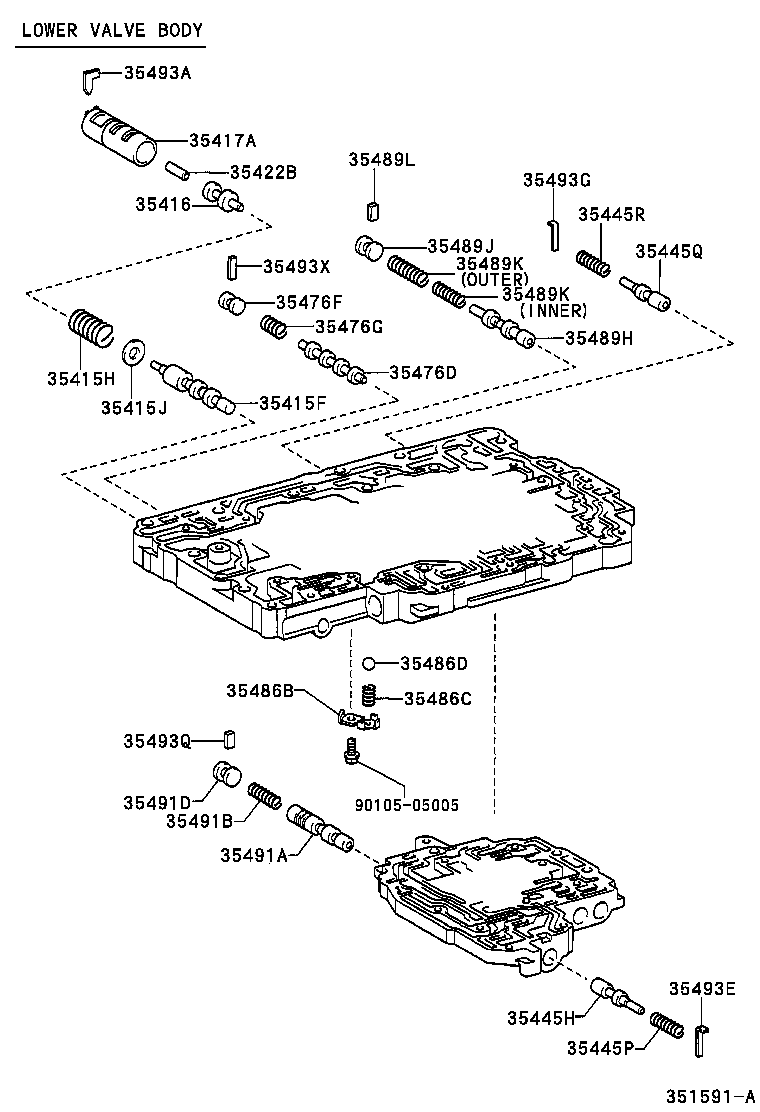

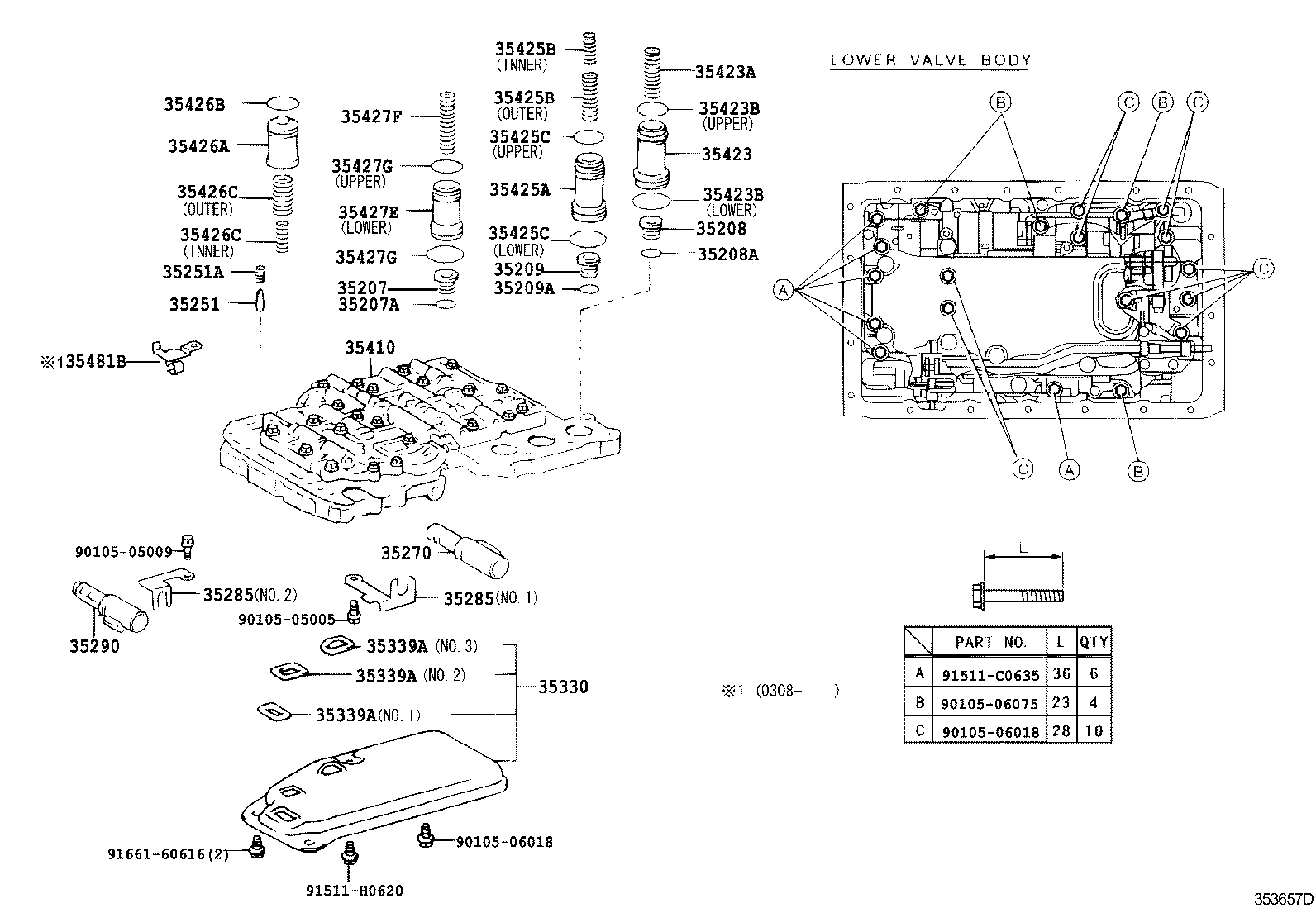

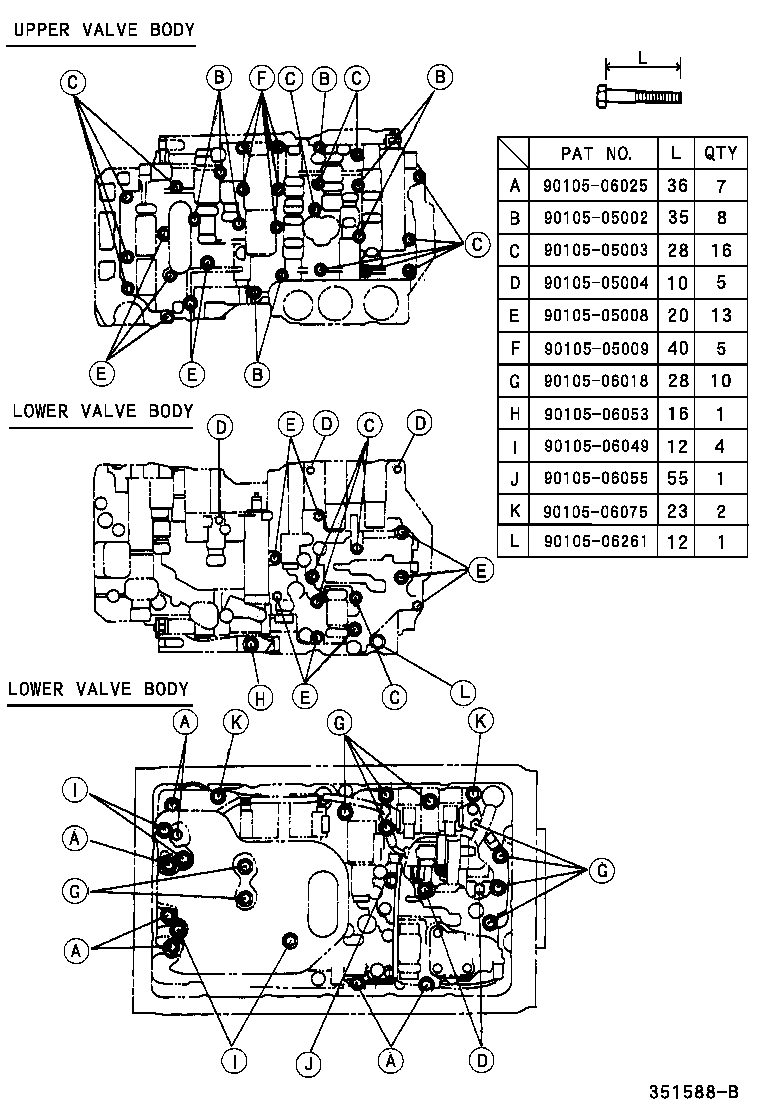

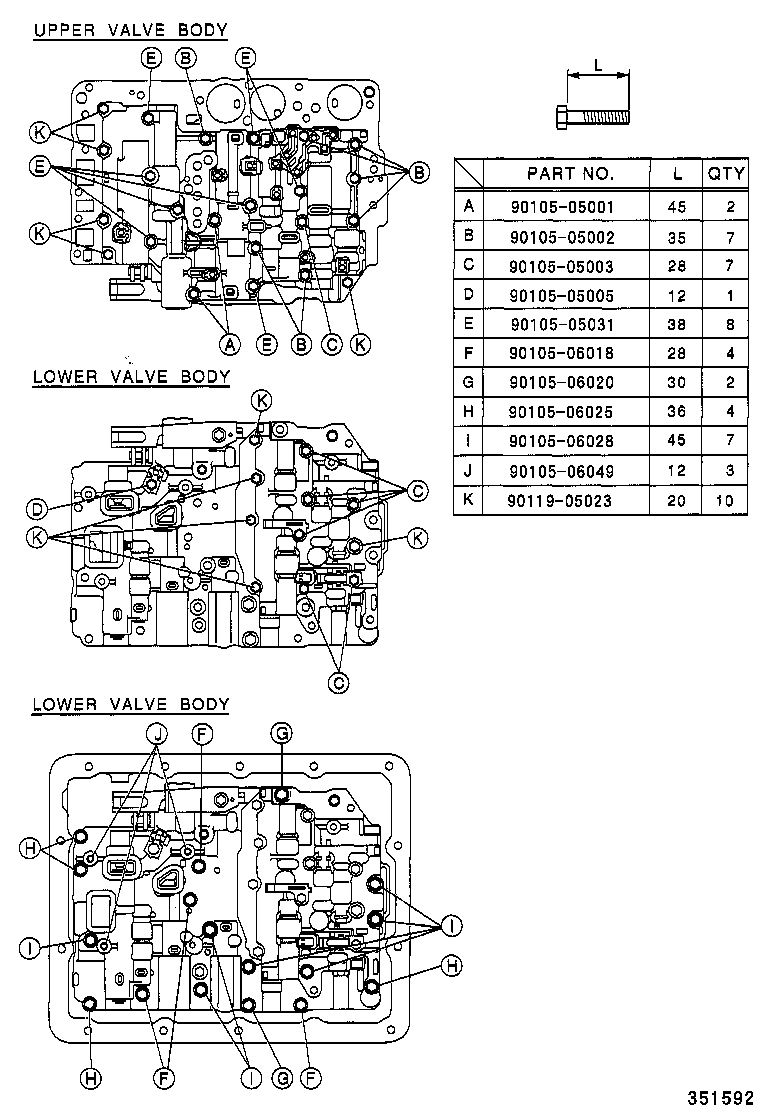

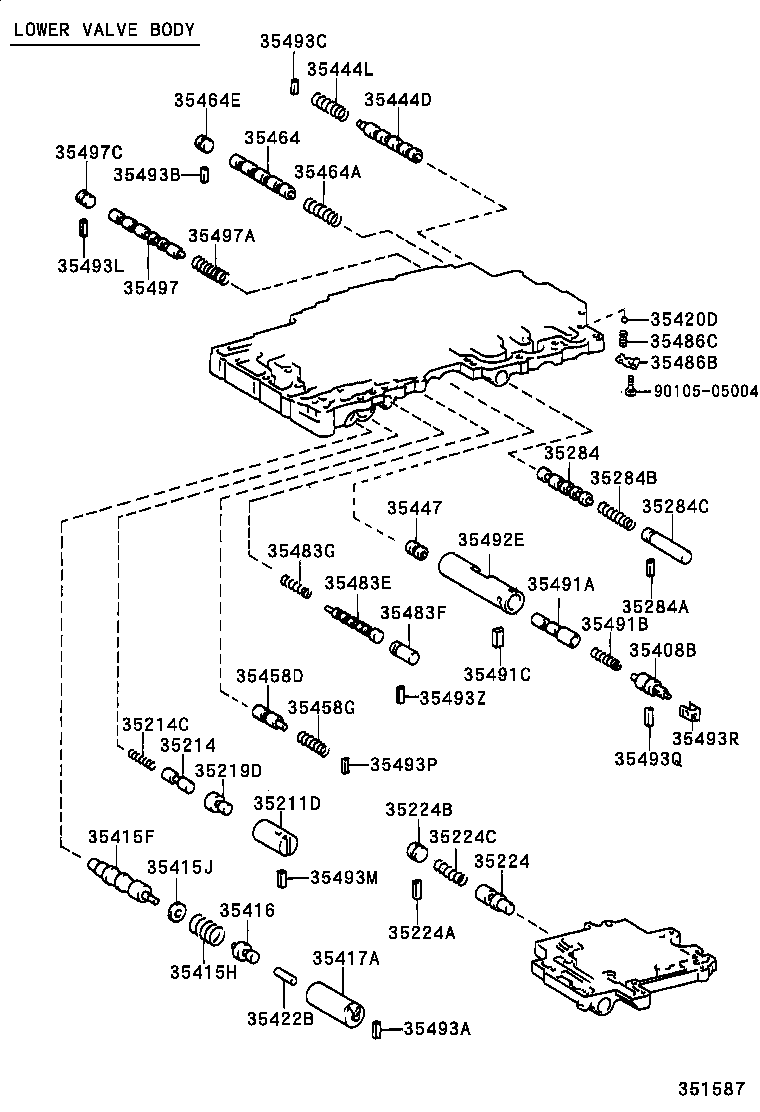

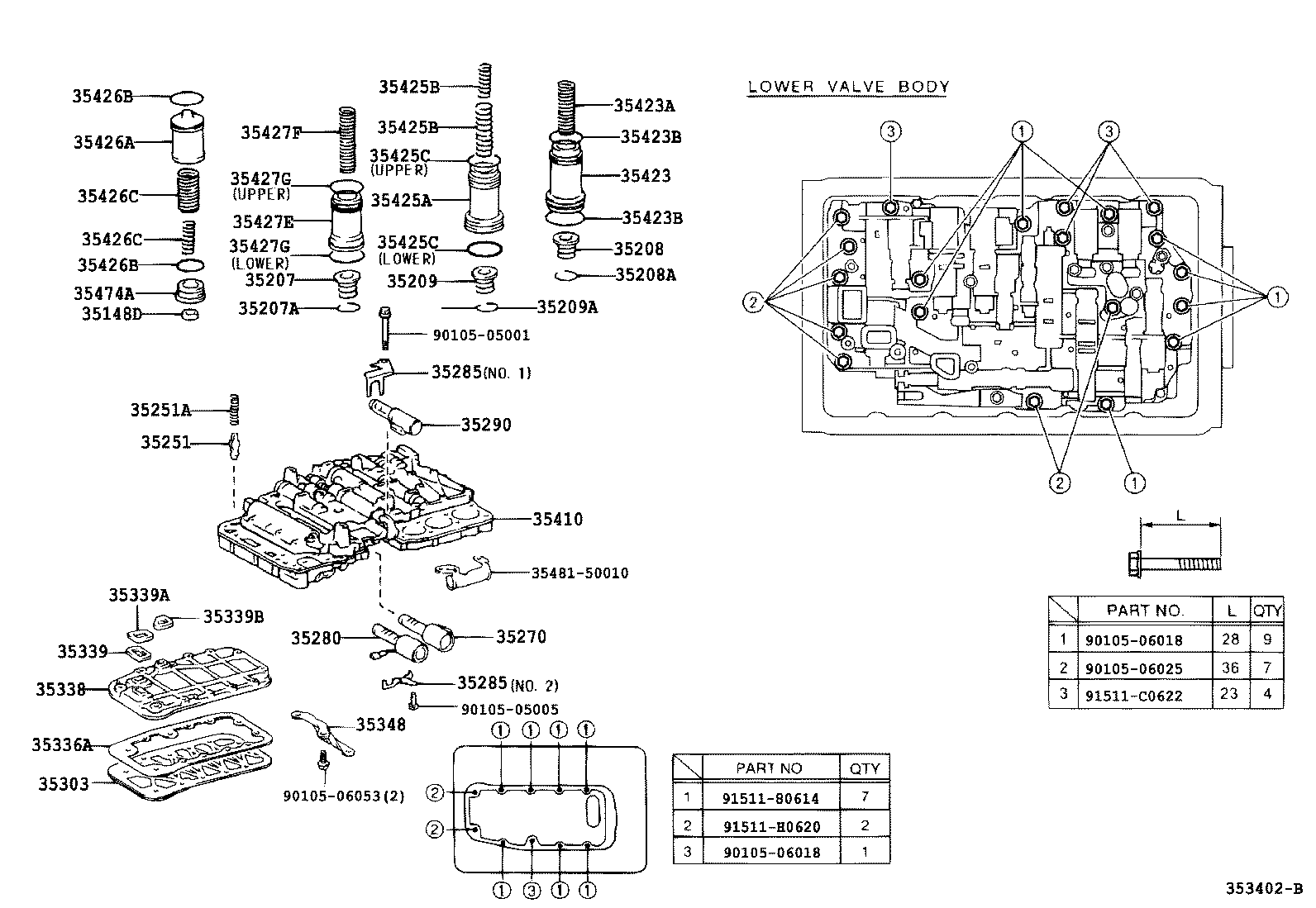

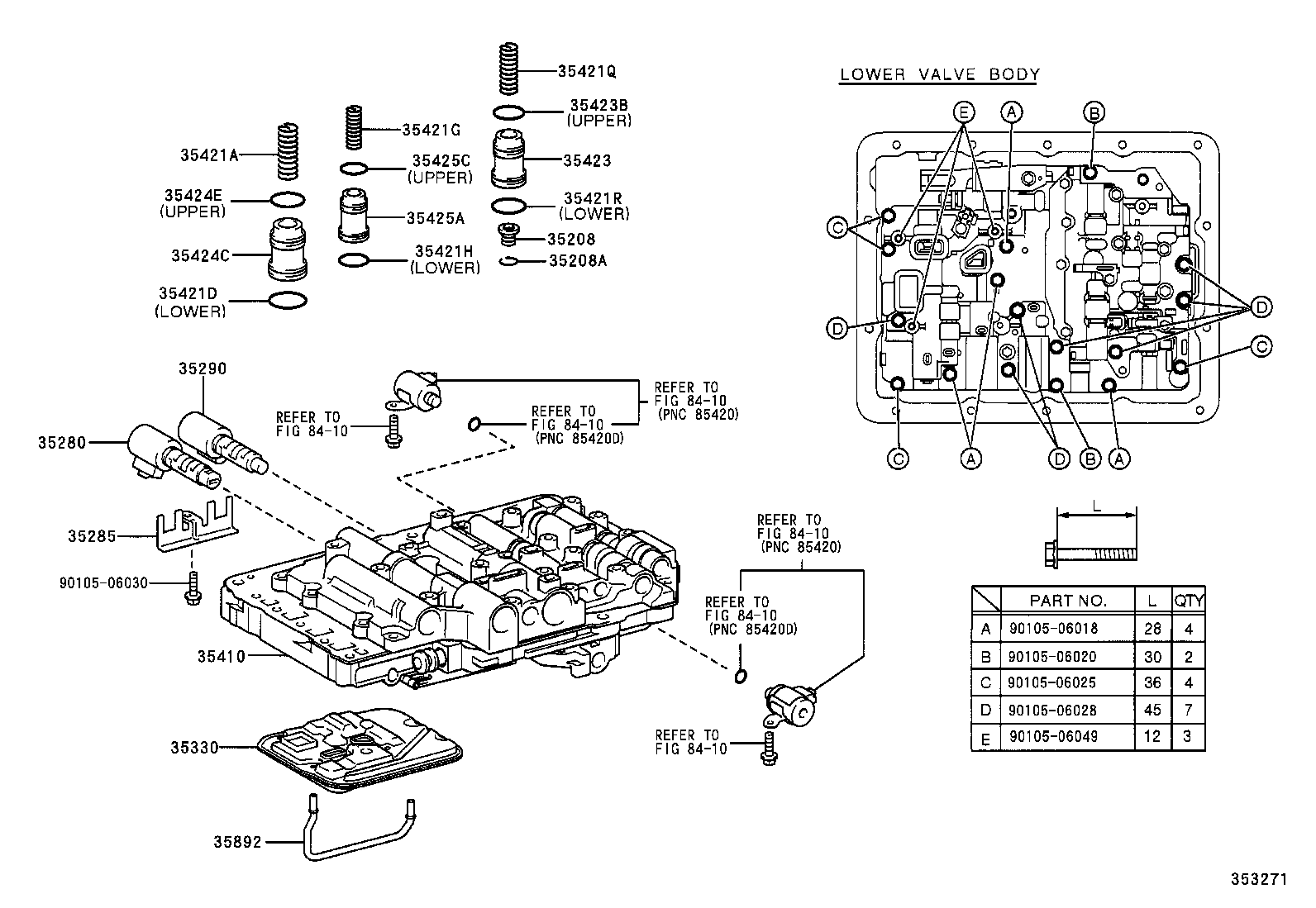

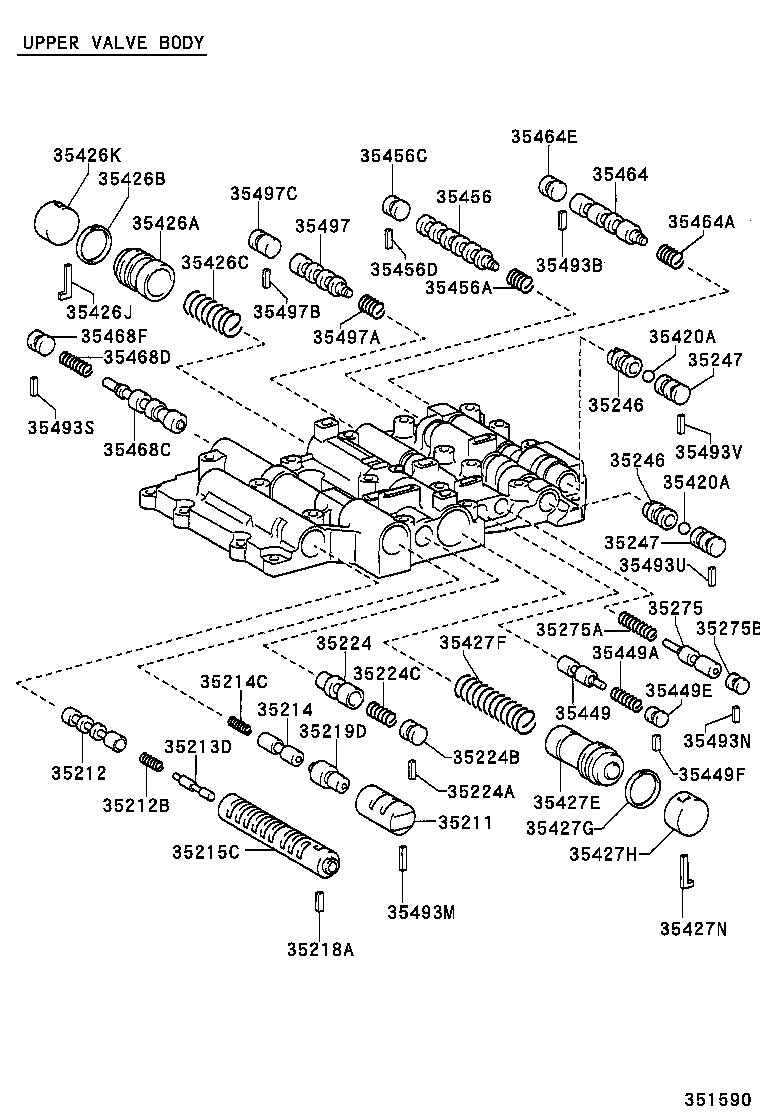

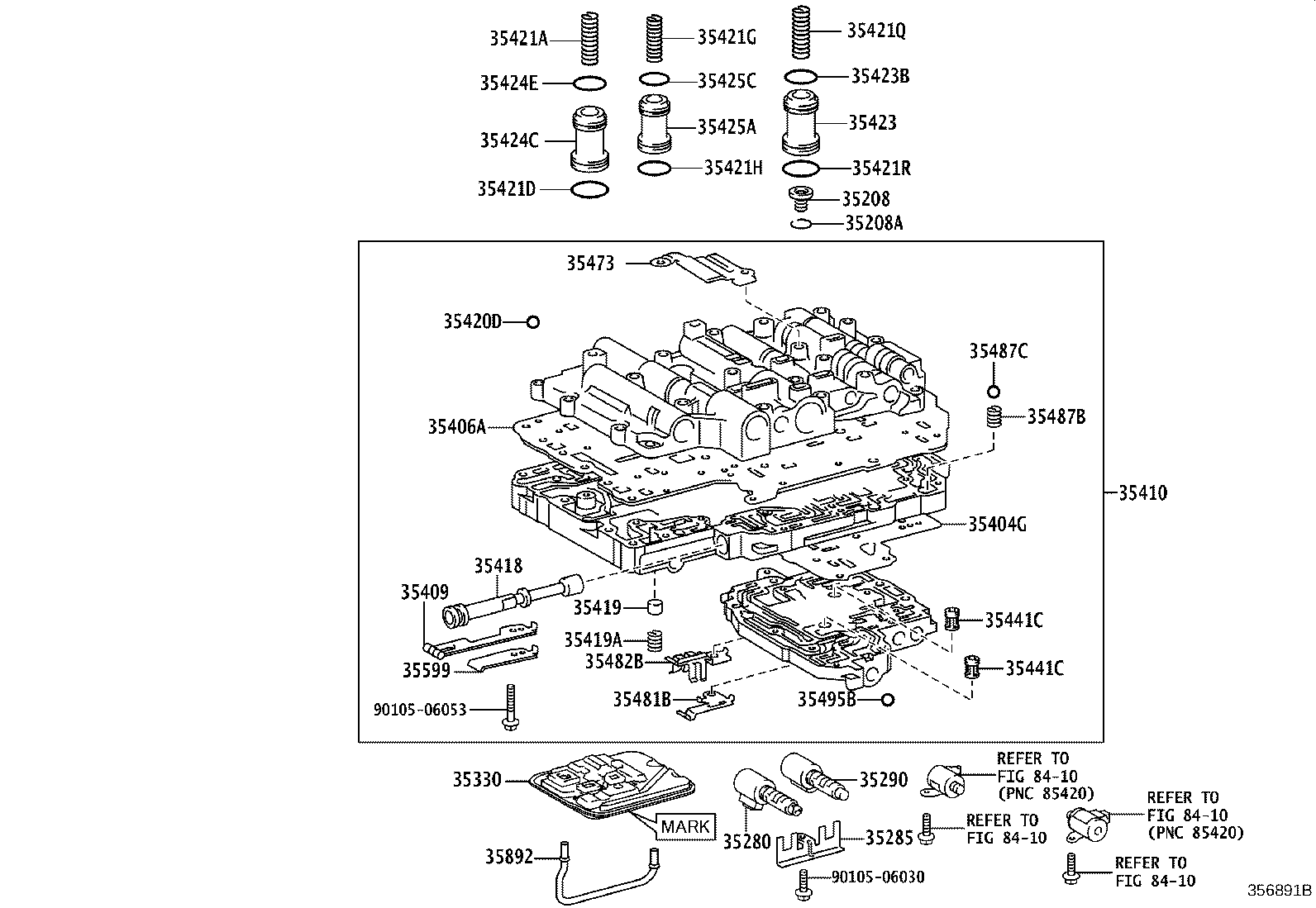

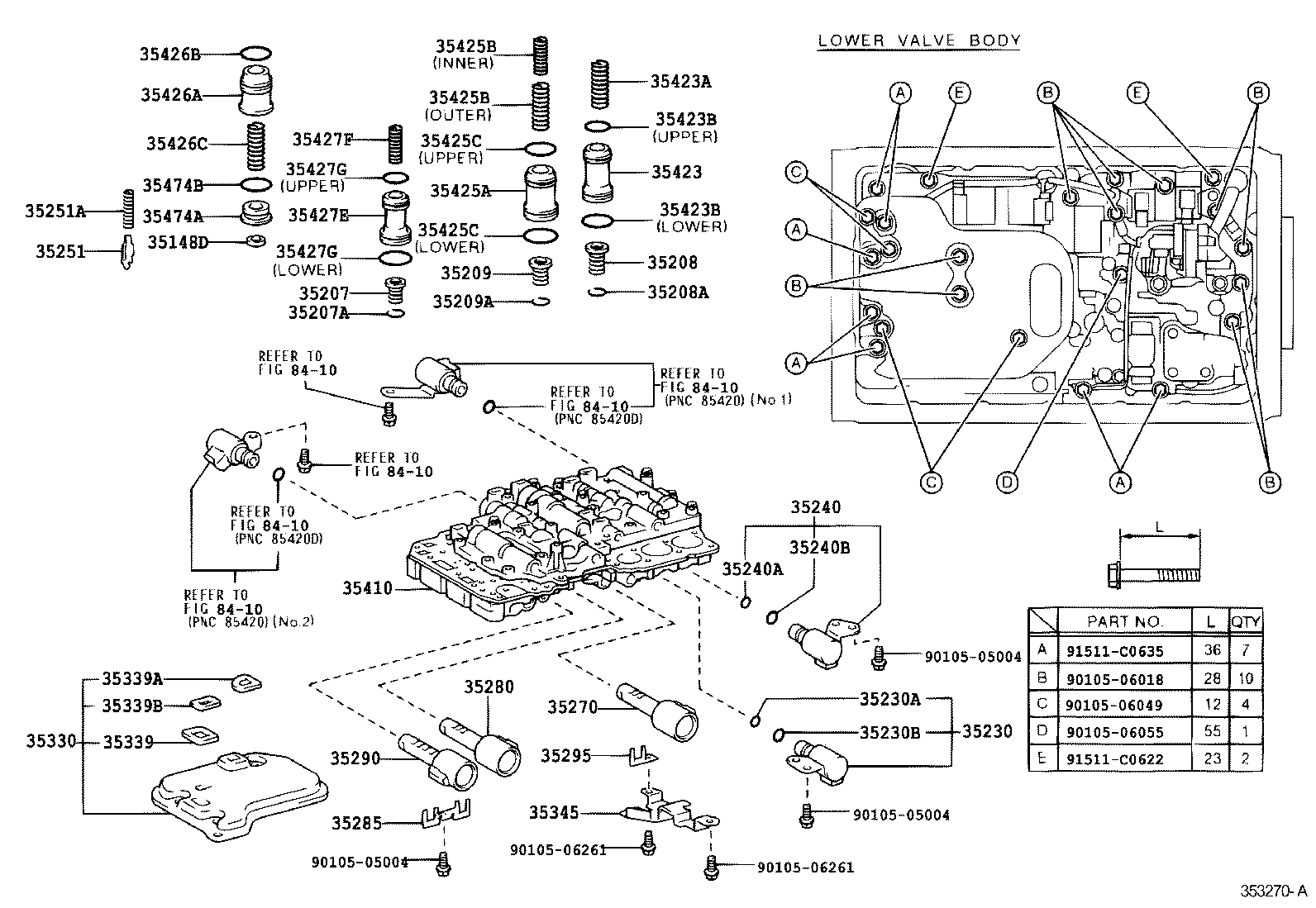

Figure 351585A 351585A 1998-10 → 2001-05 Figure 351586A 351586A 1998-10 → 2001-05 Figure 351587 351587 1998-10 → 2001-05 Figure 351588B 351588B 1998-10 → 2001-05 Figure 356891B 356891B 1998-10 → 2001-05 Figure 351590 351590 1998-10 → 2001-05 Figure 351591A 351591A 1998-10 → 2001-05 Figure 351592 351592 1998-10 → 2001-05 Figure 353402B 353402B 2001-06 → — Figure 353401 353401 2001-06 → — Figure 353270A 353270A 2001-05 → — Figure 353271 353271 2001-05 → — Figure 353657D 353657D 2002-01 → — Figure 353658 353658 2002-01 → —

Part groups

PNCDescription
35148D Gasket (FOR C-O ACCUMULATOR PISTON)
35207 Spring Sub-assy, B-0 Accumulator
35207A Ring, Hole Snap (FOR B-0 ACCUMULATOR SPRING)
35208 Spring Sub-assy, B-2 Accumulator
35208A Ring, Hole Snap (FOR B-2 ACCUMULATOR SPRING)
35209 Spring Sub-assy, C-2 Accumulator
35209A Ring, Hole Snap (FOR C-2 ACCUMULATOR SPRING)
35211 Valve, Lock UP Signal
35211D Sleeve, Lock UP Control Valve
35212 Valve, Lock UP Relay
35212A Seat, Plug (FOR LOCK UP RELAY VALVE)
35212B Spring, Compression (FOR LOCK UP RELAY VALVE)
35213D Plunger, Lock UP Relay Valve
35214 Valve, Lock UP Control
35214C Spring, Compression (FOR LOCK UP CONTROL VALVE)
35215C Sleeve, Lock UP Relay Valve, NO.1
35217 Valve, Accumulator Control, NO.2
35218A Key, Straight (FOR LOCK UP RELAY VALVE PLUG)
35219D Plunger, Lock UP Control Valve
35224 Valve, Reverse Control
35224A Key, Straight (FOR REVERSE CONTROL VALVE)
35224B Plug (FOR REVERSE CONTROL VALVE)
35224C Spring, Compression (FOR REVERSE CONTROL VALVE)
35230 Solenoid Assy, Transmission 3Way, NO.2
35230A Ring, O, NO.1(FOR TRANSMISSION 3WAY SOLENOID NO.2)
35230B Ring, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID NO.2)
35232 Ring, C-1 Accumulator Seal
35240 Solenoid Assy, Automatic Transmission 3Way
35240A Ring, O, NO.1 (FOR TRANSMISSION 3WAY SOLENOID)
35240B Ring, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID)
35246 Valve, Check, NO.1
35246A Ball, Reverse Shift Restrict (FOR CHECK VALVE NO.1)
35247 Valve, Check, NO.2
35248 Valve, Check, NO.3
35251 Body, Check Ball
35251A Spring, Compression (FOR CHECK BALL BODY)
35265B Tube, Oil Cooler Return
35270 Solenoid Assy, Shift Control
35275 Valve, Solenoid Modulator
35275A Spring, Compression (FOR SOLENOID MODULATOR VALVE)
35275B Plug (FOR SOLENOID MODULATOR VALVE)
35275C Key, Straight
35280 Solenoid Assy, Lock UP Control
35284 Valve, Solenoid Relay
35284A Key, Straight (FOR SOLENOID RELAY VALVE)
35284B Spring, Compression (FOR SOLENOID RELAY VALVE)
35284C Plug (FOR SOLENOID RELAY VALVE)
35285 Plate, Solenoid Lock
35290 Solenoid Assy, Line Pressure Control
35295 Plate, Solenoid Lock, NO.2
35303 Strainer Sub-assy, Oil
35330 Strainer Assy, Valve Body Oil
35336A Gasket, Oil Strainer Spacer
35338 Spacer, Oil Strainer
35339 Gasket, Oil Strainer
35339A Gasket, Oil Strainer, NO.1
35339B Gasket, Oil Strainer, NO.2
35345 Plate, Oil Guide
35348 Bracket, Oil Strainer, NO.1
35404G Plate Sub-assy, Valve Body, NO.2
35406 Plate Sub-assy, Valve Body
35406A Plate Sub-assy, Valve Body
35408B Plug Sub-assy, Accumulator Control Valve
35409 Spring Sub-assy, Manual Detent
35410 Body Assy, Transmission Valve
35415F Valve, Primary Regulator
35415H Spring, Compression (FOR PRIMARY REGULATOR VALVE)
35415J Washer (FOR PRIMARY REGULATOR VALVE)
35416 Plunger, Primary Regulator Valve, NO.1
35417A Sleeve, Primary Regulator Valve
35418 Valve, Manual
35419 Valve, Check, NO.1
35419A Spring, Compression (FOR CHECK VALVE)
35419E Valve, Check, NO.3
35420A Ball (FOR PRESSURE RELIEF)
35420D Ball (FOR LOWER VALVE BODY)
35421A Spring, Compression (FOR ACCUMULATOR PISTON NO.1)
35421D Ring (FOR ACCUMULATOR PISTON NO.1)
35421G Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
35421H Ring (FOR ACCUMULATOR PISTON NO.2)
35421Q Spring, Compression (FOR ACCUMULATOR PISTON NO.3)
35421R Ring (FOR ACCUMULATOR PISTON NO.3)
35421W Plug, C-1 Accumulator Valve
35422B Plunger, Primary Regulator Valve, NO.2
35423 Piston, B-2 Accumulator
35423A Spring, Compression (FOR B-2 ACCUMULATOR PISTON)
35423B Ring, O (FOR B-2 ACCUMULATOR PISTON)
35424C Piston, C-1 Accumulator
35424E Ring, O (FOR C-1 ACCUMULATOR PISTON)
35424F Valve, C-1 Accumulator
35424G Spring, Compression (FOR C-1 ACCUMULATOR VALVE)
35425A Piston, C-2 Accumulator
35425B Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C Ring, O (FOR C-2 ACCUMULATOR PISTON)
35426A Piston, C-0 Accumulator
35426B Ring, O (FOR C-0 ACCUMULATOR PISTON)
35426C Spring, Compression (FOR C-0 ACCUMULATOR PISTON)
35426J Seat, C-0 Accumulator Piston Plug
35426K Plug, C-0 Accumulator Piston
35427E Piston, B-0 Accumulator
35427F Spring, Compression (FOR B-0 ACCUMULATOR PISTON)
35427G Ring, O (FOR B-0 ACCUMULATOR PISTON)
35427H Plug, B-0 Accumulator Piston
35427N Seat, B-0 Accumulator Piston Plug
35429B Sleeve, B-3 Control Valve
35436C Retainer, C-1 Accumulator Valve
35441C Strainer, Solenoid Oil
35444D Valve, Release Control
35444L Spring, Compression (FOR SHIFT VALVE PLUG SEAT)
35445H Valve, 2ND Coast Modulator
35445P Spring, Compression (FOR 2ND COAST MODULATOR VALVE)
35445Q Valve, Low Coast Modulator
35445R Spring, Compression (FOR LOW COAST MODULATOR VALVE)
35447 Plunger, Accumulator Control Valve
35449 Valve, Sequence
35449A Spring, Compression (FOR SEQUENCE VALVE)
35449E Plug, Sequence Valve
35449F Seat, Reverse Sequence Valve Plug
35453E Sleeve, 2ND Coast Modulator Valve
35454D Plunger, 2ND Coast Modulator Valve
35455C Plug, B-3 Control Valve
35455D Seat, Shift Valve Plug, NO.3
35455E Roller, NO.2 (FOR B-3 CONTROL VALVE)
35456 Valve, 2-3 Shift
35456A Spring, Compression (FOR 2-3 SHIFT VALVE)
35456C Plug (FOR 2-3 SHIFT VALVE)
35456D Seat (FOR 2-3 SHIFT VALVE)
35456F Key, Straight (FOR 2-3 SHIFT VALVE)
35458D Valve, Cut Back
35458G Spring, Compression (FOR CUT BACK VALVE)
35464 Valve, 1-2 Shift
35464A Spring, Compression (FOR 1-2 SHIFT VALVE)
35464E Plug (FOR 1-2 SHIFT VALVE)
35467D Plunger, B-3 Control Valve
35467E Roller, NO.1 (FOR B-3 CONTROL VALVE)
35468C Valve, Secondary Regulator
35468D Spring, Compression (FOR SECONDARY REGULATOR VALVE)
35468F Plug (FOR SECONDARY REGULATOR VALVE)
35473 Cover, Transmission Valve Body
35474A Cover, Accumulator
35474B Ring, O (FOR ACCUMULATOR COVER)
35476D Valve, Cut Off
35476F Plug (FOR CUT OFF VALVE)
35476G Spring, Compression (FOR CUT OFF VALVE)
35477A Valve, Overdrive Clutch Exhaust
35477B Spring, Compression (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35477C Seat, Valve (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35477F Plug (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35481B Clamp, Valve Body Wire Harness
35482B Clamp, Temperature Sensor
35483E Valve, C-0 Control Relay
35483F Plug (FOR C-0 CONTROL RELAY VALVE)
35483G Spring, Compression (FOR C-0 CONTROL RELAY VALVE)
35484D Valve, B-3 Control
35484E Spring, Compression (FOR B-3 CONTROL VALVE)
35485C Adjuster, B-3 Control Valve
35485D Cap (FOR B-3 CONTROL VALVE ADJUSTER)
35486B Seat, Pressure Relief Valve Spring
35486C Spring, Compression(FOR PRESSURE RELIFE VALVE)
35486D Ball (FOR PRESSURE RELIFE VALVE)
35487B Ball, Check, NO.4
35487C Spring, Compression (FOR CHECK BALL)
35489H Valve, C-1 Orifice Control
35489J Plug (FOR C-1 ORIFICE CONTROL VALVE)
35489K Spring, Compression (FOR C-1 ORIFICE CONTROL VALVE)
35489L Key, Straight (FOR C-1 ORIFICE CONTROL VALVE)
35491A Valve, Accumulator Control, NO.1
35491B Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491C Key, Straight (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491D Plug (FOR ACCUMULATOR CONTROL VALVE NO.1)
35492E Sleeve, Accumulator Control Valve
35493A Seat, Primary Regulator Valve Plug
35493B Seat, 1-2 Shift Valve Plug
35493C Seat, Release Control Valve Plug
35493E Seat, 2ND Coast Modulator Valve Plug
35493G Seat, Low Coast Modulator Valve Plug
35493K Seat, Shift Valve Plug
35493L Seat, Shift Valve Plug
35493M Seat, Lock UP Control Valve Plug
35493N Seat, Solenoid Modulator Valve Plug
35493P Seat, Cut Back Valve Plug
35493Q Seat, Accumulator Control Valve Plug, NO.1
35493R Seat, Accumulator Control Valve Plug, NO.2
35493S Seat, Secondary Regulator Valve Plug
35493U Seat, Check Valve, NO.1
35493V Seat, Check Valve, NO.2
35493W Seat, Valve Body
35493X Seat, Cut Off Valae
35493Z Seat, Shift Valve Plug, NO.1
35495B Ball, Check, NO.1
35497 Valve, 3-4 Shift
35497A Spring, Compression (FOR 3-4 SHIFT VALVE)
35497B Seat, Shift Valve Plug (FOR 3-4 SHIFT VALVE)
35497C Plug (FOR 3-4 SHIFT VALVE)
35498H Valve, 4-5 Shift
35498J Seat, Shift Valve Plug, NO.2
35498K Plug (FOR 4-5 SHIFT VALVE)
35498L Spring, Compression (FOR 4-5 SHIFT VALVE)
35599 Cover, Manual Detent Spring
35892 Tube, Overdrive Brake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
