Toyota Altezza/Altezza Gita

1998-10 → 2005-07 · chassis GXE1#,JCE1#,SXE10 · catalogue 242110 · Japan

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

16 part groups · 2 illustrations

Illustrations

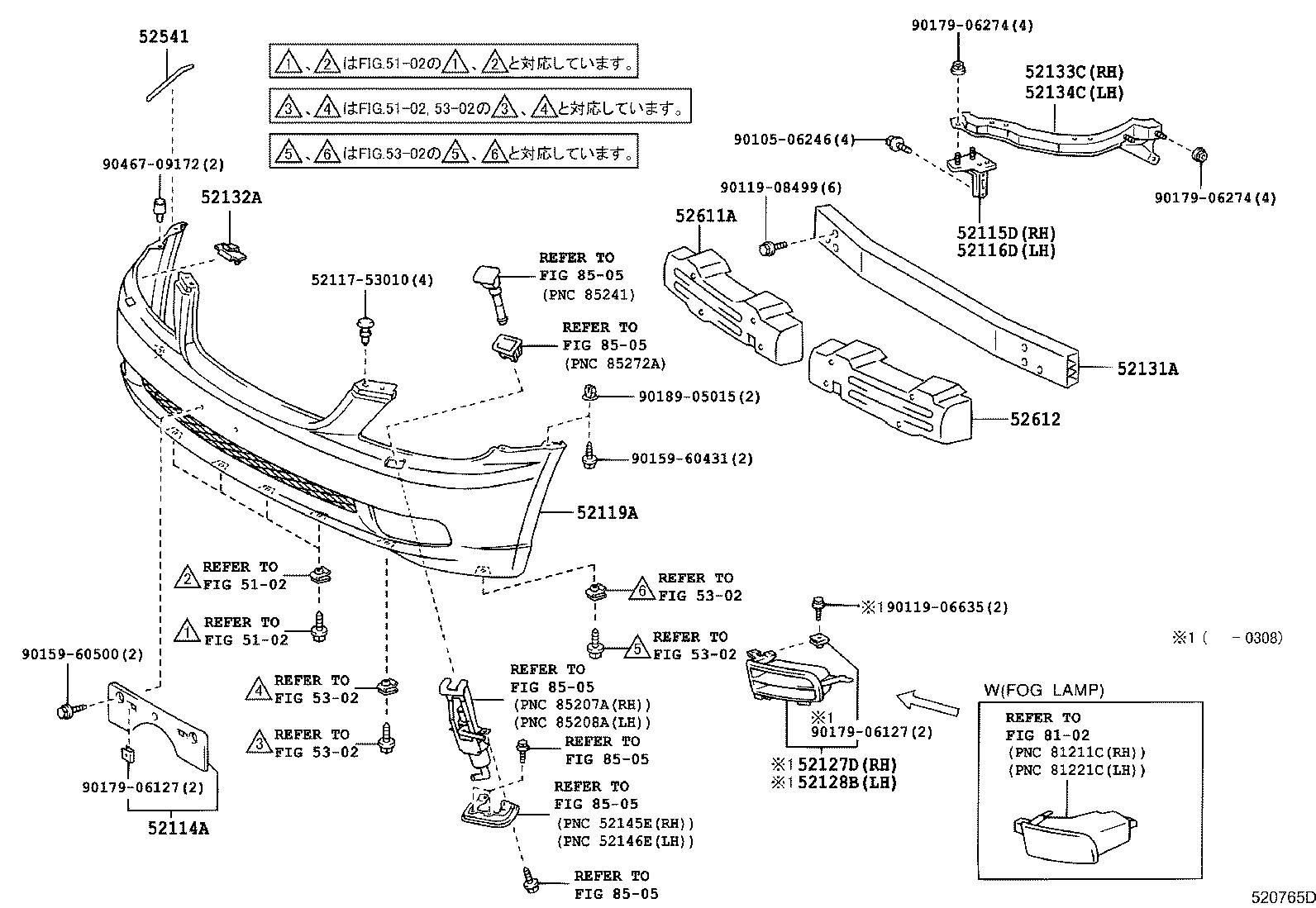

Figure 520434I 520434I 1998-10 → — Figure 520765D 520765D 2001-06 → —

Part groups

PNCDescription
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52115D Support, Front Bumper Side, NO.2 RH
52116A Support, Front Bumper Side, LH
52116D Support, Front Bumper Side, NO.2 LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52132A Reinforcement, Front Bumper, NO.2
52133C Reinforcement, Front Bumper Bar, RH
52134C Reinforcement, Front Bumper Bar, LH
52147B Bracket, Front Bumper Mounting
52541 Protector, Front Bumper
52611A Absorber, Front Bumper Energy, RH
52612 Absorber, Front Bumper Energy, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
