Toyota Altezza/Altezza Gita
1998-10 → 2005-07 · chassis GXE1#,JCE1#,SXE10 · catalogue 242110 · Japan
Discontinued model
Data version 2006-01

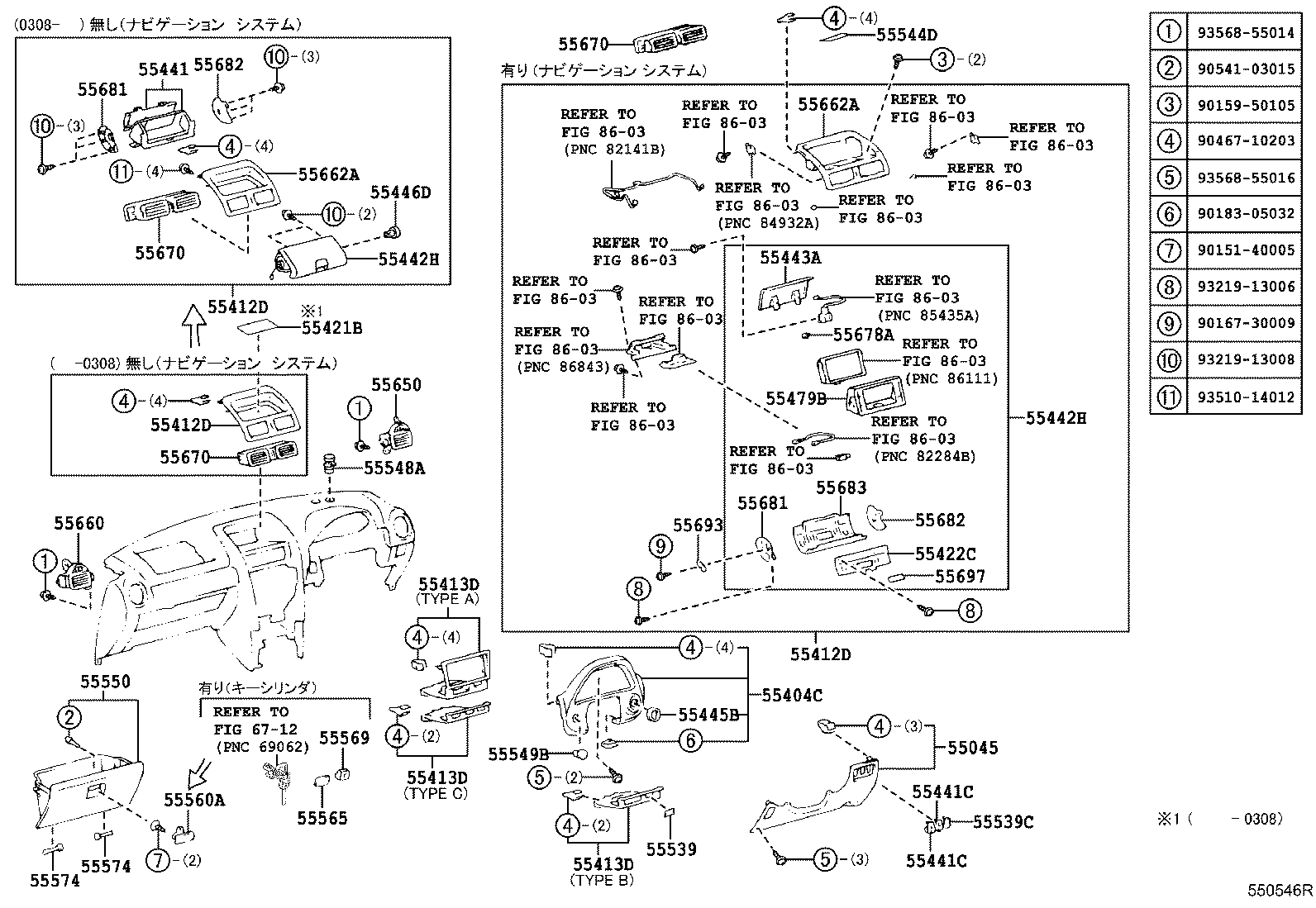

Instrument Panel & Glove Compartment
48 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55317A | Panel, Instrument Side, RH |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55375B | Bracket, Instrument Panel Lower Mounting, NO.2 |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55377A | Bracket, Instrument Panel Mounting, NO.2 |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55413D | Panel, Instrument Cluster Finish, Center Lower |
| 55421B | Panel, Instrument Cluster Finish, Upper |
| 55422C | Panel, Instrument Cluster Finish, Center Upper |
| 55441 | Box, Instrument Panel |
| 55441C | Box, Instrument Panel Coin |
| 55442H | Door, Instrument Panel |
| 55443A | Cover, Instrument Panel Box Door |
| 55445B | Plate, Instrument Panel Finish |
| 55446D | Shaft, Instrument Panel Box |
| 55479B | Cover, Instrument, Lower Center |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55544D | Cover, Center Register Opening |
| 55548A | Cover, Instrument Panel Hole |
| 55549B | Cover, Instrument Panel Hole, NO.2 |
| 55550 | Door Assy, Glove Compartment |
| 55560A | Lock Assy, Glove Compartment Door |
| 55565 | Handle, Glove Compartment Door Lock |
| 55569 | Cover, Glove Compartment Door Lock |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55662A | Bezel, Instrument Panel Resister, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55678A | Gear, Instrument Panel Register Control |
| 55681 | Support, Instrument Panel Register, NO.1 |
| 55682 | Spring, Instrument Panel Register Support |
| 55683 | Support, Instrument Register, NO.3 |
| 55693 | Protector, Control Knob, NO.1 |
| 55697 | Seal, Instrument Panel Register, NO.1 |
| 55950A | Nozzle Assy, Defroster |
| 55971B | Duct, Side Defroster Nozzle, NO.1 |
| 55972A | Duct, Side Defroster Nozzle, NO.2 |
| 55990A | Nozzle Assy, Defroster, Lower |
| 73970A | Airbag Assy, Instrument Panel Passenger |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
