Toyota Altezza/Altezza Gita

1998-10 → 2005-07 · chassis GXE1#,JCE1#,SXE10 · catalogue 242110 · Japan

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

11 part groups · 2 illustrations

Illustrations

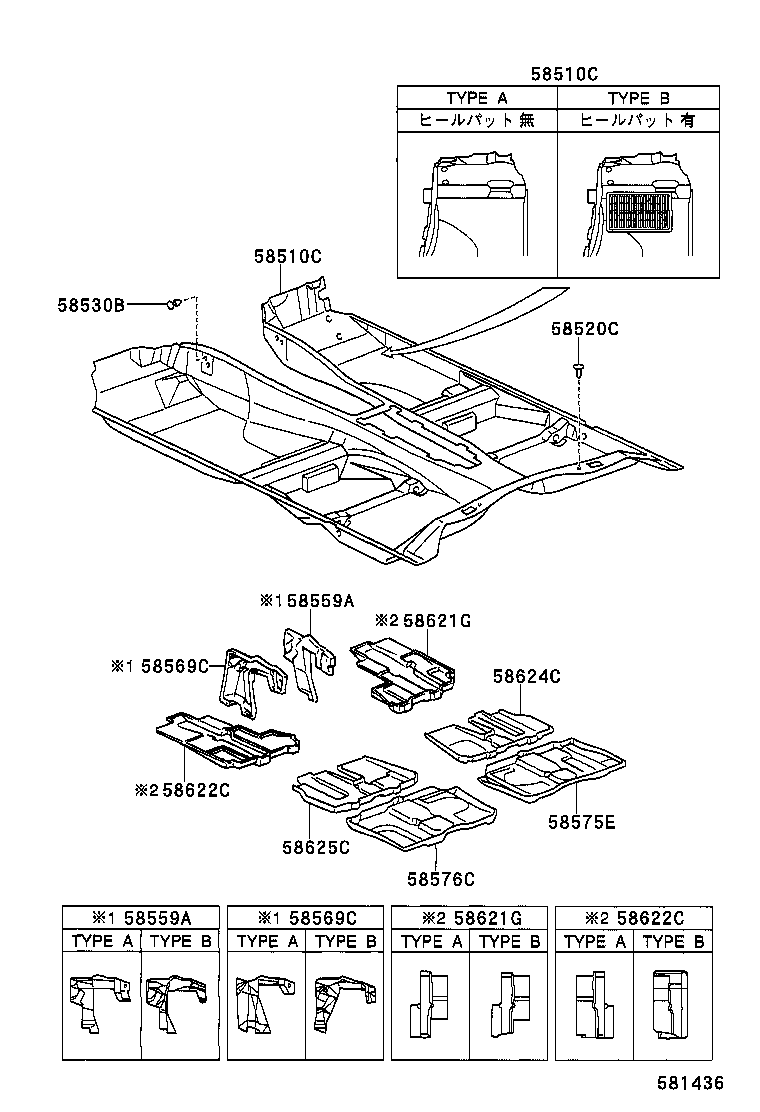

Figure 580909A 580909A 1998-10 → — Figure 581436 581436 2001-06 → —

Part groups

PNCDescription
58510C Carpet Assy, Front Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58530B Clip(FOR FRONT FLOOR CARPET)
58559A Pad, Front Floor Side, RH
58569C Pad, Front Floor Side, LH
58575E Pad, Front Floor, Rear NO.1
58576C Pad, Front Floor, Rear NO.2
58621G Pad, Front Floor Silencer, RH
58622C Pad, Front Floor Silencer, LH
58624C Pad, Center Floor Silencer, RH
58625C Pad, Center Floor Silencer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
