Toyota Altezza/Altezza Gita

1998-10 → 2005-07 · chassis GXE1#,JCE1#,SXE10 · catalogue 242110 · Japan

Discontinued model Data version 2006-01

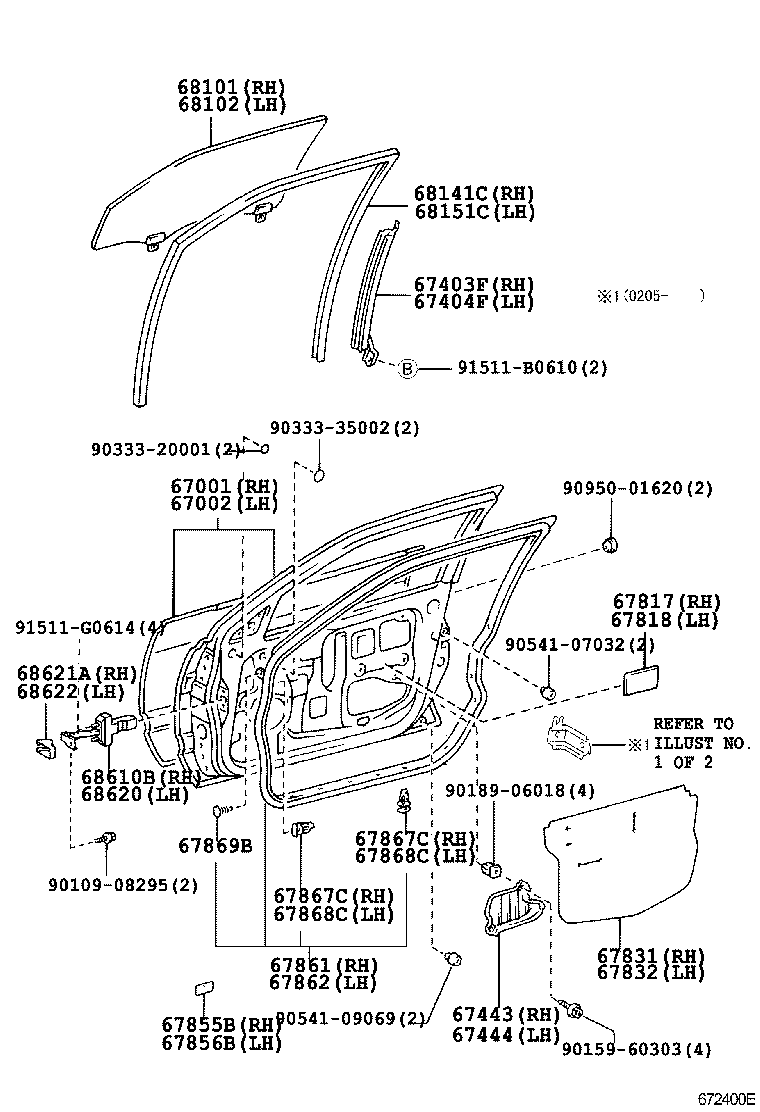

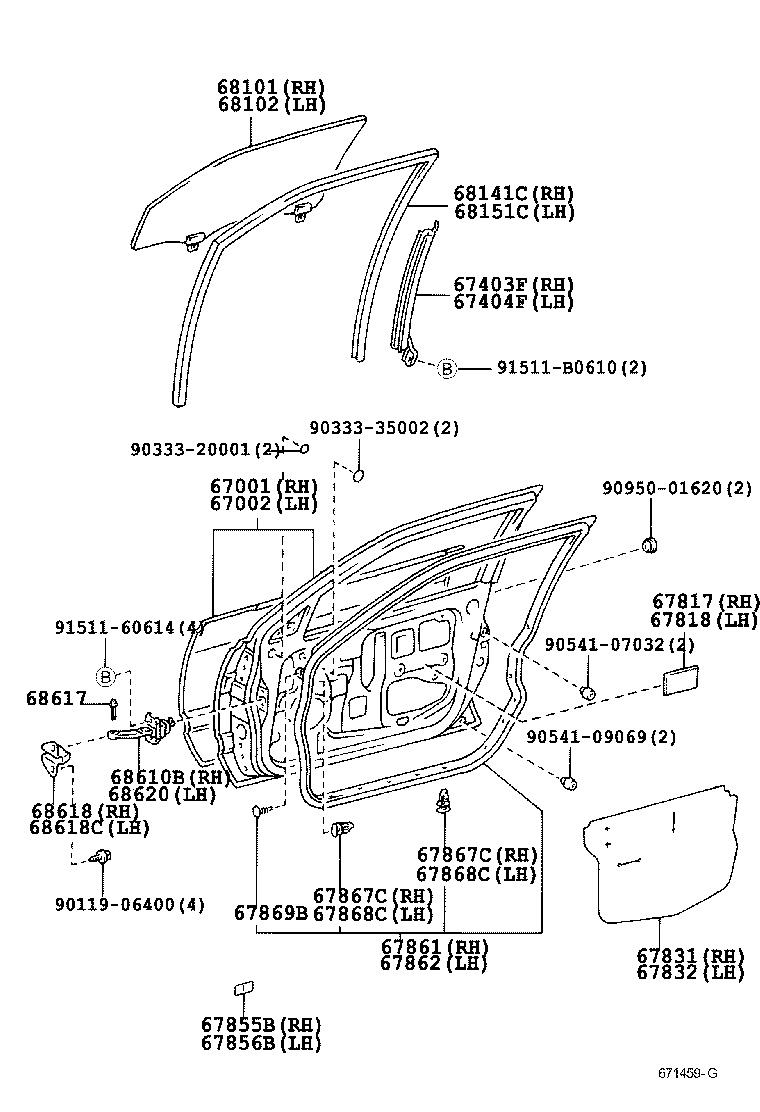

Front Door Panel & Glass

39 part groups · 5 illustrations

PNC	Description
67001	Panel Sub-assy, Front Door, RH
67002	Panel Sub-assy, Front Door, LH
67403F	Frame Sub-assy, Front Door, Rear Lower RH
67404F	Frame Sub-assy, Front Door, Rear Lower LH
67443	Protector, Front Door Locking Rod, RH
67444	Protector, Front Door Locking Rod, LH
67491A	Garnish, Front Door Lower Frame Bracket, RH
67492A	Garnish, Front Door Lower Frame Bracket, LH
67601	Board Sub-assy, Front Door Trim, RH
67601A	Retainer(FOR FRONT DOOR TRIM BOARD)
67602	Board Sub-assy, Front Door Trim, LH
67622B	Bracket, Front Door Trim, NO.5 RH
67632	Bracket, Front Door Trim, NO.5 LH
67773C	Clip, Door Trim Upper Retainer, NO.1
67817	Packing, Front Door Protector, RH
67818	Packing, Front Door Protector, LH
67831	Cover, Front Door Service Hole, RH
67832	Cover, Front Door Service Hole, LH
67855B	Protector, Front Door Panel, RH
67856B	Protector, Front Door Panel, LH
67861	Weatherstrip, Front Door, RH
67862	Weatherstrip, Front Door, LH
67867C	Retainer, Front Door Weatherstrip, RH
67868C	Retainer, Front Door Weatherstrip, LH
67869B	Clip, Front Door Weatherstrip
68101	Glass Sub-assy, Front Door, RH
68102	Glass Sub-assy, Front Door, LH
68141C	Run, Front Door Glass, RH
68151C	Run, Front Door Glass, LH
68171B	Weatherstrip, Front Door Glass, Inner RH
68172A	Weatherstrip, Front Door Glass, Inner LH
68610B	Check Assy, Front Door, RH
68617	Pin, Front Door Check
68618	Bracket, Front Door Check Arm, RH
68618C	Bracket, Front Door Check Arm, LH
68620	Check Assy, Front Door, LH
68621A	Cover, Front Door Check, RH
68622	Cover, Front Door Check, LH
86262E	Cover, Speaker, Front

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
