Toyota Altezza/Altezza Gita
1998-10 → 2005-07 · chassis GXE1#,JCE1#,SXE10 · catalogue 242110 · Japan
Discontinued model
Data version 2006-01

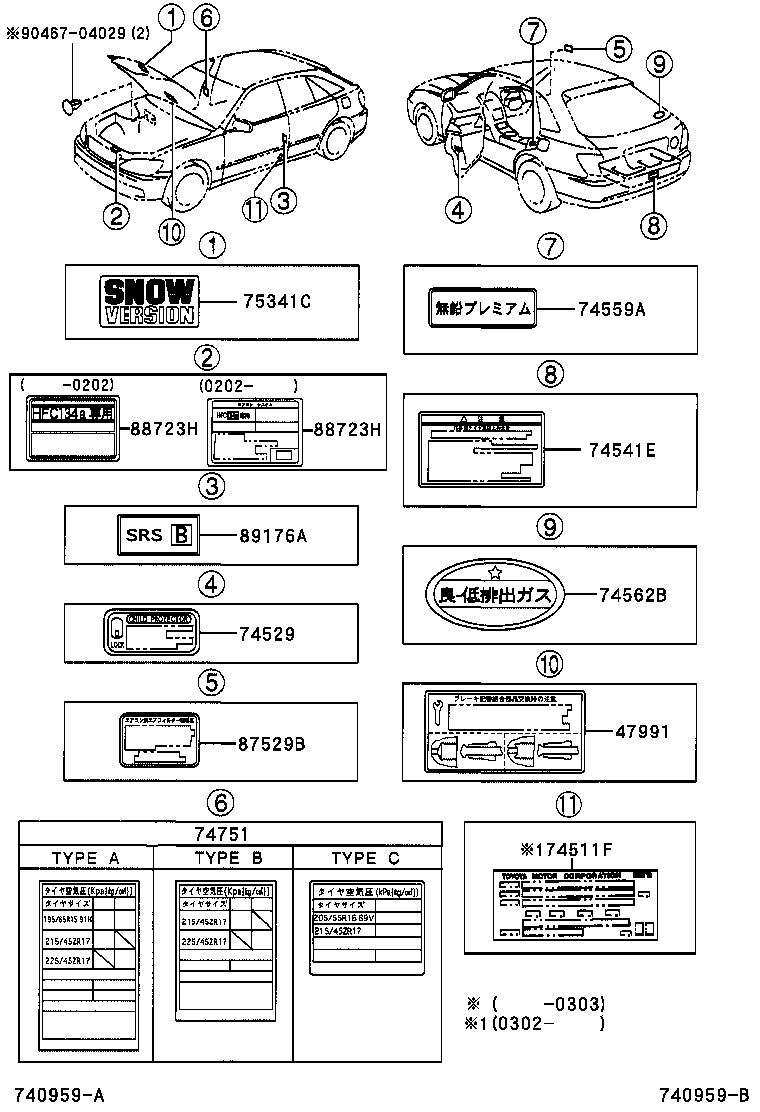

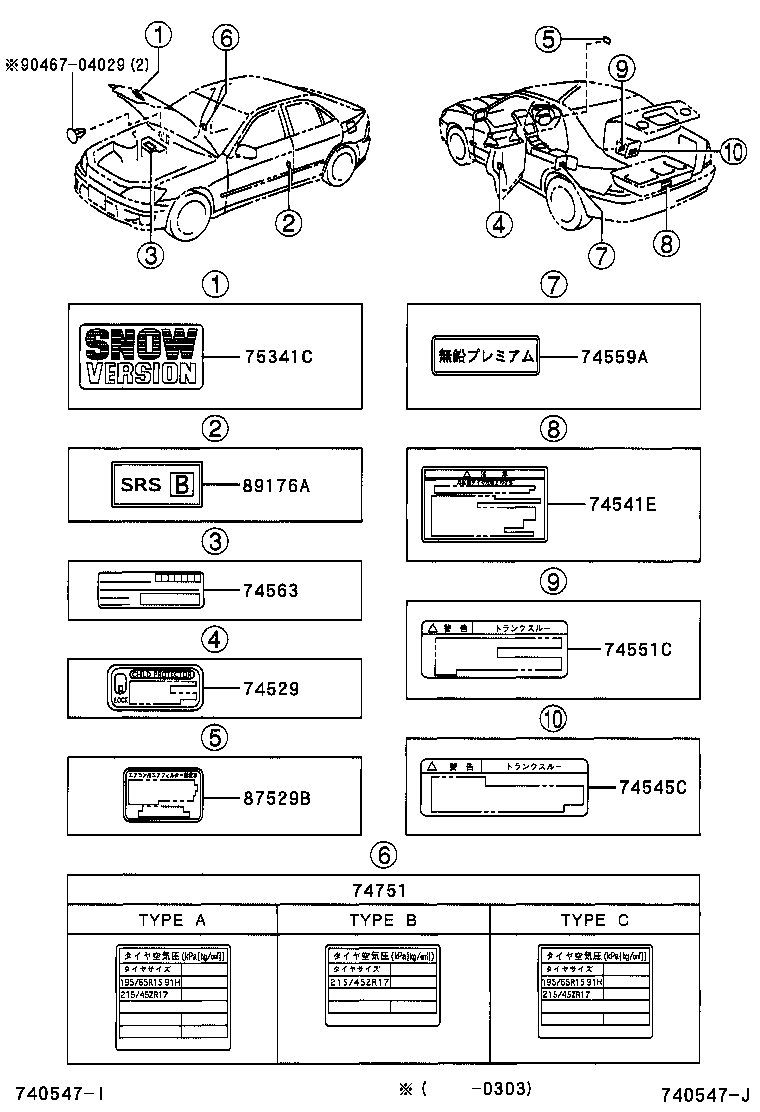

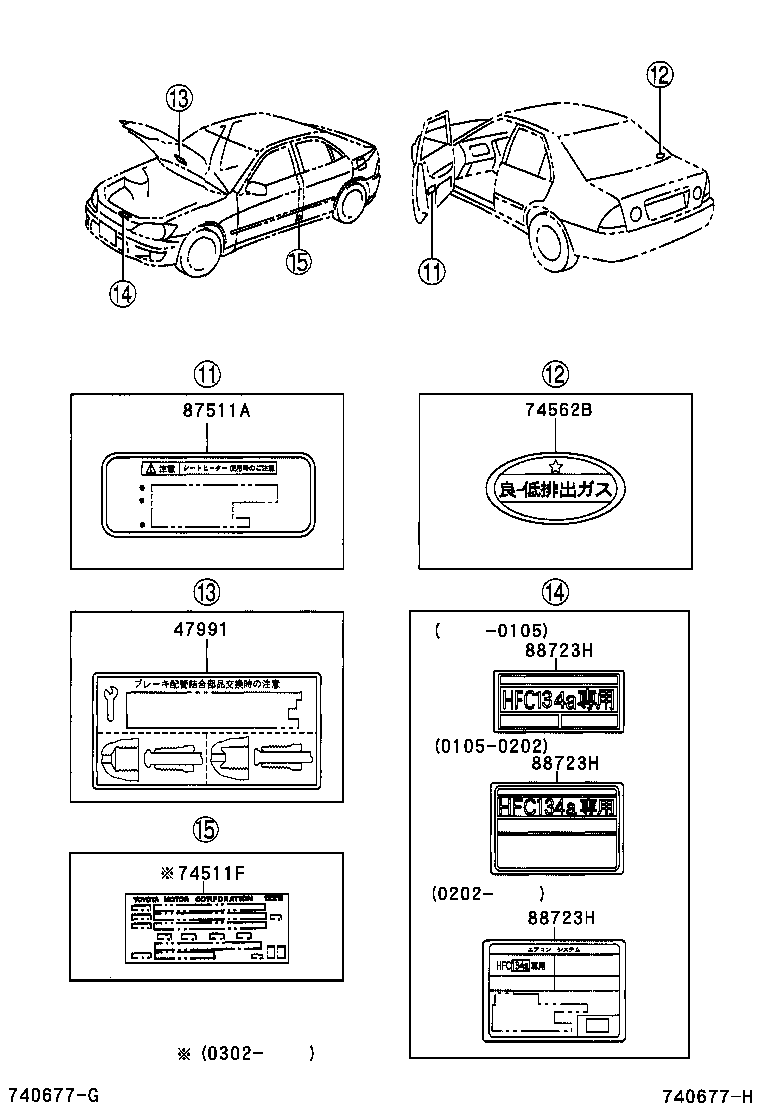

Caution Plate (EXTERIOR & INTERIOR)
28 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11277A | Plate, Engine Specification, NO.2 |
| 11286B | Plate, Engine Specification |
| 11289B | Label, Spark Plug Notice |
| 11293D | Label, Engine Caution |
| 11295B | Label, Engine Service Notice, NO.1 |
| 11296C | Label, Engine Service Information |
| 11297C | Label, Engine Service Information, NO.2 |
| 13564 | Label, Timing Belt Replacement Information |
| 16793E | Label, Cooling Fan Caution |
| 17700R | Label, Air Cleaner Information |
| 17791A | Label, Maintenance Information |
| 47991 | Label, Brake Tube Information |
| 74511B | Plate, Name |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74545C | Label, Luggage Door |
| 74551C | Plate, Rear Seat Protector Caution |
| 74559A | Plate, Fuel Caution |
| 74562B | Label, Emission Information |
| 74563 | Plate, Emission Control Device Identification |
| 74751 | Label, Tire Pressure Information |
| 75341C | Plate, Hood Name |
| 86995E | Label, Caution |
| 87511A | Plate, Seat Heater Caution |
| 87529B | Label, A/C Filter Information |
| 88723H | Label, Cooler Service Caution |
| 89176A | Label, Airbag Deployment Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
