Toyota Altezza/Altezza Gita

1998-10 → 2005-07 · chassis GXE1#,JCE1#,SXE10 · catalogue 242110 · Japan

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

16 part groups · 2 illustrations

Illustrations

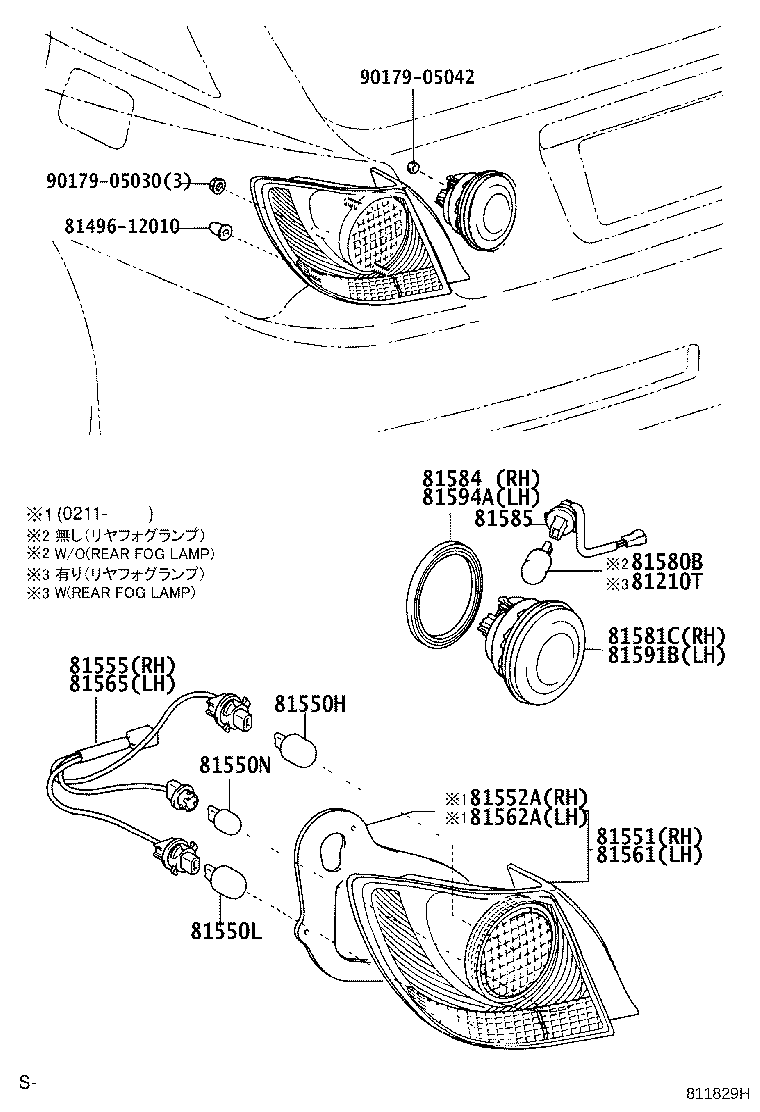

Figure 811755D 811755D 1998-10 → — Figure 811829H 811829H 2001-06 → —

Part groups

PNCDescription
81210T Bulb, Rear Fog Lamp
81550H Bulb, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81551 Lens, Rear Combination Lamp, RH
81552A Gasket, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561 Lens, Rear Combination Lamp, LH
81562A Gasket, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580B Bulb (FOR REAR LAMP)
81581C Lens And Body, Rear Lamp, RH
81584 Packing, Rear Lamp RH
81585 Socket & Wire, Rear Lamp
81591B Lens And Body, Rear Lamp, LH
81594A Gasket, Rear Lamp LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
