Toyota Altezza/Altezza Gita

1998-10 → 2005-07 · chassis GXE1#,JCE1#,SXE10 · catalogue 242110 · Japan

Discontinued model Data version 2006-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

40 part groups · 16 illustrations

Illustrations

Figure 822603B

822603B 1998-10 → —

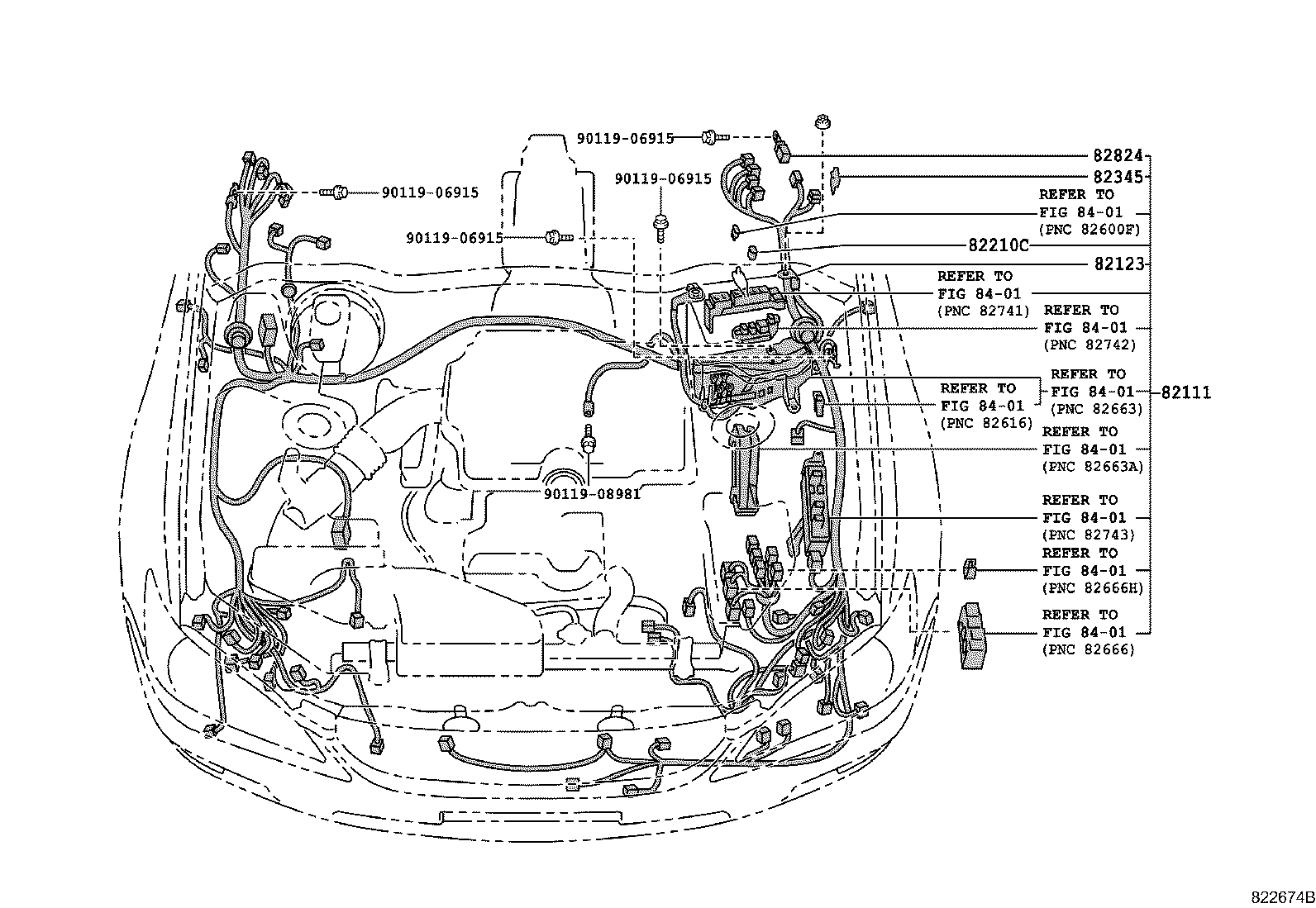

Figure 822674B

822674B 2001-06 → —

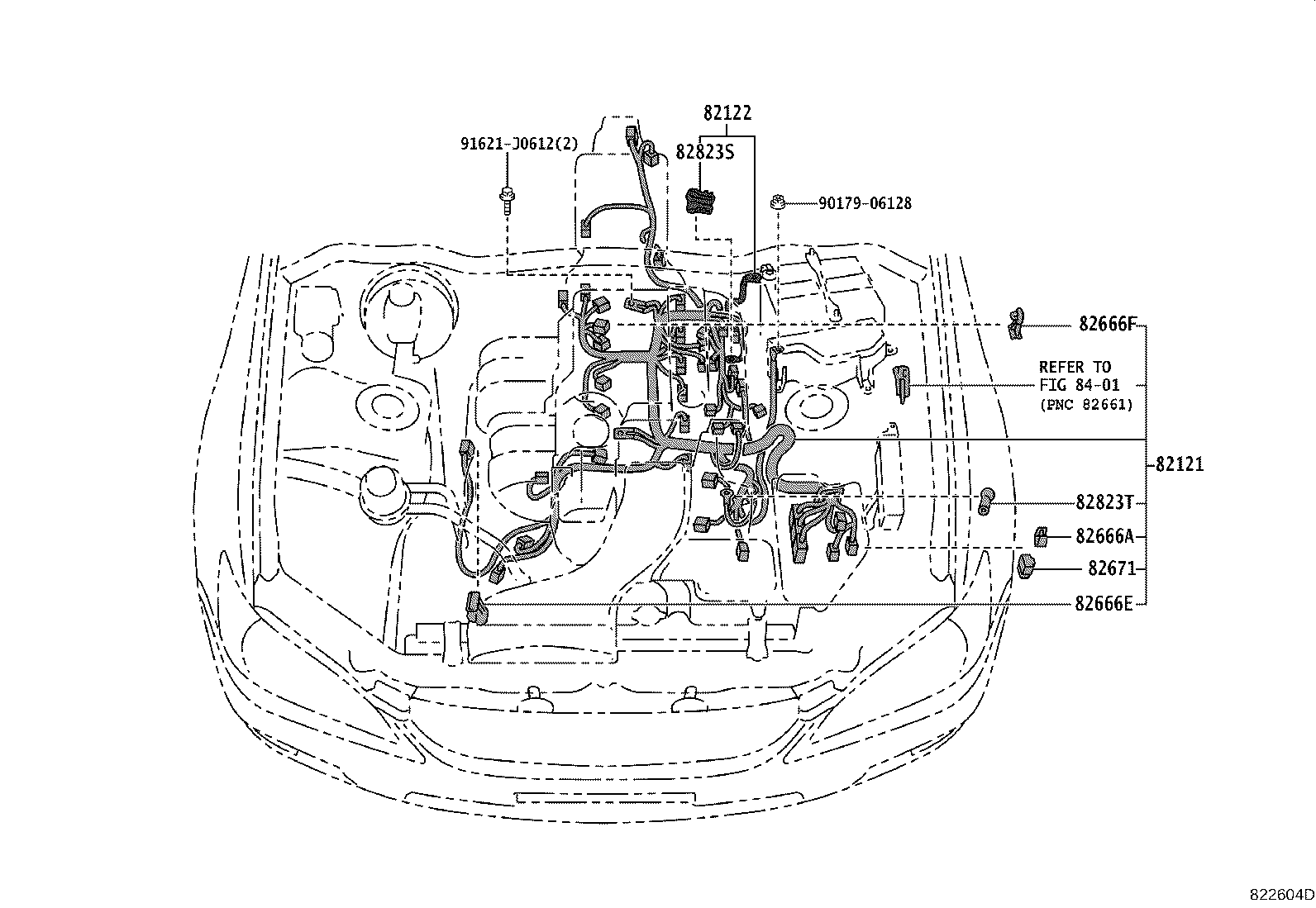

Figure 822604D

822604D 1998-10 → —

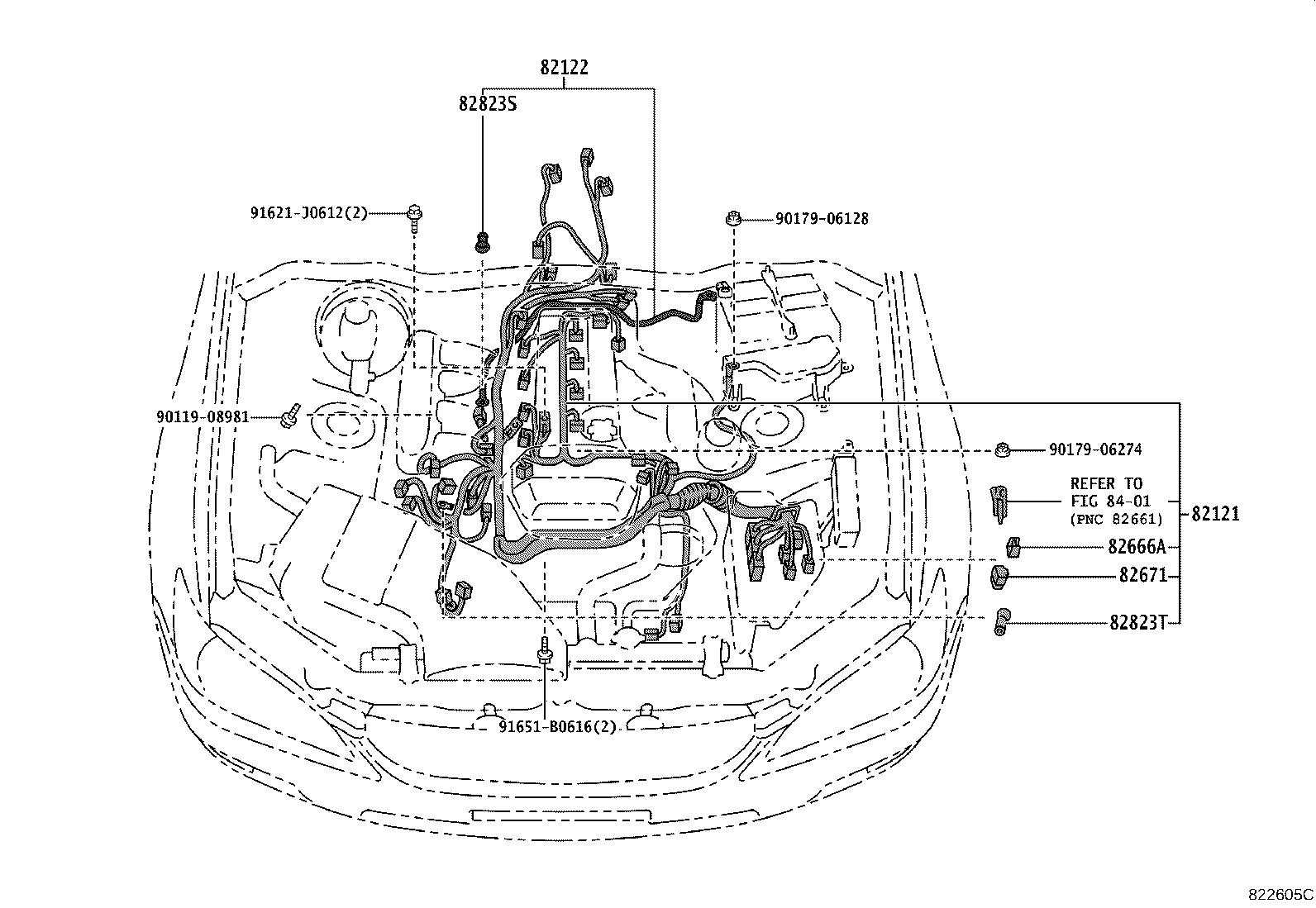

Figure 822605C

822605C 1998-10 → —

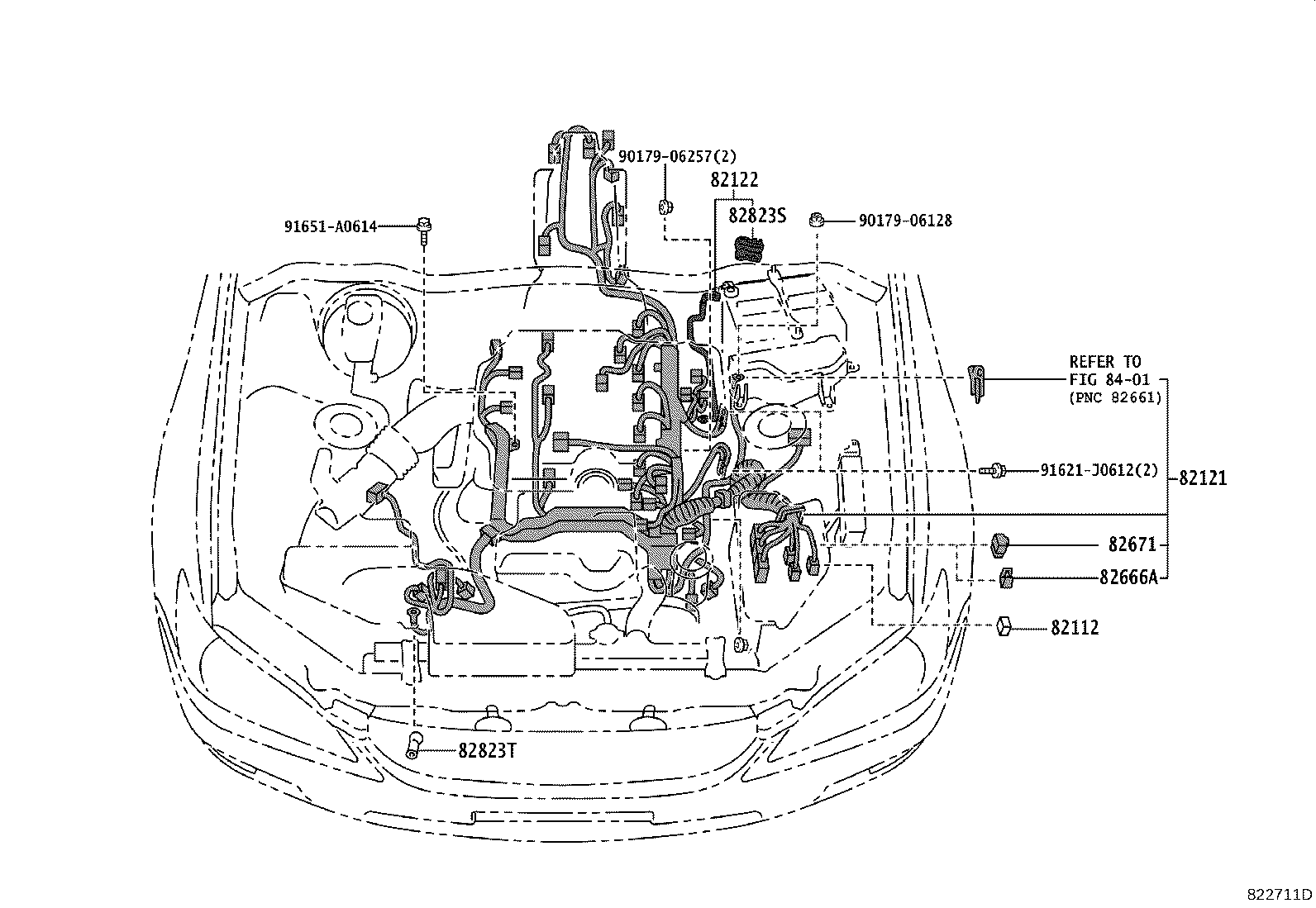

Figure 822711D

822711D 2001-06 → —

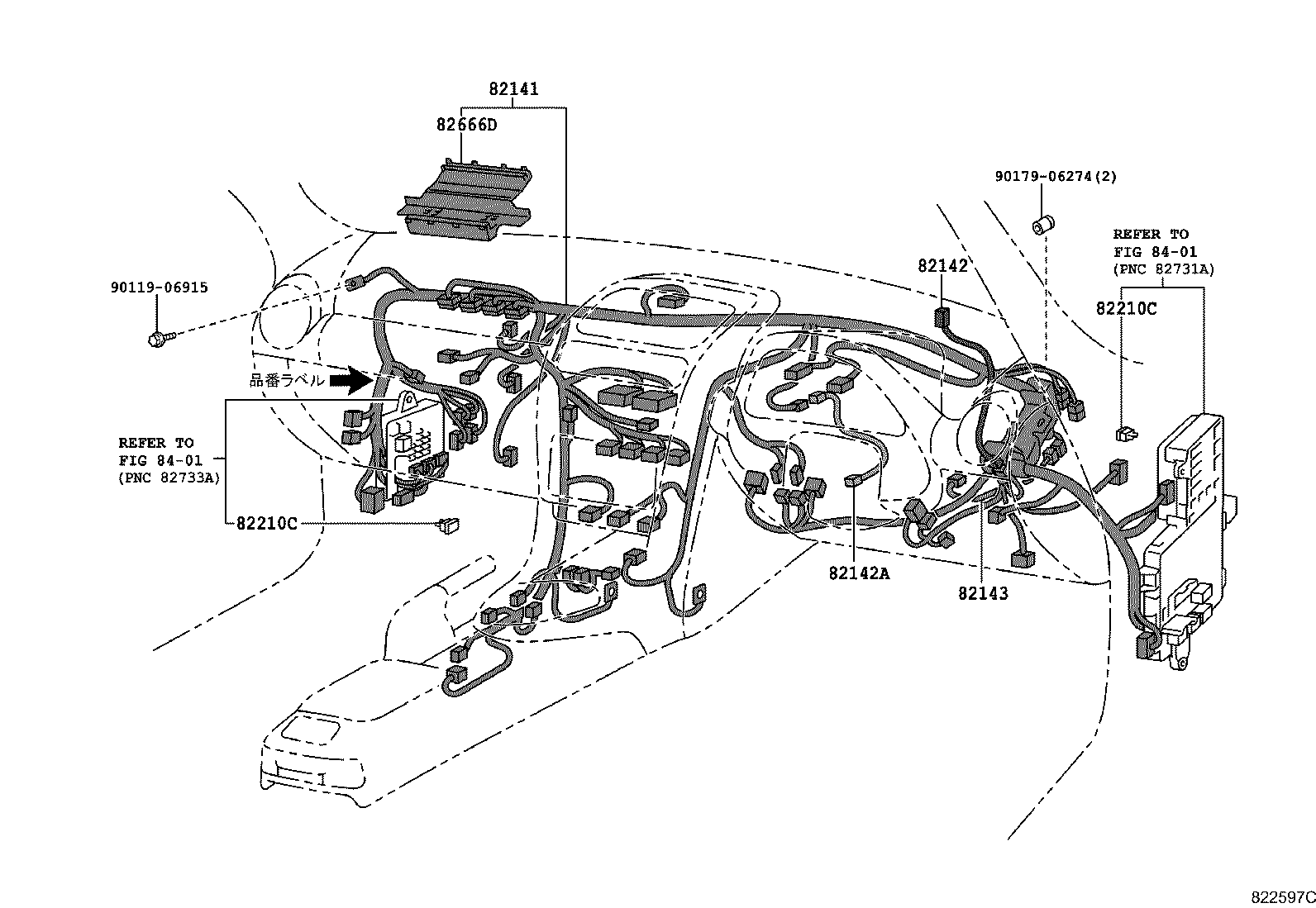

Figure 822597C

822597C 1998-10 → —

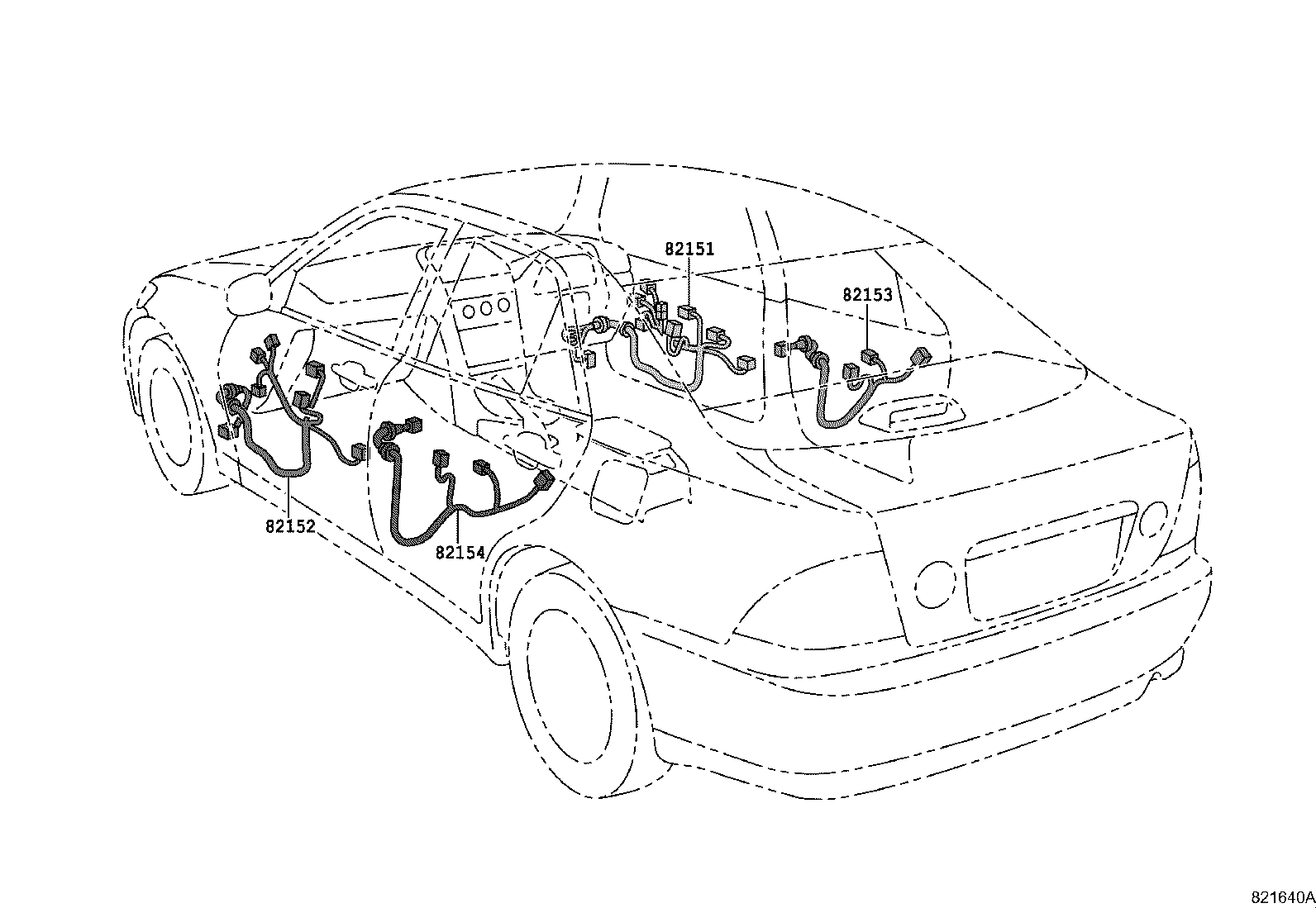

Figure 821640A

821640A 1998-10 → —

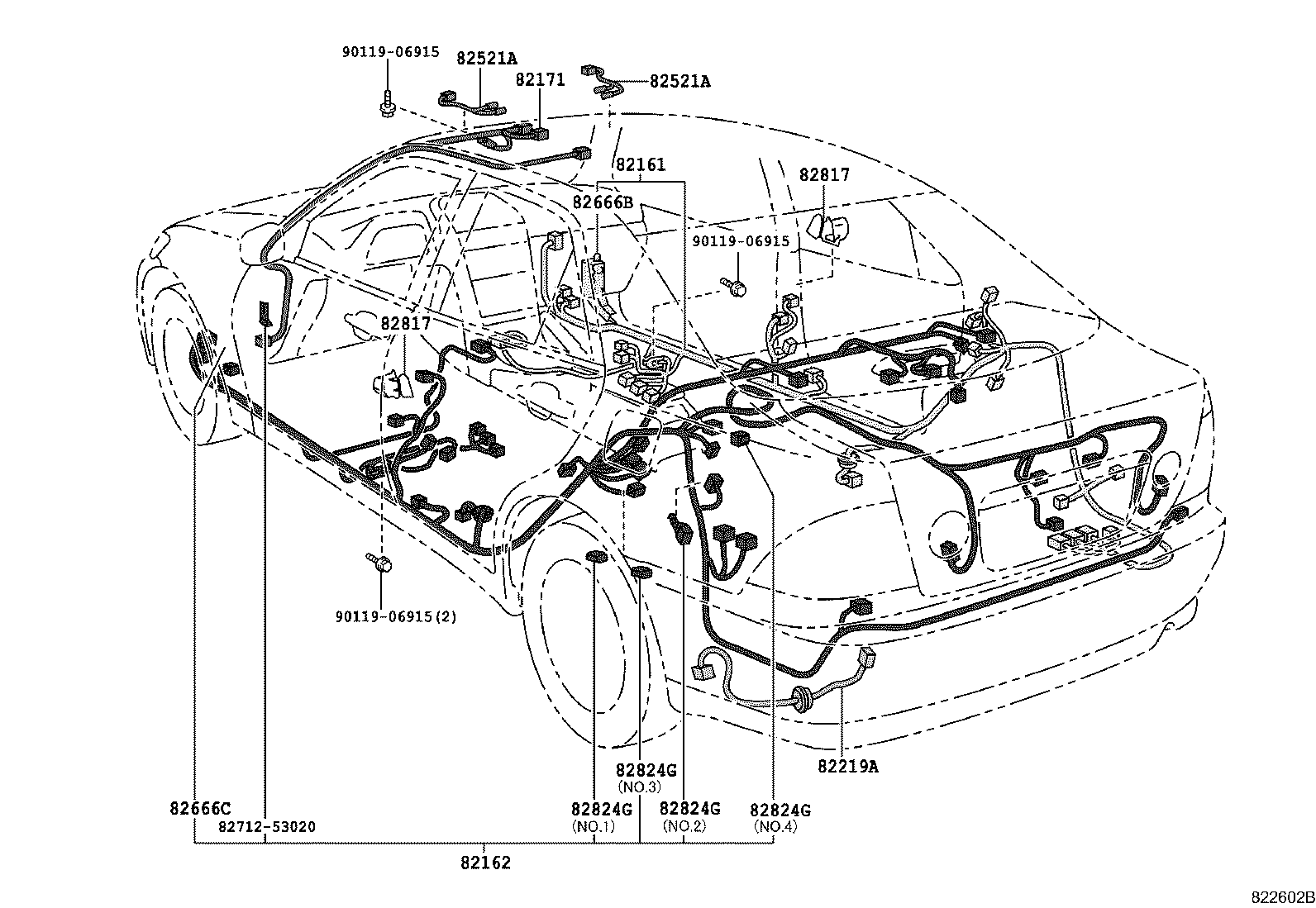

Figure 822602B

822602B 1998-10 → —

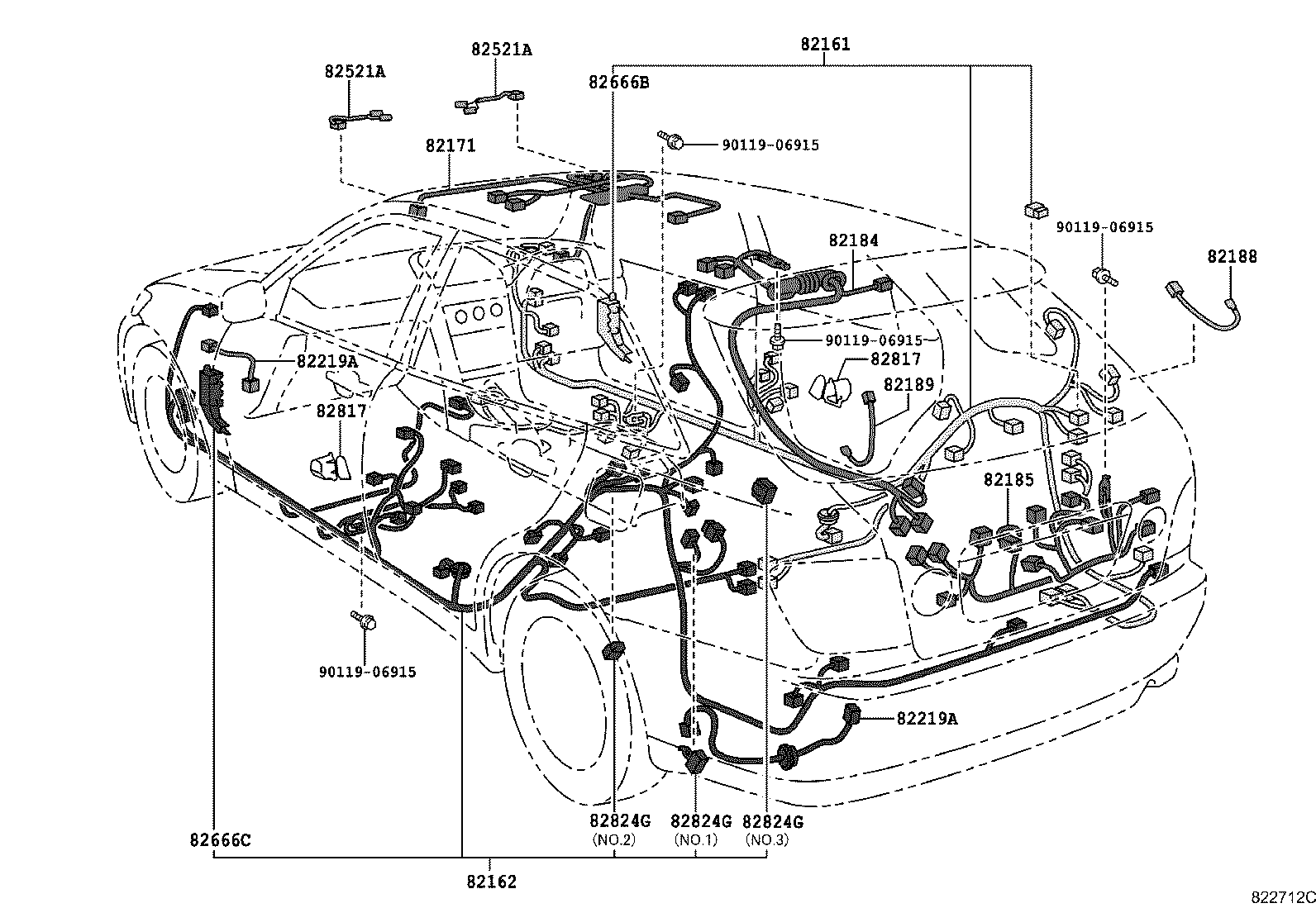

Figure 822712C

822712C 2001-06 → —

Figure 821677A

821677A 1998-10 → —

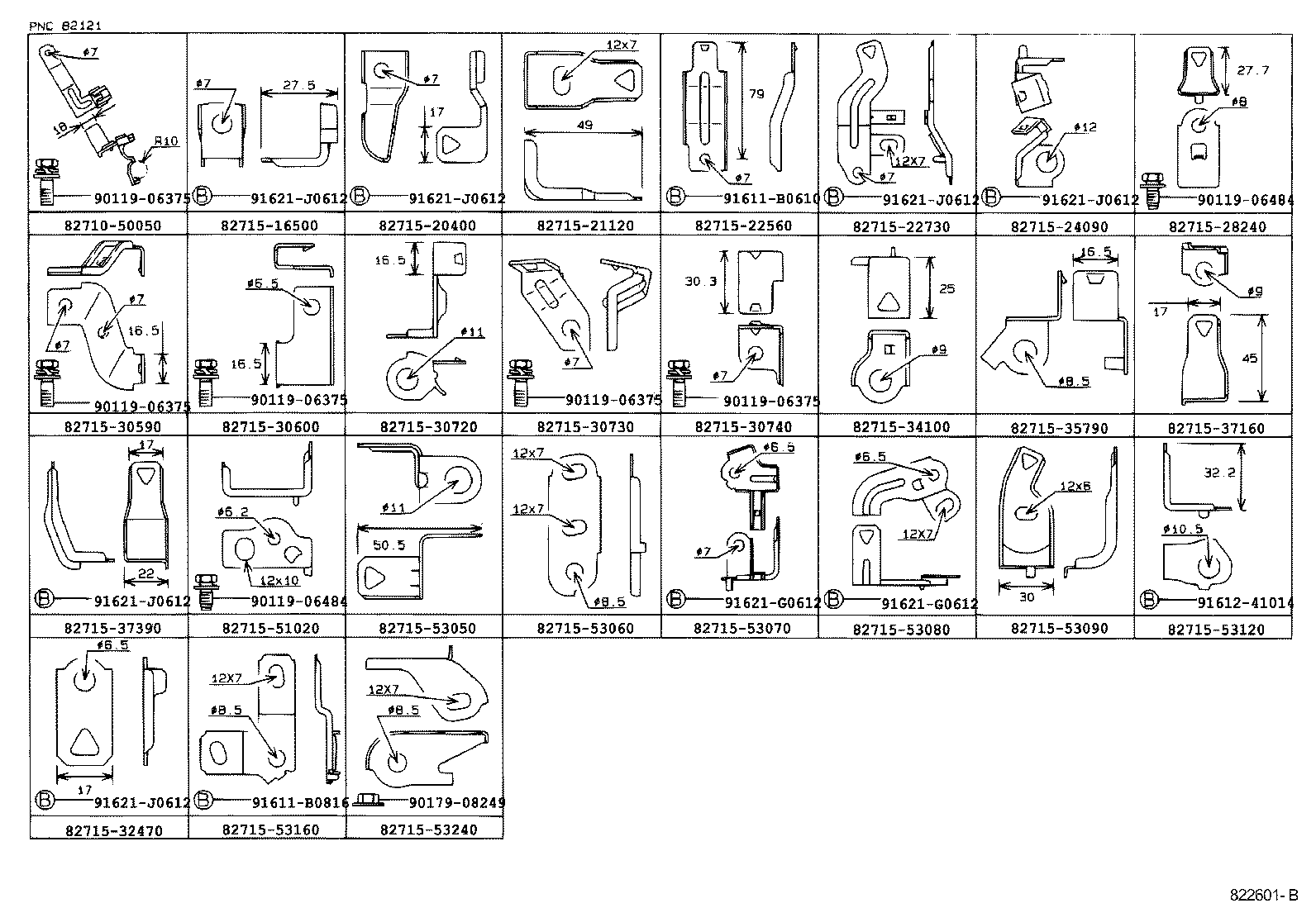

Figure 822601B

822601B 1998-10 → —

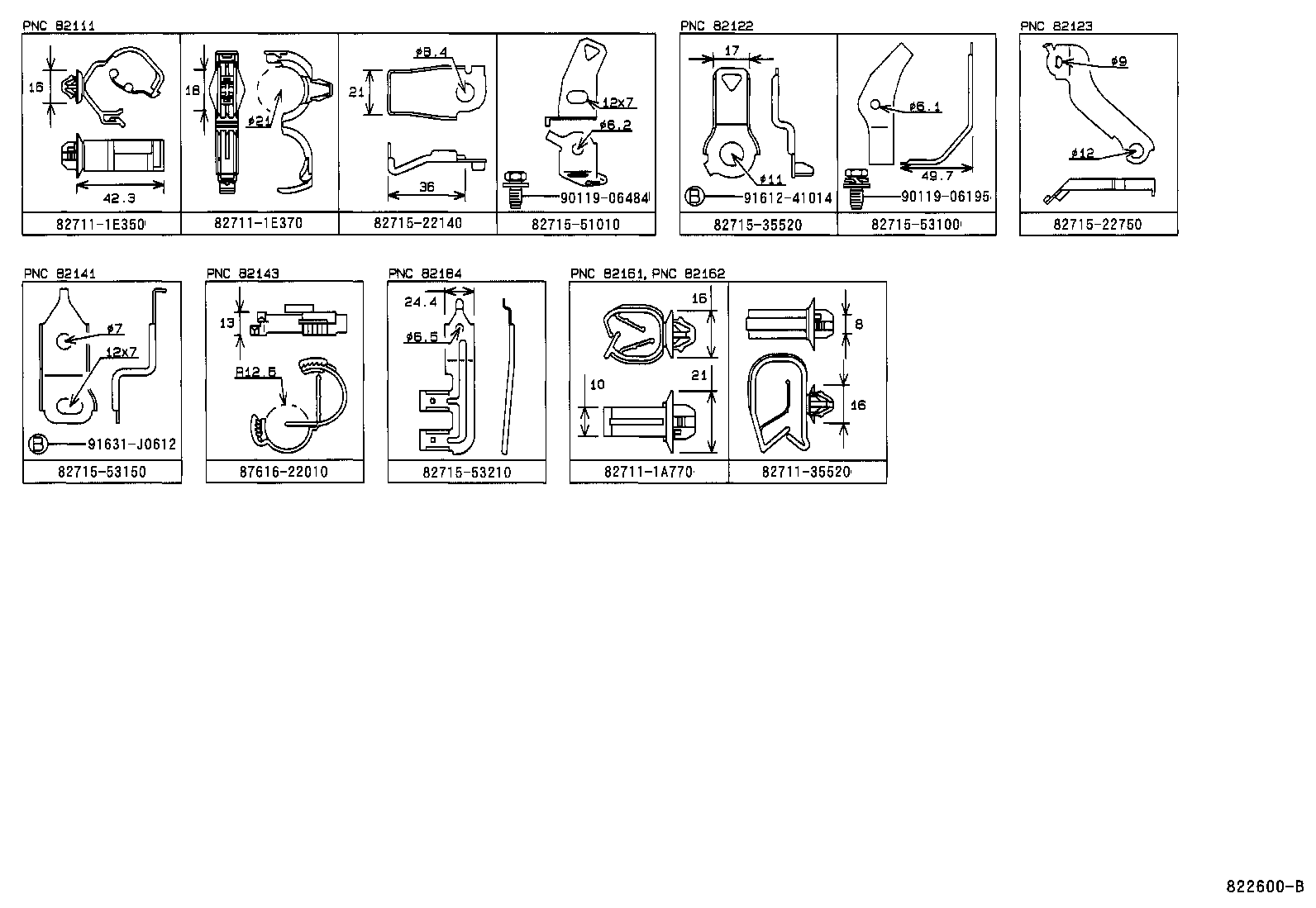

Figure 822600B

822600B 1998-10 → —

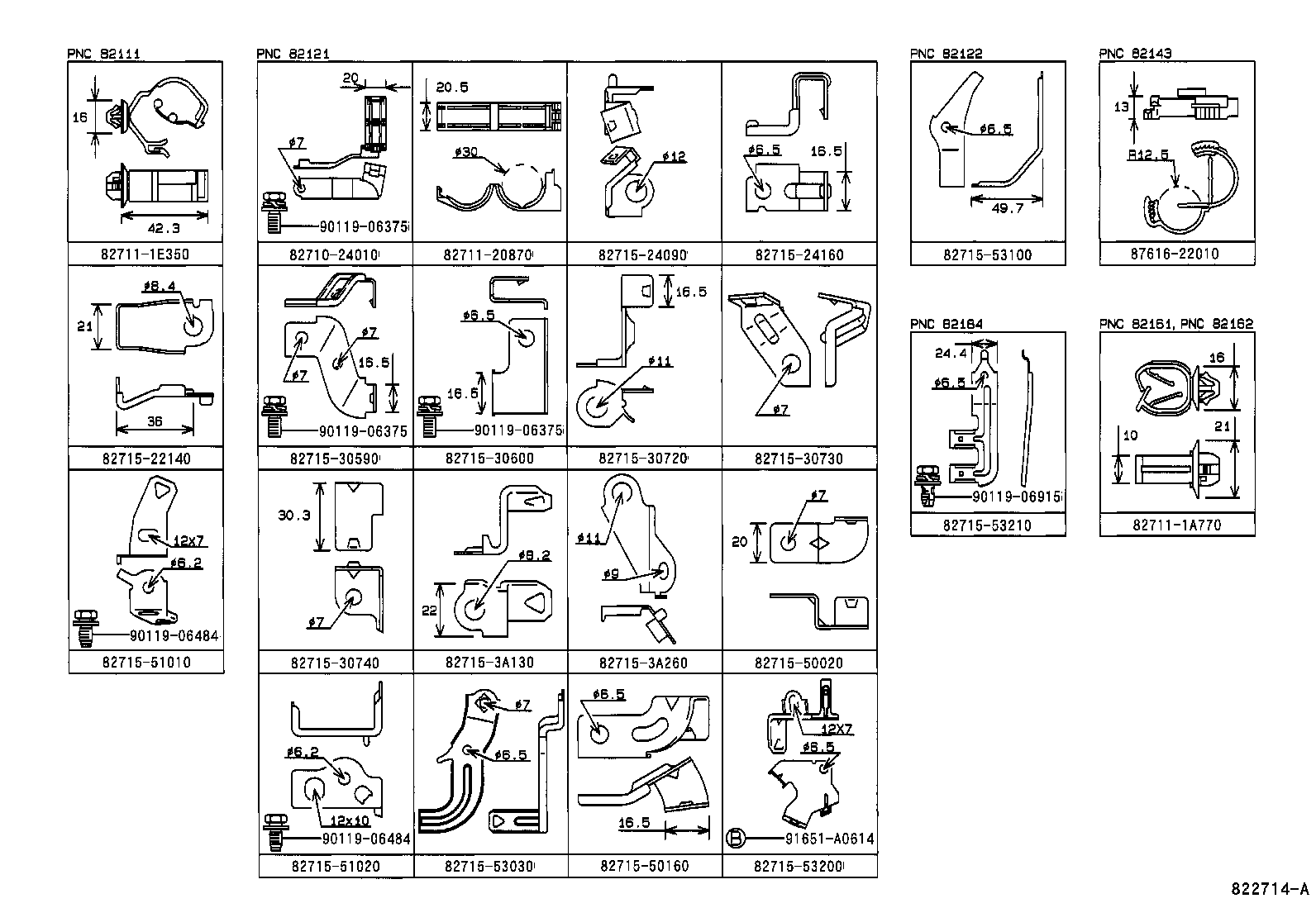

Figure 822714A

822714A 2001-06 → —

Figure 821645D

821645D 1998-10 → —

Figure 821644G

821644G 1998-10 → —

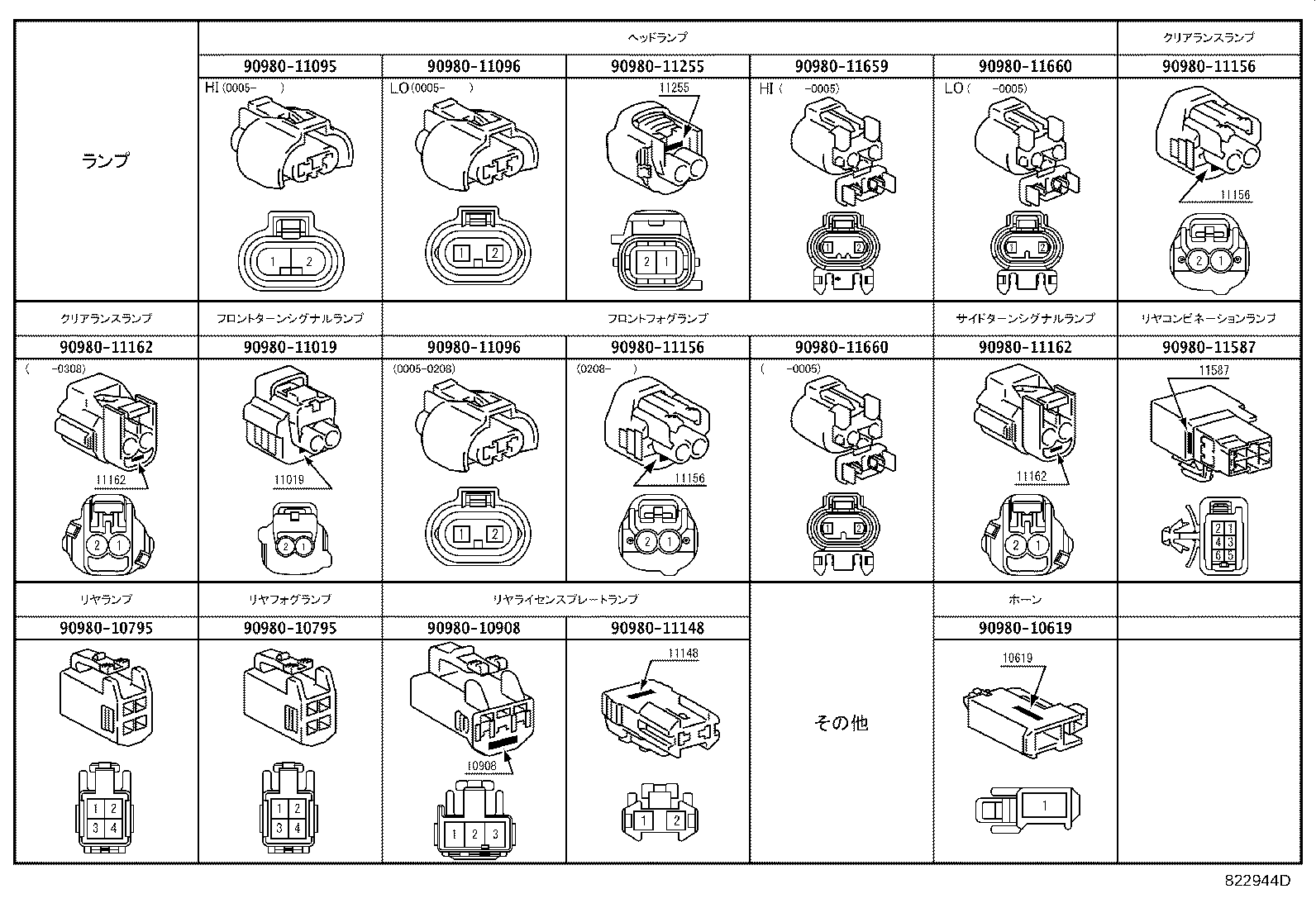

Figure 822944D

822944D 1998-10 → —

Part groups

PNC	Description
82001	Cable, Bond, NO.1
82111	Wire, Engine Room Main
82112	Wire, Engine Room, NO.2
82121	Wire, Engine
82122	Wire, Engine, NO.2
82123	Wire, Engine, NO.3
82141	Wire, Instrument Panel
82142	Wire, Instrument Panel, NO.2
82142A	Wire, Instrument Panel, NO.2
82143	Wire, Instrument Panel, NO.3
82151	Wire, Front Door, RH
82152	Wire, Front Door, LH
82153	Wire, Rear Door, NO.1
82154	Wire, Rear Door, NO.2
82161	Wire, Floor
82162	Wire, Floor, NO.2
82171	Wire, Roof, NO.1
82184	Wire, Back Door, NO.1
82185	Wire, Back Door, NO.2
82188	Wire, Fuel Tank
82189	Wire, Back Door, NO.4
82191	Wire, Front Seat, RH
82192	Wire, Front Seat, LH
82210C	Fusible Link
82219A	Wire, Sensor
82345	Diode
82521A	Wire, Vanity Lamp
82666A	Holder, Connector NO.2
82666B	Holder, Connector NO.3
82666C	Holder, Connector NO.4
82666D	Holder, Connector NO.5
82666E	Holder, Connector NO.6
82666F	Holder, Connector NO.7
82671	Block, Junction
82817	Protector, Wiring Harness, NO.1
82823S	Cap, Starter Terminal
82823T	Cap, Alternator Terminal
82824	Connector, Wiring Harness
82824G	Connector, Wiring Harness
86214A	Bracket, Radio Earth

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
