Toyota Altezza/Altezza Gita

1998-10 → 2005-07 · chassis GXE1#,JCE1#,SXE10 · catalogue 242110 · Japan

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

17 part groups · 4 illustrations

Illustrations

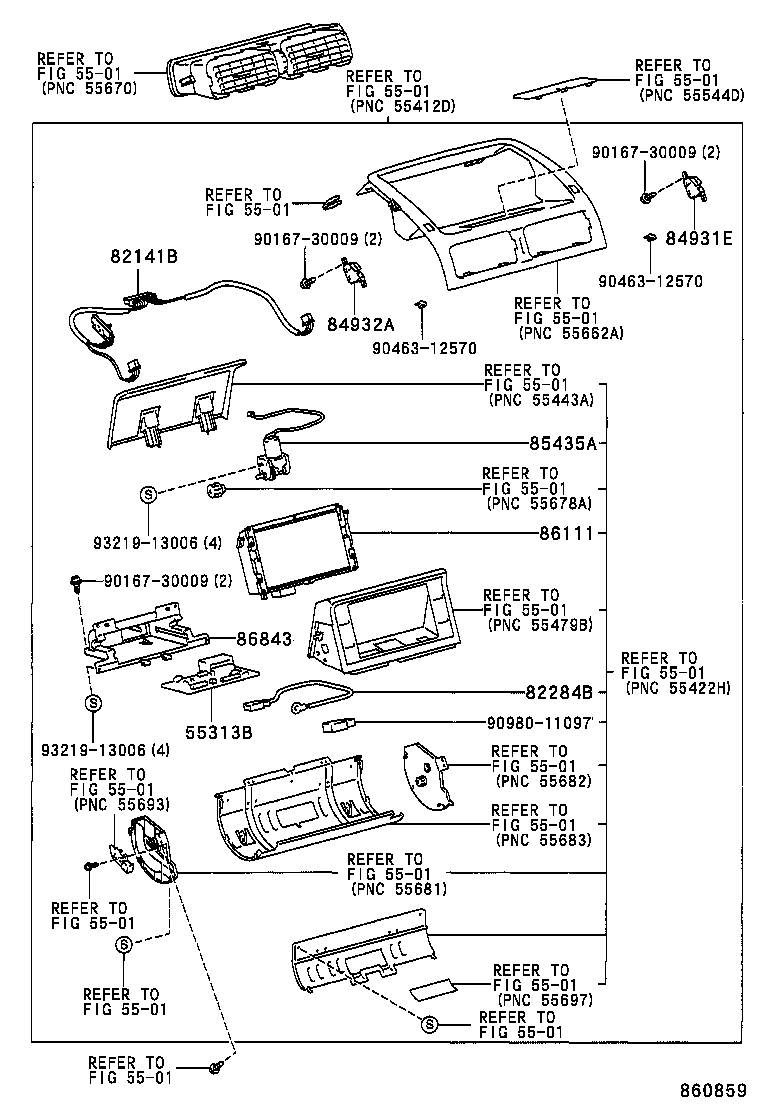

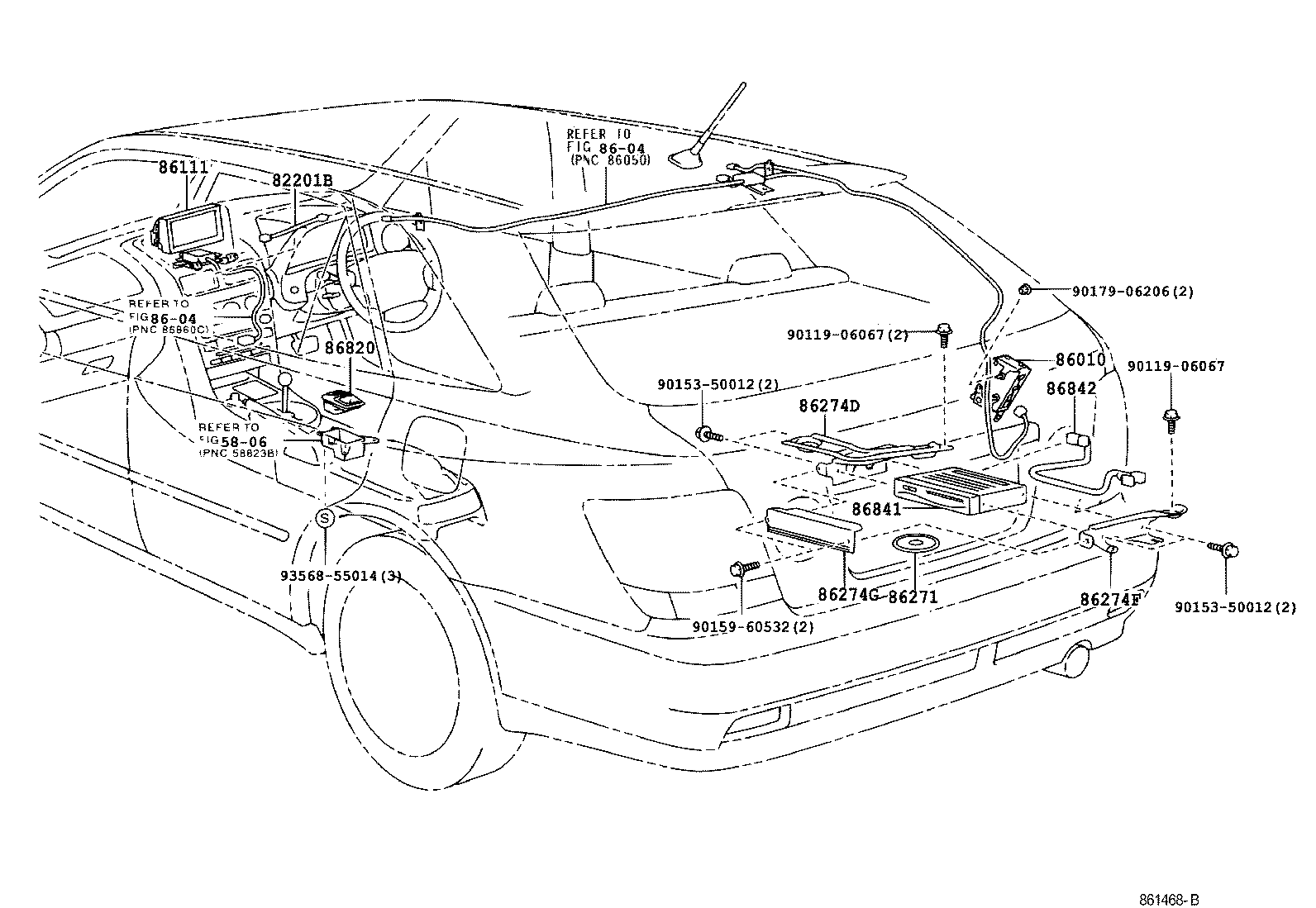

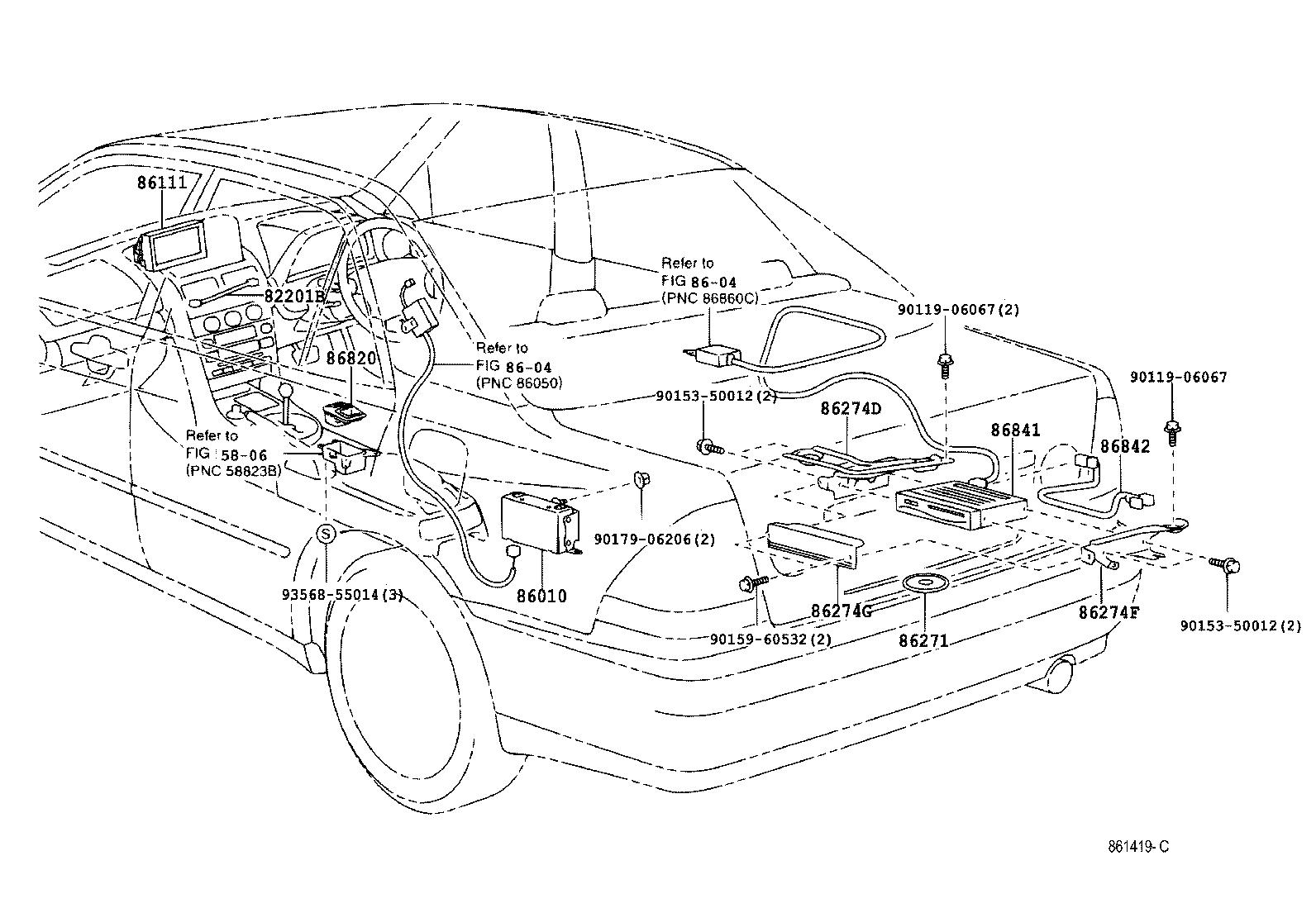

Figure 860838D 860838D 1998-10 → 2001-05 Figure 861419C 861419C 2001-05 → — Figure 861468B 861468B 2001-06 → — Figure 860859 860859 1998-10 → —

Part groups

PNCDescription
55313B Circuit, Door Control Unit
82141B Wire, Instrument Panel
82201B Wire, Instrument Panel
82284B Wire, Earth
84931E Switch, Door Control
84932A Switch, Door Control, NO.2
85435A Solenoid, Door Control
86010 Tuner Assy, Television
86111 Multi-display
86271 Disc, Disc Player
86274D Bracket, Disc Player
86274F Bracket, Disc Player, NO.2
86274G Bracket, Disc Player, NO.3
86820 Controller Assy, Navigation
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86843 Cover, Navigation Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
