Toyota Altezza/Altezza Gita
1998-10 → 2005-07 · chassis GXE1#,JCE1#,SXE10 · catalogue 242110 · Japan
Discontinued model
Data version 2006-01

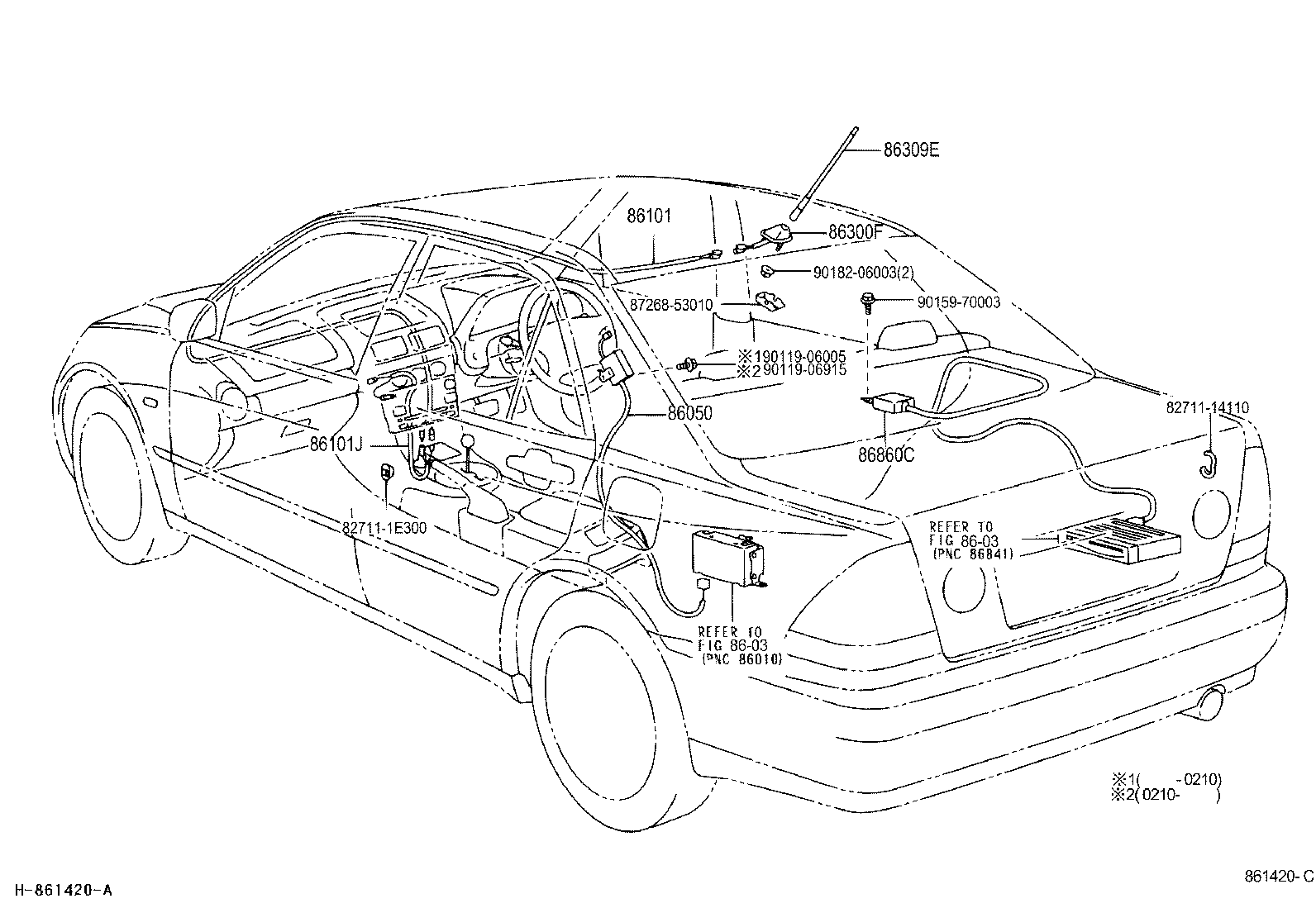

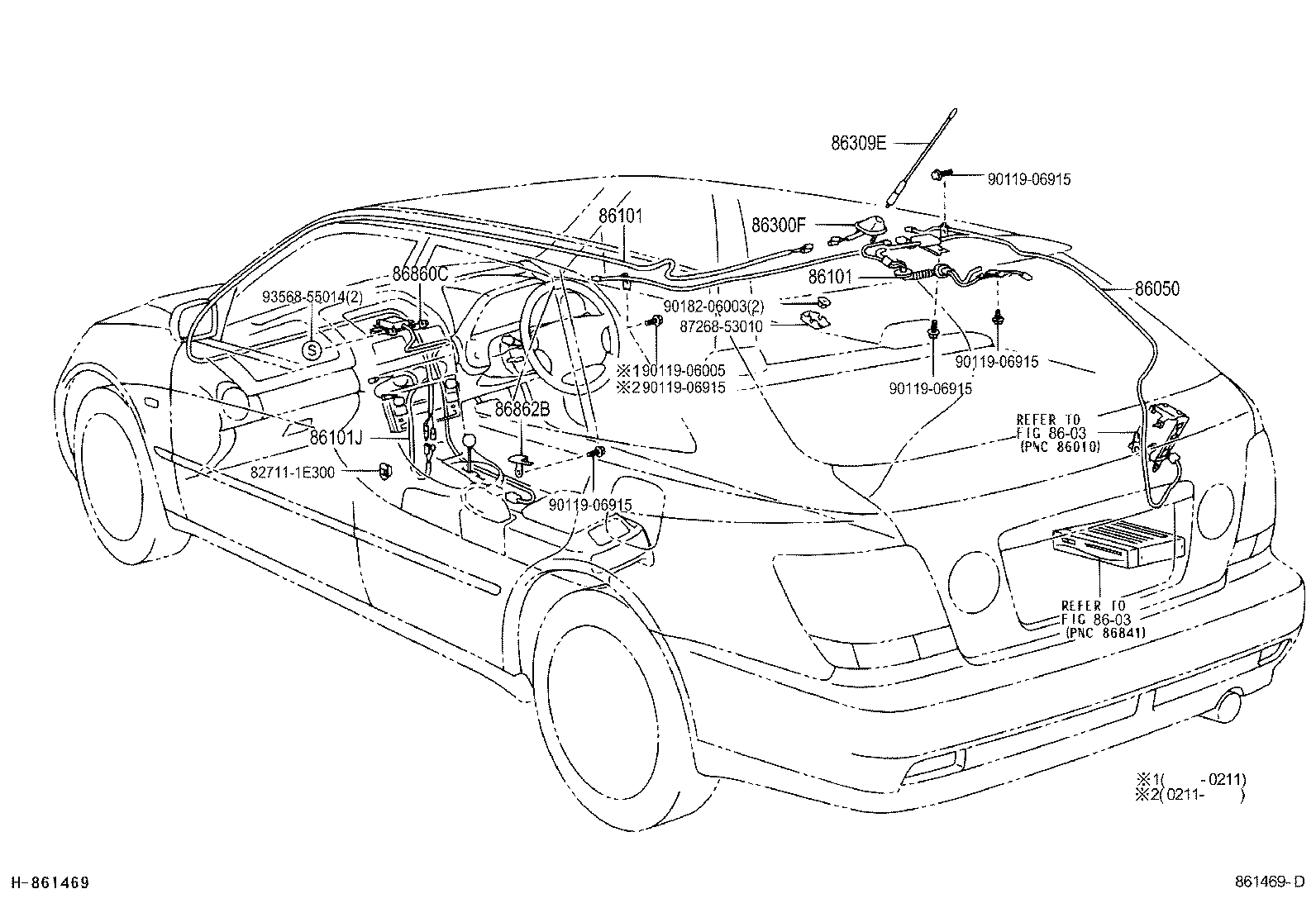

Antenna
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86050 | Antenna Assy, Television |
| 86101 | Cord Sub-assy, Antenna |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86300F | Holder Assy, Antenna (CORD/POLE SEPARATE TYPE) |
| 86309E | Pole Sub-assy, Roof Antenna |
| 86860C | Antenna Assy, Navigation |
| 86862B | Bracket, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
