Toyota Altezza/Altezza Gita

1998-10 → 2005-07 · chassis GXE1#,JCE1#,SXE10 · catalogue 242110 · Japan

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

19 part groups · 5 illustrations

Illustrations

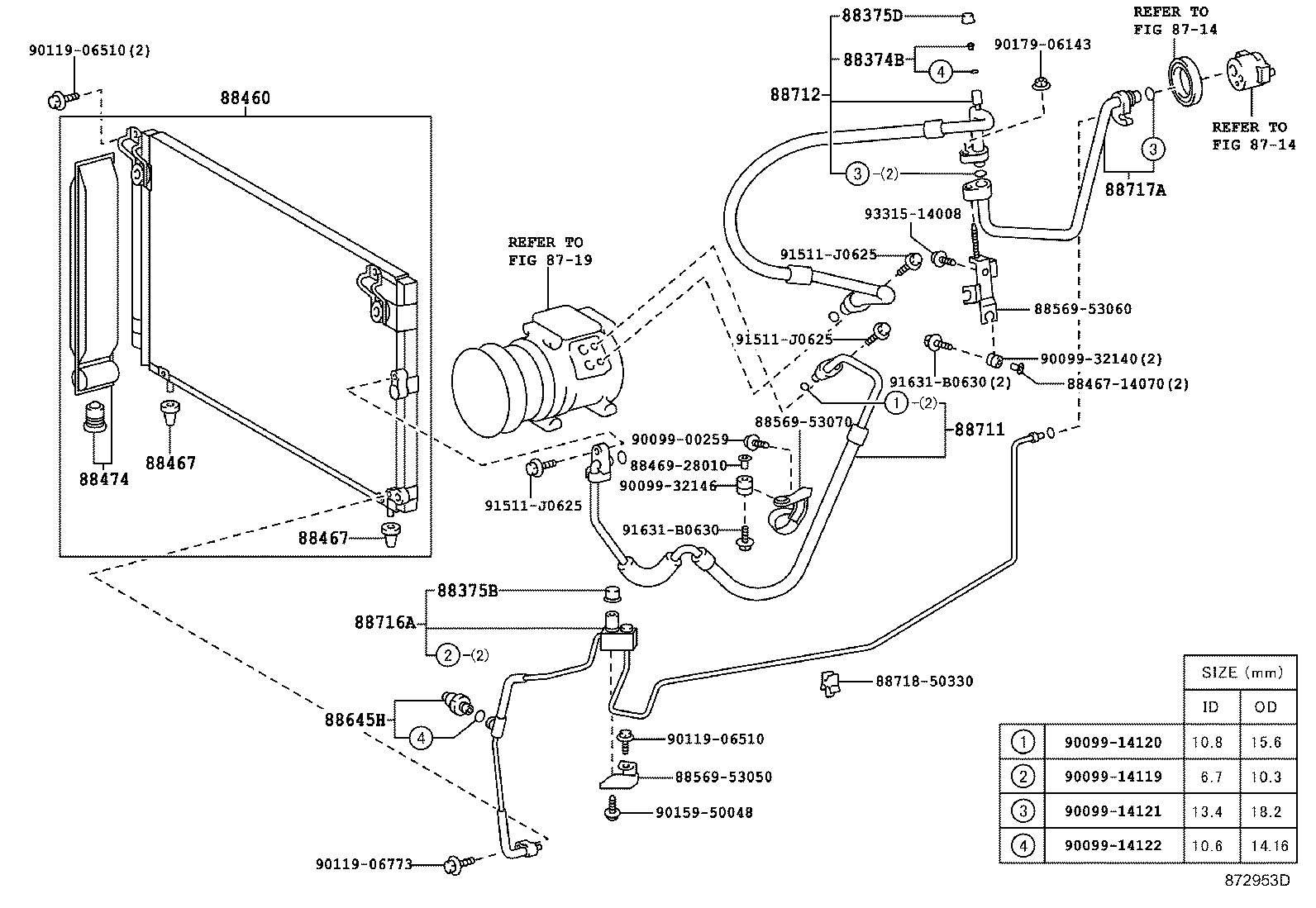

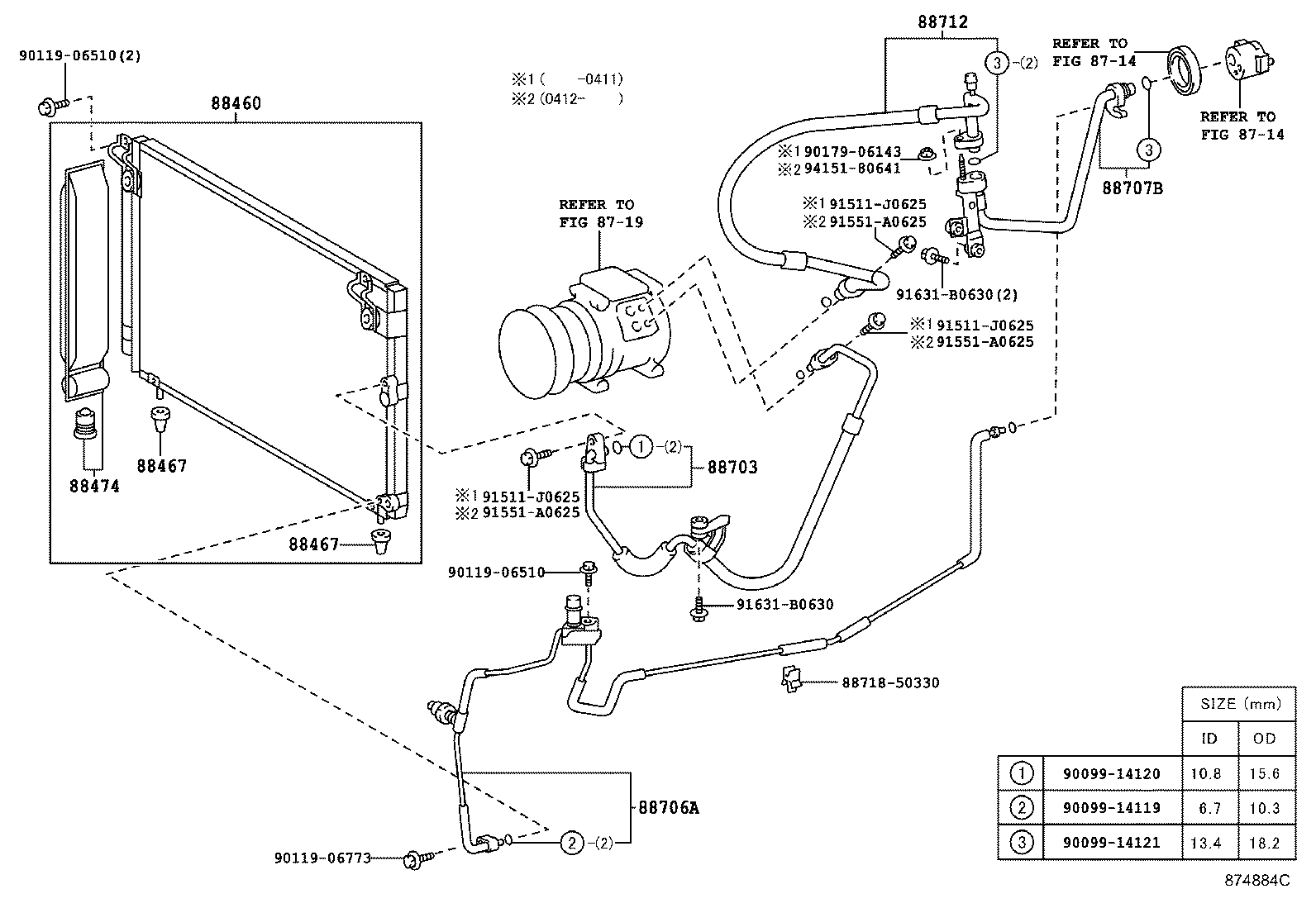

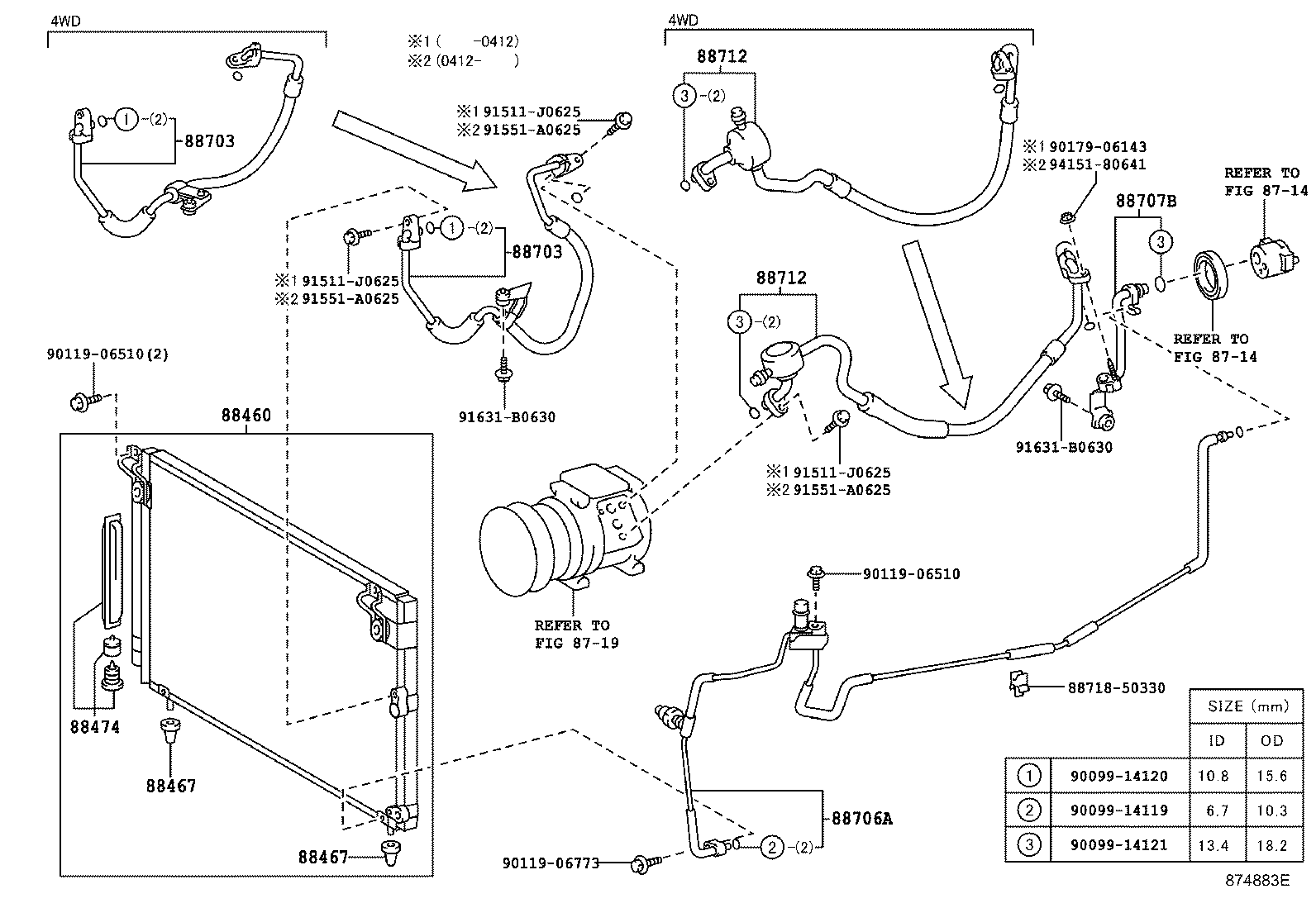

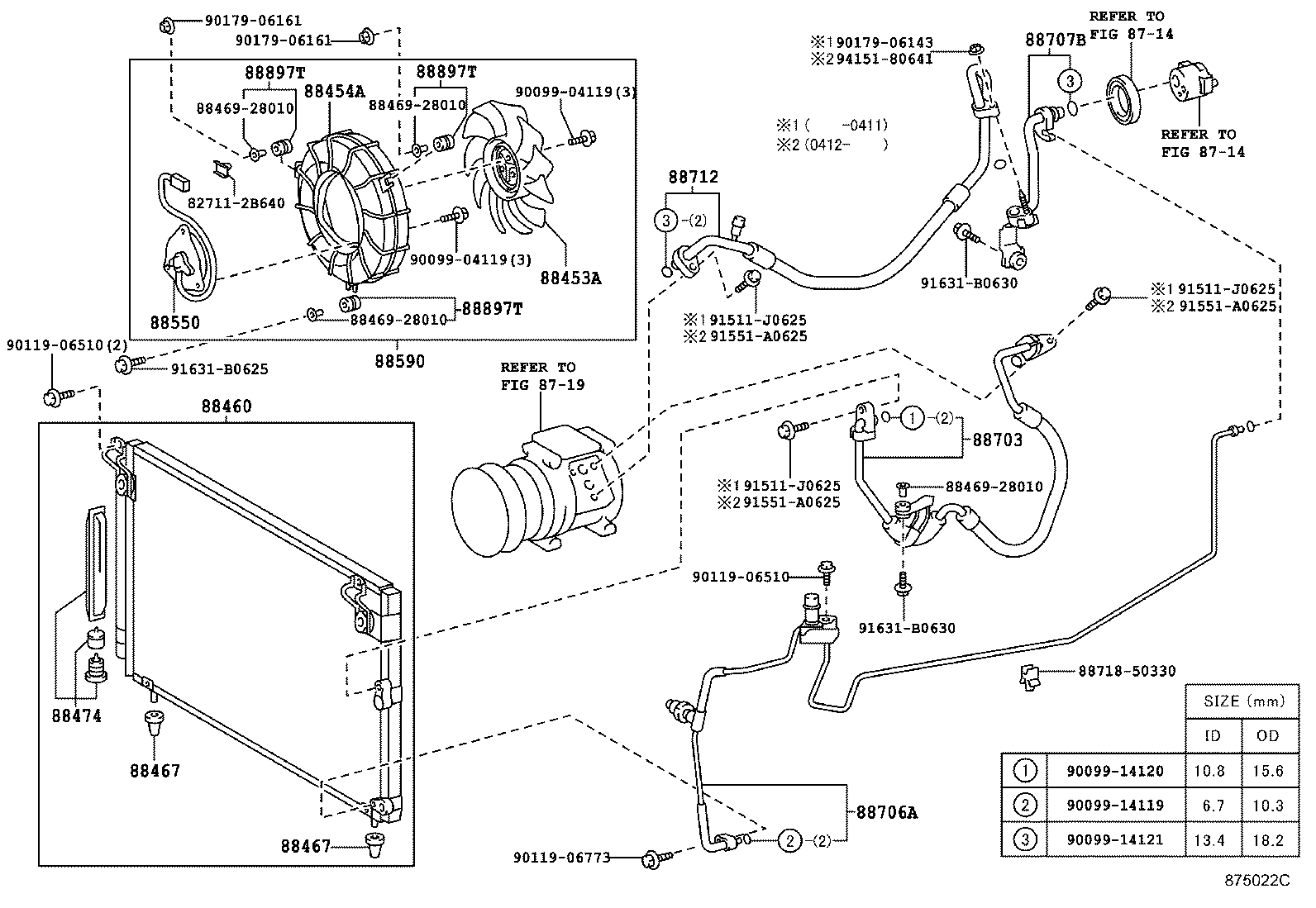

Figure 872952F 872952F 1998-10 → 2001-05 Figure 872953D 872953D 1998-10 → 2001-05 Figure 874883E 874883E 2001-05 → — Figure 874884C 874884C 2001-05 → — Figure 875022C 875022C 2001-06 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88453A Fan, Cooling
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88703 Hose Sub-assy, Discharge
88706A Tube Sub-assy, Liquid, A
88707B Tube Sub-assy, Suction, B
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88717A Pipe, Cooler Refrigerant Suction, A
88897T Grommet, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
