Toyota Altezza/Altezza Gita

1998-10 → 2005-07 · chassis GXE1#,JCE1#,SXE10 · catalogue 242110 · Japan

Discontinued model Data version 2006-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

9 part groups · 8 illustrations

Illustrations

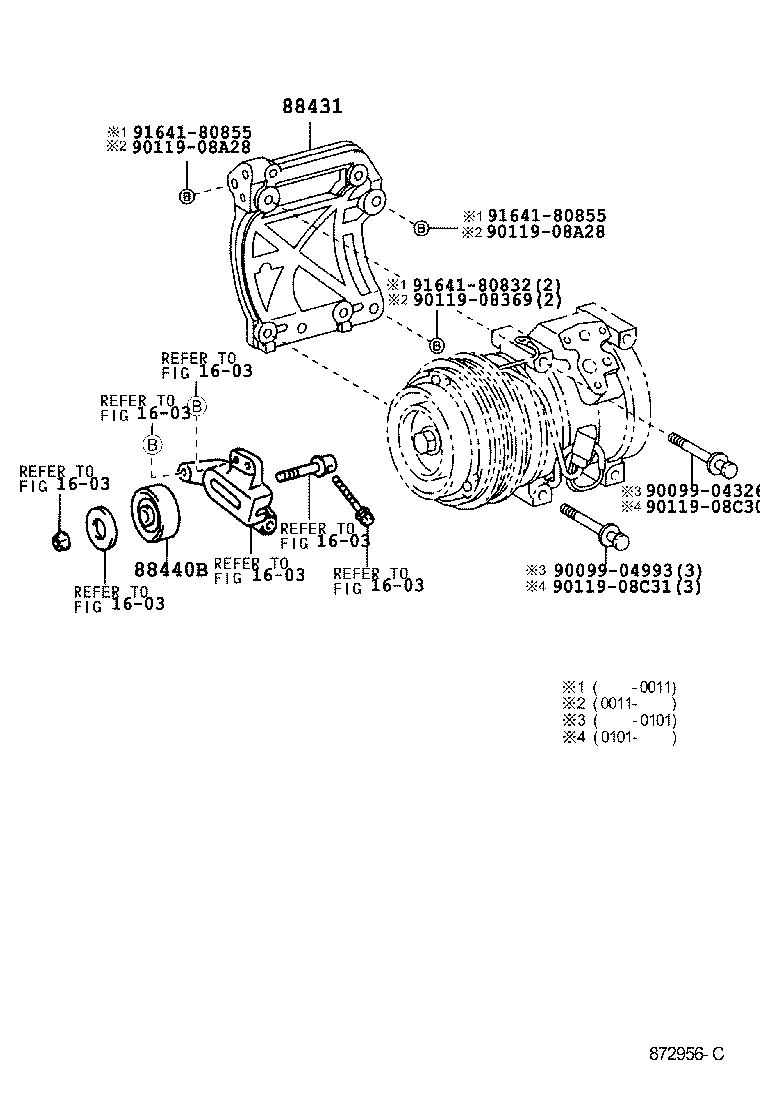

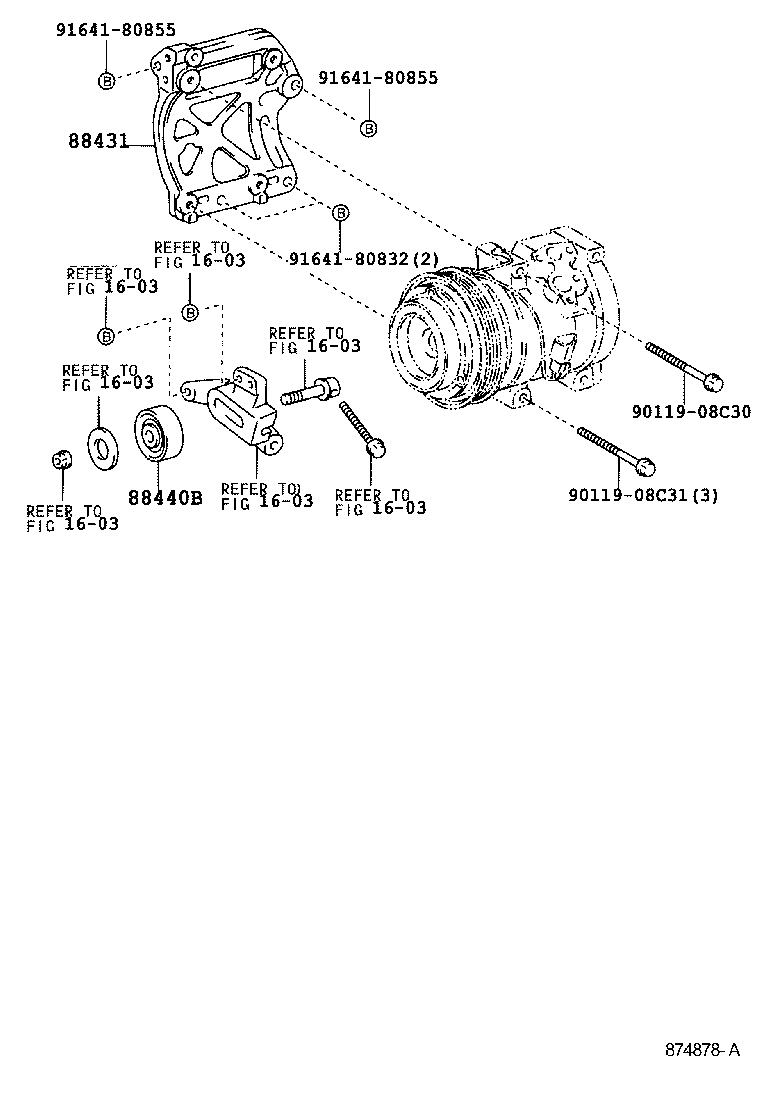

Figure 872955 872955 1998-10 → 2001-05 Figure 872956C 872956C 1998-10 → 2001-05 Figure 874877 874877 2001-05 → — Figure 874878A 874878A 2001-05 → — Figure 875018 875018 2001-06 → — Figure 872957D 872957D 1998-10 → 2001-05 Figure 874879C 874879C 2001-05 → — Figure 875019A 875019A 2001-06 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88440B Pulley Assy, Idle
88605B Harness Sub-assy, Air Conditioner Wiring
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
