Toyota Lexus IS250/350
2005-08 → 2013-04 · chassis GSE2# · catalogue 242120 · Japan
Supported model
Data version 2013-10
Fuel Injection System

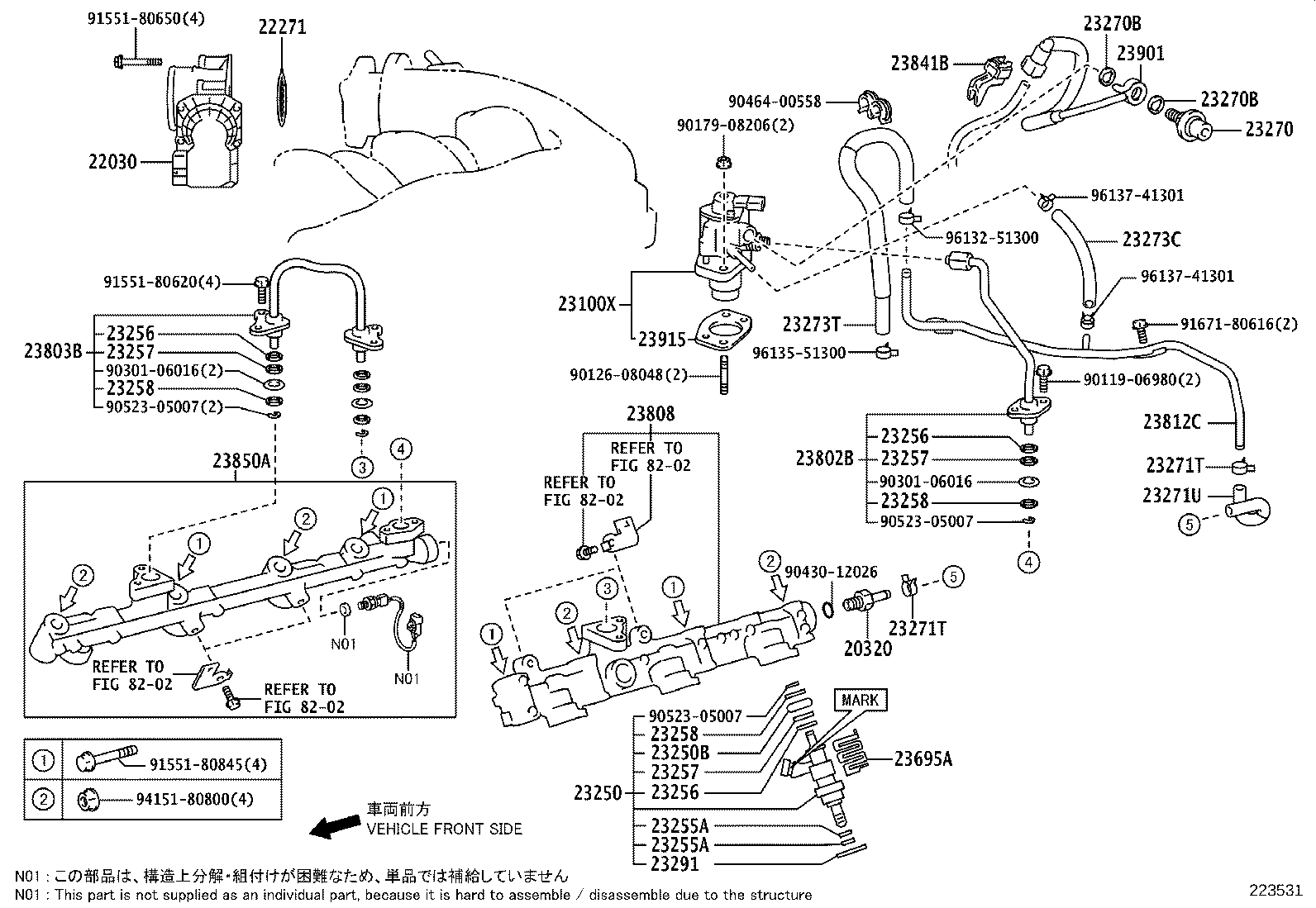

29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 20320 | Valve Assy, Fuel Relief |
| 22030 | Body Assy, Throttle W/Throttle Position Sensor |
| 22271 | Gasket, Throttle Body |
| 23100X | Pump Assy, Fuel (ENGINE ROOM SIDE) |
| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23255A | Seal, Fuel Injector |
| 23256 | Ring, Fuel Injector Back-up, NO.1 |
| 23257 | Ring, Fuel Injector Back-up, NO.2 |
| 23258 | Ring, Fuel Injector Back-up, NO.3 |
| 23270 | Damper Assy, Fuel Pressure Pulsation |
| 23270B | Gasket(FOR PULSATION DAMPER HOSE) |
| 23271T | Clamp OR Clip(FOR FUEL HOSE) |
| 23271U | Hose, Fuel, NO.1 |
| 23273C | Hose, Fuel, NO.2 |
| 23273T | Hose, Fuel, NO.3 |
| 23291 | Insulator, Injector Vibration |
| 23695A | Clamp, Nozzle Holder |
| 23802B | Pipe Sub-assy, Fuel, NO.2 |
| 23803B | Pipe Sub-assy, Fuel, NO.3 |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23807V | Spacer, NO.1(FOR DELIVERY PIPE) |
| 23808 | Pipe Sub-assy, Fuel Delivery, NO.2 |
| 23812C | Pipe, Fuel, NO.2 |
| 23841B | Clamp, Fuel Pipe, NO.1(FOR EFI) |
| 23850A | Pipe Assy, Fuel Delivery W/Sensor, RH |
| 23901 | Tube Sub-assy, Fuel |
| 23902 | Tube Sub-assy, Fuel |
| 23915 | Insulator, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
