Toyota Lexus IS250/350

2005-08 → 2013-04 · chassis GSE2# · catalogue 242120 · Japan

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

5 part groups · 3 illustrations

Illustrations

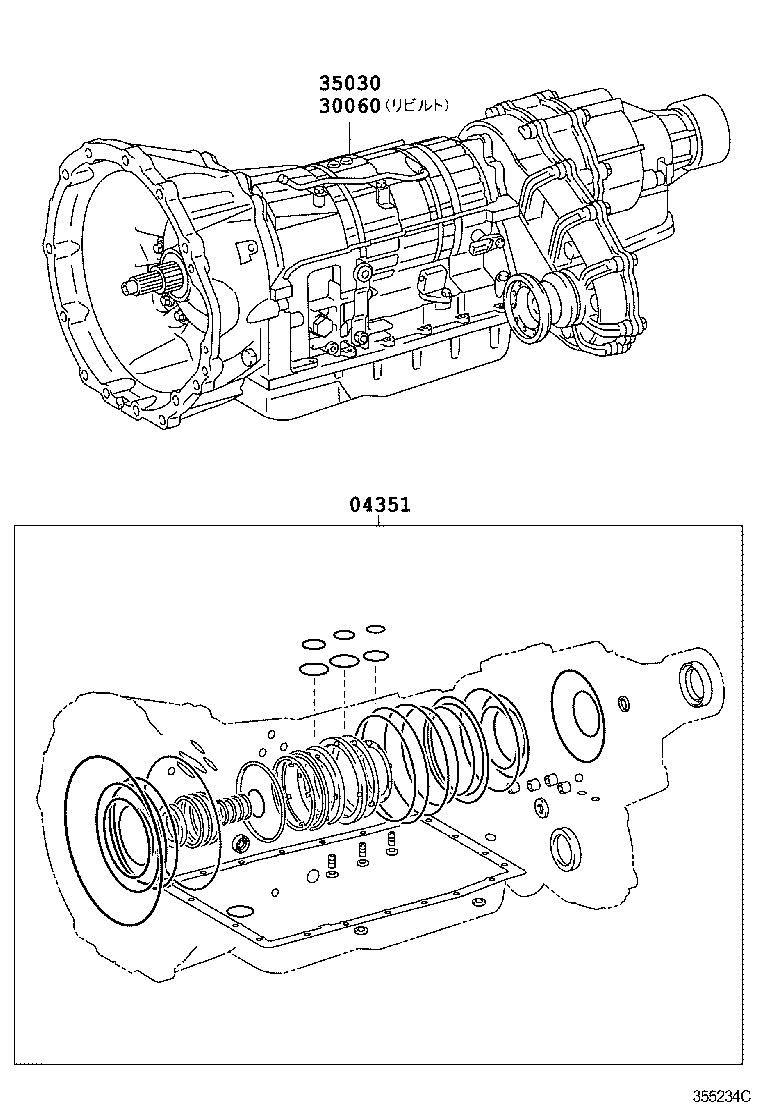

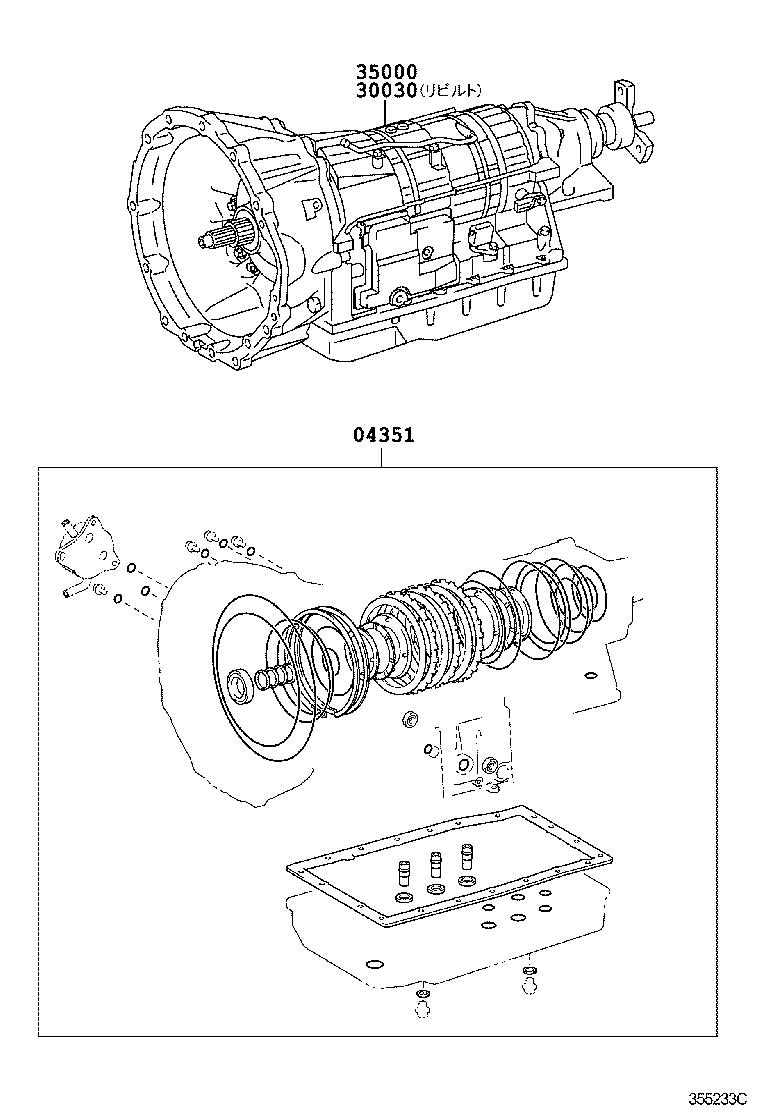

Figure 355232B 355232B 2005-08 → — Figure 355233C 355233C 2005-08 → — Figure 355234C 355234C 2005-08 → —

Part groups

PNCDescription
04351 Gasket Kit, Automatic Transmission Overhaul
30030 Transmission Assy, Rebuilt
30060 Transmission Assy, W/Transfer, Rebuilt
35000 Transmission Assy, Automatic
35030 Transmission Assy, Automatic W/Transfer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
