Toyota Lexus IS250/350
2005-08 → 2013-04 · chassis GSE2# · catalogue 242120 · Japan
Supported model
Data version 2013-10

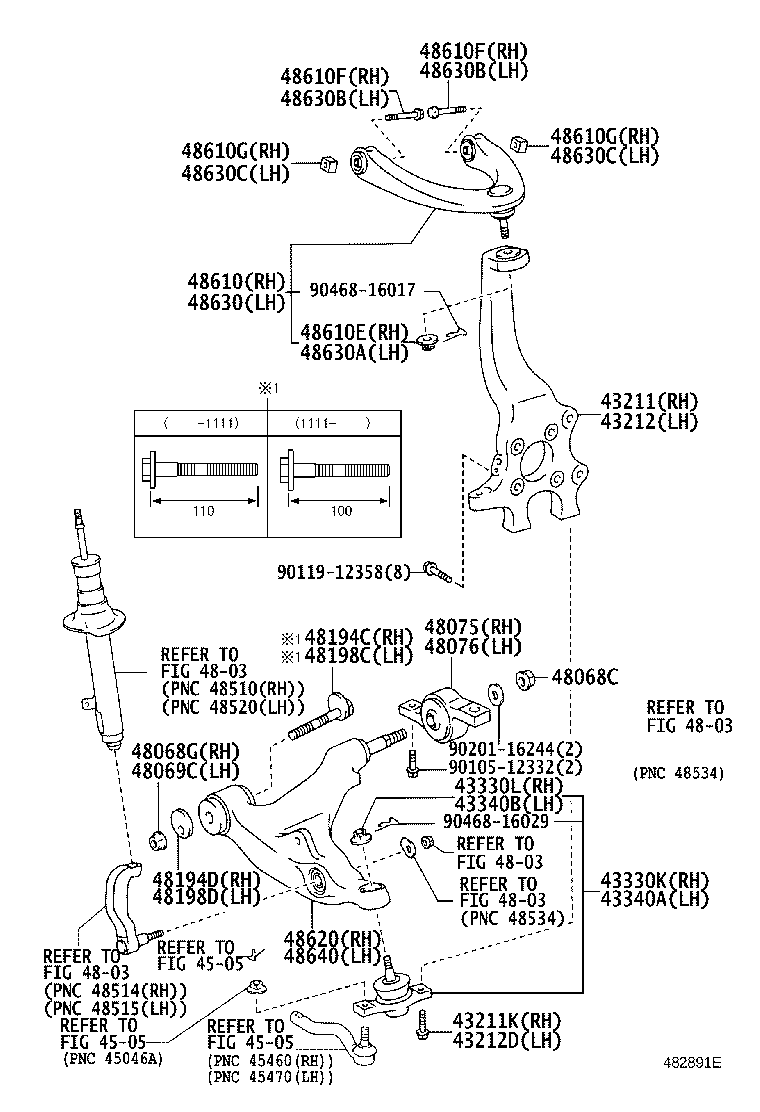

Front Axle Arm & Steering Knuckle
32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 43211 | Knuckle, Steering, RH |
| 43211K | Bolt (FOR STEERING KNUCKLE RH) |
| 43212 | Knuckle, Steering, LH |
| 43212D | Bolt (FOR STEERING KNUCKLE LH) |
| 43330K | Joint Assy, Lower Ball, Front RH |
| 43330L | Nut, Castle (FOR FRONT LOWER BALL JOINT RH) |
| 43330M | Bolt (FOR FRONT LOWER BALL JOINT RH) |
| 43340A | Joint Assy, Lower Ball, Front LH |
| 43340B | Nut, Castle (FOR FRONT LOWER BALL JOINT LH) |
| 43340C | Bolt (FOR FRONT LOWER BALL JOINT LH) |
| 48068A | Bolt(FOR FRONT SUSPENSION LOWER ARM) |
| 48068C | Nut(FOR FRONT SUSPENSION LOWER ARM) |
| 48068G | Nut(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) |
| 48069C | Nut(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) |
| 48075 | Bracket Sub-assy, Lwr Arm, NO,1 |
| 48076 | Bracket Sub-assy, Lwr Arm, NO.2 |
| 48194C | Cam, Front Suspension Camber Adjust, NO.1 RH |
| 48194D | Cam, Front Suspension Camber Adjust, NO.2 RH |
| 48194E | Cam, Front Suspension Camber Adjust, NO.3 RH |
| 48198C | Cam, Front Suspension Camber Adjust, NO.1 LH |
| 48198D | Cam, Front Suspension Camber Adjust, NO.2 LH |
| 48198E | Cam, Front Suspension Camber Adjust, NO.3 LH |
| 48610 | Arm Assy, Front Suspension Upper, RH |
| 48610E | Nut, Castle(FOR FRONT SUSPENSION UPPER ARM RH) |
| 48610F | Bolt(FOR FRONT SUSPENSION UPPER ARM RH) |
| 48610G | Nut(FOR FRONT SUSPENSION UPPER ARM RH) |
| 48620 | Arm Assy, Front Suspension, Lower RH |
| 48630 | Arm Assy, Front Suspension, Upper LH |
| 48630A | Nut, Castle(FOR FRONT SUSPENSION UPPER ARM LH) |
| 48630B | Bolt(FOR FRONT SUSPENSION UPPER ARM LH) |
| 48630C | Nut(FOR FRONT SUSPENSION UPPER ARM LH) |
| 48640 | Arm Assy, Front Suspension Lower, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
