Toyota Lexus IS250/350

2005-08 → 2013-04 · chassis GSE2# · catalogue 242120 · Japan

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

19 part groups · 2 illustrations

Illustrations

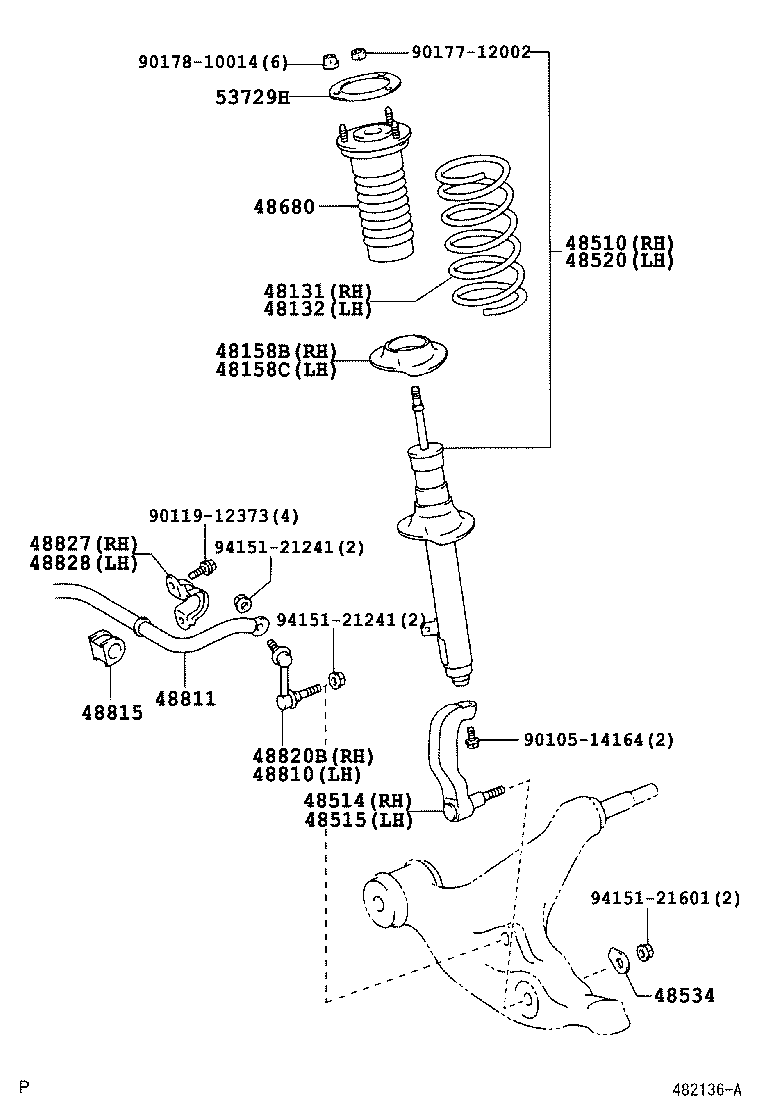

Figure 482137B 482137B 2005-08 → — Figure 482136A 482136A 2005-08 → —

Part groups

PNCDescription
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48158B Insulator, Front Coil Spring, Lower RH
48158C Insulator, Front Coil Spring, Lower LH
48510 Absorber Assy, Shock, Front RH
48514 Bracket, Front Shock Absorber, Lower RH
48515 Bracket, Front Shock Absorber, Lower LH
48520 Absorber Assy, Shock, Front LH
48534 Plate, Front Shock Absorber Upper Bracket
48680 Support Assy, Front Suspension
48810 Link Assy, Front Stabilizer, LH
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48820B Link Assy, Front Stabilizer, RH
48824A Bracket, Front Stabilizer, NO.1 RH
48827 Bracket, Front Stabilizer, NO.2 RH
48828 Bracket, Front Stabilizer, NO.2 LH
48829A Bracket, Front Stabilizer, NO.1 LH
53729H Reinforcement, Front Spring Support, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
