Toyota Lexus IS250/350

2005-08 → 2013-04 · chassis GSE2# · catalogue 242120 · Japan

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

22 part groups · 3 illustrations

Illustrations

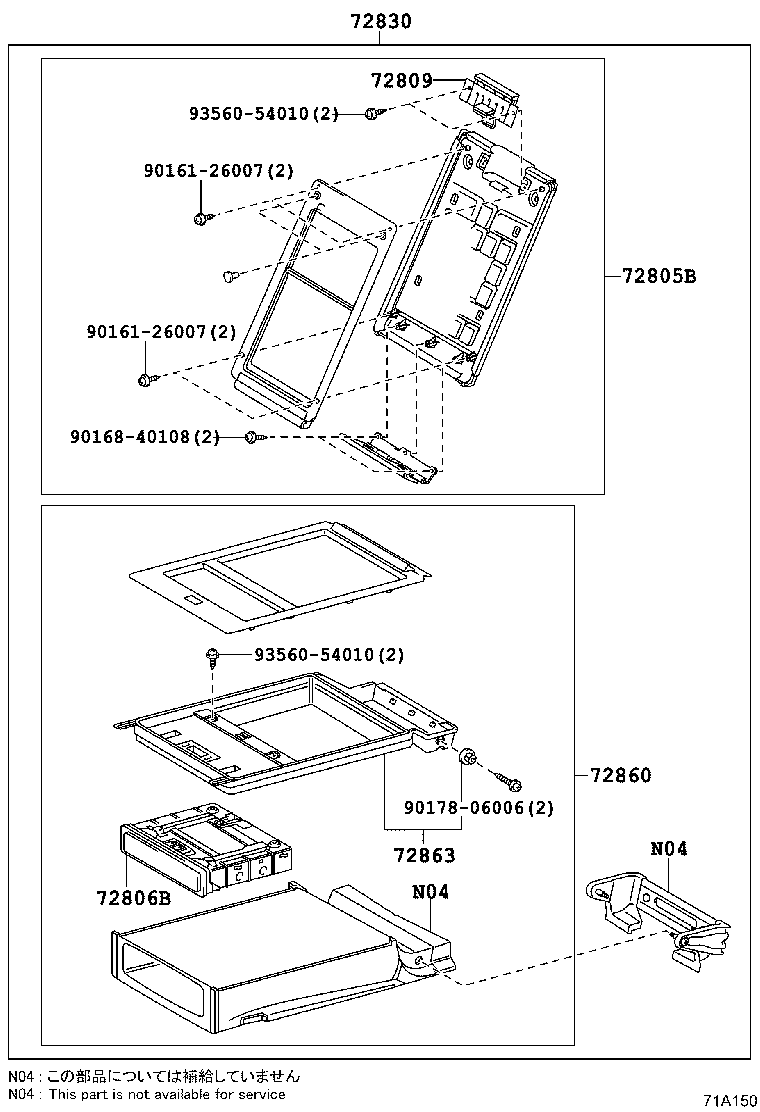

Figure 716307B 716307B 2005-08 → — Figure 71A150 71A150 2005-08 → — Figure 718165A 718165A 2005-08 → —

Part groups

PNCDescription
58908C Lock Sub-assy, Rear Seat Armrest
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71398A Holder, Rear Seatback
71611 Pad, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71956B Support, Rear Seat Headrest
71960B Headrest Assy, Rear Seat, Center
72620A Protector Assy, Rear Seatback
72693 Hook, Rear Seat Cushion Lock
72805B Door Sub-assy, Rear Seat Center Armrest
72806B Holder Sub-assy, Rear Seat Center Armrest Cup
72809 Lock Sub-assy, Center Armrest
72830 Armrest Assy, Rear Seat, Center
72833B Door, Rear Seat Center Armrest
72860 Box Assy, Rear Seat Center Armrest
72862 Patch, Center Armrest
72863 Box, Rear Seat Center Armrest
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
