Toyota Lexus IS250/350
2005-08 → 2013-04 · chassis GSE2# · catalogue 242120 · Japan
Supported model
Data version 2013-10

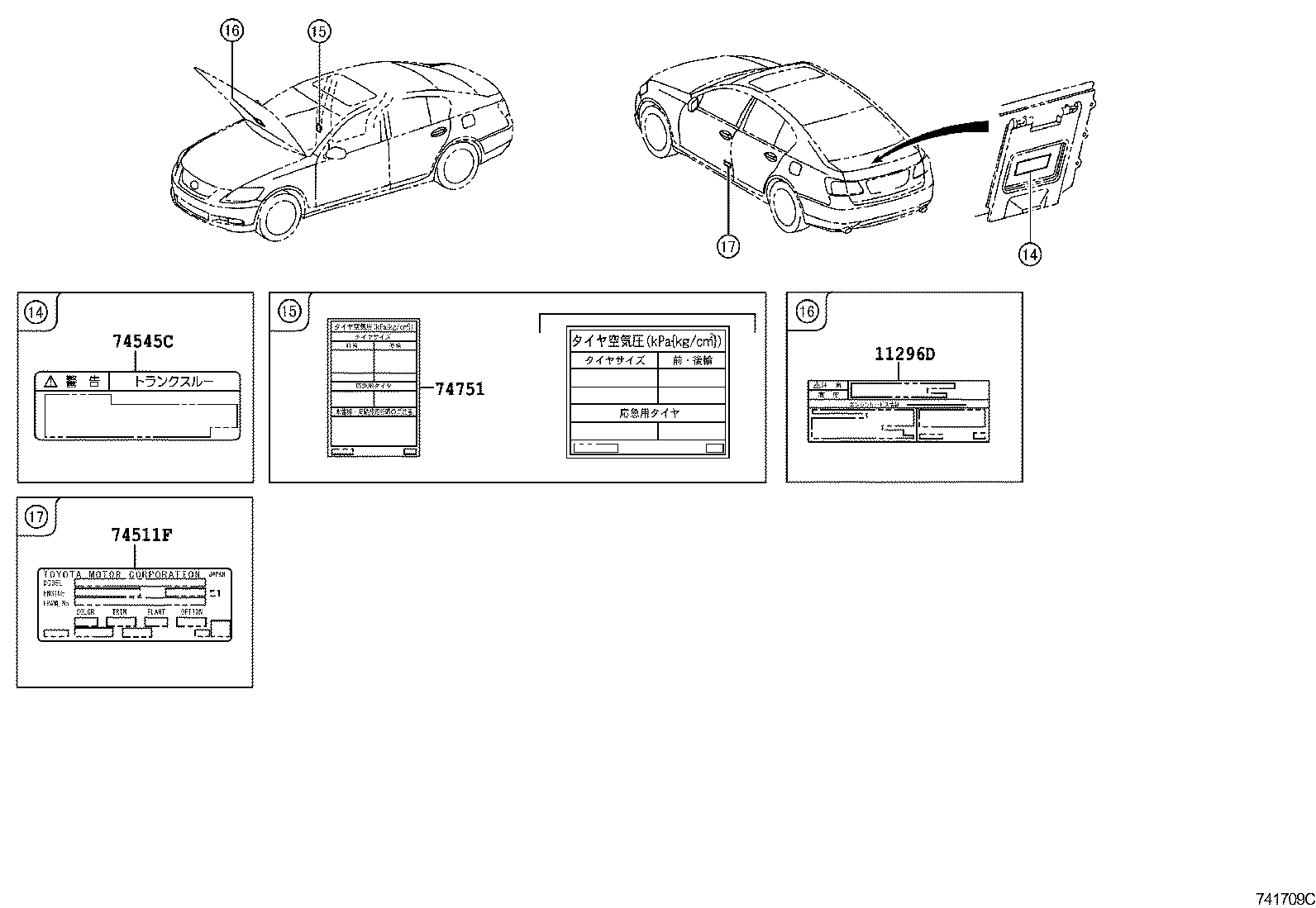

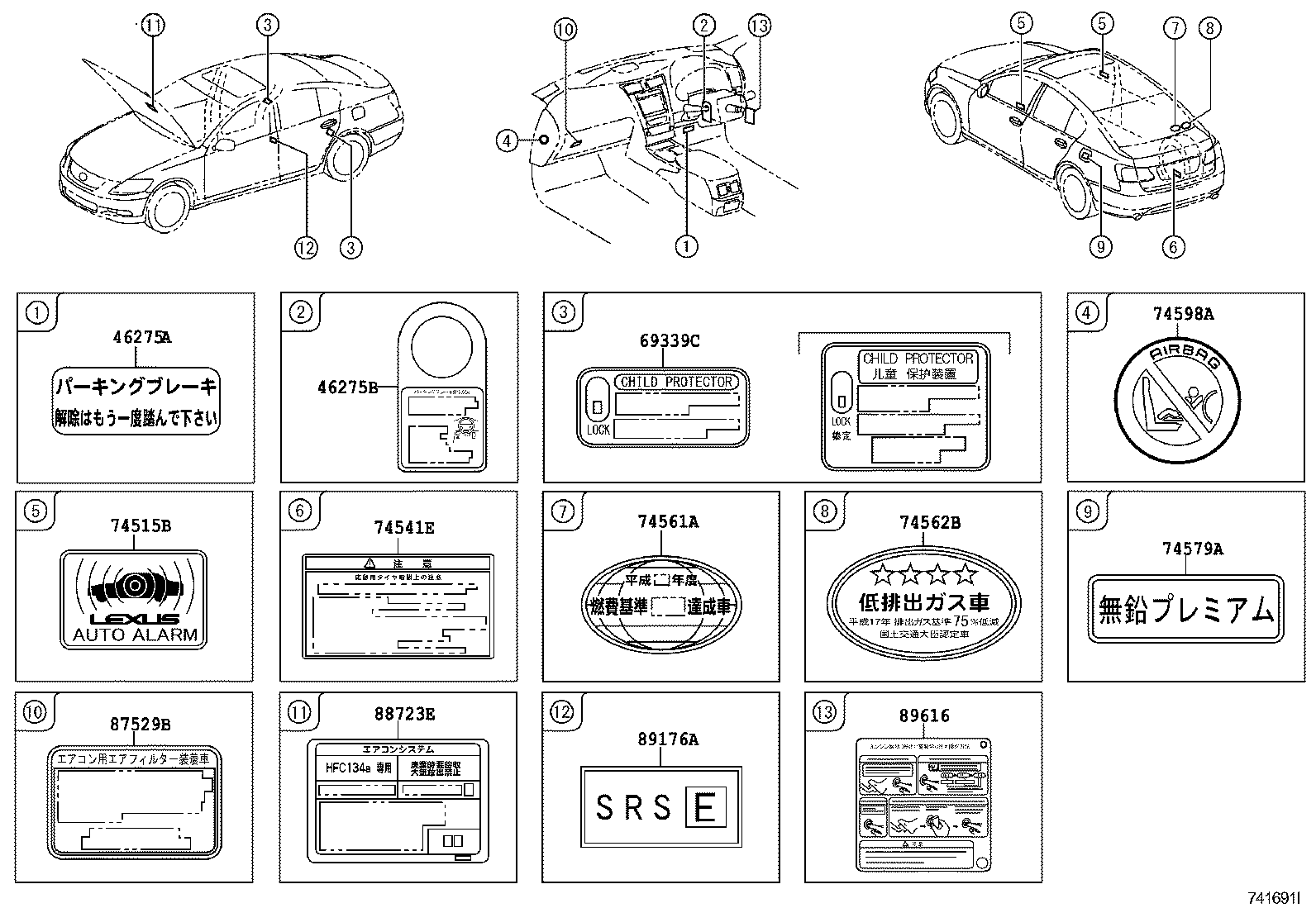

Caution Plate (EXTERIOR & INTERIOR)
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11291B | Plate, Engine Name |
| 11296D | Label, Engine Service Information |
| 16793E | Label, Cooling Fan Caution |
| 46275A | Label, Parking Brake Release Information, NO.1 |
| 46275B | Label, Parking Brake Release Information, NO.2 |
| 69339C | Label, Child Protector Information |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515B | Plate, Theft Warning |
| 74541E | Plate, Compact Spare Tire Caution |
| 74545C | Label, Luggage Door |
| 74561A | Label, Fuel Consumption Information |
| 74562B | Label, Emission Information |
| 74579A | Label, Unleaded Fuel Information |
| 74598A | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
| 89176A | Label, Airbag Deployment Information |
| 89616 | Label, Push Start Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
