Toyota Lexus IS250/350

2005-08 → 2013-04 · chassis GSE2# · catalogue 242120 · Japan

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

8 part groups · 3 illustrations

Illustrations

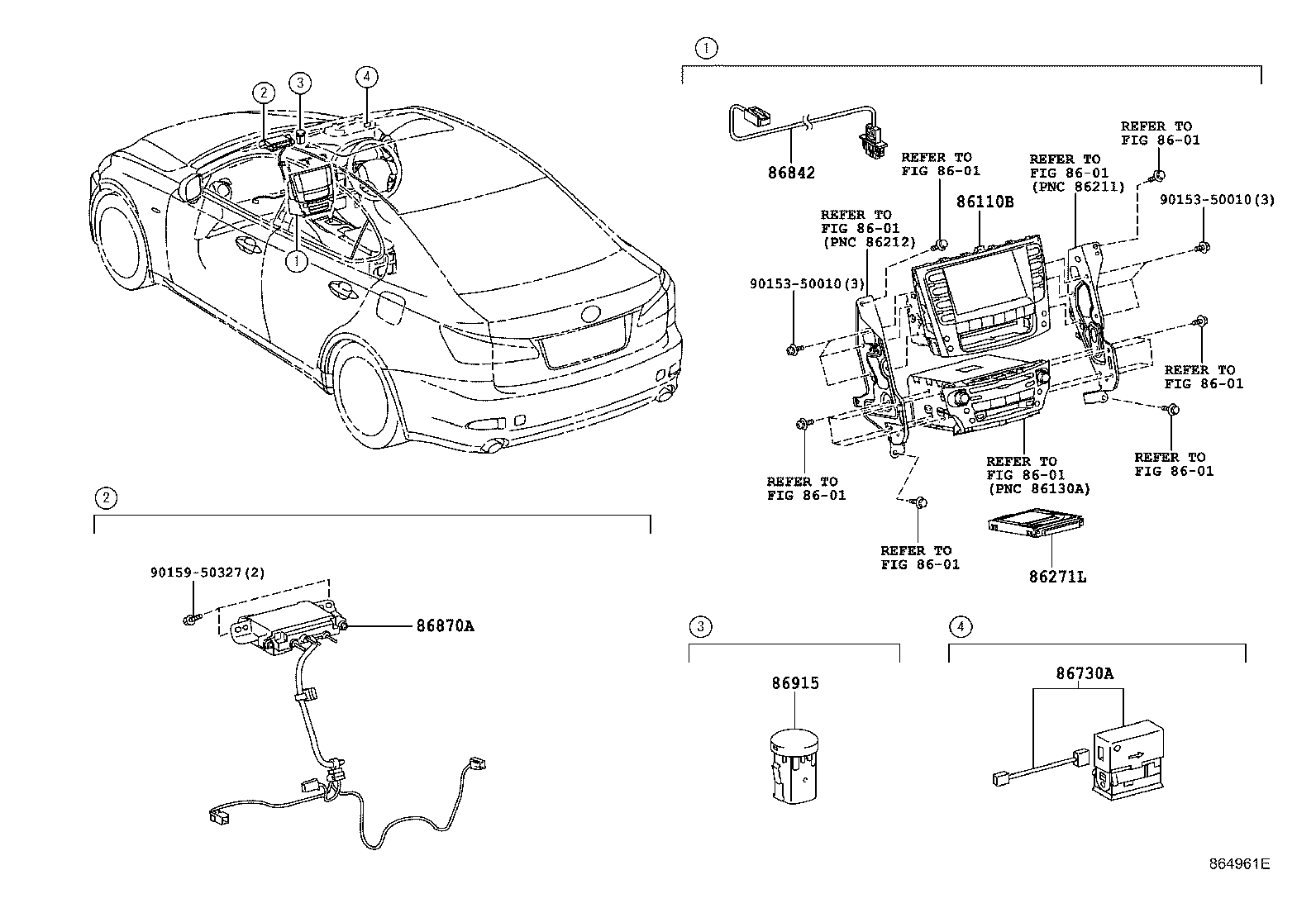

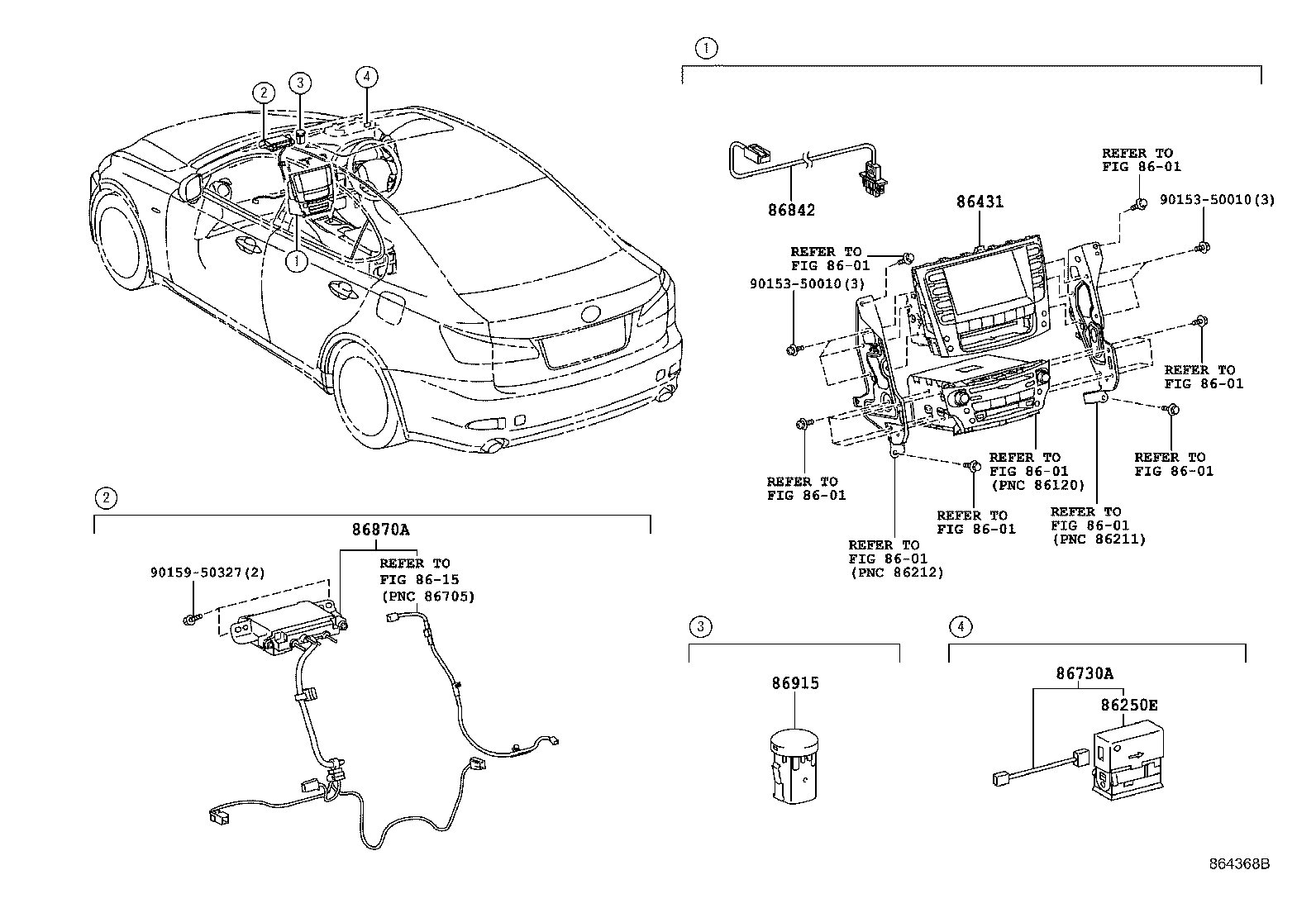

Figure 862554K 862554K 2005-08 → 2009-08 Figure 864368B 864368B 2009-08 → 2012-08 Figure 864961E 864961E 2012-08 → —

Part groups

PNCDescription
86110B Multi-display Assy
86250E Microphone Assy, Amplifier
86271L Hard Disc
86431 Display, Display & Navigation Module
86730A Microphone Assy, Telephone
86842 Wire, Navigation, NO.1
86870A Antenna Assy, Gps & Vics
86915 Transceiver, Optical Beacon
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
