Toyota Lexus IS Series
2013-04 → present · chassis ASE30,AVE3#,GSE3#,USE3# · catalogue 242130 · Japan
Supported model
Data version 2022-09
Standard Tool
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 09105 | Box Set, Jack |
| 09110 | Jack Assy |
| 09113 | Handle, Jack |
| 09120 | Bag, Tool |
| 09130 | Pliers |
| 09135 | Driver, Screw |
| 09141 | Spanner |
| 09150 | Wrench, Hub Nut Box |
| 09151 | Wrench, Hub Bolt Box |
| 0915A | Socket, Hub Bolt Temporary Setting |
| 0915B | Pin, Wheel Guide |
| 42606B | Repair Kit, Tubeless Tire |

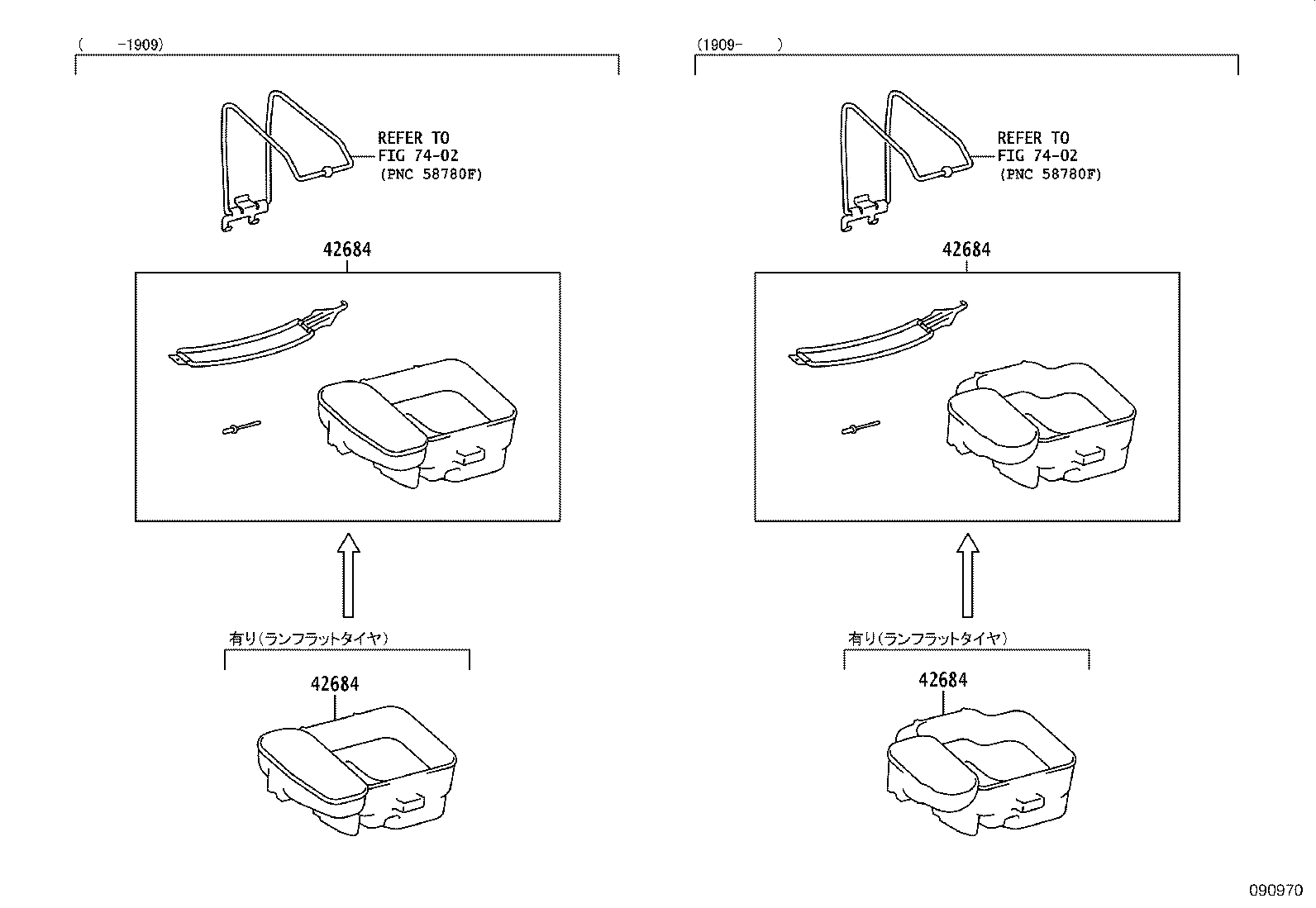

| 42684 | Case, Tire Repair Kit |
| 44890D | Compressor Assy, Air |
| 51960 | Hook Assy, Front |
| 51960A | Hook Assy, Rear |
| 67217D | Stopper, Rear Door Glass |
| C6048 | Repair Set, Tire |
| C6048A | Sealant, Repair Tire |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
