Toyota Lexus IS Series

2013-04 → present · chassis ASE30,AVE3#,GSE3#,USE3# · catalogue 242130 · Japan

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

45 part groups · 13 illustrations

Illustrations

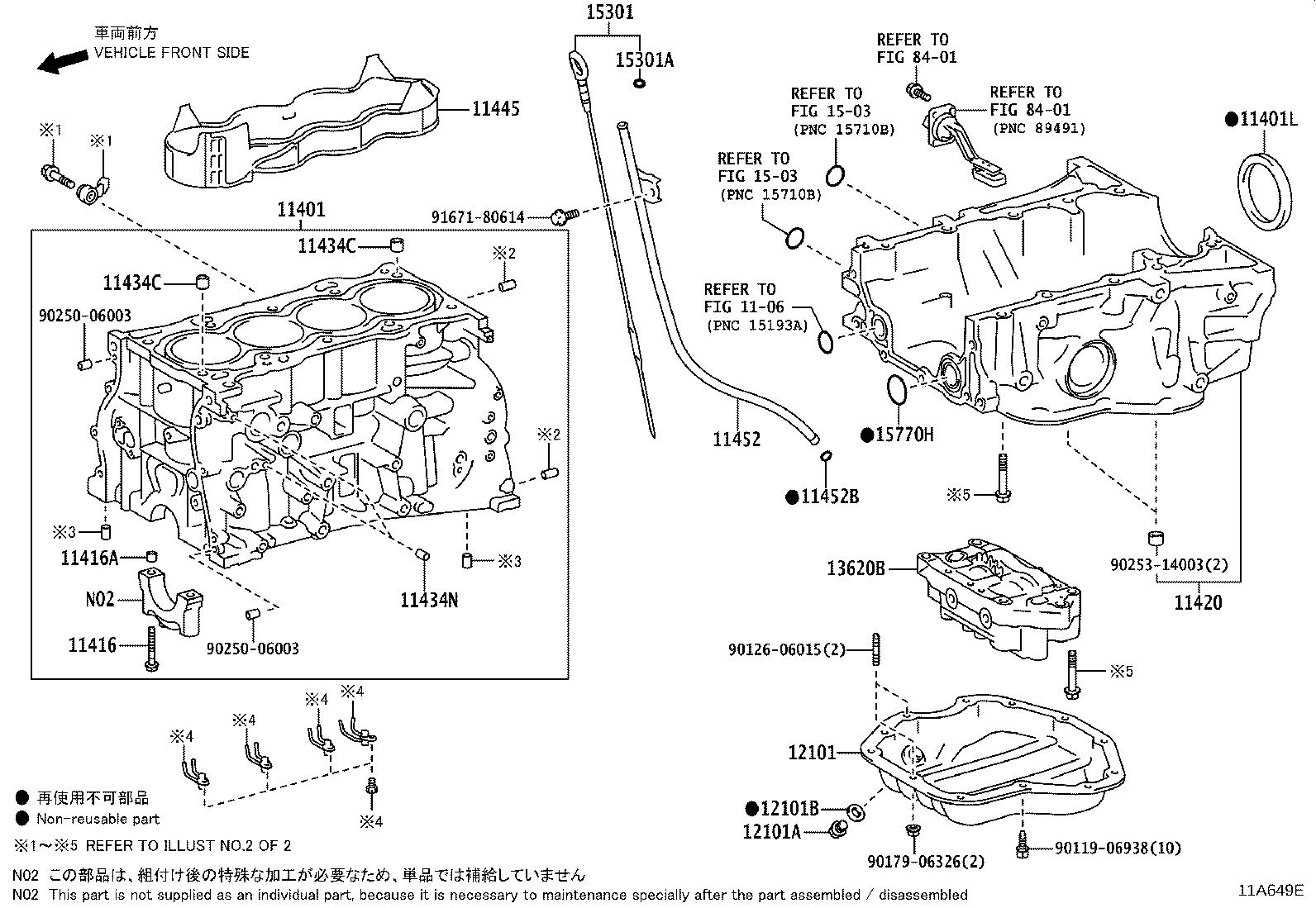

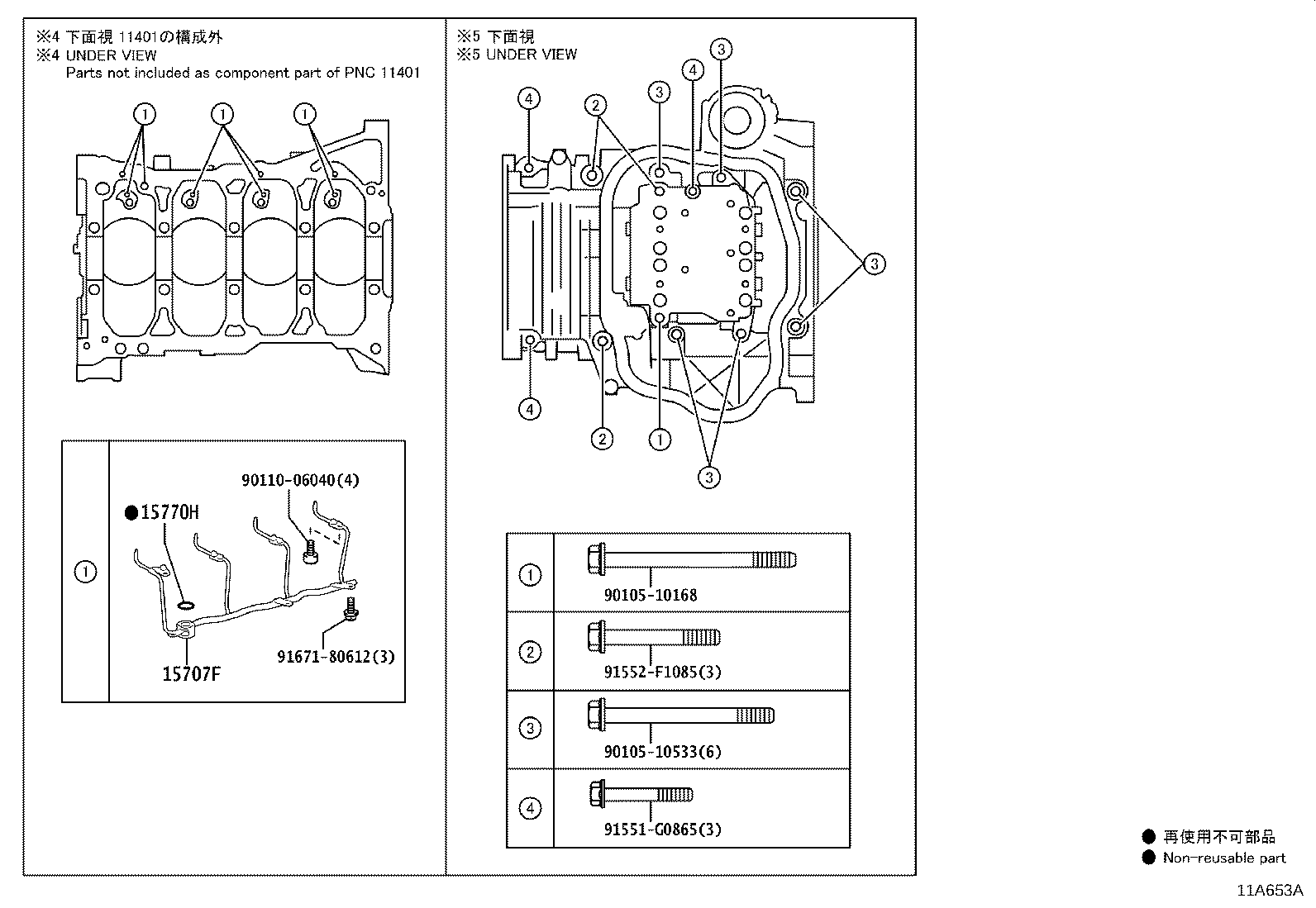

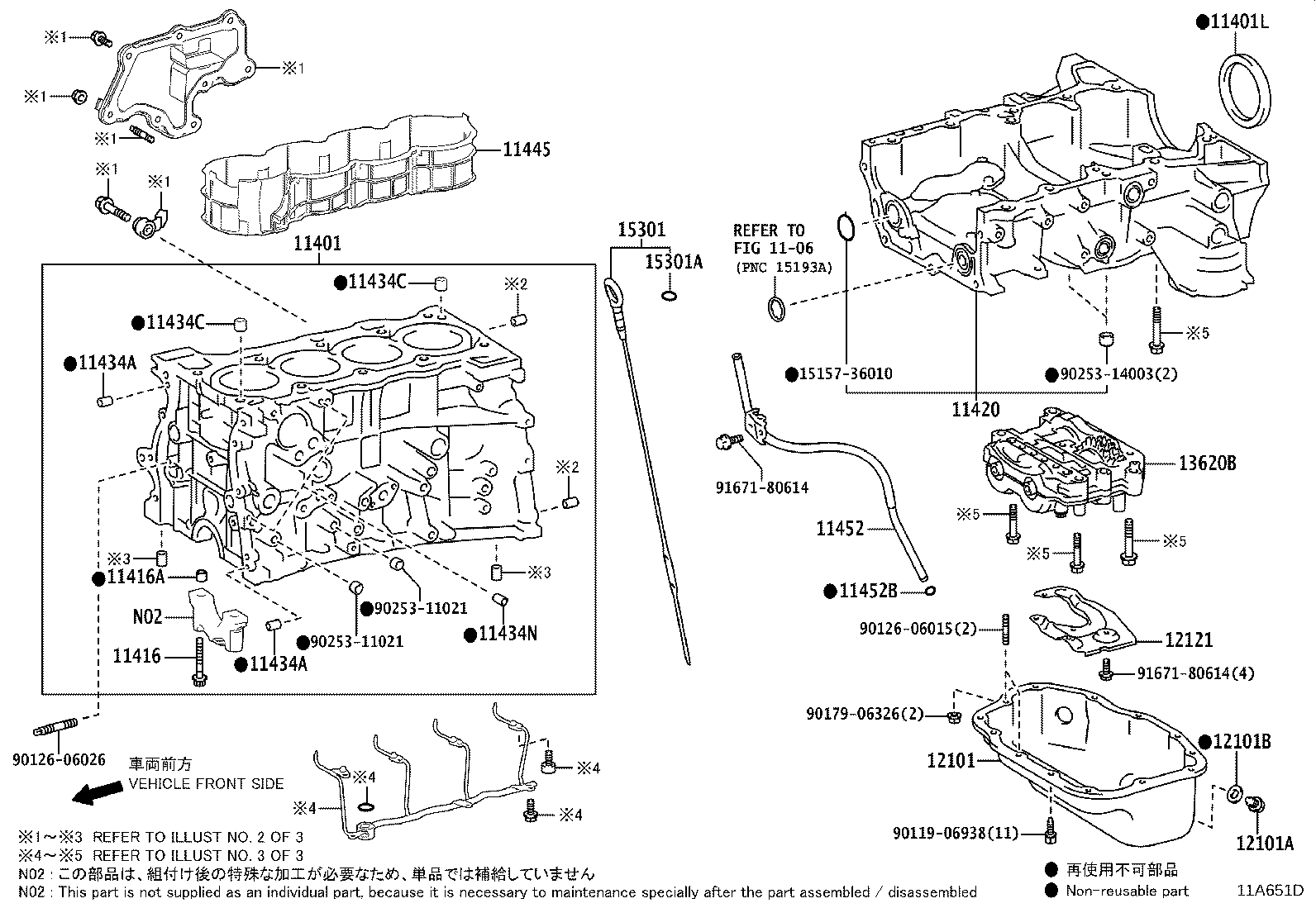

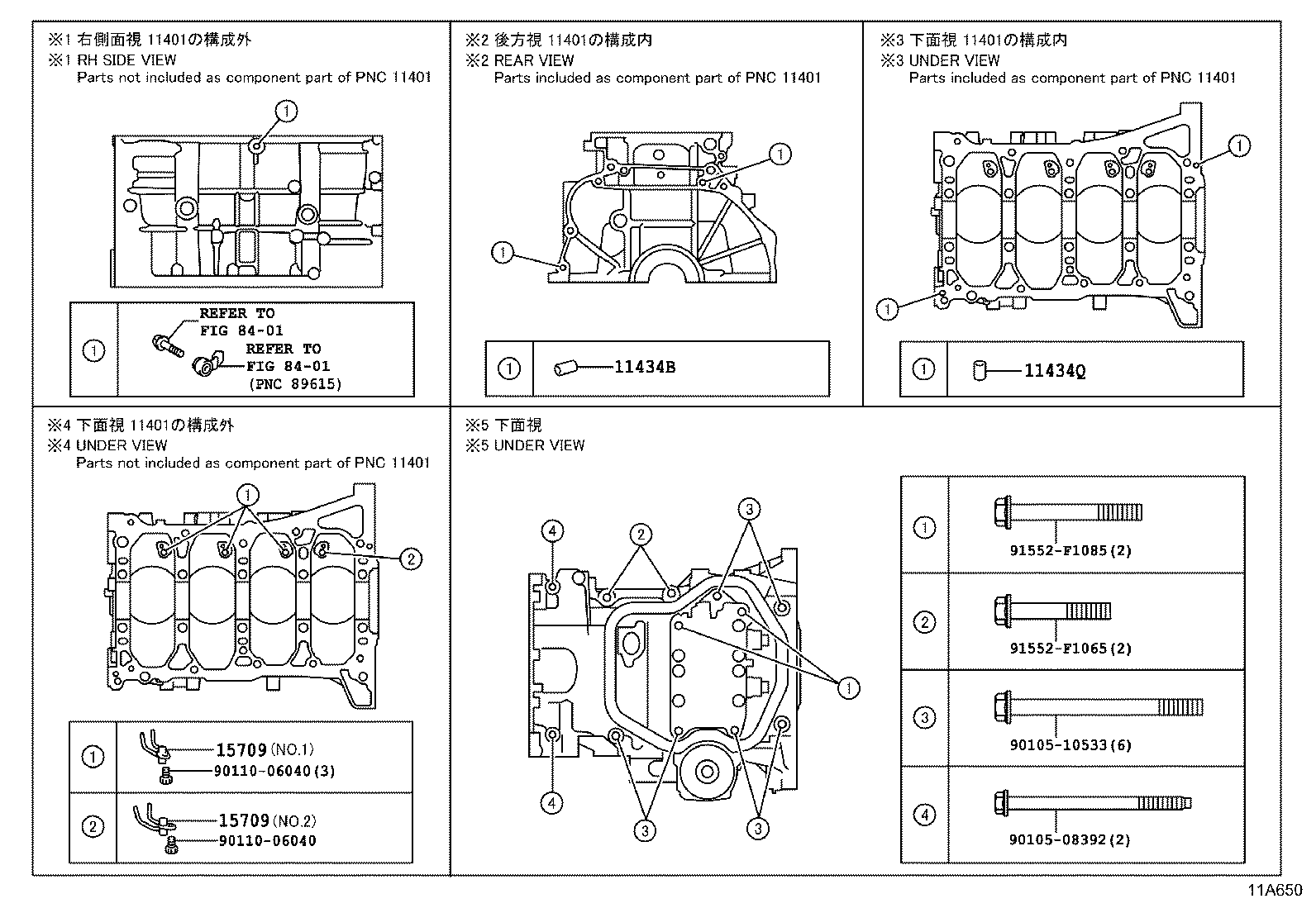

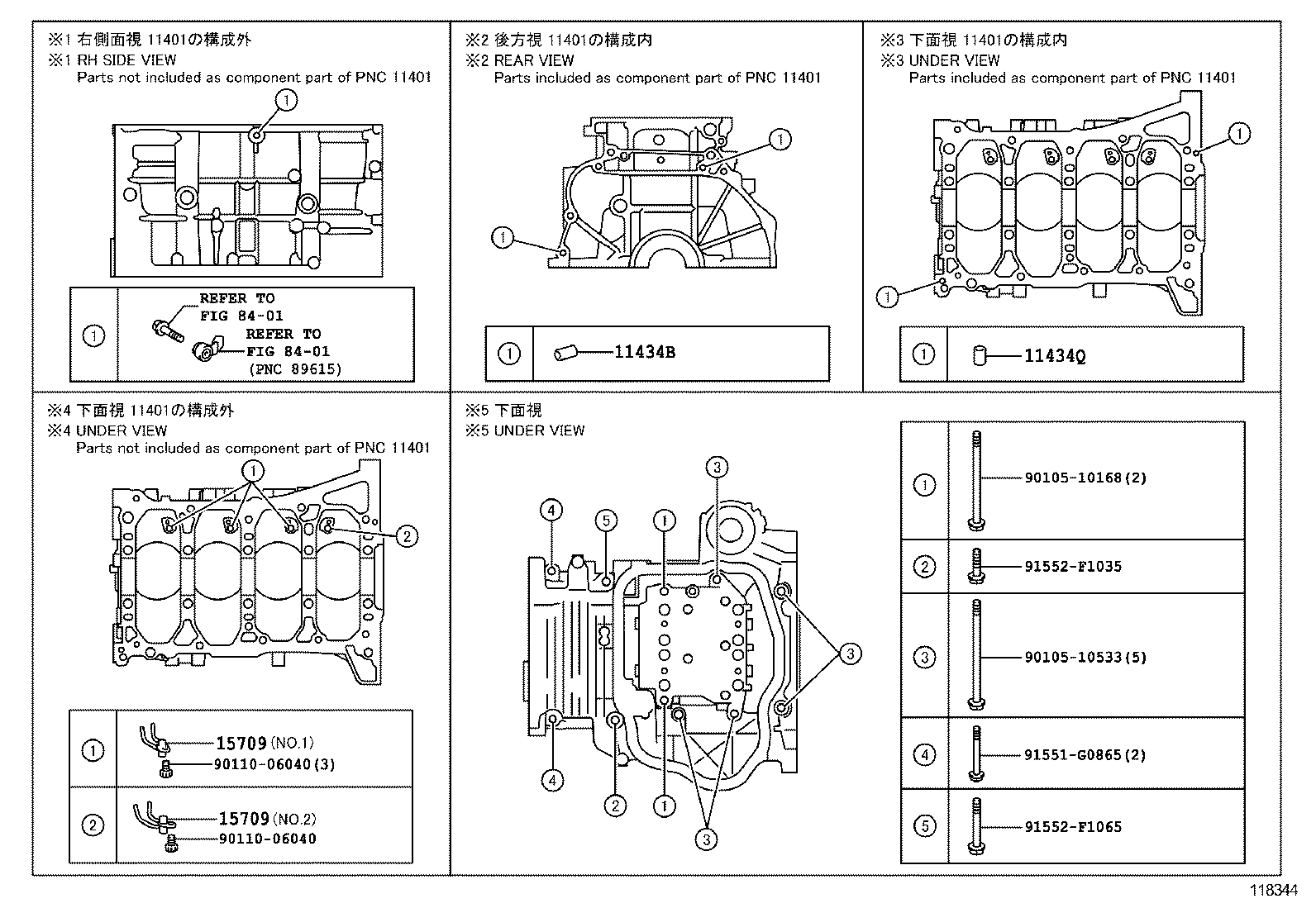

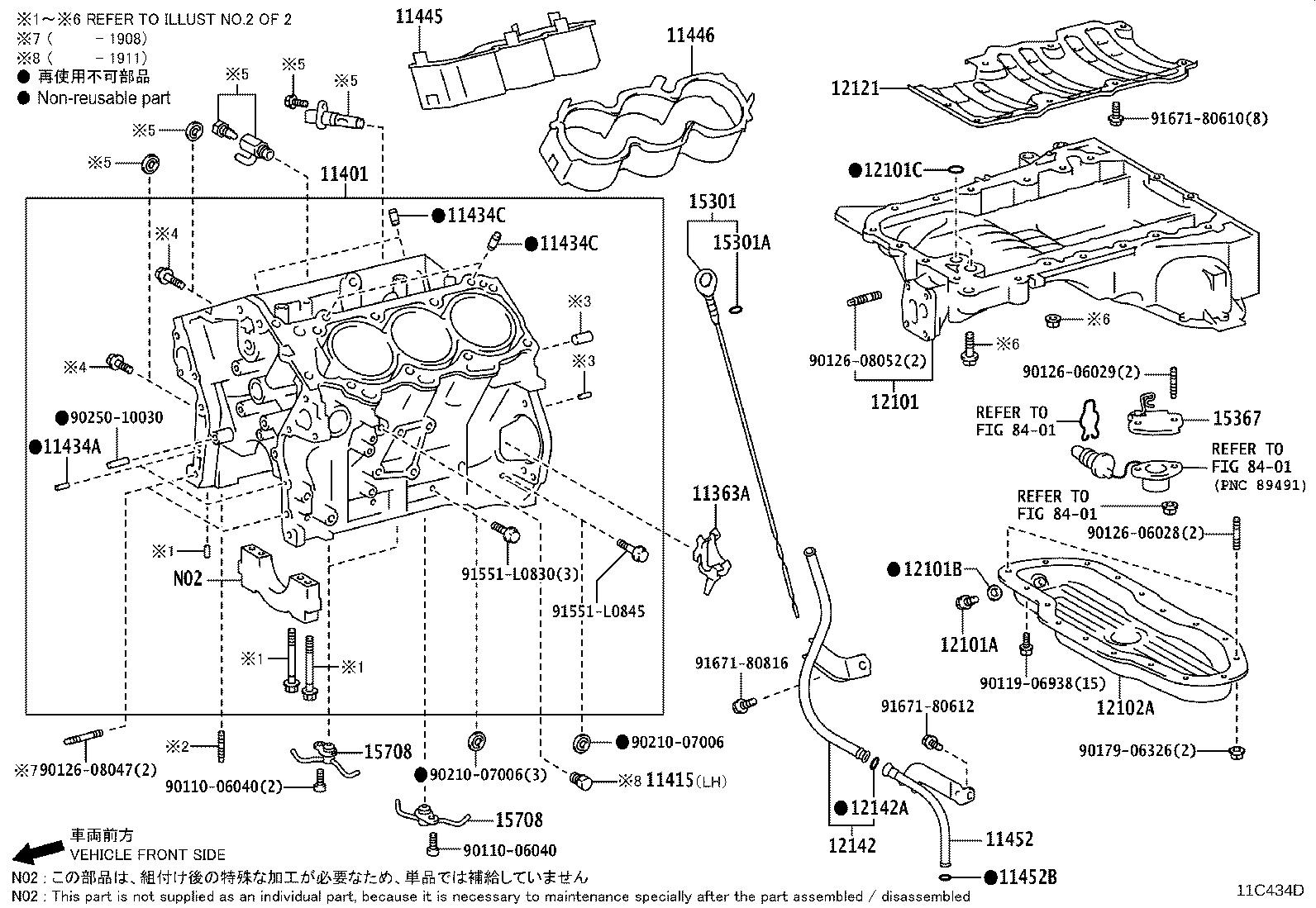

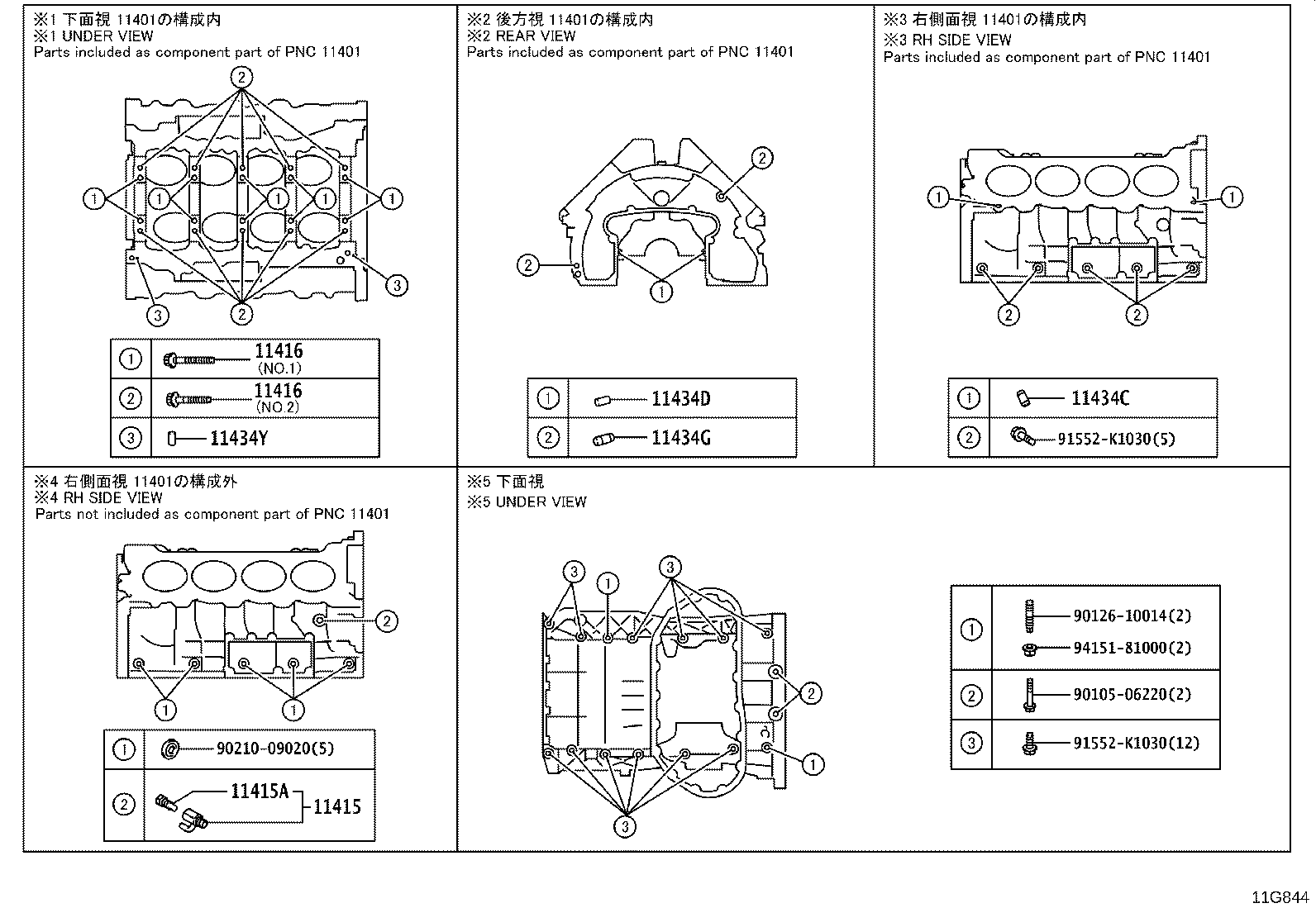

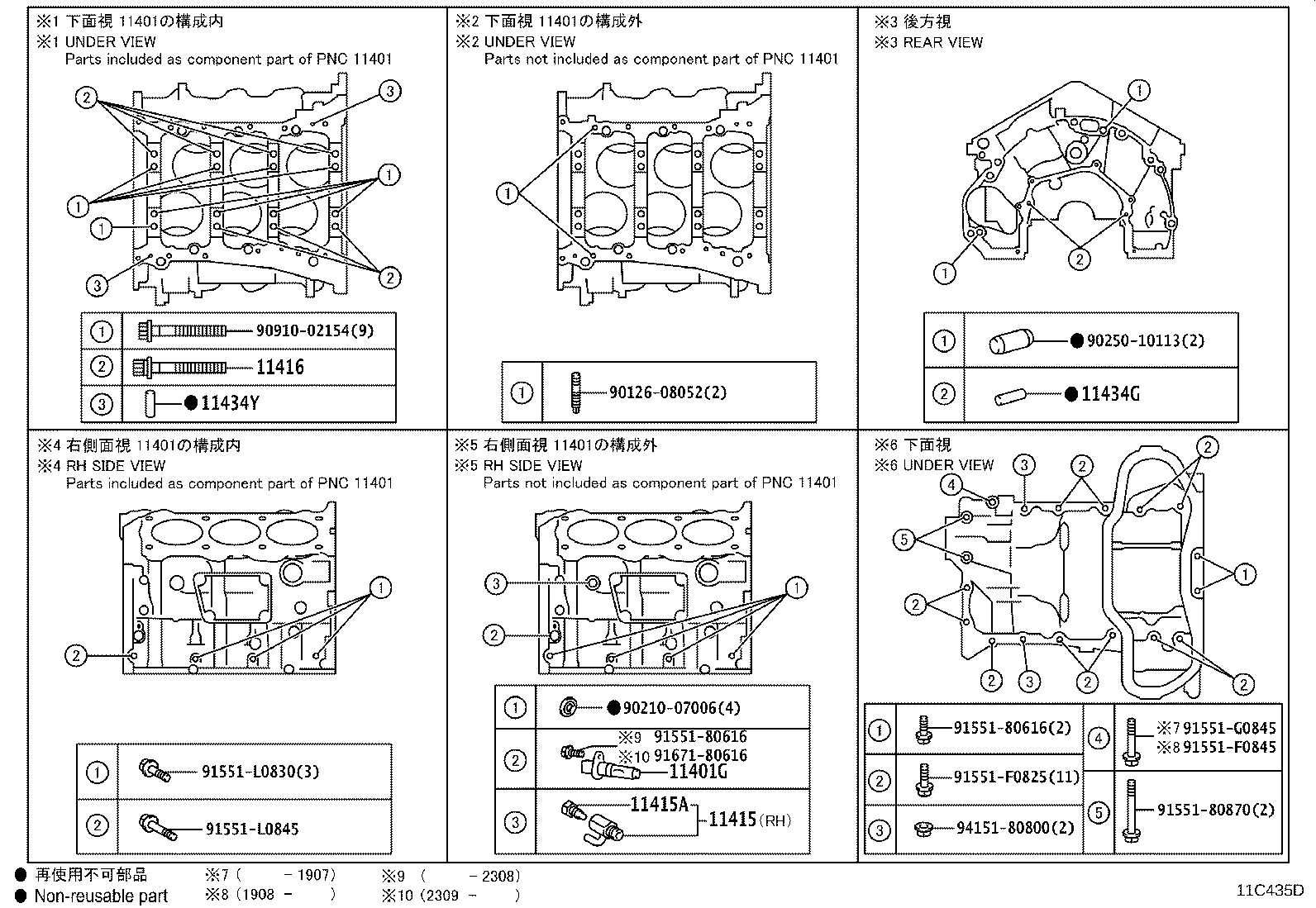

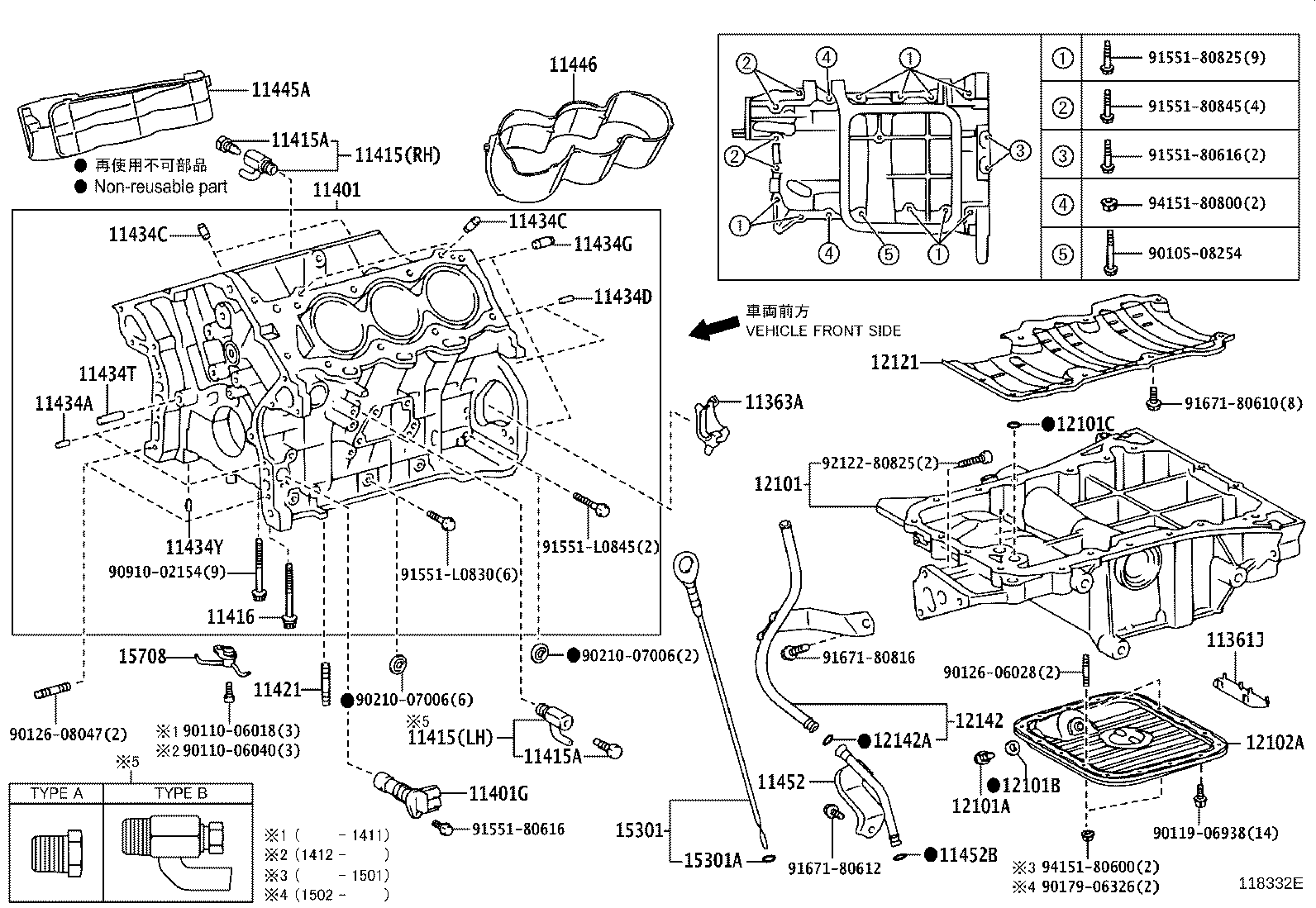

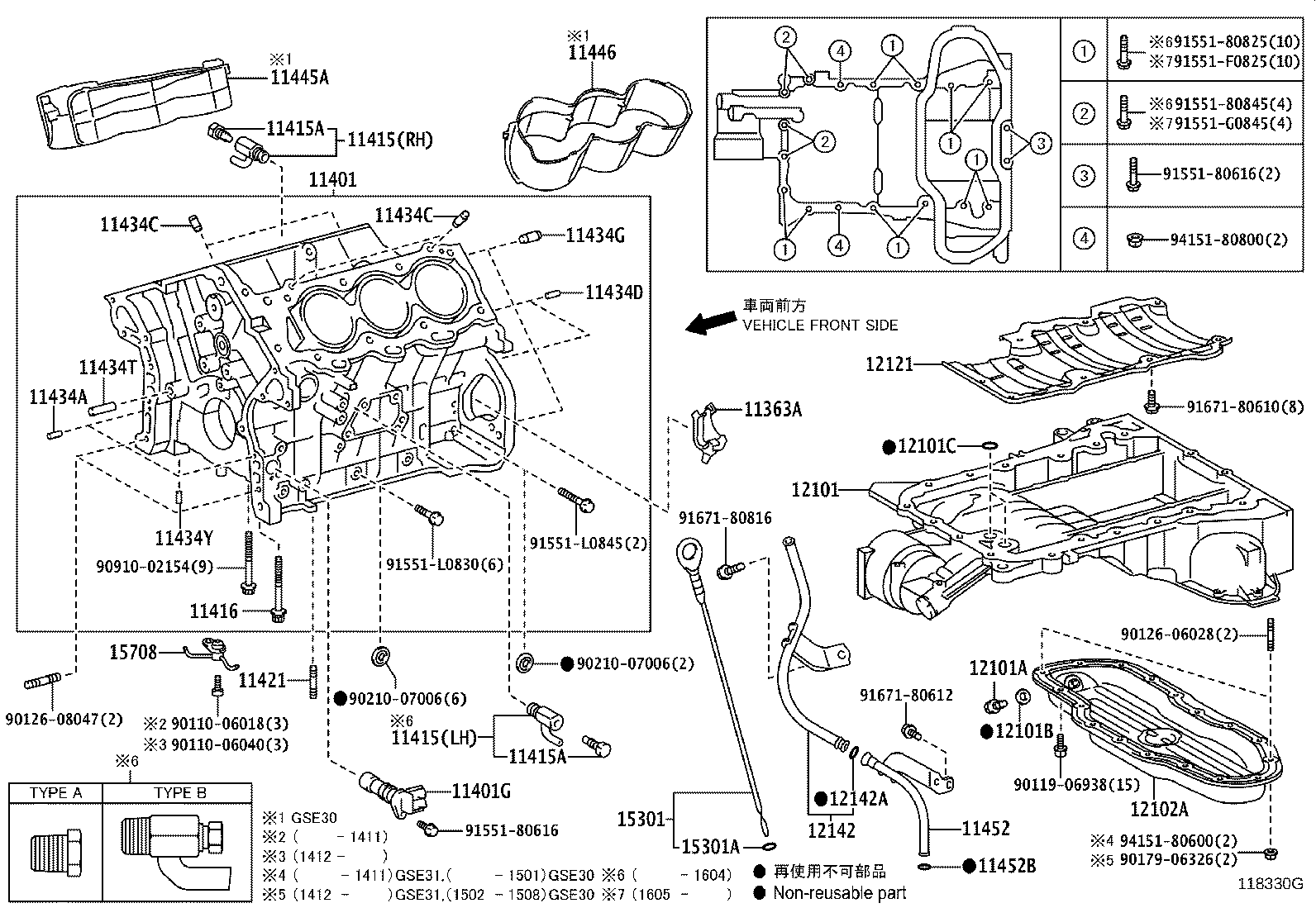

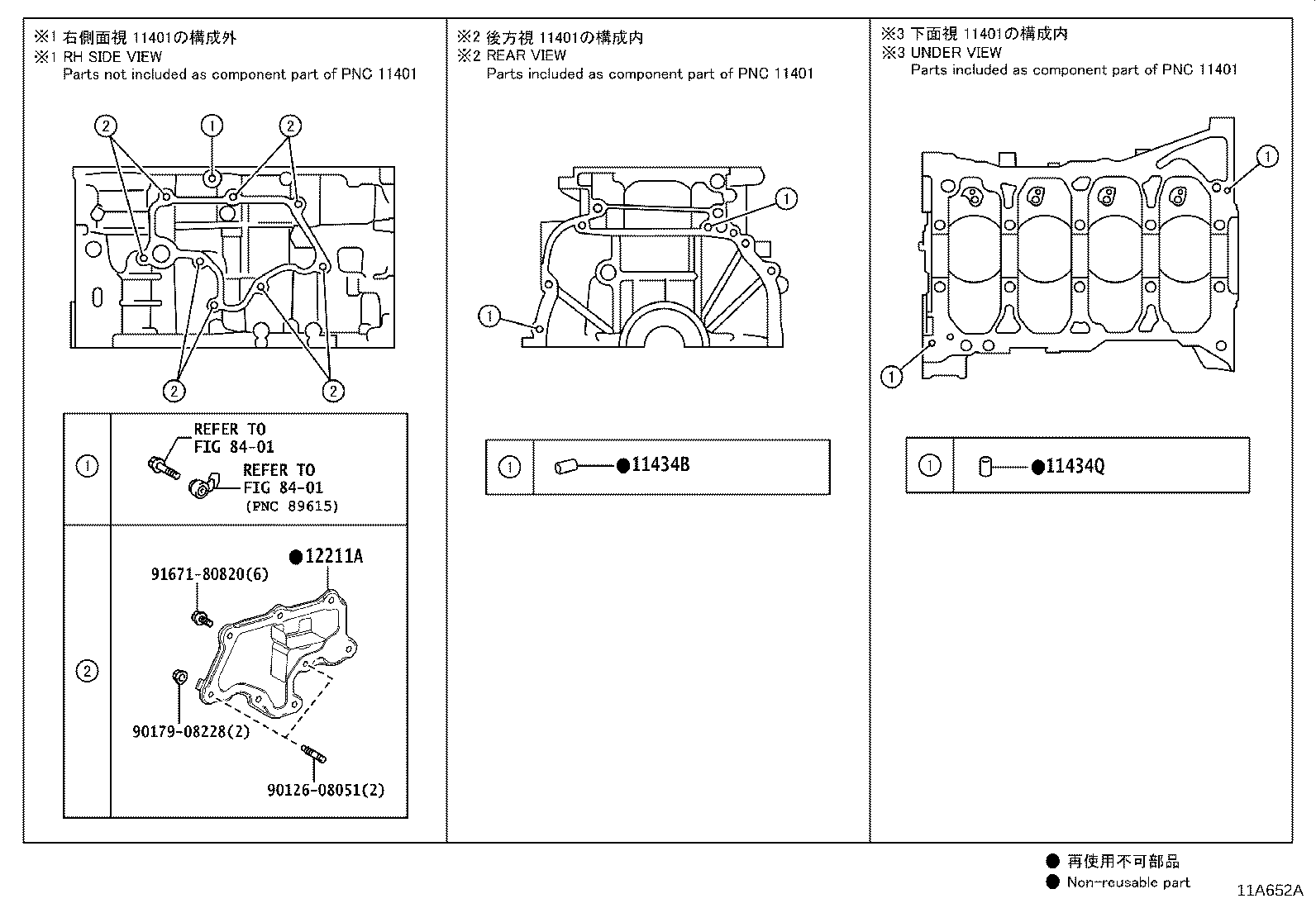

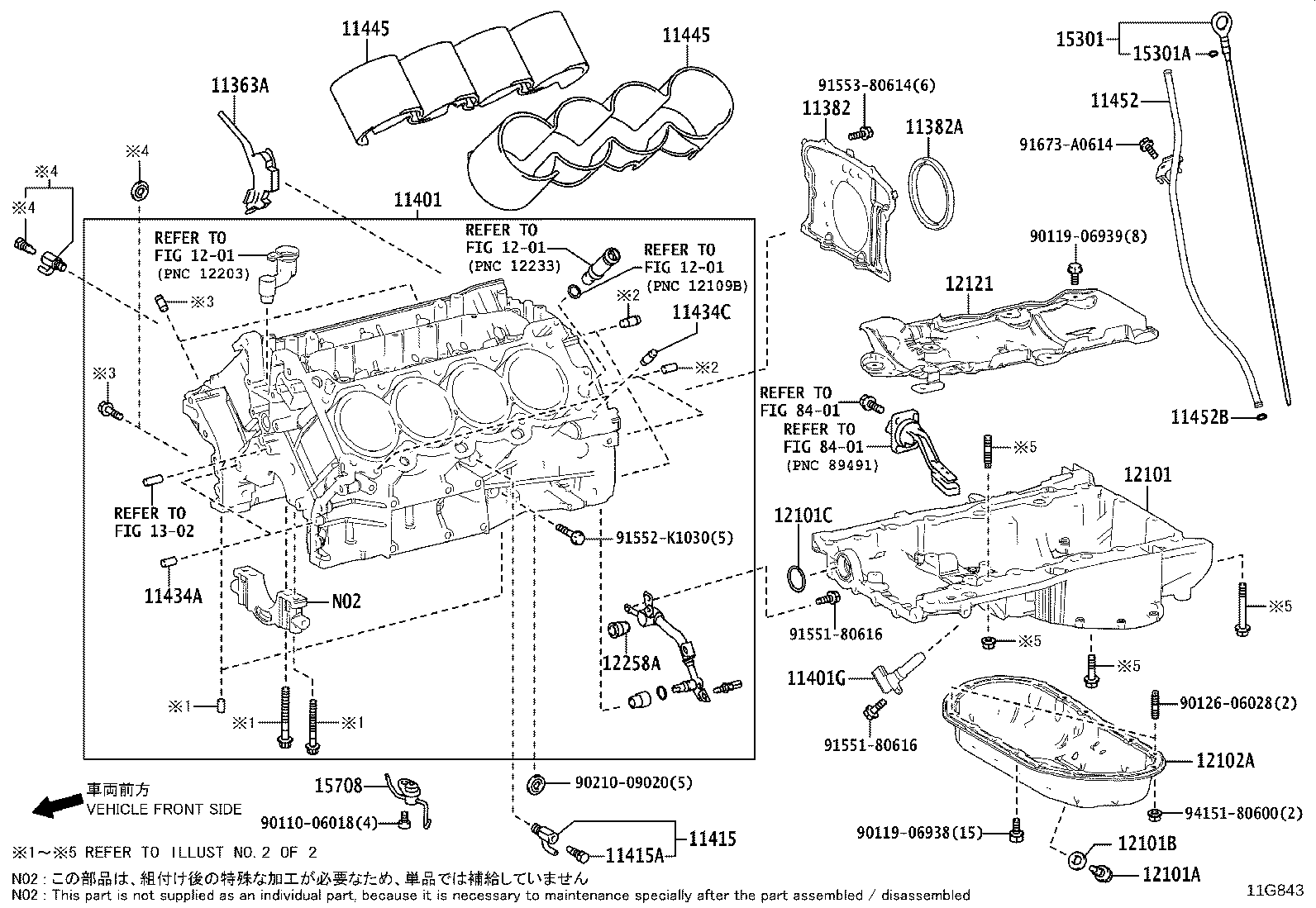

Figure 118343F 118343F 2013-04 → — Figure 118344 118344 2013-04 → — Figure 11A649E 11A649E 2015-08 → — Figure 11A650 11A650 2015-08 → — Figure 11A651D 11A651D 2015-08 → — Figure 11A652A 11A652A 2015-08 → — Figure 11A653A 11A653A 2015-08 → — Figure 118330G 118330G 2013-04 → 2017-10 Figure 118332E 118332E 2013-04 → 2017-10 Figure 11C434D 11C434D 2017-10 → — Figure 11C435D 11C435D 2017-10 → — Figure 11G843 11G843 2022-09 → — Figure 11G844 11G844 2022-09 → —

Part groups

PNCDescription
11361J Cover, Flywheel Housing Under
11363A Cover, Flywheel Housing Side
11382 Retainer, Engine Oil Seal, Rear
11382A Seal, Oil(FOR OIL SEAL RETAINER)
11401 Block Sub-assy, Cylinder
11401G Sensor, Crank Position
11401L Seal, Engine Rear Oil
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11416A Pin, Ring(FOR CRANKSHAFT BEARING CAP SET)
11420 Crankcase Assy, Stiffening
11421 Bolt, Stud(FOR OIL PAN)
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434G Pin, Straight(FOR END PLATE)
11434N Pin, Straight(FOR WATER INLET HOUSING)
11434Q Pin, Straight(FOR CRANKCASE)
11434T Pin, Ring(FOR TIMING BELT IDLER BRACKET SET)
11434Y Pin, Straight(FOR OIL PAN)
11445 Spacer, Cylinder Block Water Jacket
11445A Spacer, Cylinder Block Water Jacket, RH
11446 Spacer, Cylinder Block Water Jacket, LH
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12101C Ring, O(FOR OIL PAN)
12102A Pan Sub-assy, Oil, NO.2
12121 Plate, Oil Pan Baffle, NO.1
12142 Guide, Oil Level Gage, NO.2
12142A Ring, O(FOR OIL LEVEL GAGE GUIDE, NO.2)
12211A Case, Ventilation, NO.1
12258A Gasket, Oil Return Pipe
13620B Balancer Assy, Engine
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15367 Bracket, Oil Level Sensor
15707F Pipe Sub-assy, Oil
15708 Nozzle Sub-assy, Oil, NO.1
15709 Nozzle Sub-assy, Oil, NO.2
15770H Gasket(FOR OIL PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
