Toyota Lexus IS Series

2013-04 → present · chassis ASE30,AVE3#,GSE3#,USE3# · catalogue 242130 · Japan

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

10 part groups · 7 illustrations

Illustrations

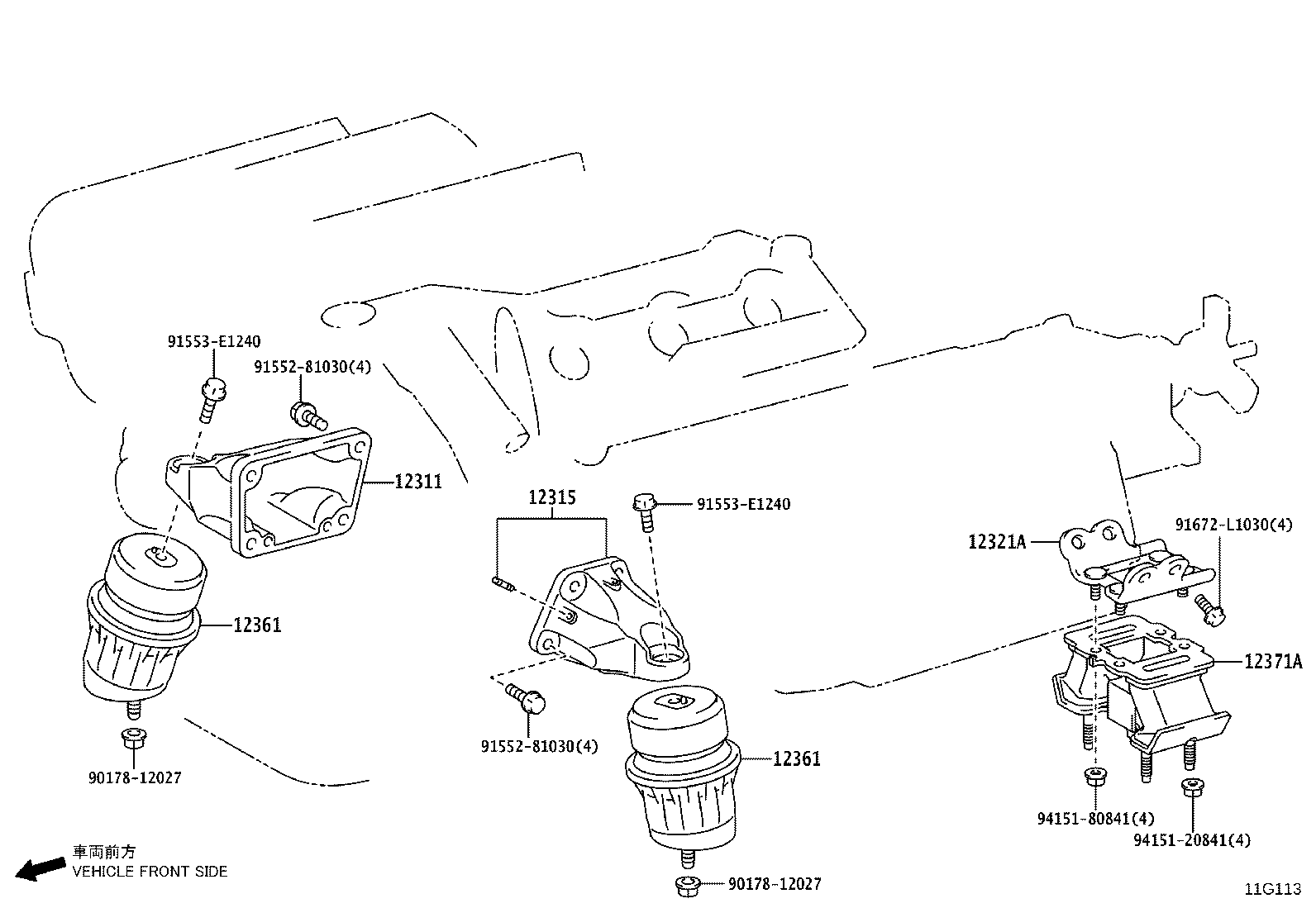

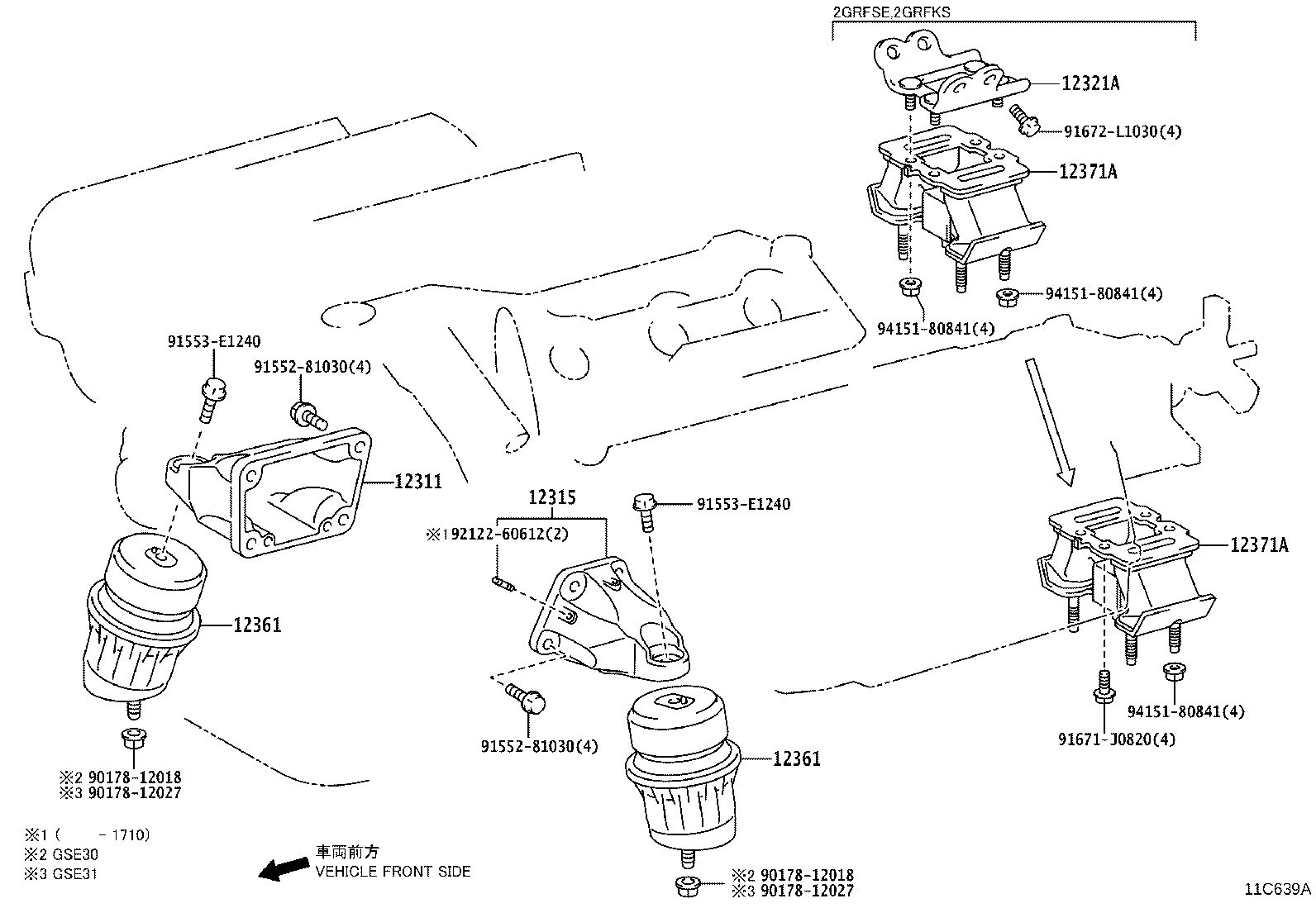

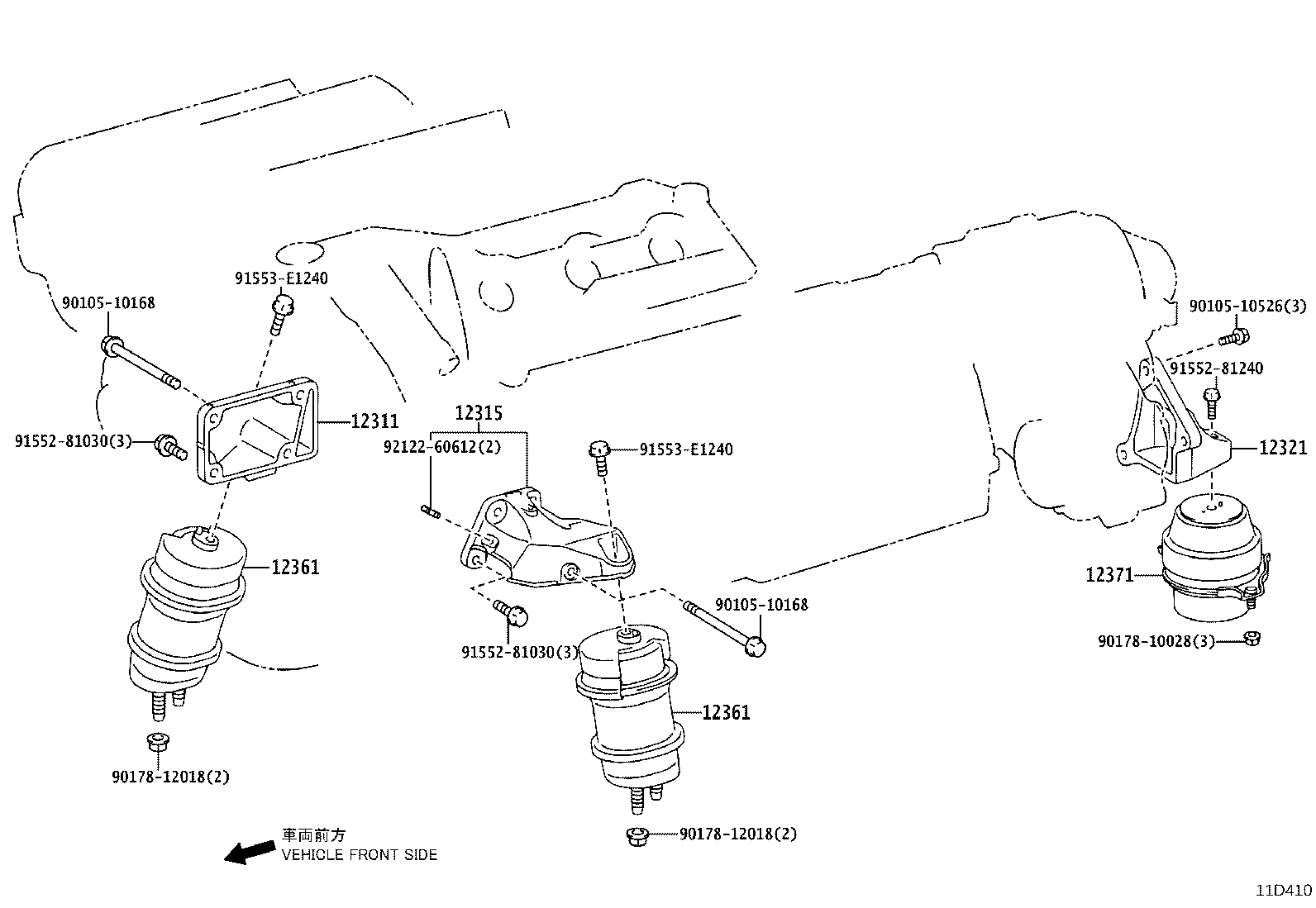

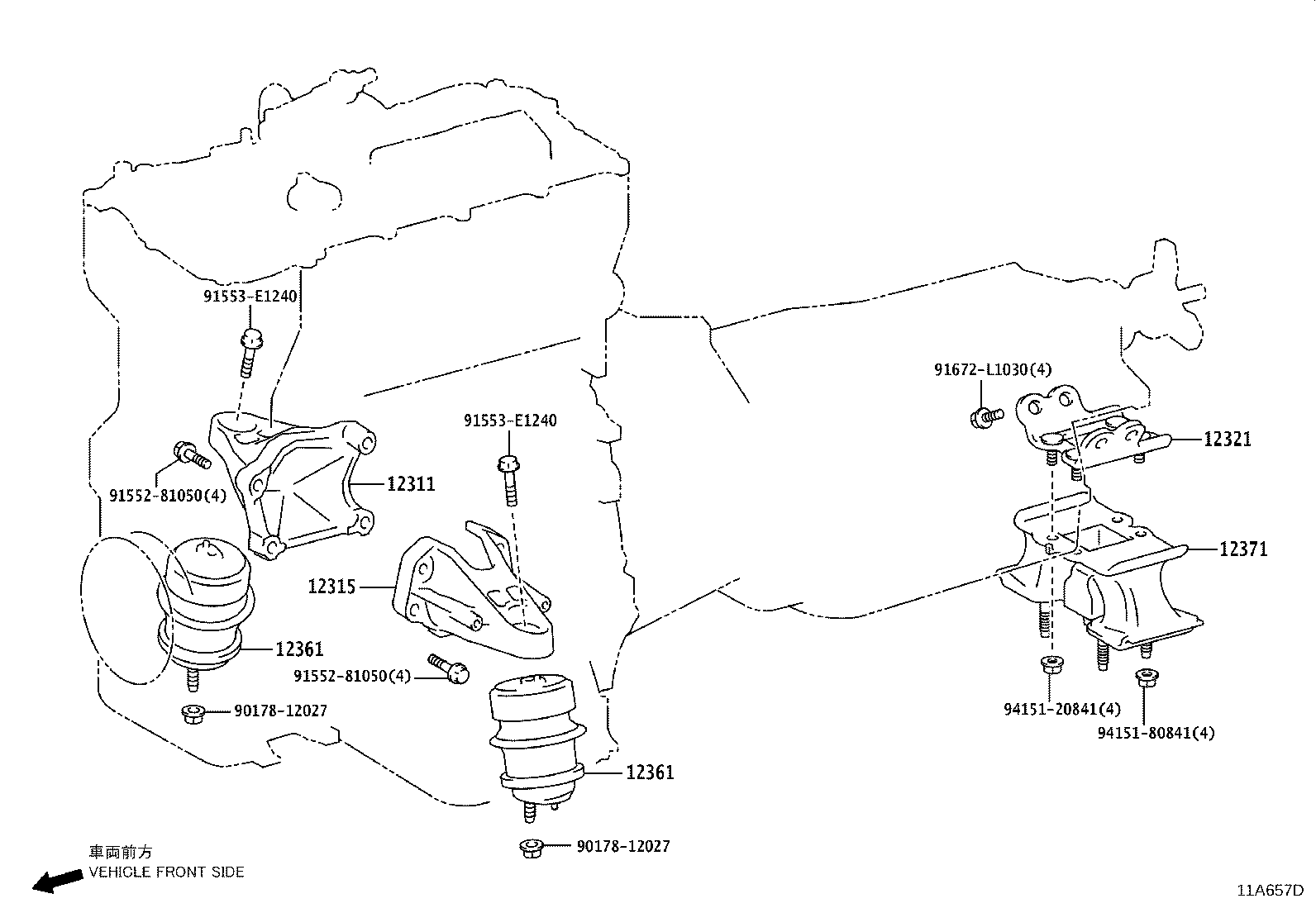

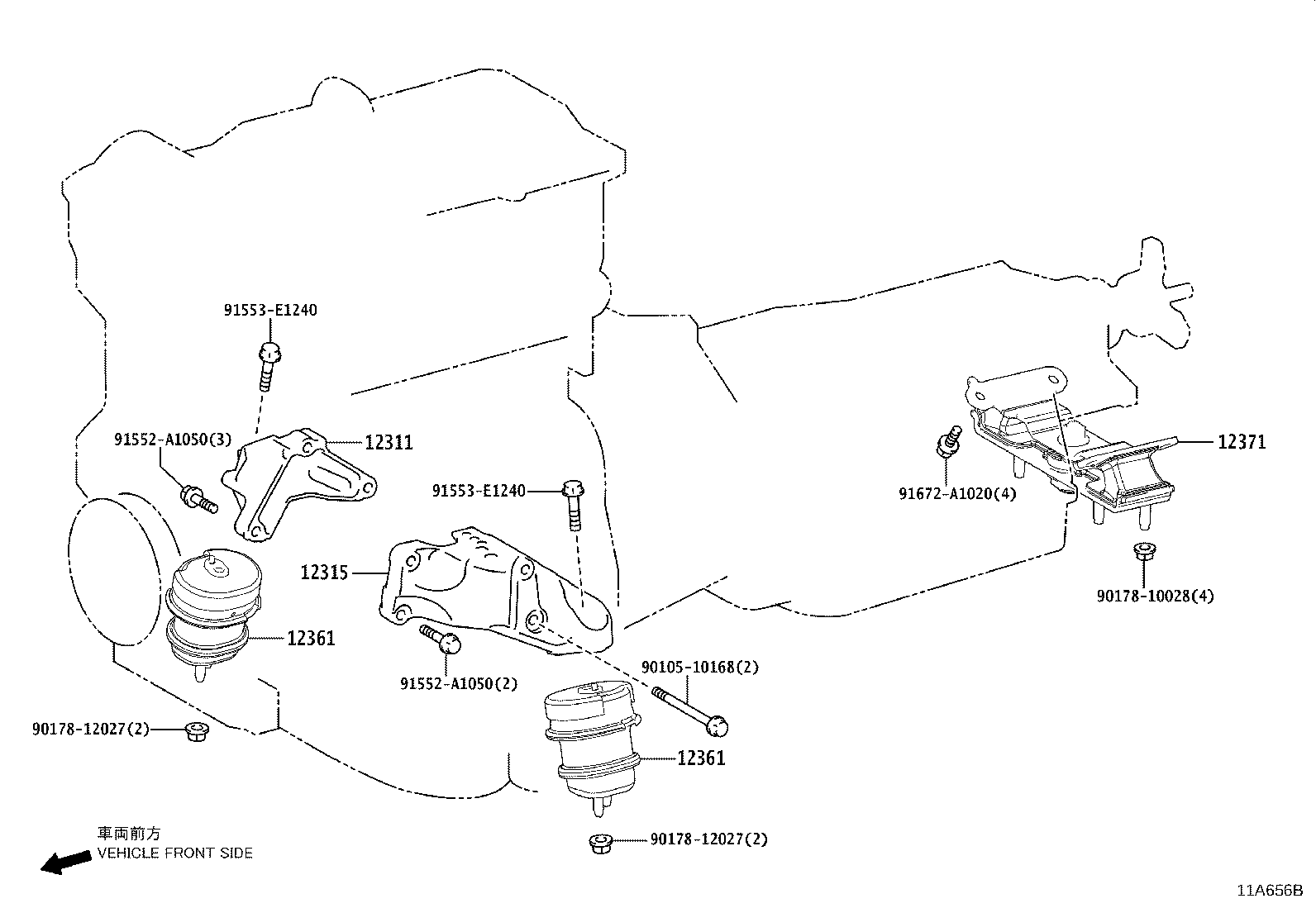

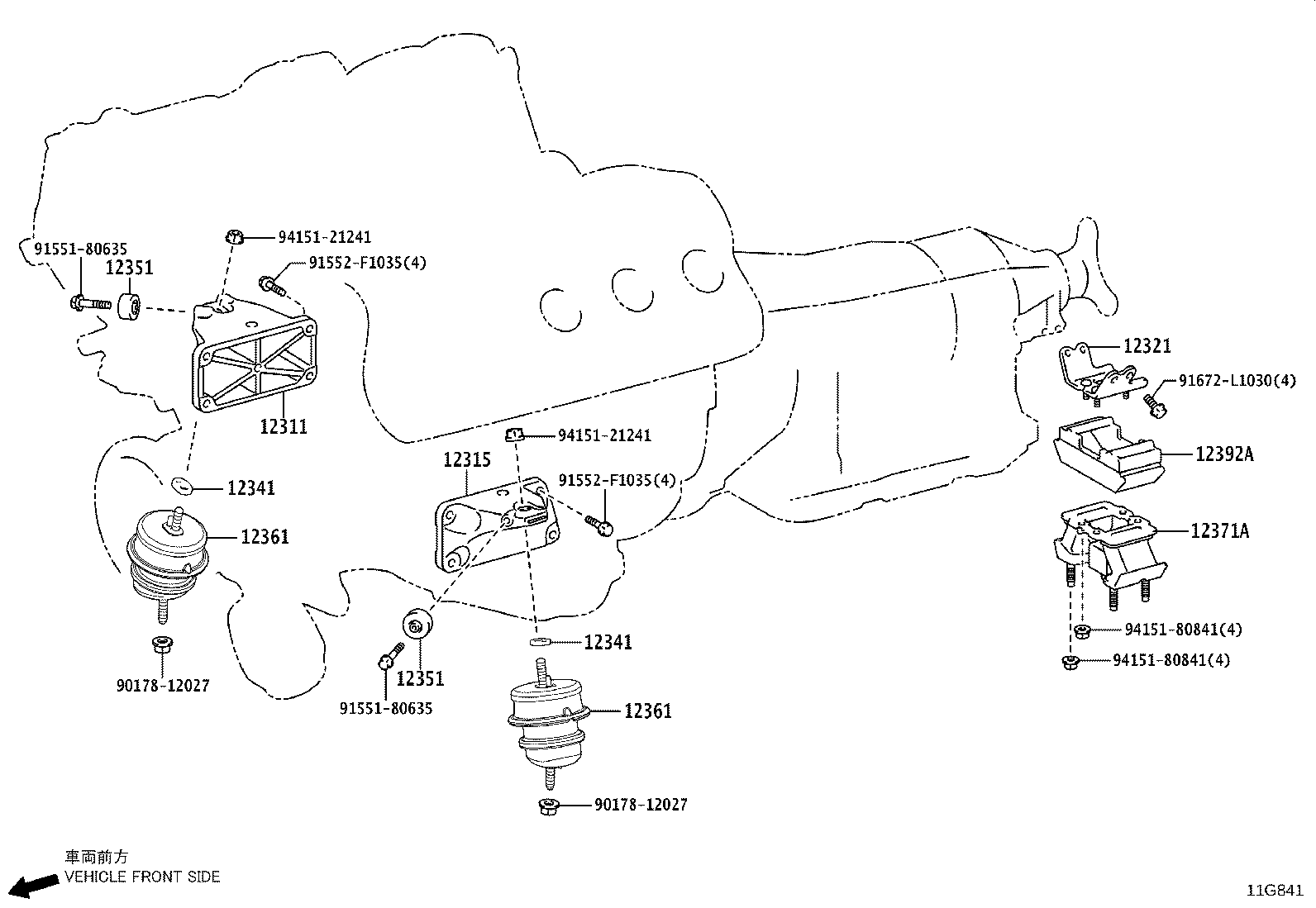

Figure 118323C 118323C 2013-04 → — Figure 11A656B 11A656B 2015-08 → — Figure 11A657D 11A657D 2015-08 → — Figure 11C639A 11C639A 2013-04 → 2021-09 Figure 11G113 11G113 2021-09 → — Figure 11D410 11D410 2013-04 → 2016-10 Figure 11G841 11G841 2022-09 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12341 Spacer, Engine Mounting
12351 Damper, Engine Mounting
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12371A Insulator, Engine Mounting, Rear
12392A Insulator, Engine Mounting Heat, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
