Water Pump

7 part groups · 5 illustrations

Illustrations

Figure 165359B

165359B 2013-04 → —

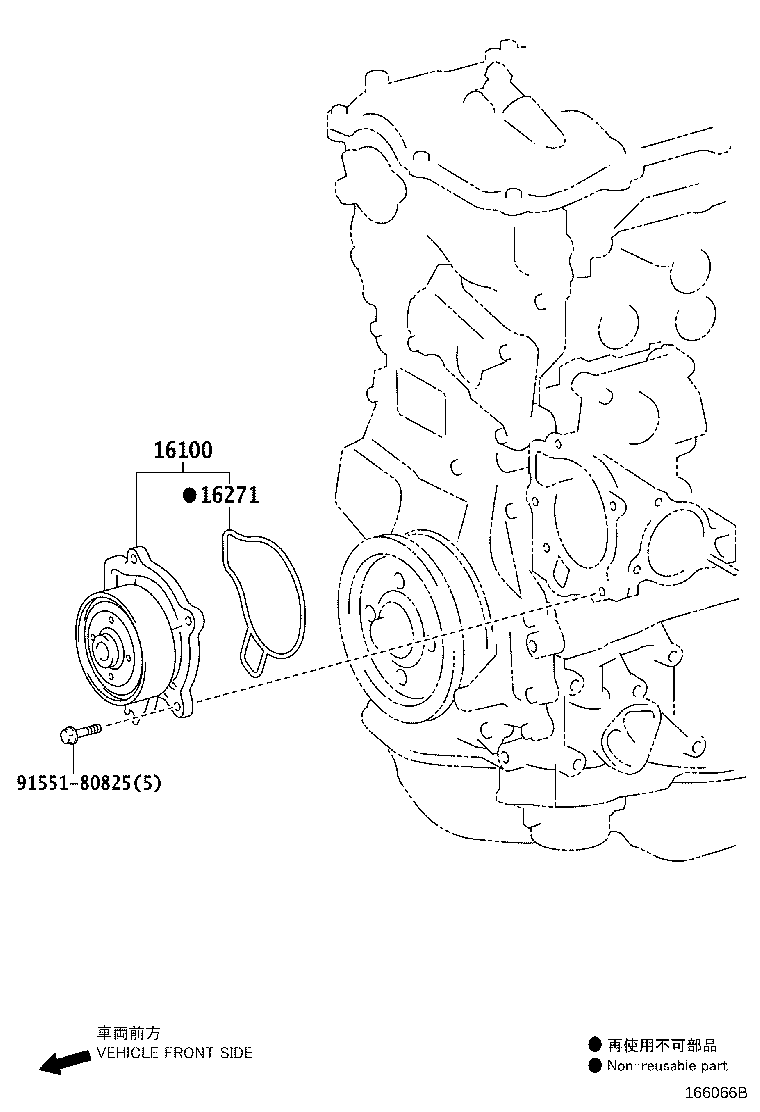

Figure 166066B

166066B 2015-08 → —

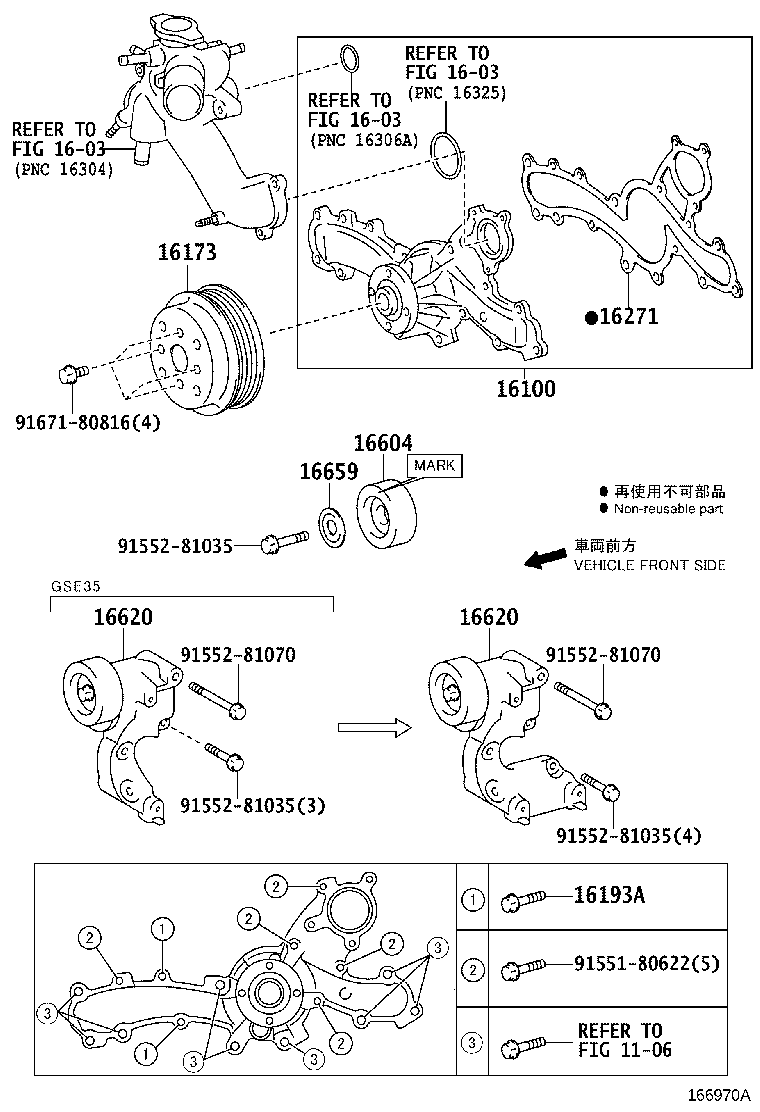

Figure 166970A

166970A 2013-04 → 2017-10

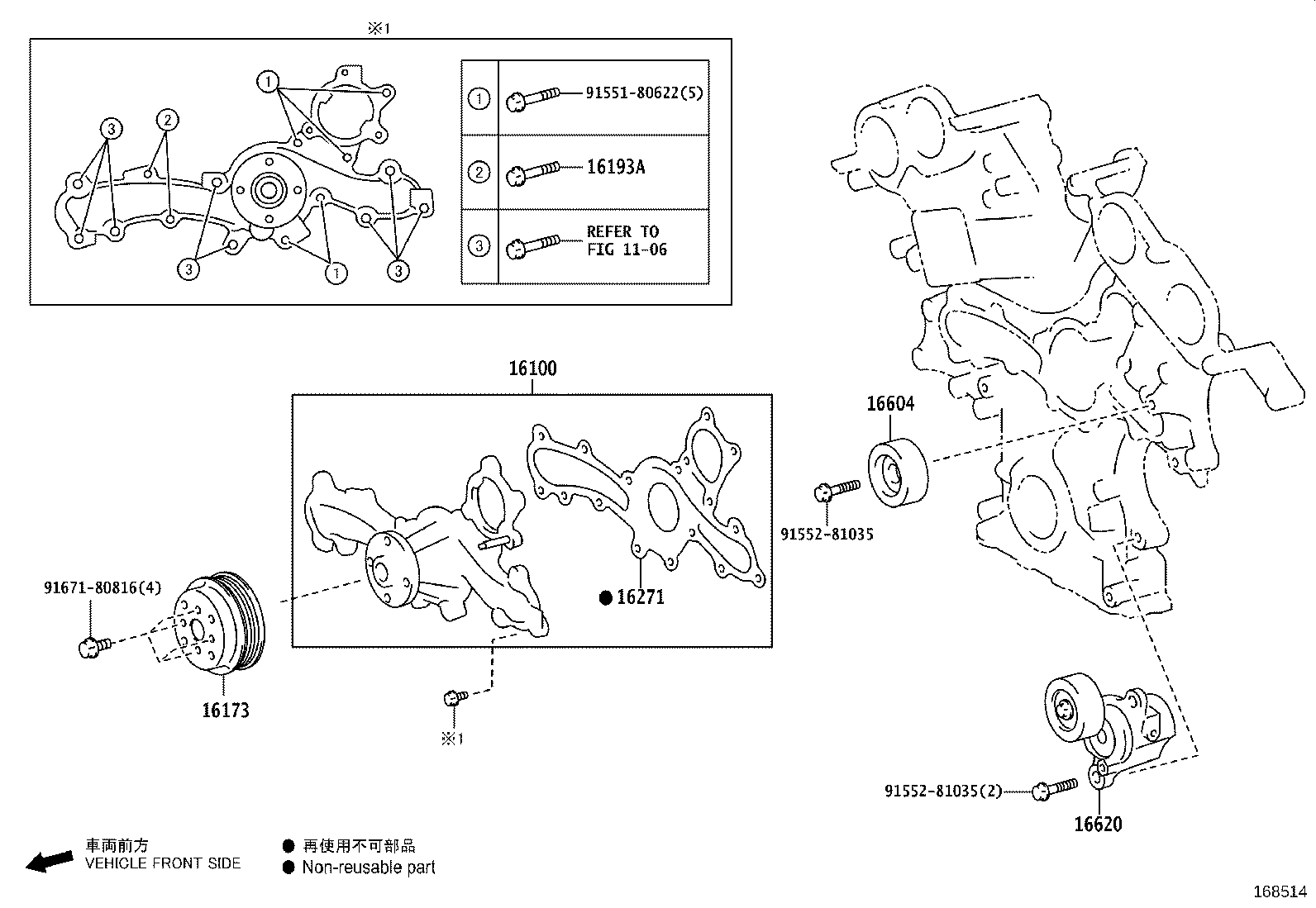

168514 2017-10 → —

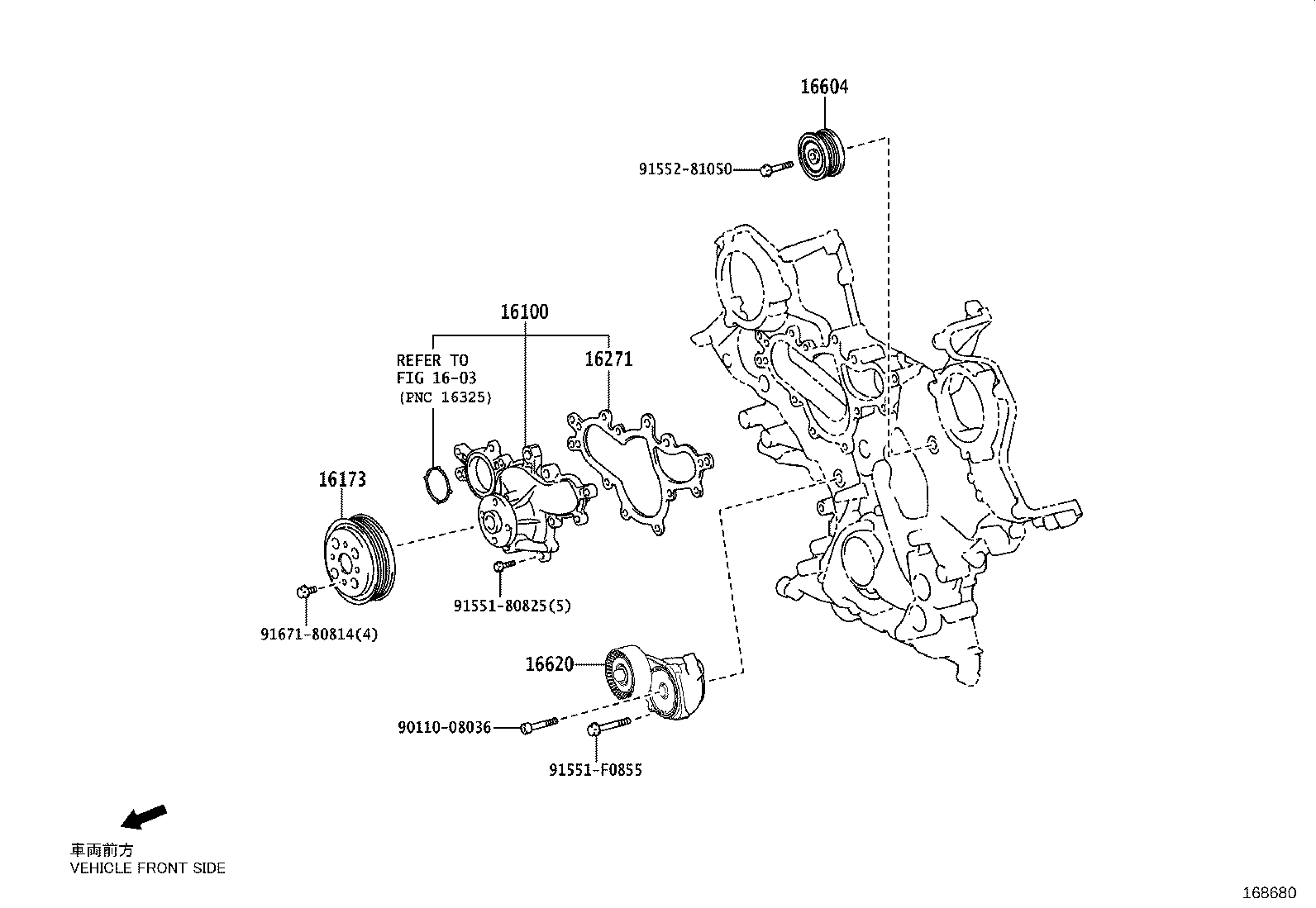

168680 2022-09 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16193A	Bolt(FOR WATER PUMP COVER)
16271	Gasket, Water Pump
16604	Pulley Sub-assy, Idler, NO.2
16620	Tensioner Assy, V-ribbed Belt
16659	Plate, Idler Pulley Cover, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
