Toyota Lexus IS Series
2013-04 → present · chassis ASE30,AVE3#,GSE3#,USE3# · catalogue 242130 · Japan
Supported model
Data version 2022-09

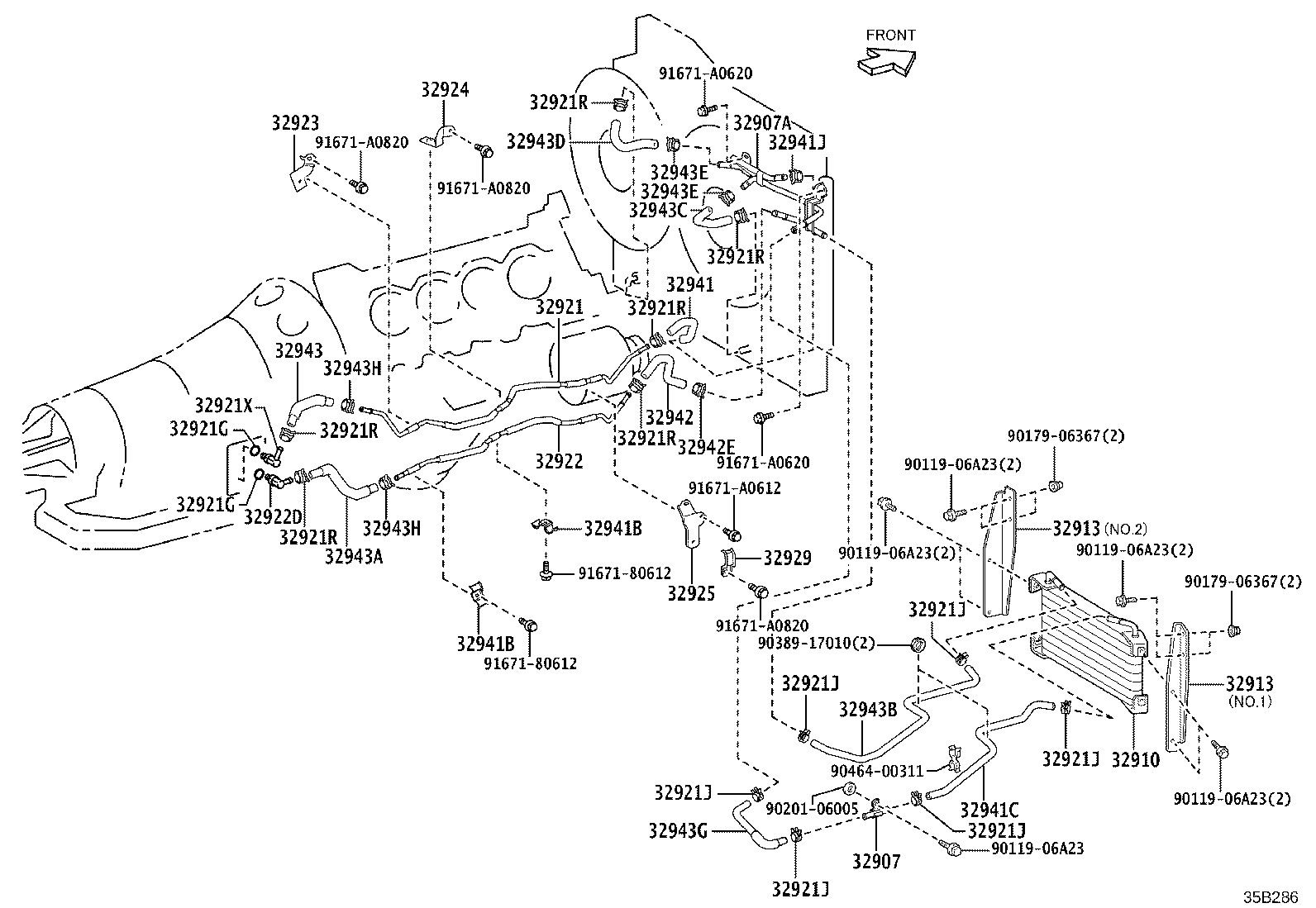

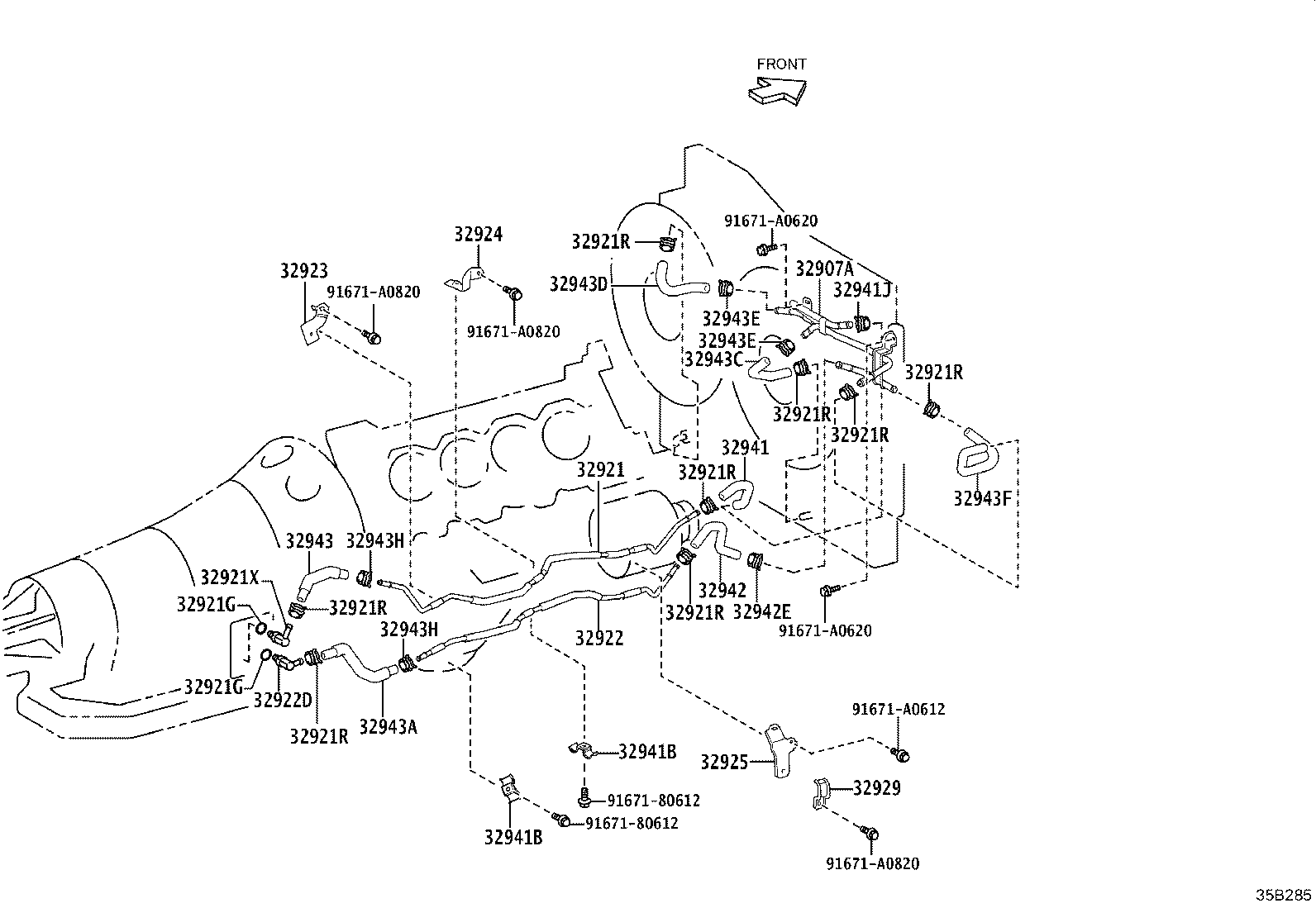

Oil Cooler & Tube (ATM)
31 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 32907 | Tube Sub-assy, Oil Cooler Outlet, NO.2 |
| 32907A | Tube, Oil Cooler |
| 32910 | Cooler Assy, Oil |
| 32913 | Bracket, Oil Cooler |
| 32921 | Tube, Oil Cooler Inlet, NO.1 |
| 32921G | Ring, O(FOR OIL COOLER TUBE UNION) |
| 32921J | Clip(FOR OIL COOLER HOSE) |
| 32921R | Clip, NO.2(FOR OIL COOLER HOSE) |
| 32921X | Union OR Elbow, Oil Cooler Inlet |
| 32922 | Tube, Oil Cooler Outlet, NO.1 |
| 32922D | Union OR Elbow, Oil Cooler Outlet |
| 32923 | Clamp, Automatic Transmission Oil Cooler Tube |
| 32924 | Clamp, Oil Cooler Tube, NO.2 |
| 32925 | Clamp, Oil Cooler Tube, NO.3 |
| 32929 | Clamp, Flexible Hose, NO.2 |
| 32941 | Hose, Oil Cooler Inlet, NO.1 |
| 32941B | Clamp(FOR OIL COOLER TUBE) |
| 32941C | Hose(OIL COOLER) |
| 32941J | Clip, NO.1(FOR OIL COOLER HOSE) |
| 32942 | Hose, Oil Cooler Outlet, NO.1 |
| 32942E | Clip, NO.2(FOR OIL COOLER HOSE) |
| 32943 | Hose, Transmission Oil Cooler, NO.1 |
| 32943A | Hose, Transmission Oil Cooler, NO.2 |
| 32943B | Hose, Transmission Oil Cooler |
| 32943C | Hose, Transmission Oil Cooler, NO.3 |
| 32943D | Hose, Transmission Oil Cooler, NO.4 |
| 32943E | Clip, NO.3(FOR OIL COOLER HOSE) |
| 32943F | Hose, Transmission Oil Cooler, NO.5 |
| 32943G | Hose, Transmission Oil Cooler, NO.6 |
| 32943H | Clip, NO.4(FOR OIL COOLER HOSE) |

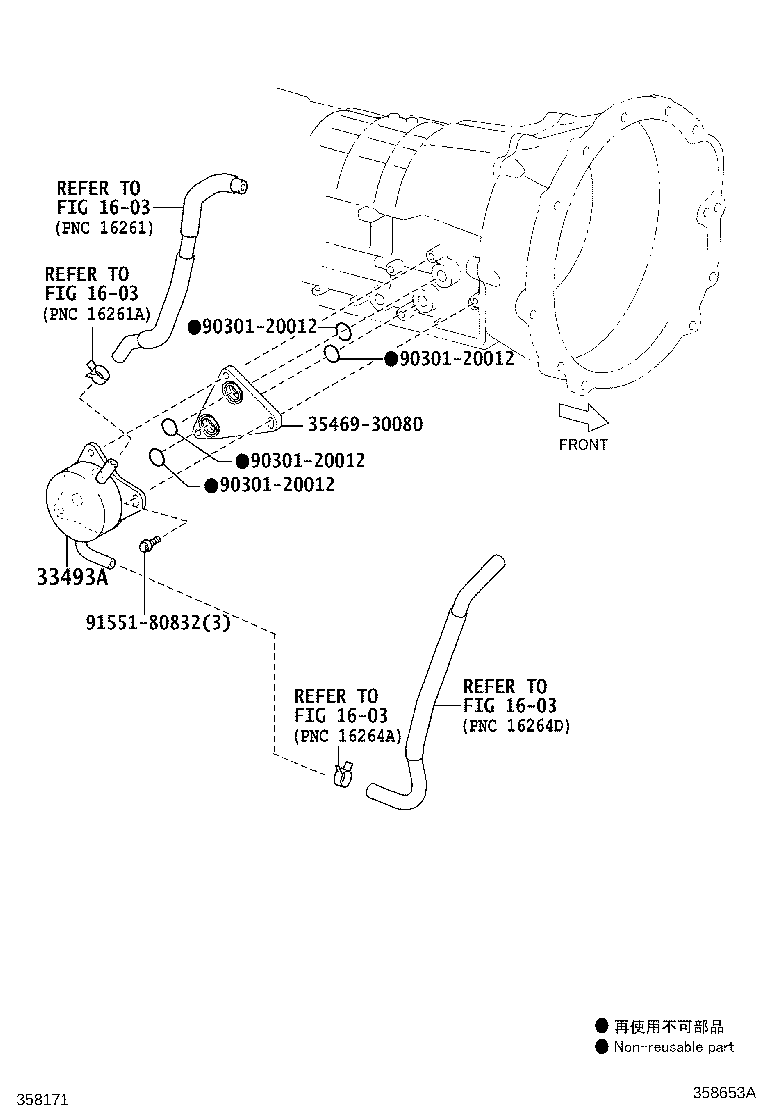

| 33493A | Cooler, Transmission Oil(ATF WARMER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
