Toyota Lexus IS Series

2013-04 → present · chassis ASE30,AVE3#,GSE3#,USE3# · catalogue 242130 · Japan

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

42 part groups · 13 illustrations

Illustrations

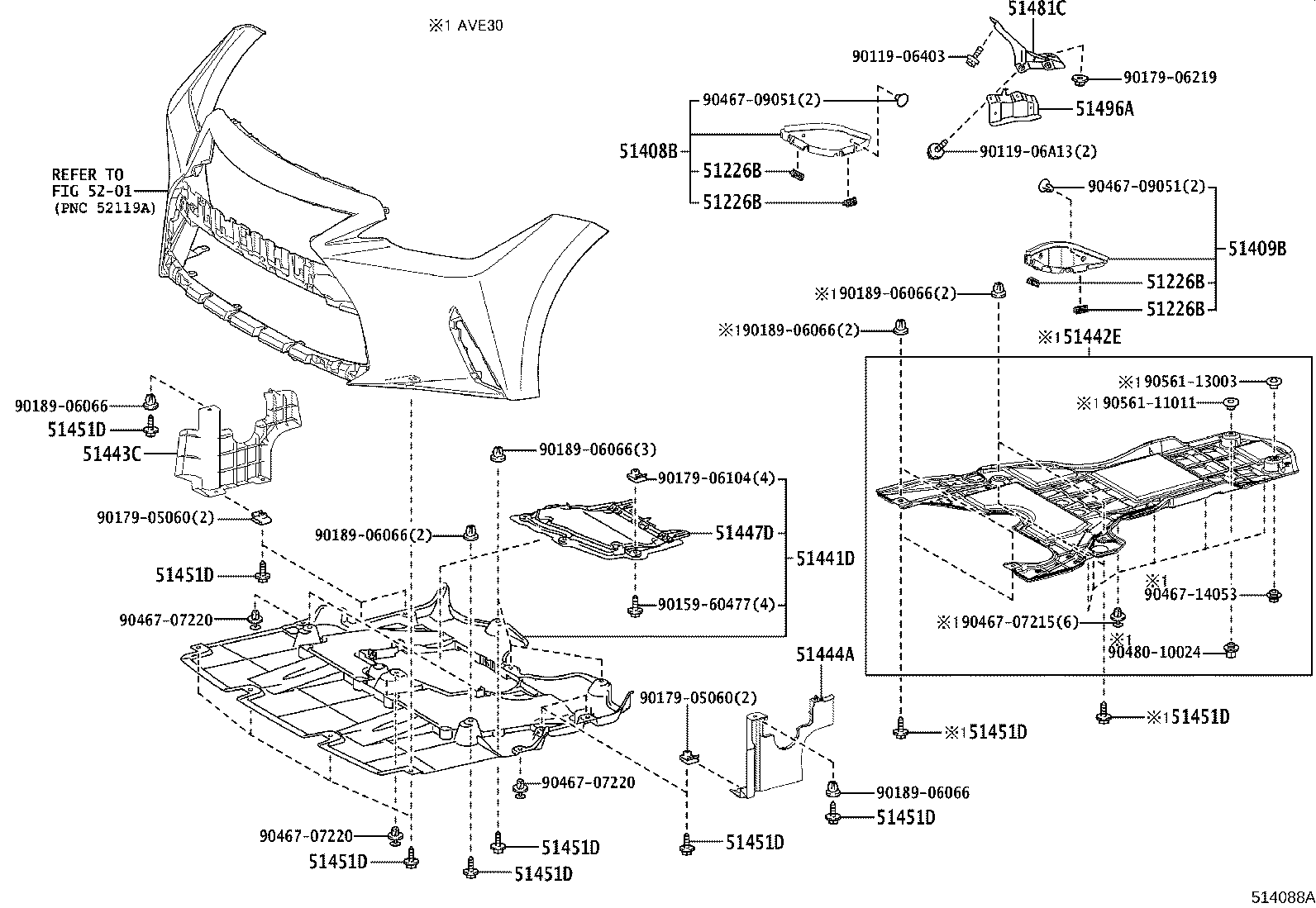

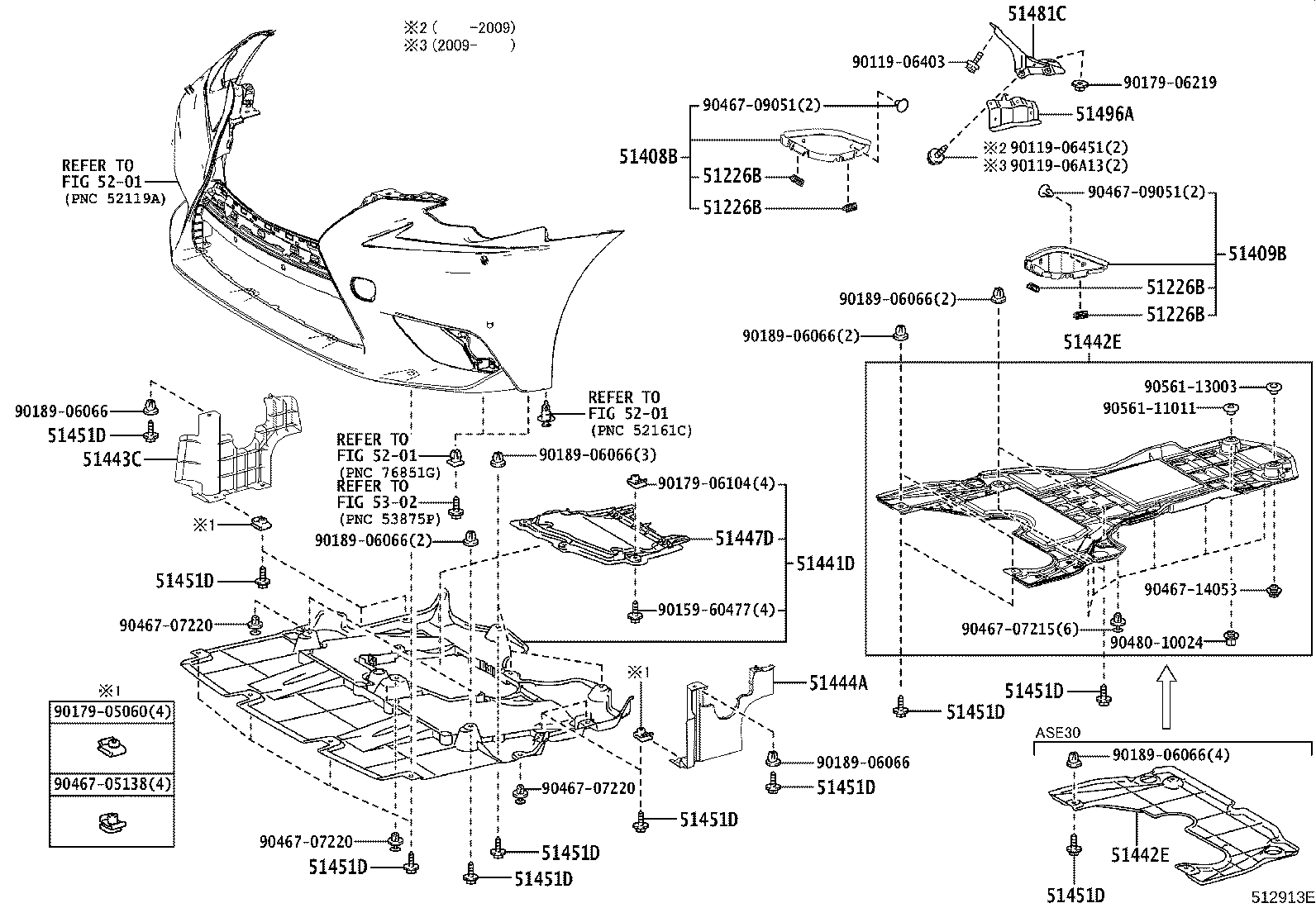

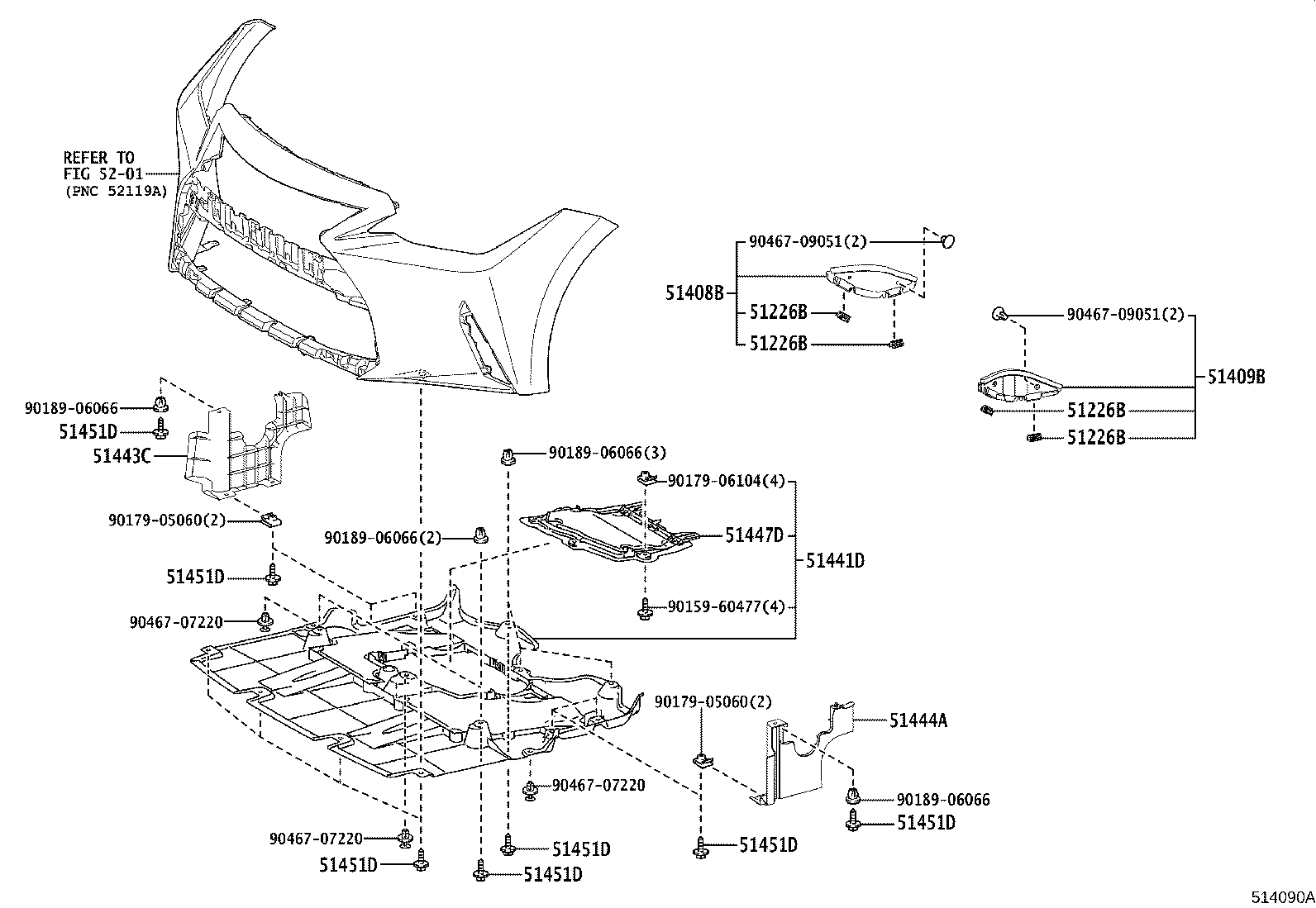

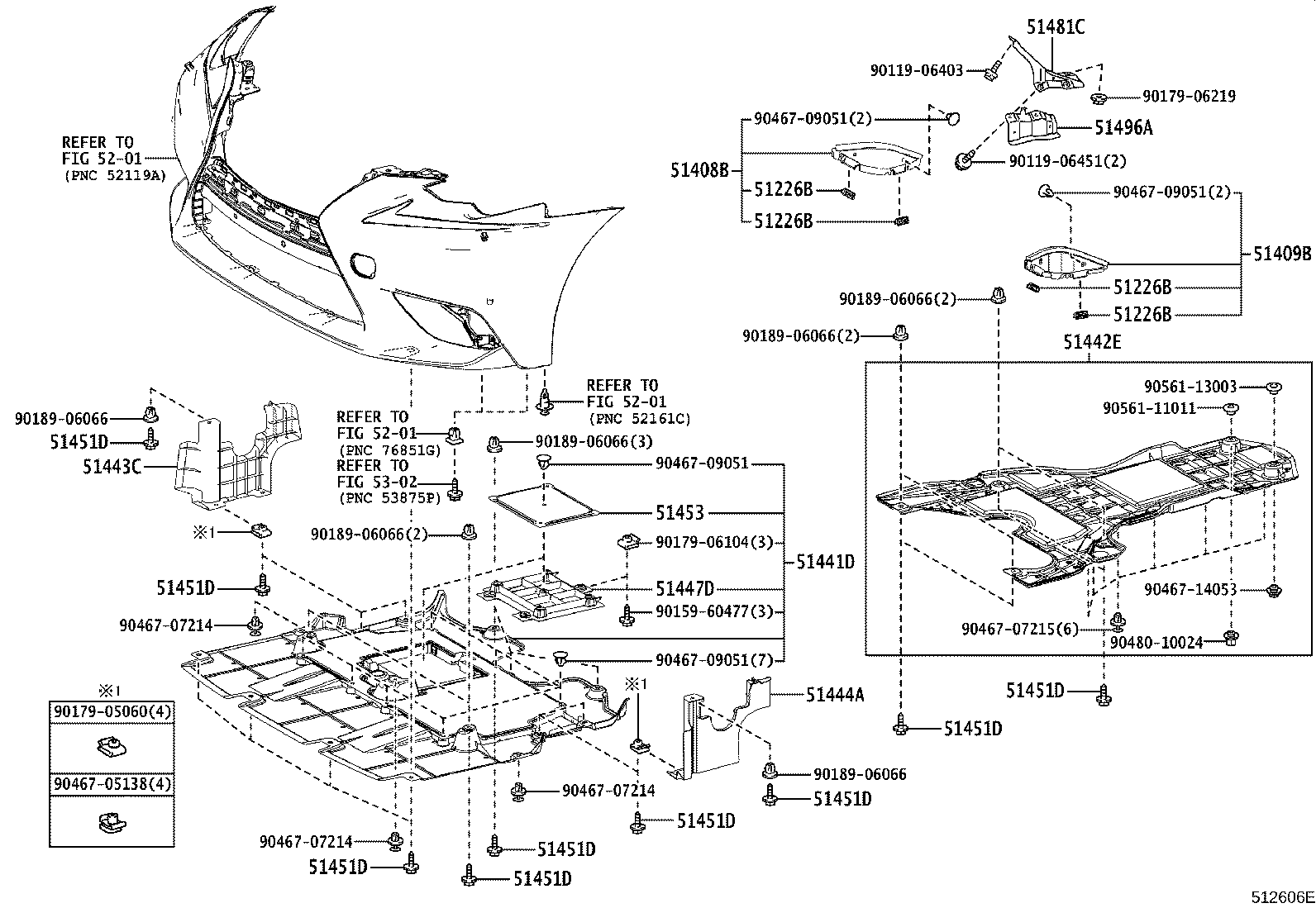

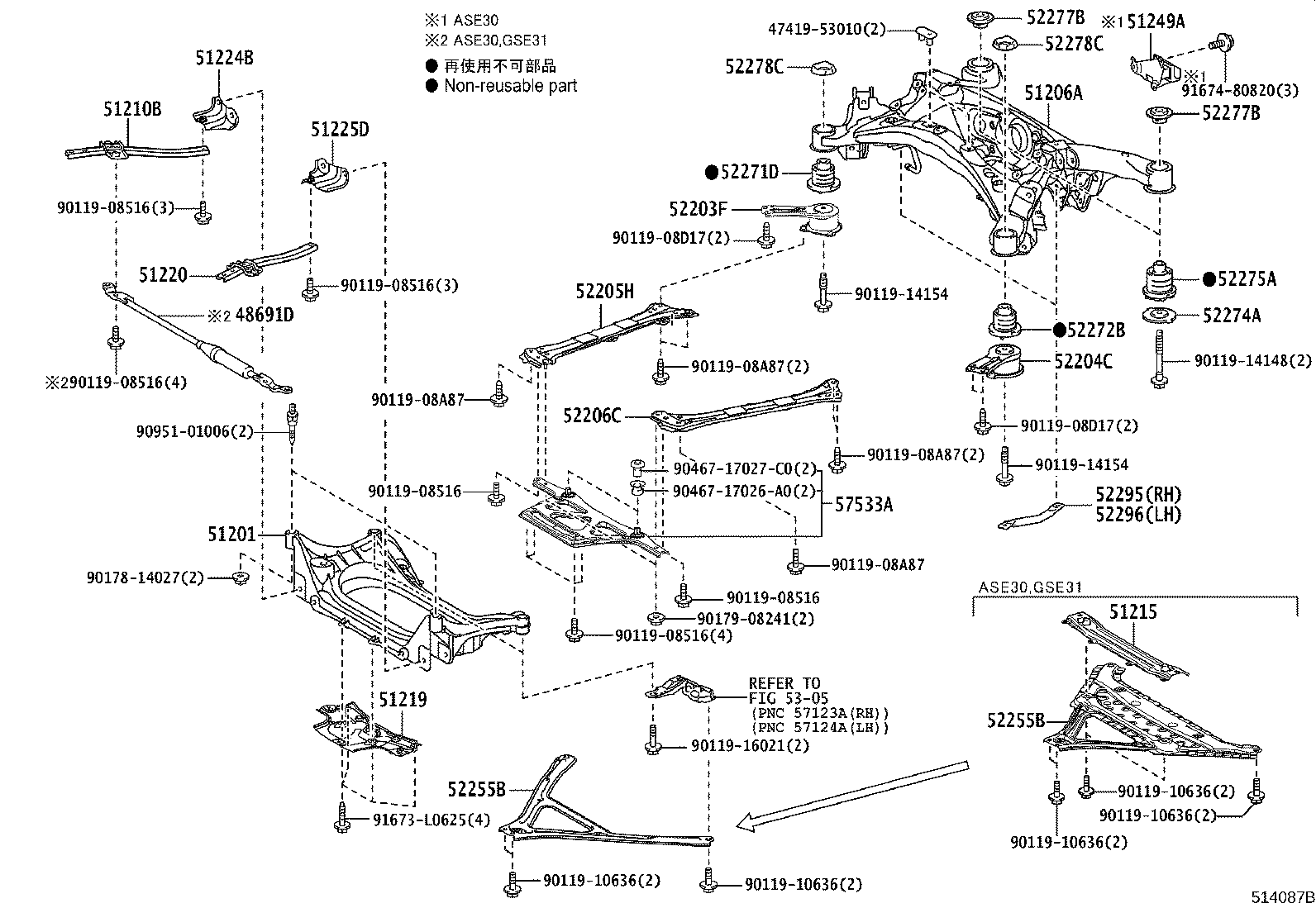

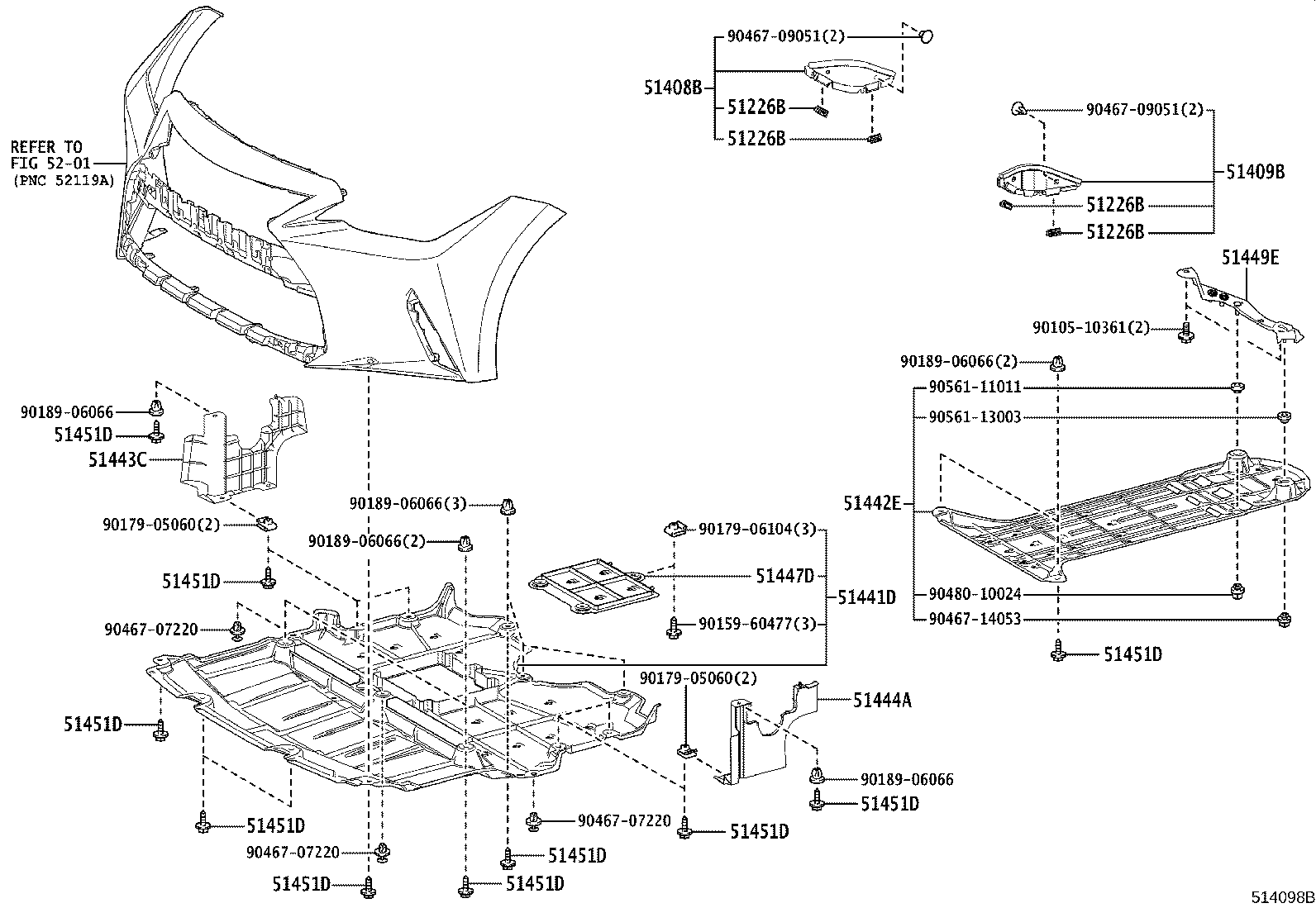

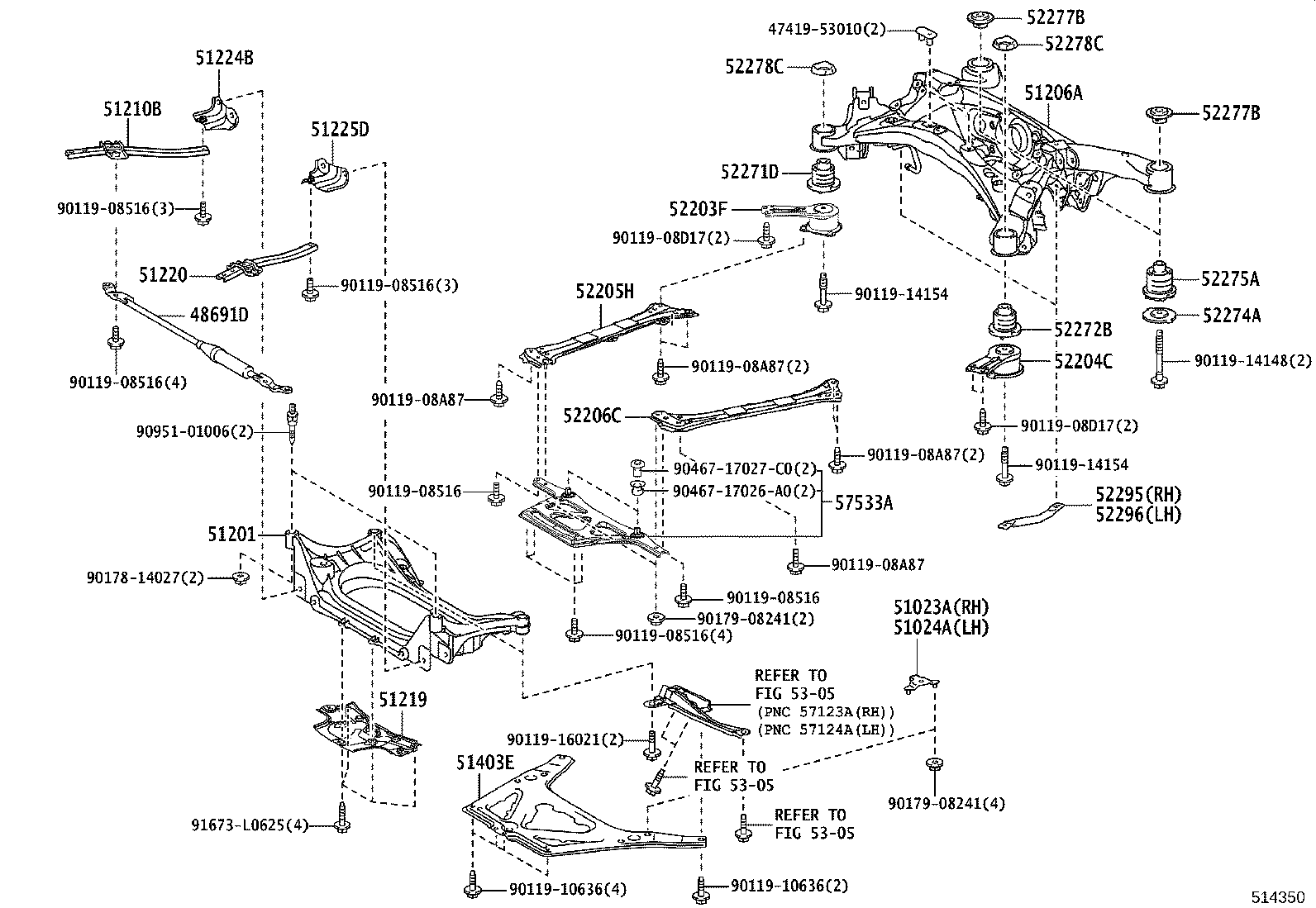

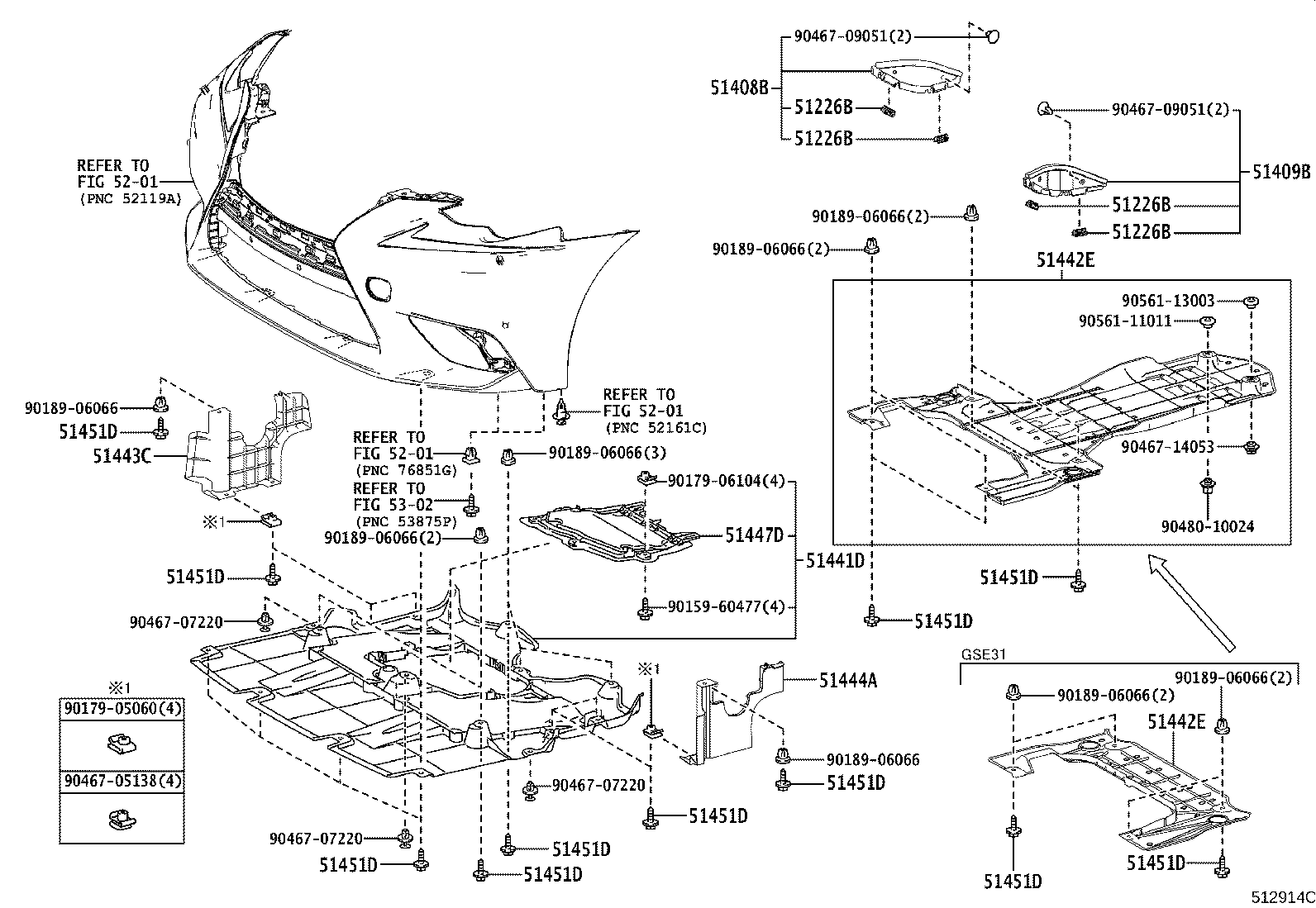

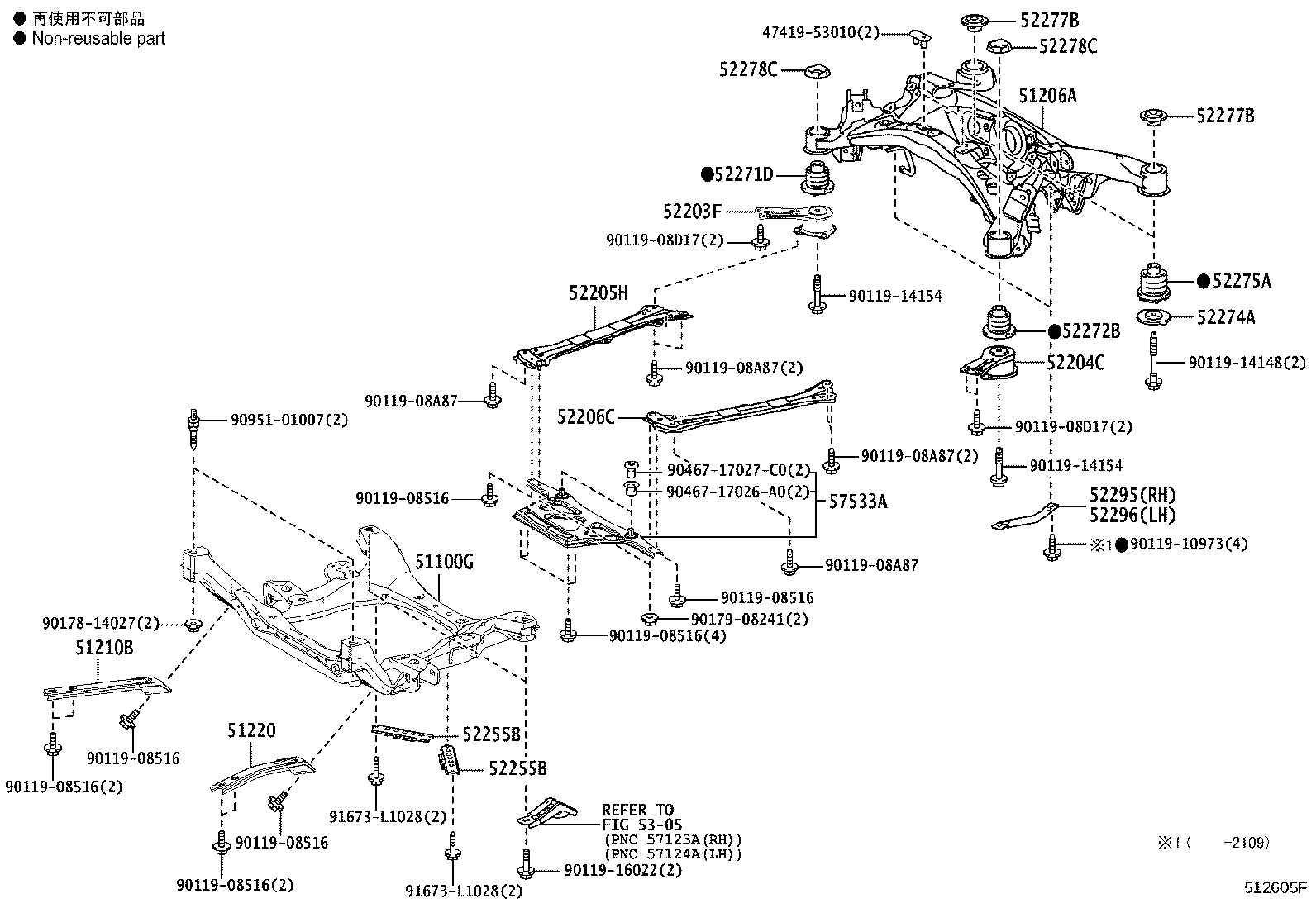

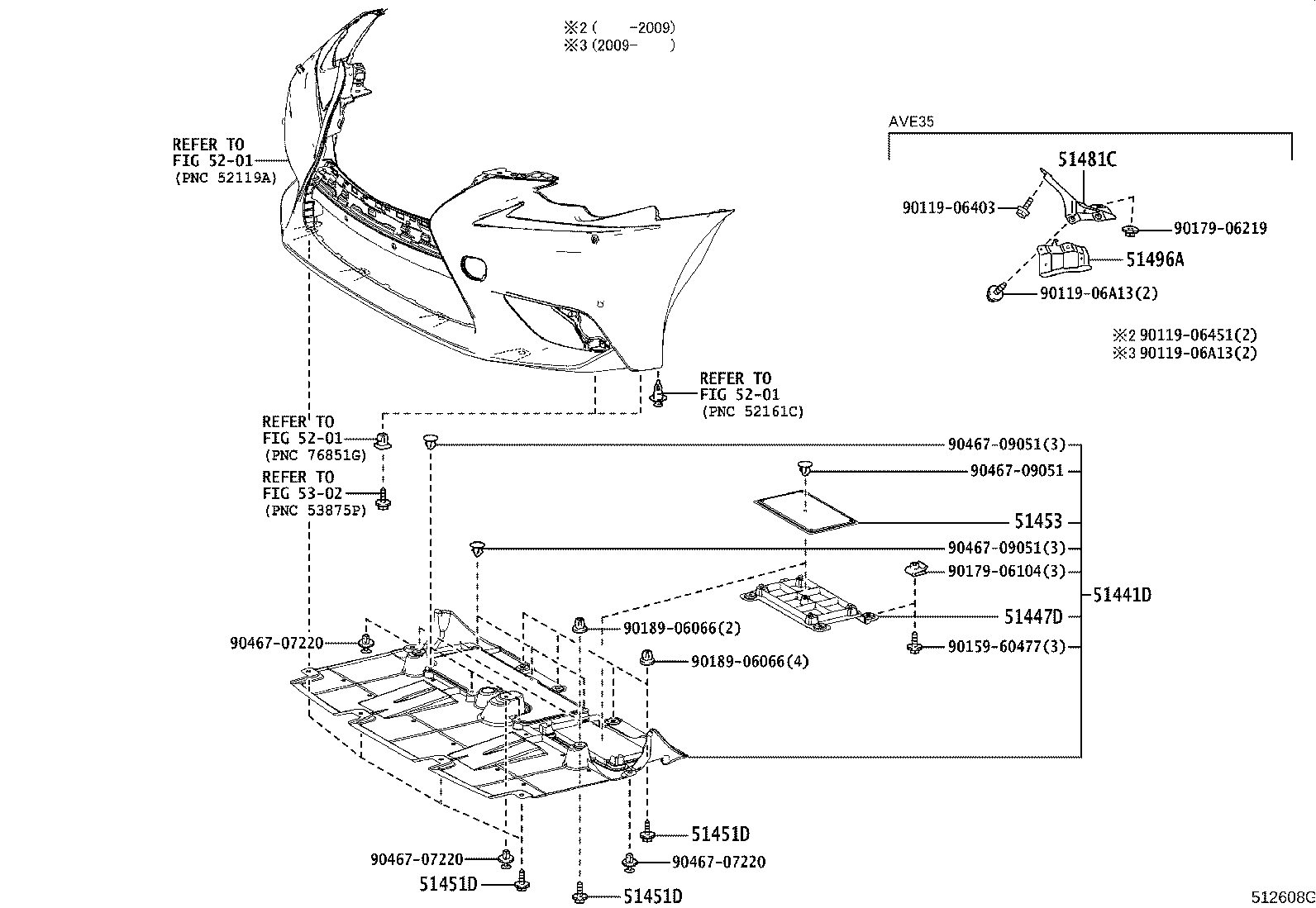

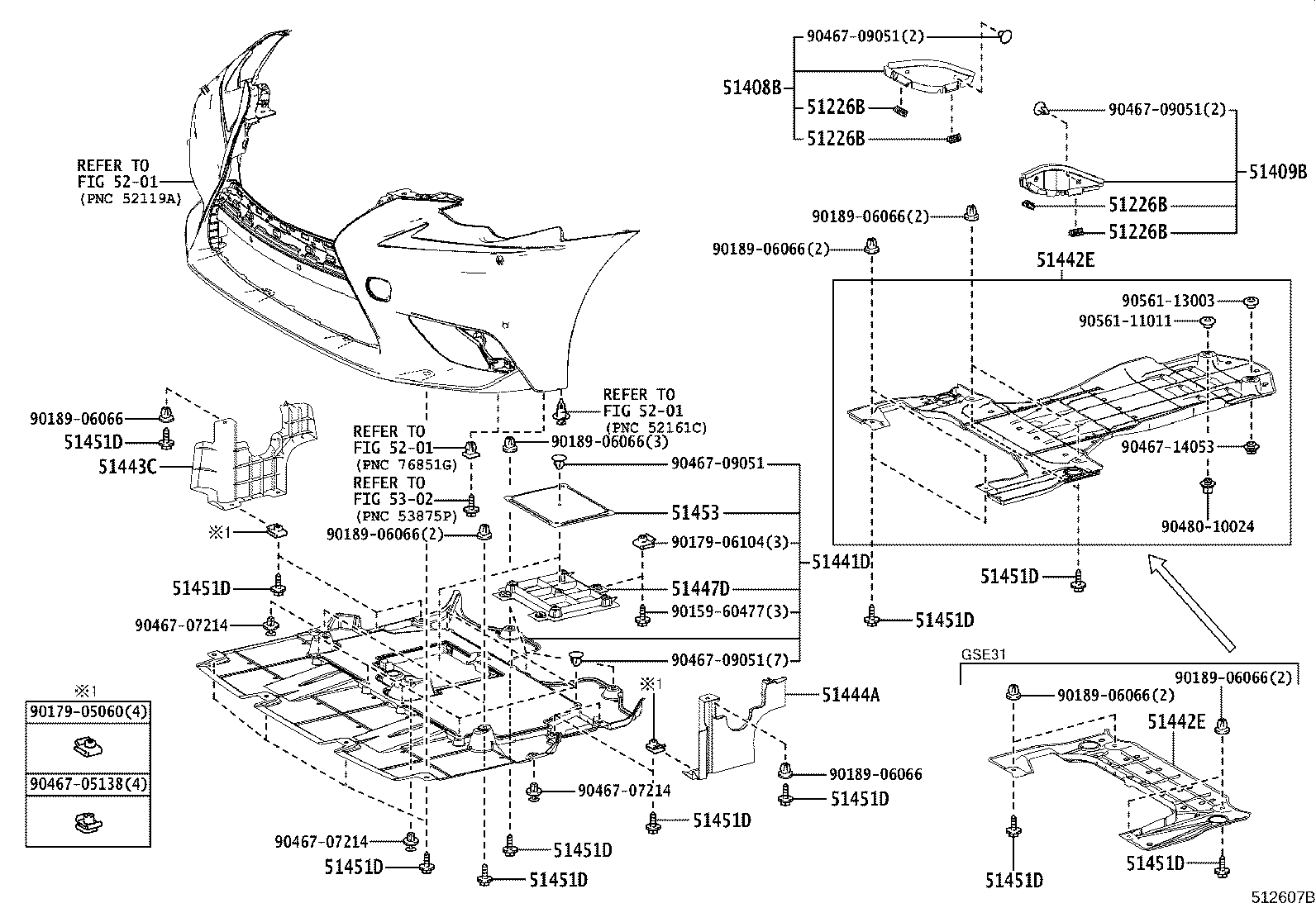

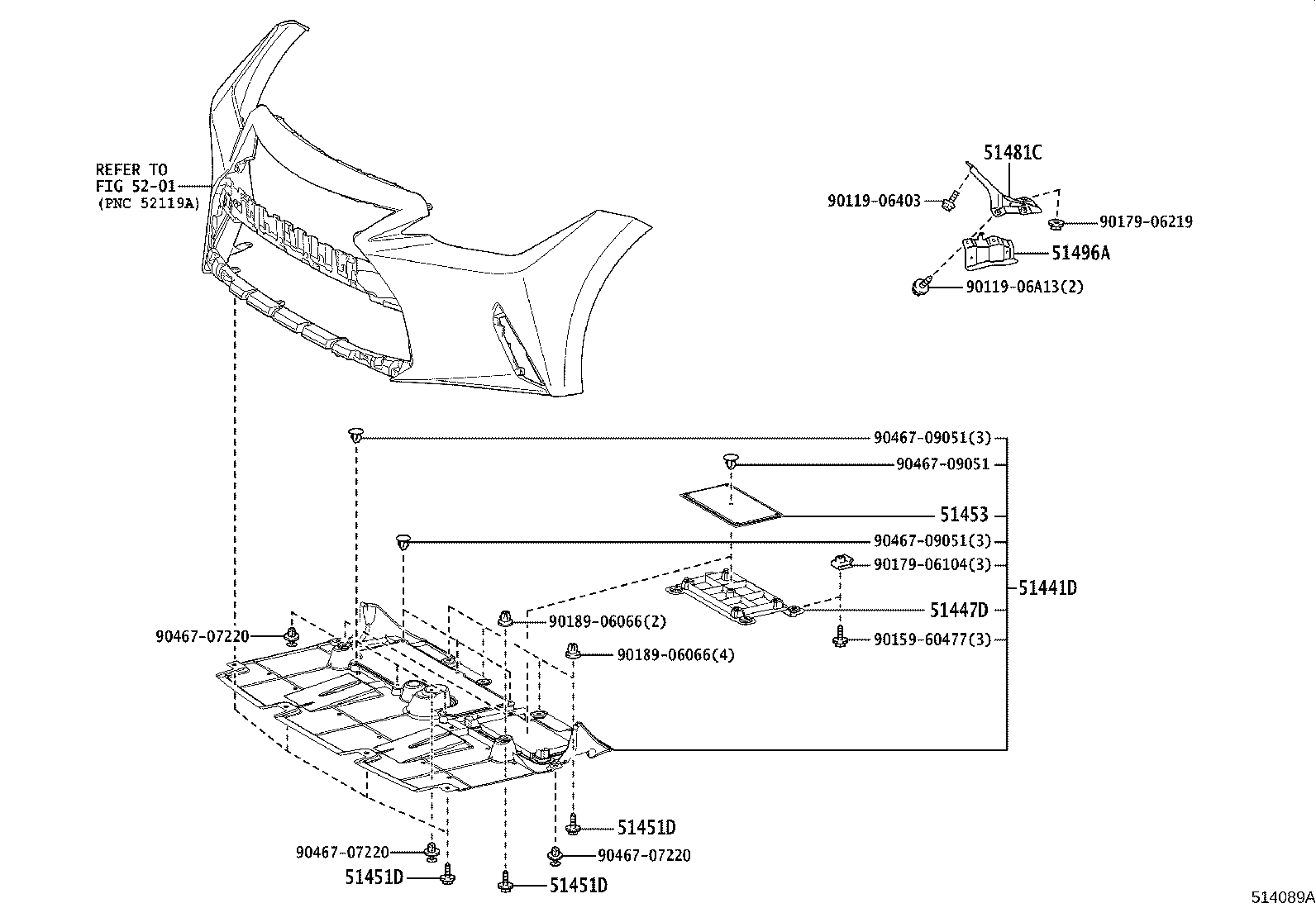

Figure 512604D 512604D 2013-04 → 2021-10 Figure 512605F 512605F 2013-04 → — Figure 514087B 514087B 2021-11 → — Figure 514350 514350 2022-09 → — Figure 512606E 512606E 2013-04 → 2015-08 Figure 512607B 512607B 2013-04 → 2015-08 Figure 512913E 512913E 2015-08 → 2021-10 Figure 512914C 512914C 2015-08 → 2021-10 Figure 512608G 512608G 2013-04 → 2021-10 Figure 514088A 514088A 2021-11 → — Figure 514089A 514089A 2021-11 → — Figure 514090A 514090A 2021-11 → — Figure 514098B 514098B 2022-09 → —

Part groups

PNCDescription
48691D Damper, Suspension Tower
51023A Bracket Sub-assy, Front Suspension Member, RH
51024A Bracket Sub-assy, Front Suspension Member, LH
51100G Frame Assy, Front
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51210B Crossmember Assy, Frame, NO.1
51215 Reinforcement, Front Suspension Crossmember
51217D Member, Front Suspension, NO.2 Upper
51219 Protector, Front Suspension Member, Lwr
51220 Crossmember Assy, Frame, NO.2
51224B Plate, Front Suspension Menber Brace, RH
51225D Plate, Front Suspension Menber Brace, LH
51226B Plate, Front Suspension Member, NO.2
51249A Damper, Rear Suspension Member
51403E Brace Sub-assy, Front Suspension Member
51408B Cover Sub-assy, Engine Under, RH
51409B Cover Sub-assy, Engine Under, LH
51441D Cover, Engine Under
51442E Cover, Engine Under, NO.2
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
51447D Cover, Engine Under, NO.4 Center
51449E Bracket, Engine Under Cover Air Guide
51451D Screw, NO.1
51453 Silencer, Engine Under Cover, Front
51481C Bracket, Under Guard, Front RH
51496A Cover, Transmission Under, RH
52203F Stopper Sub-assy, Rear Suspension Member, Lower RH
52204C Stopper Sub-assy, Rear Suspension Member, Lower LH
52205H Cushion Sub-assy, Body Mounting, Rear RH
52206C Cushion Sub-assy, Body Mounting, Rear LH
52255B Brace, Front Suspension Member
52271D Cushion, Rear Suspension Member Body Mounting, Front
52272B Cushion, Rear Suspension Member Body Mounting, Front Lower
52274A Stopper, Rear Suspension Member, Lower LH
52275A Cushion, Rear Suspension Member Body Mounting, Rear
52277B Stopper, Rear Suspension Member, Rear Upper
52278C Stopper, Rear Suspension Member, Rear Lower
52295 Brace, Rear Suspension Member, RH
52296 Brace, Rear Suspension Member, LH
57533A Brace, Front Floor, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
