Toyota Lexus IS Series
2013-04 → present · chassis ASE30,AVE3#,GSE3#,USE3# · catalogue 242130 · Japan
Supported model
Data version 2022-09

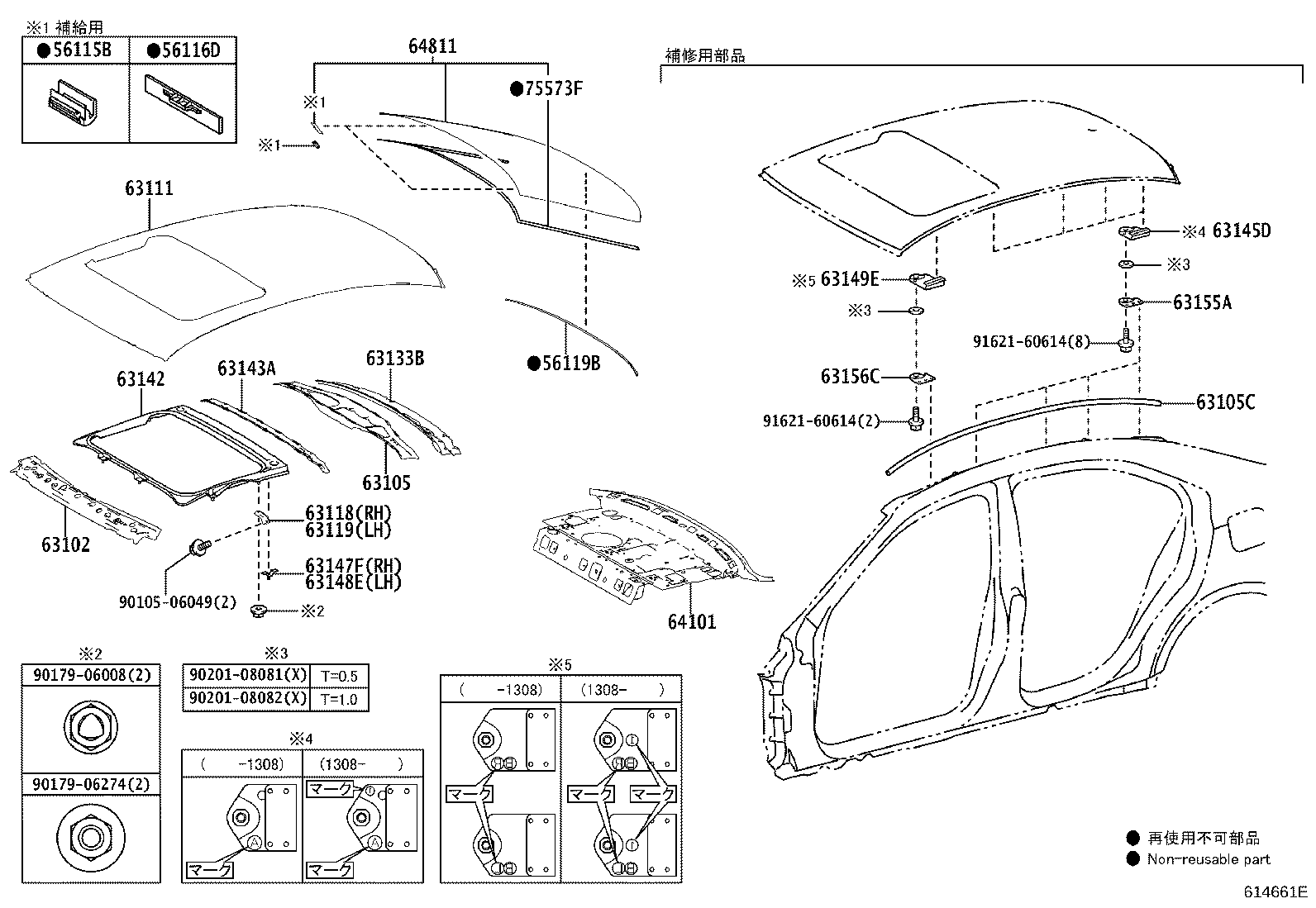

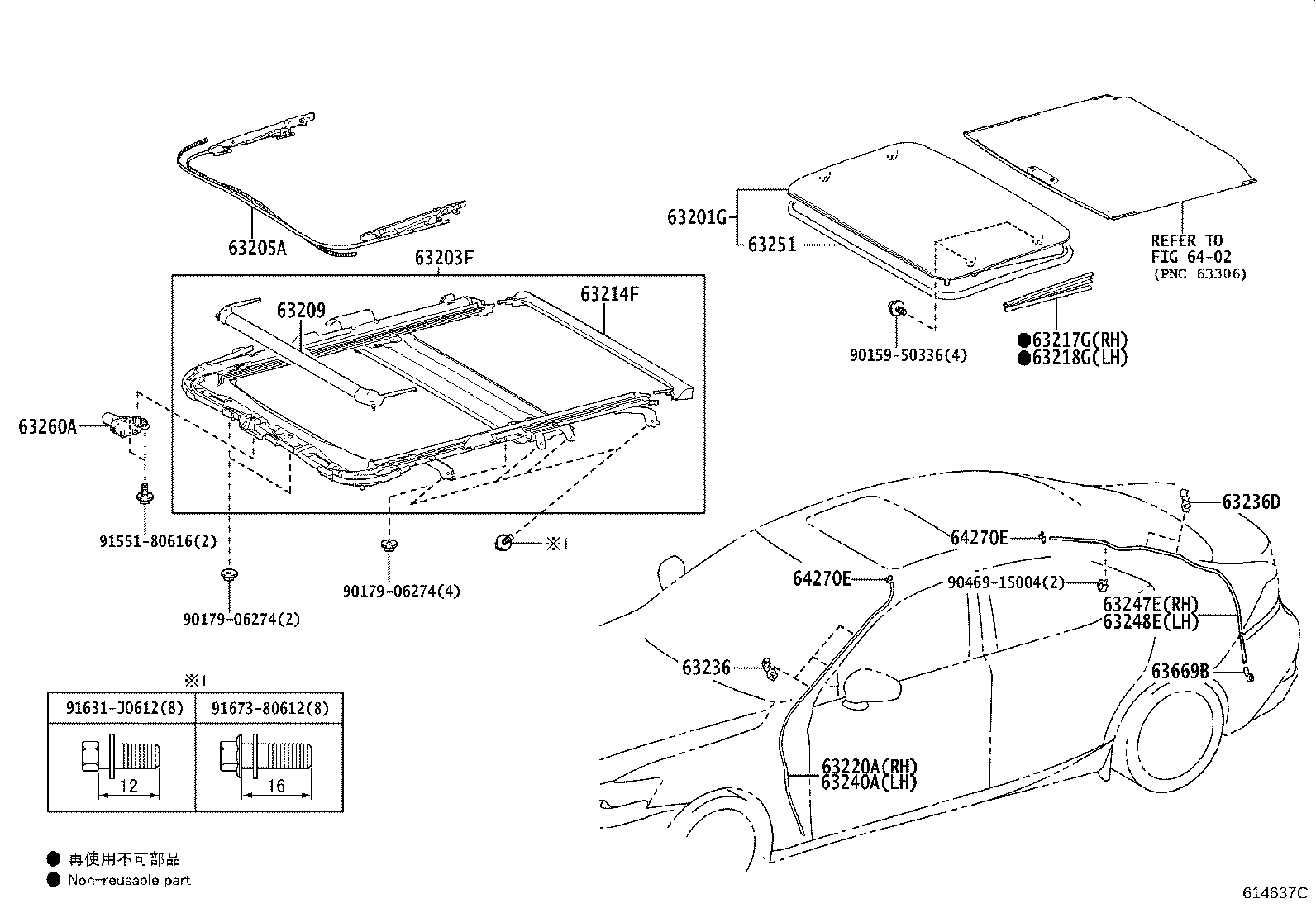

Roof Panel & Back Window Glass
42 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 56115B | Stopper, Back Window Glass, NO.1 |
| 56116D | Stopper, Back Window Glass, NO.2 |
| 56119B | Dam, Back Window Glass Adhesive |
| 63102 | Reinforcement Sub-assy, Roof Panel, Front |
| 63103A | Reinforcement Sub-assy, Roof Panel |
| 63104 | Reinforcement Sub-assy, Roof Panel, Center |
| 63105 | Reinforcement Sub-assy, Roof Panel, Rear |
| 63105C | Moulding Sub-assy, Roof Drip |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63133B | Frame, Back Window |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143A | Reinforcement, Roof Panel |
| 63145D | Bracket, Roof Reinforcement |
| 63146A | Bracket, Roof Panel Reinforcement, NO.1 |
| 63147 | Bracket, Roof Panel Reinforcement |
| 63147F | Bracket, Roof Panel Reinforcement, RH |
| 63148E | Bracket, Roof Panel Reinforcement, LH |
| 63149E | Bracket, Roof Panel Reinforcement, NO.2 |
| 63155A | Plate, Roof Panel Reinforcement |
| 63156C | Plate, Roof Panel Reinforcement, NO.2 |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63214F | Channel, Roof Drip, Rear |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63220A | Hose Assy, Sliding Roof Drain, RH |
| 63236 | Clamp, Sliding Roof OR Removable Roof Drain Hose |
| 63236D | Clamp, Sliding Roof Drain Hose |
| 63240A | Hose Assy, Sliding Roof Drain, LH |
| 63247E | Hose, Sliding Roof Drain, Rear RH |
| 63248E | Hose, Sliding Roof Drain, Rear LH |
| 63251 | Weatherstrip, Sliding Roof Panel OR Removable Roof |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63669B | Grommet, Sliding Roof Drain |
| 64101 | Panel Sub-assy, Upper Back |
| 64270E | Clip |
| 64811 | Glass, Back Window |
| 75573F | Moulding, Back Window, Outside |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
