Toyota Lexus IS Series
2013-04 → present · chassis ASE30,AVE3#,GSE3#,USE3# · catalogue 242130 · Japan
Supported model
Data version 2022-09

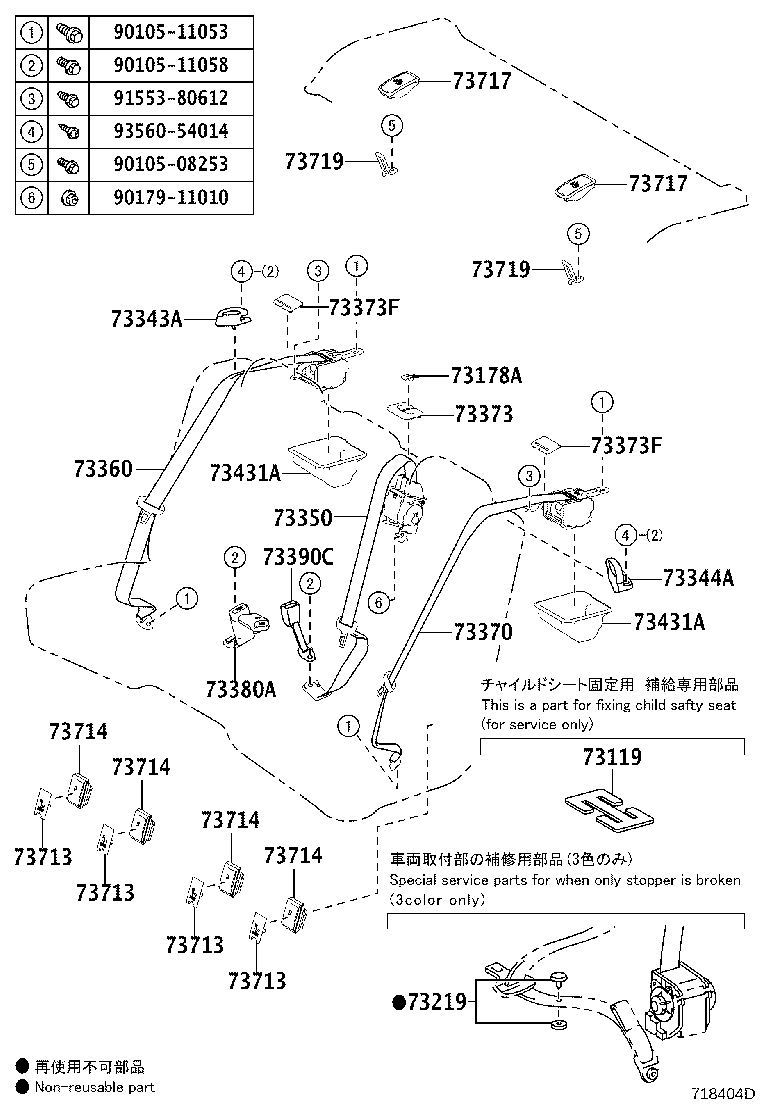

Seat Belt & Child Restraint Seat
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 73023 | Plate Sub-assy, Front Shoulder Belt Anchor, RH |
| 73024 | Plate Sub-assy, Front Shoulder Belt Anchor, LH |
| 73119 | Plate, Seat Belt Webbing Clip |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73214 | Plate, Front Seat Belt Anchor |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73223B | Cover, Front Seat Belt Retractor, RH |
| 73224B | Cover, Front Seat Belt Retractor, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73343A | Guide, Rear Seat Shoulder Belt, RH |
| 73344A | Guide, Rear Seat Shoulder Belt, LH |
| 73350 | Belt Assy, Rear Seat Lap Type, Center |
| 73360 | Belt Assy, Rear Seat 3 Point Type, Outer RH |
| 73370 | Belt Assy, Rear Seat 3 Point Type, Outer LH |
| 73373 | Cover, Rear Seat Shoulder Belt |
| 73373F | Cover, Rear Seat Shoulder Belt Hole |
| 73380A | Belt Assy, Rear Seat, Inner |
| 73390C | Belt Assy, Rear NO.1 Seat, Inner LH |
| 73431A | Cover, Rear Seat Belt Retractor |
| 73713 | Cap, Child Restraint Seat Belt, RH |
| 73714 | Cap, Child Restraint Seat Belt, LH |
| 73717 | Cover, Child Restraint Seat Tether Anchor |
| 73719 | Bracket, Child Restraint Seat Tether Anchor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
