Toyota Lexus IS Series

2013-04 → present · chassis ASE30,AVE3#,GSE3#,USE3# · catalogue 242130 · Japan

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

23 part groups · 4 illustrations

Illustrations

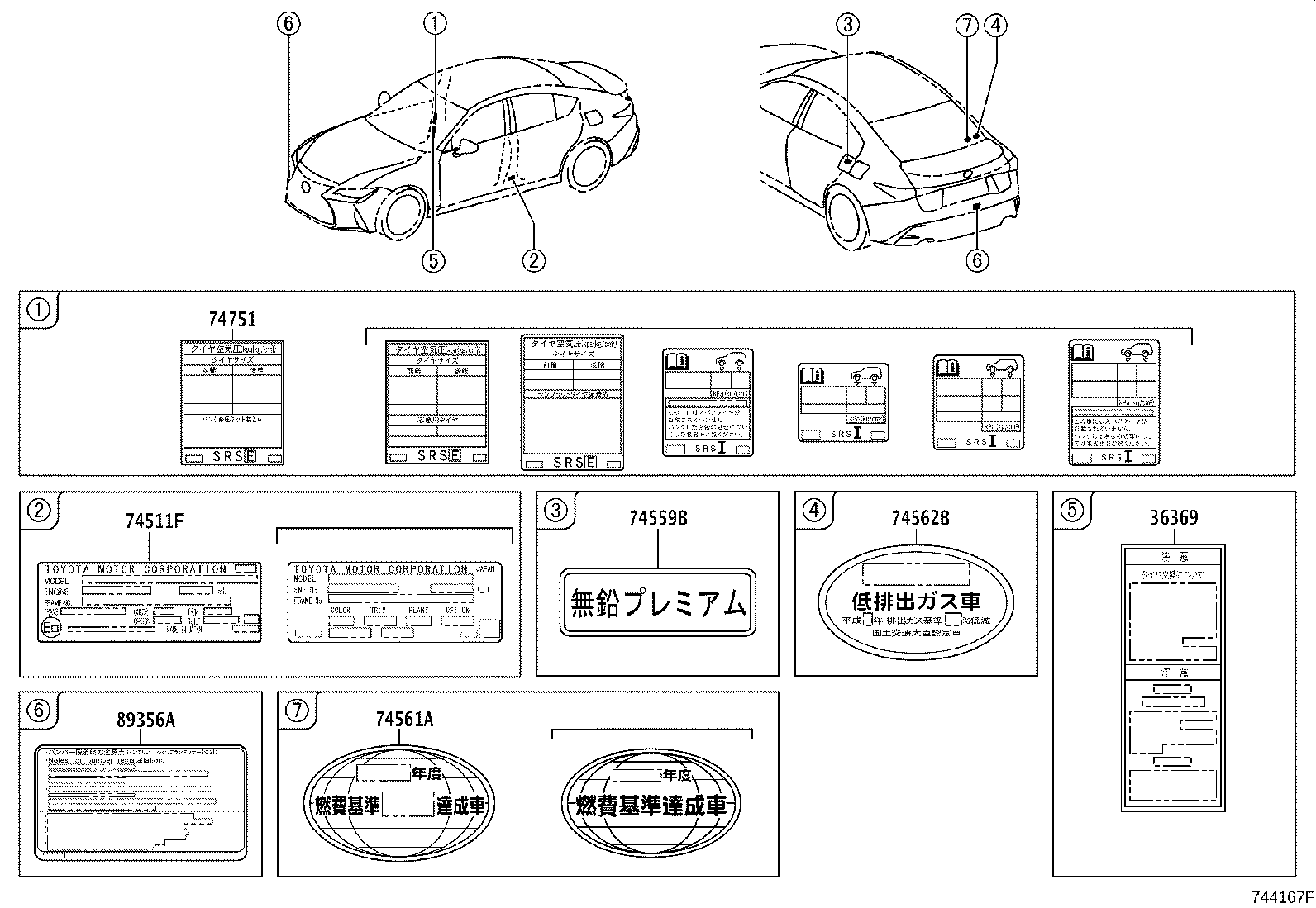

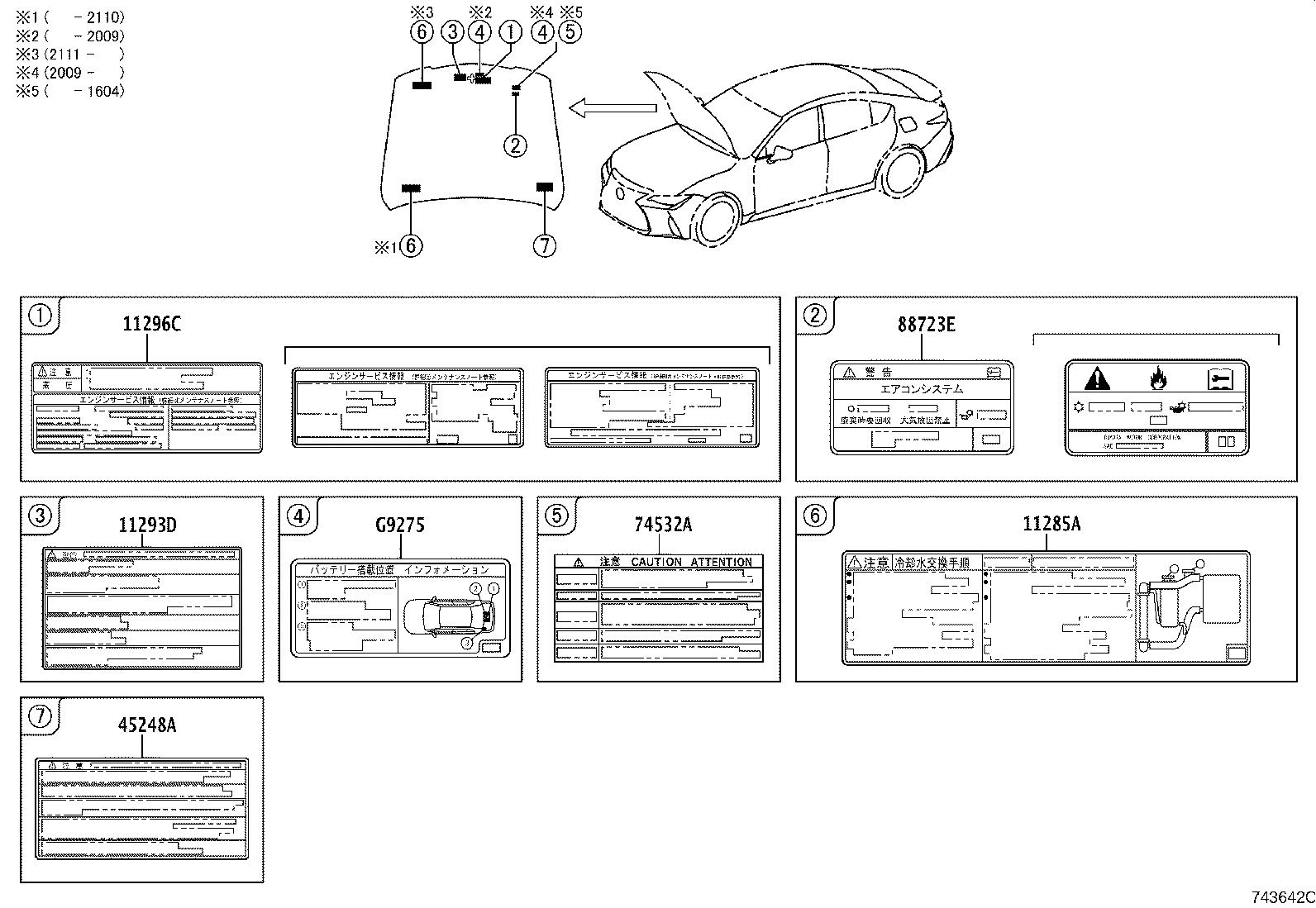

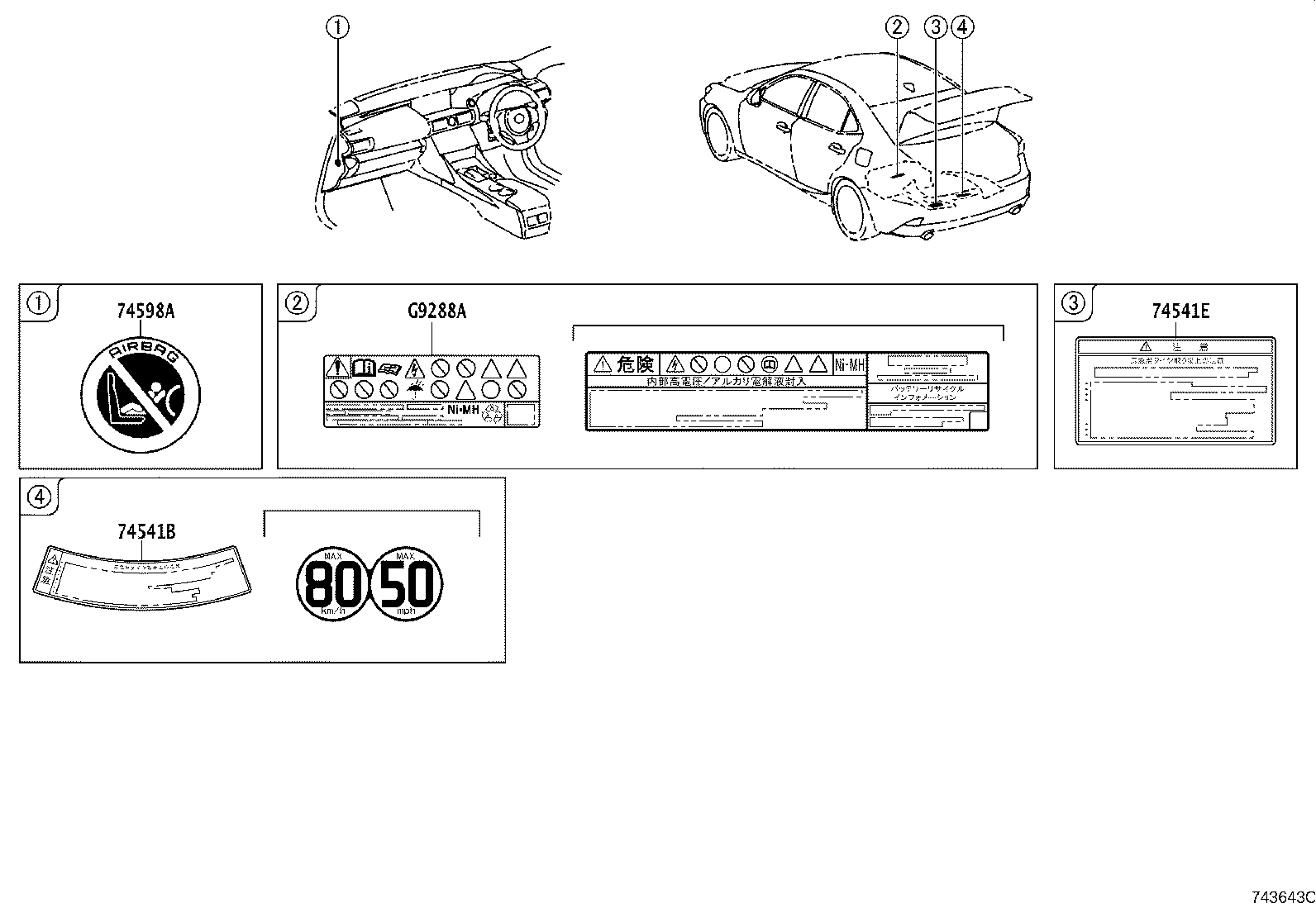

Figure 745940A 745940A 2013-04 → — Figure 743642C 743642C 2013-04 → — Figure 744167F 744167F 2013-04 → — Figure 743643C 743643C 2013-04 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11285F Label, Coolant System Caution
11286B Plate, Engine Specification
11293D Label, Engine Caution
11295B Label, Engine Service Notice, NO.1
11295C Label, Engine Service Notice, NO.2
11296C Label, Engine Service Information
16793E Label, Cooling Fan Caution
36369 Label, Transfer Information
45248A Label, Steering Actuator Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74532A Plate, Caution
74541B Plate, Compact Spare Tire Caution
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
88723E Label, Cooler Service Caution
89356A Label, Clearance Warning Information
G9275 Label, Battery Caution, NO.1
G9288A Label, Battery Carging Notice
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
