Toyota Lexus IS Series

2013-04 → present · chassis ASE30,AVE3#,GSE3#,USE3# · catalogue 242130 · Japan

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

14 part groups · 2 illustrations

Illustrations

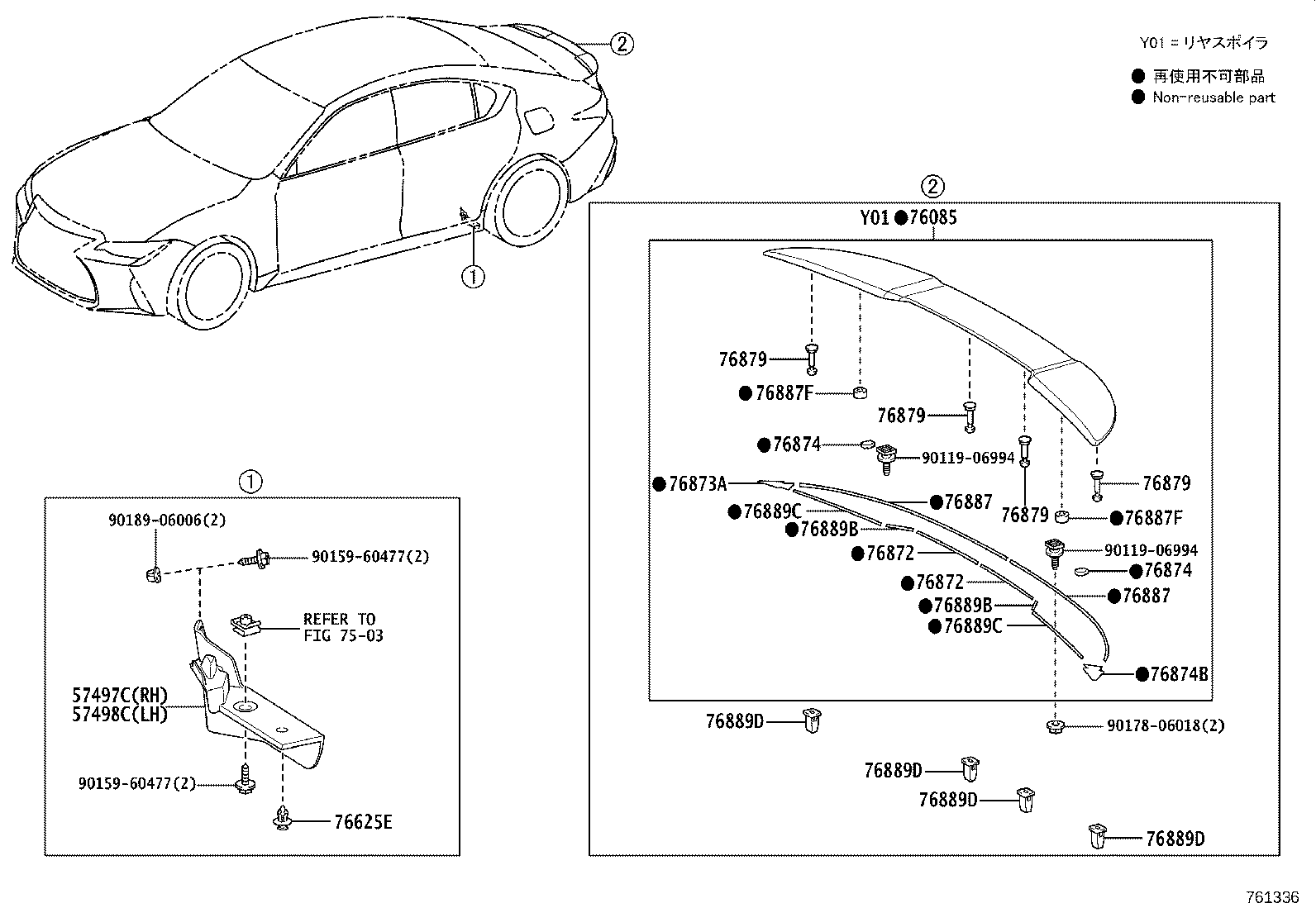

Figure 760877A 760877A 2013-04 → 2020-09 Figure 761336 761336 2020-09 → —

Part groups

PNCDescription
57497C Shield, Rear Floor Housing
57498C Shield, Rear Floor Housing, NO.2
76085 Spoiler Sub-assy, Rear
76625E Clip
76872 Protector, Rear Spoiler, NO.1
76873A Protector, Rear Spoiler, RH
76874 Protector, Rear Spoiler, NO.3
76874B Protector, Rear Spoiler, LH
76879 Clip, Rear Spoiler, NO.1
76887 Seal, Rear Spoiler
76887F Seal, Rear Spoiler, NO.2
76889B Seal, Rear Spoiler, NO.1
76889C Adhesive, Rear Spoiler
76889D Clip, Rear Spoiler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
