Toyota Lexus IS Series

2013-04 → present · chassis ASE30,AVE3#,GSE3#,USE3# · catalogue 242130 · Japan

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Clearance Lamp

8 part groups · 2 illustrations

Illustrations

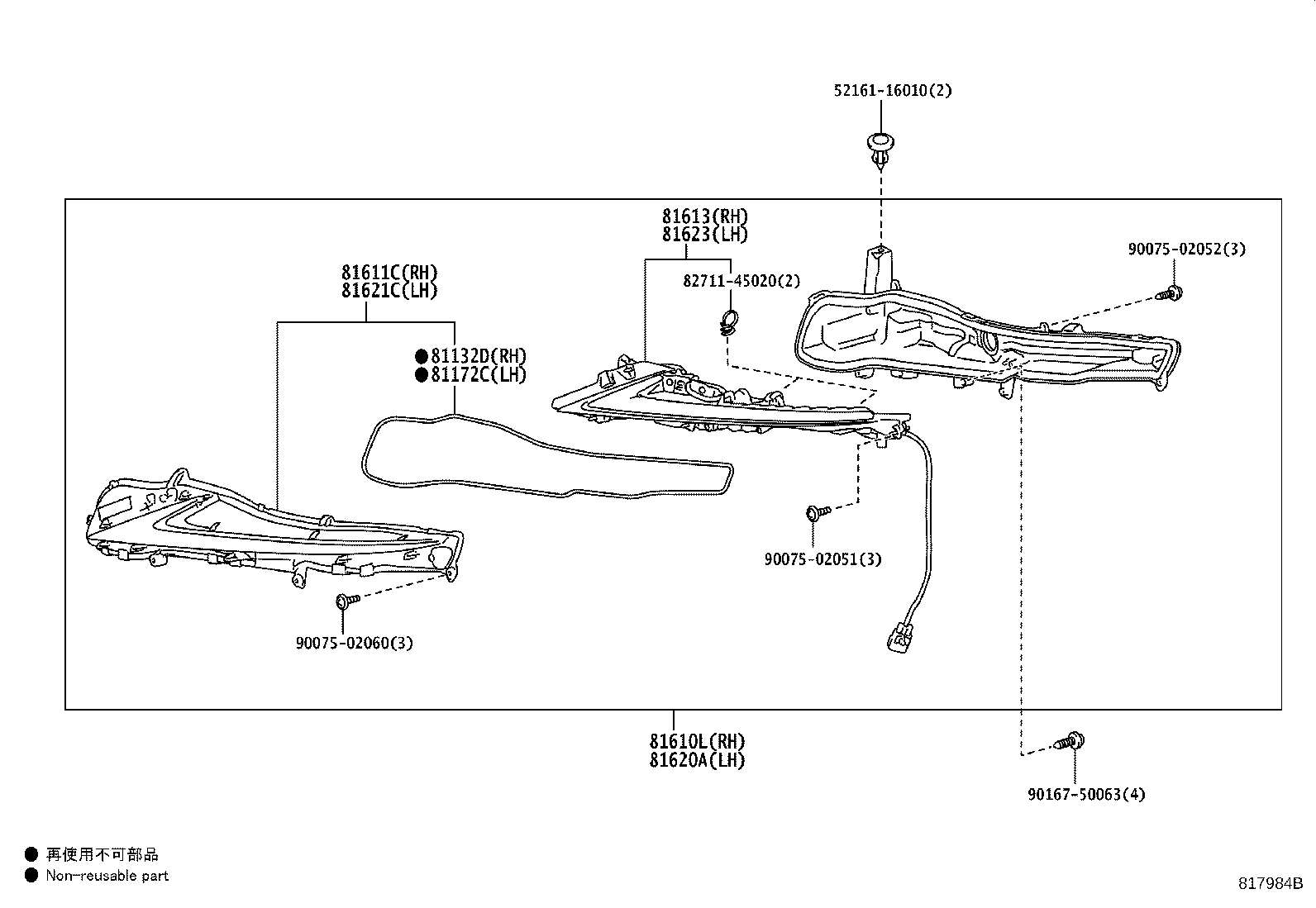

Figure 816556A 816556A 2013-04 → 2016-10 Figure 817984B 817984B 2016-10 → —

Part groups

PNCDescription
81132D Gasket, Clearance Lamp Lens, RH
81172C Gasket, Clearance Lamp Lens, LH
81610L Lamp Assy, Clearance, RH
81611C Lens, Clearance Lamp, RH
81613 Unit Assy, Clearance Lamp Led, RH
81620A Lamp Assy, Clearance, LH
81621C Lens, Clearance Lamp, LH
81623 Unit Assy, Clearance Lamp Led, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
