Toyota Lexus IS Series

2013-04 → present · chassis ASE30,AVE3#,GSE3#,USE3# · catalogue 242130 · Japan

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

11 part groups · 2 illustrations

Illustrations

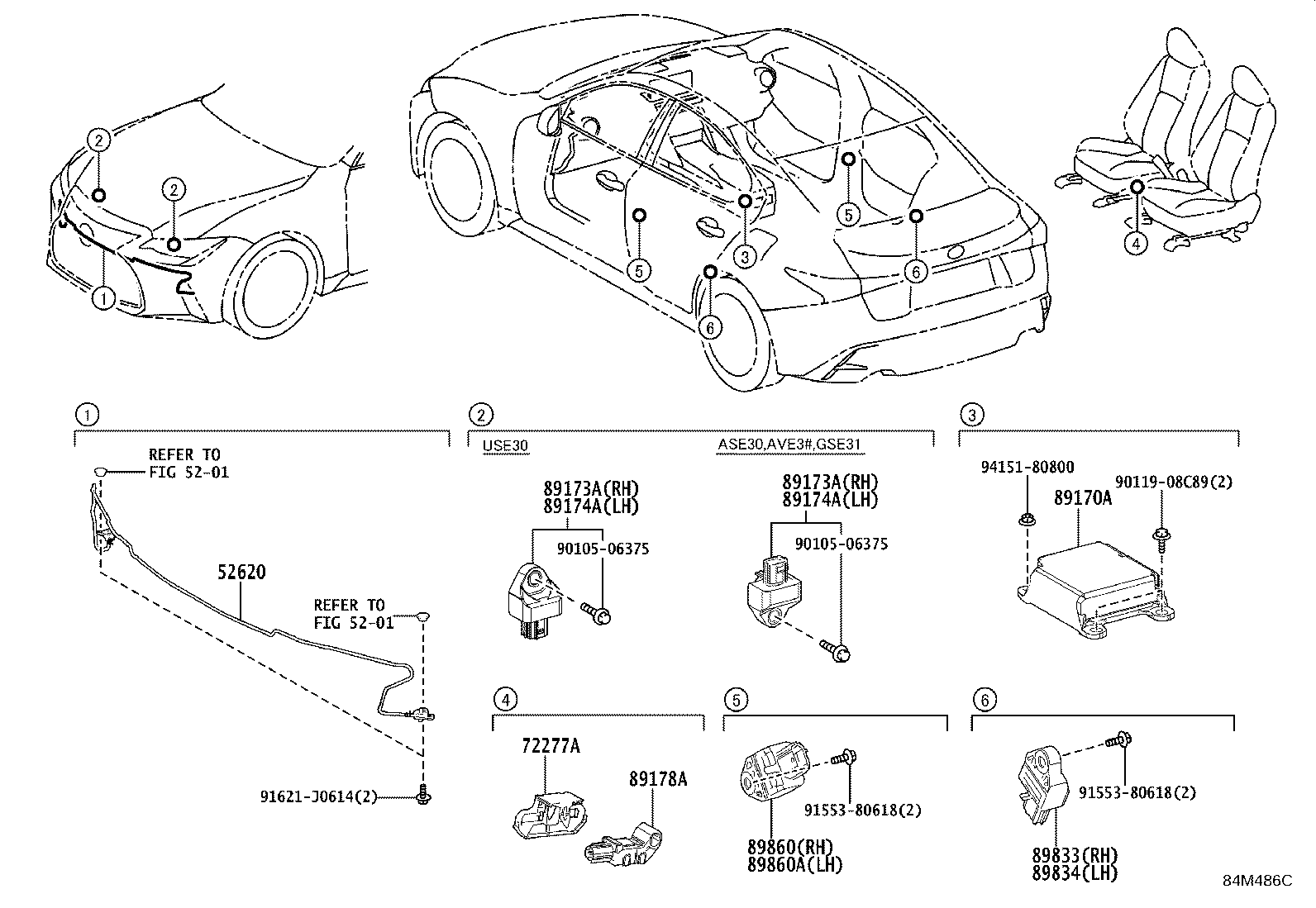

Figure 84E324D 84E324D 2013-04 → 2020-09 Figure 84M486C 84M486C 2020-09 → —

Part groups

PNCDescription
52620 Chamber Assy, Pedestrian Detection
72277A Protector, Seat Slide Position Sensor
89170A Computer Assy, Airbag
89173A Sensor, Airbag, Front RH
89174A Sensor, Airbag, Front LH
89178A Sensor, Seat Position Airbag
8917A Sensor, Pedestrian Protection
89833 Sensor, Airbag, Rear RH
89834 Sensor, Airbag, Rear LH
89860 Sensor Assy, Side Airbag, RH
89860A Sensor Assy, Side Airbag, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
