Toyota Lexus IS Series
2013-04 → present · chassis ASE30,AVE3#,GSE3#,USE3# · catalogue 242130 · Japan
Supported model
Data version 2022-09

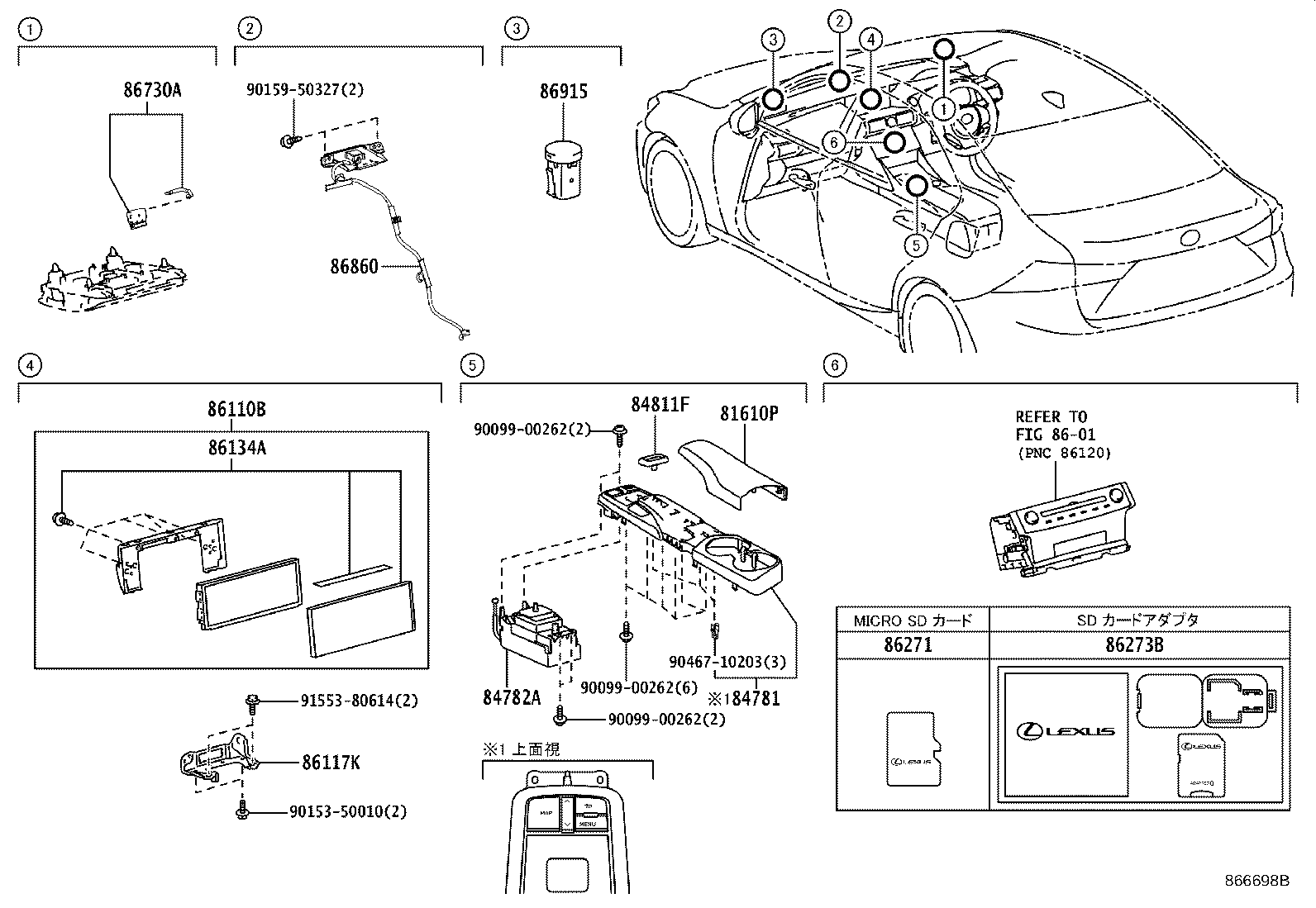

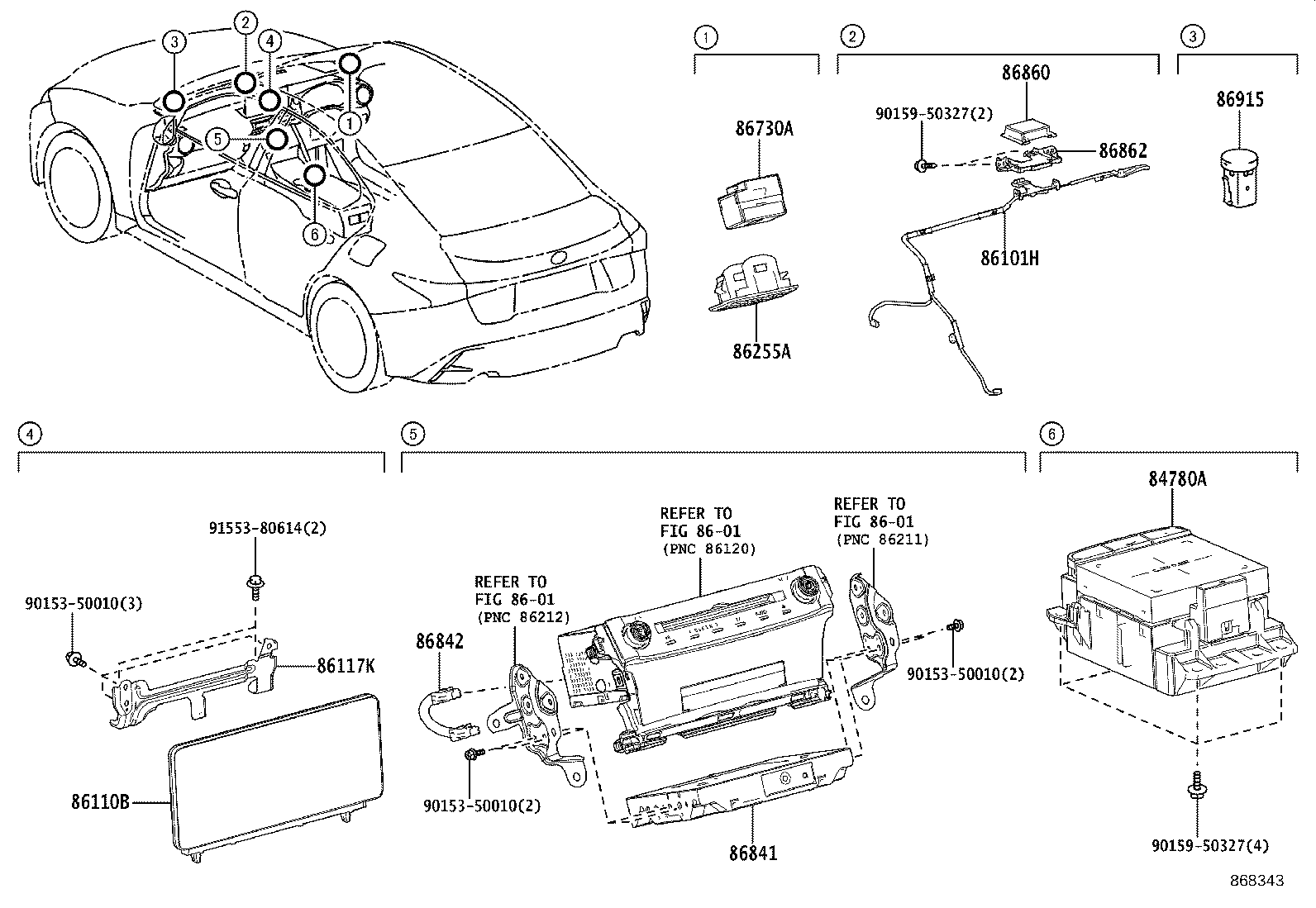

Navigation & Front Monitor Display
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 81610P | Cover Assy, RH |
| 84013D | Panel Sub-assy, Integration |
| 84780A | Controller Assy, Remote Operation |
| 84781 | Switch, Remote Operation |
| 84782A | Board, Remote Operation |
| 84811F | Knob, Switch |
| 86101H | Cord Sub-assy, Antenna |
| 86110B | Multi-display Assy |
| 86117K | Bracket, Multi-display, NO.1 |
| 86134A | Parts, Multi-display |
| 86255A | Case, Microphone, NO.1 |
| 86271 | Disc, Disc Player |
| 86273B | Adapter, Disc Player |
| 86730A | Microphone Assy, Telephone |
| 86841 | Computer, Navigation |
| 86842 | Wire, Navigation, NO.1 |
| 86860 | Antenna Assy, Navigation |
| 86862 | Bracket, Navigation Antenna |
| 86915 | Transceiver, Optical Beacon |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
