Heating & Air Conditioning - Water Piping

8 part groups · 5 illustrations

Illustrations

Figure 87D599D

87D599D 2013-04 → —

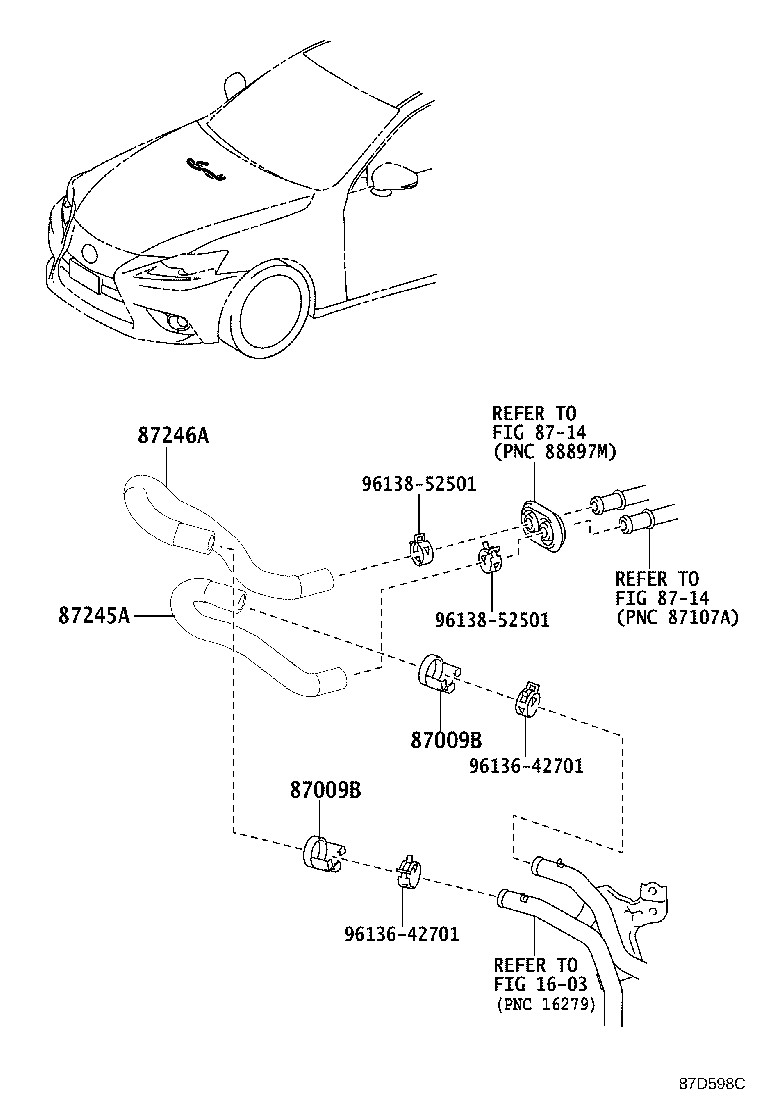

Figure 87D598C

87D598C 2013-04 → 2017-10

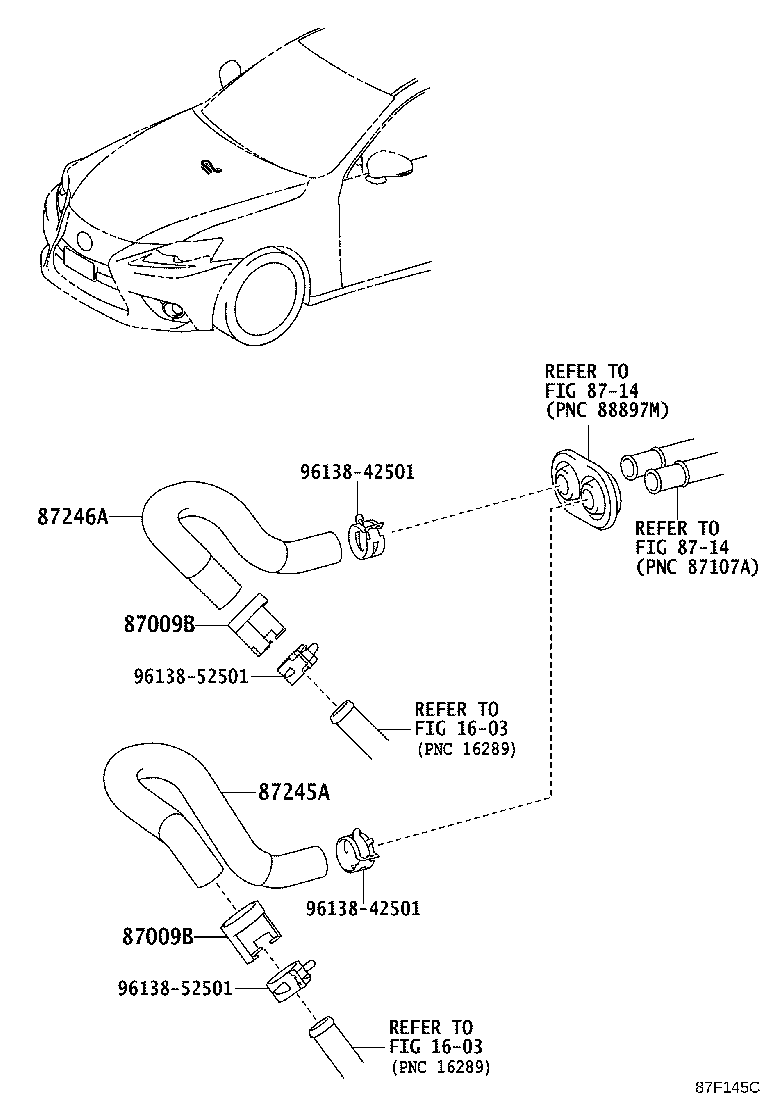

Figure 87F145C

87F145C 2015-08 → —

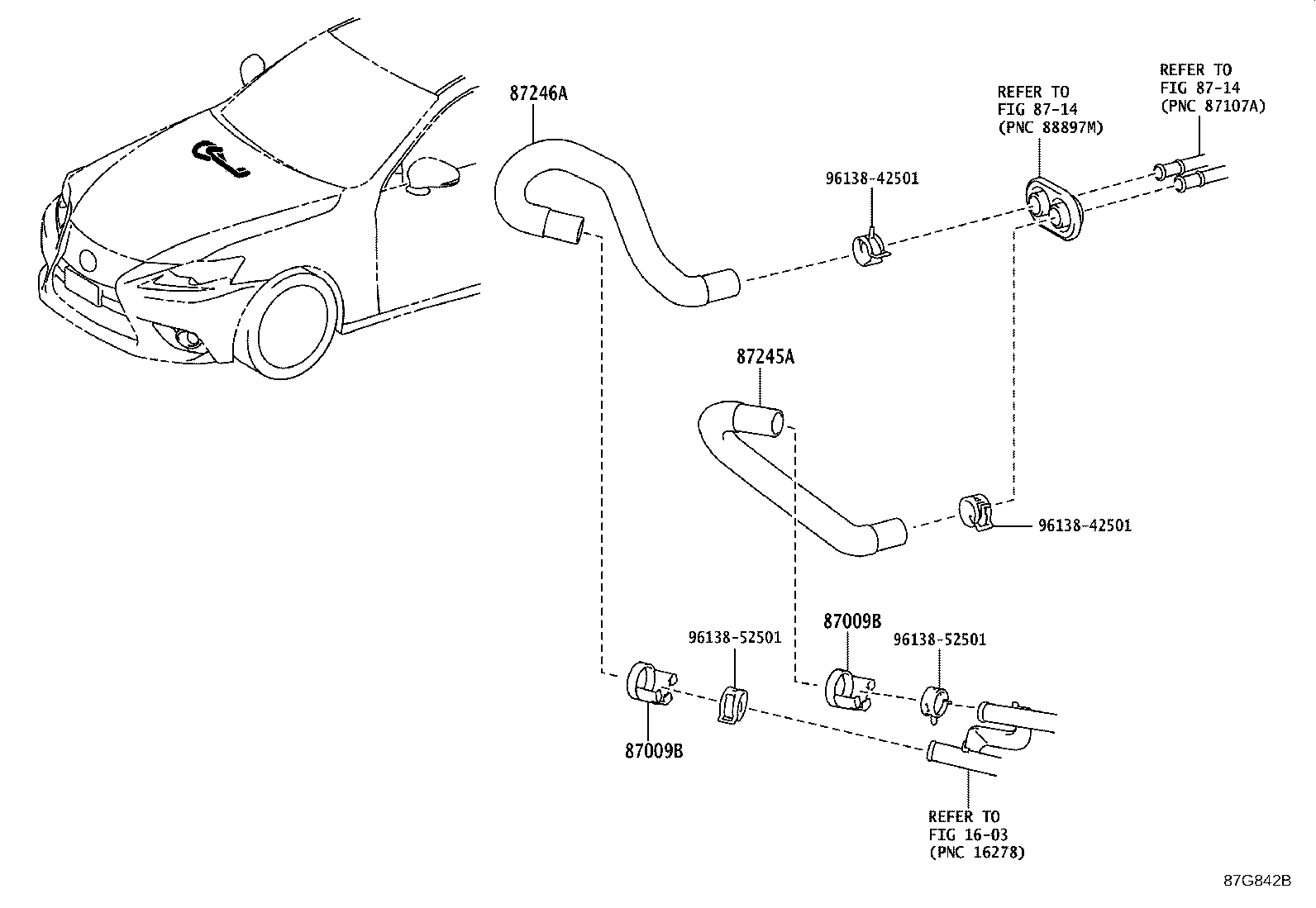

Figure 87G842B

87G842B 2017-10 → —

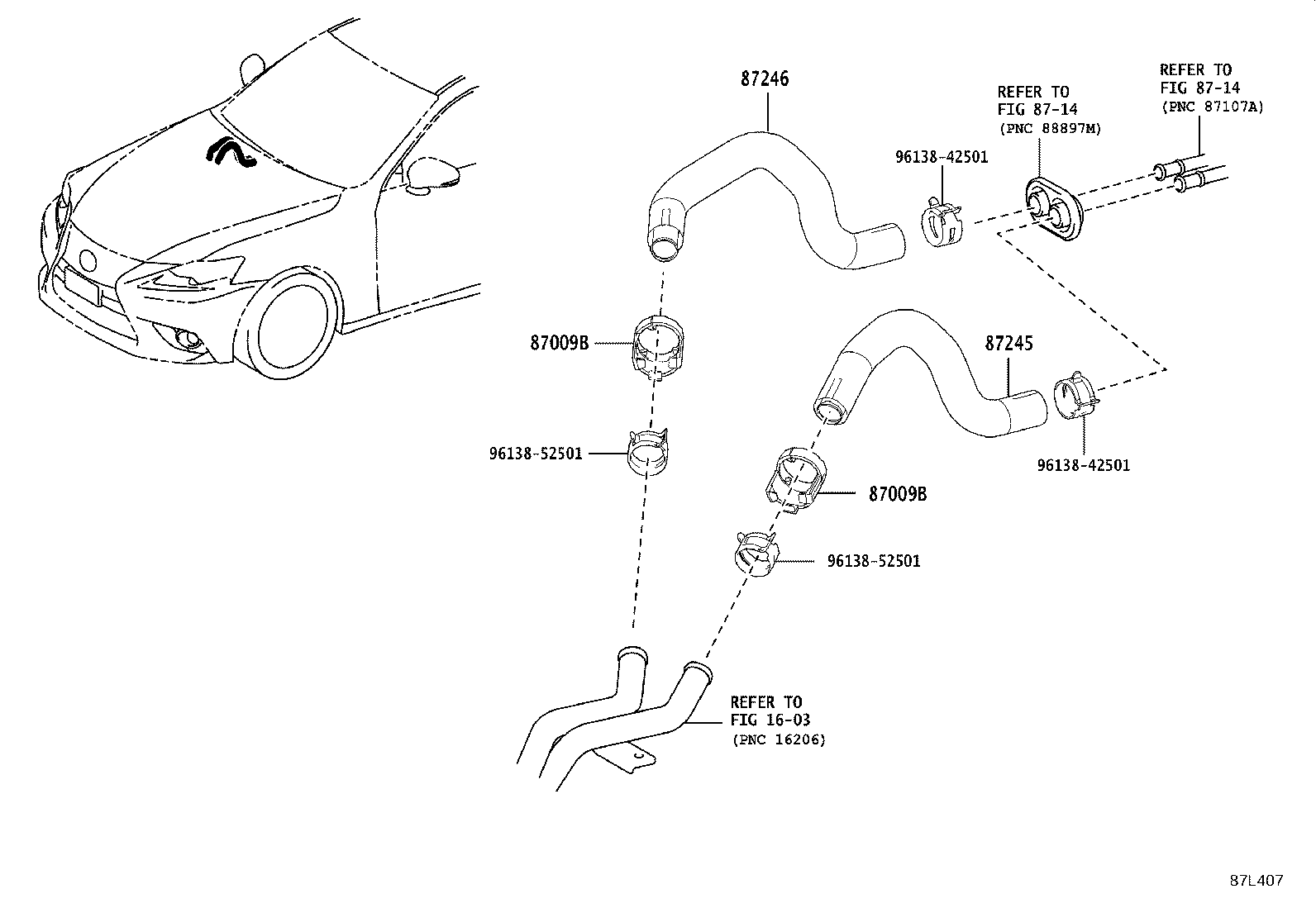

Figure 87L407

87L407 2022-09 → —

Part groups

PNC	Description
87009B	Hose Set, Water
87121F	Bracket, Heater
87200A	Pump Assy, Water(FOR HEATER)
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
