Toyota Lexus IS F

2007-12 → 2014-08 · chassis USE20 · catalogue 245110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

12 part groups · 2 illustrations

Illustrations

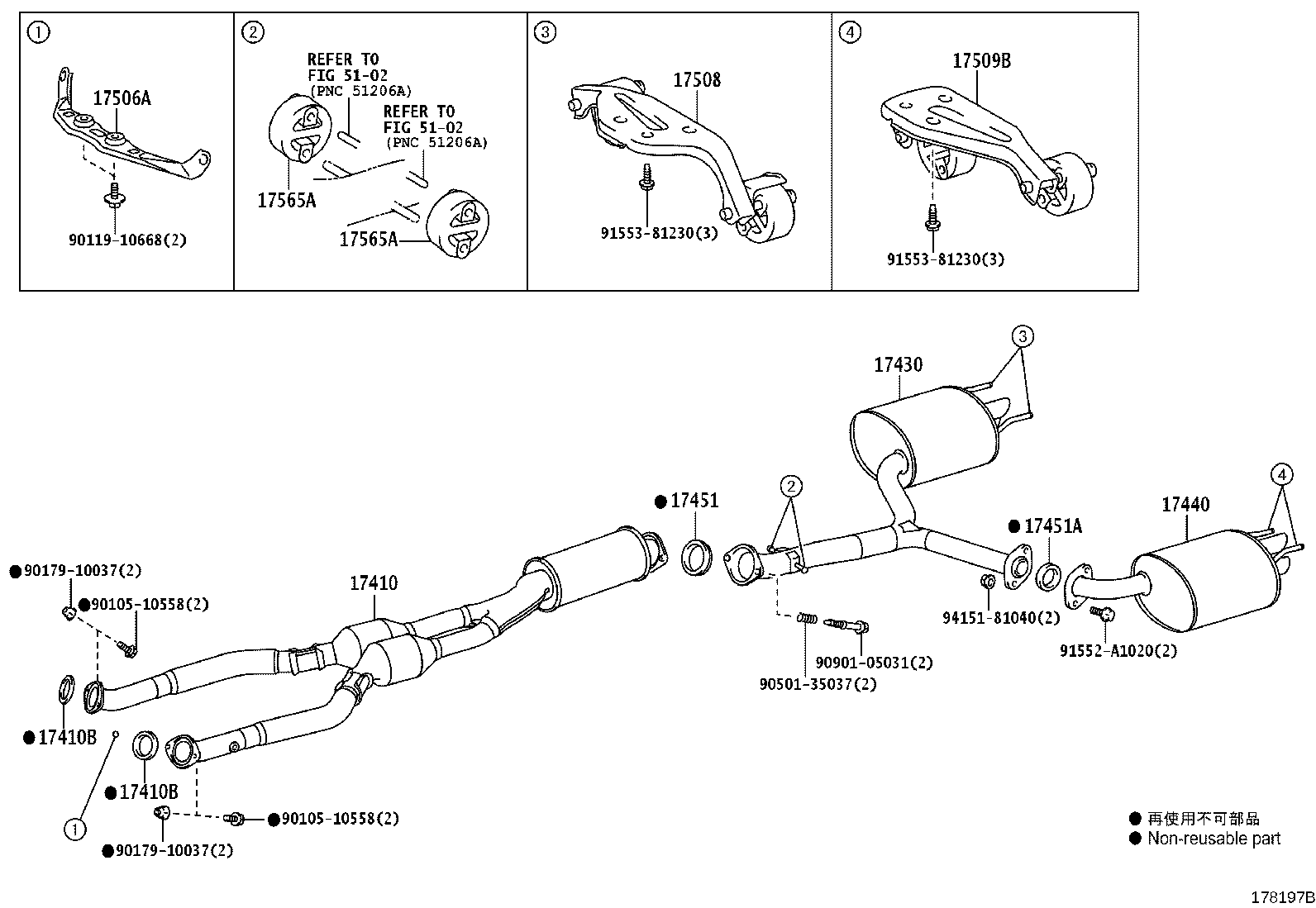

Figure 175832D 175832D 2007-12 → — Figure 178197B 178197B 2013-09 → 2014-08

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17440 Pipe, Exhaust Tail, LH
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17508 Support Sub-assy, Exhaust Pipe, NO.3
17509B Support, Exhaust Pipe NO.4
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17581A Damper, Exhaust Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
