Toyota Lexus IS F

2007-12 → 2014-08 · chassis USE20 · catalogue 245110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

20 part groups · 2 illustrations

Illustrations

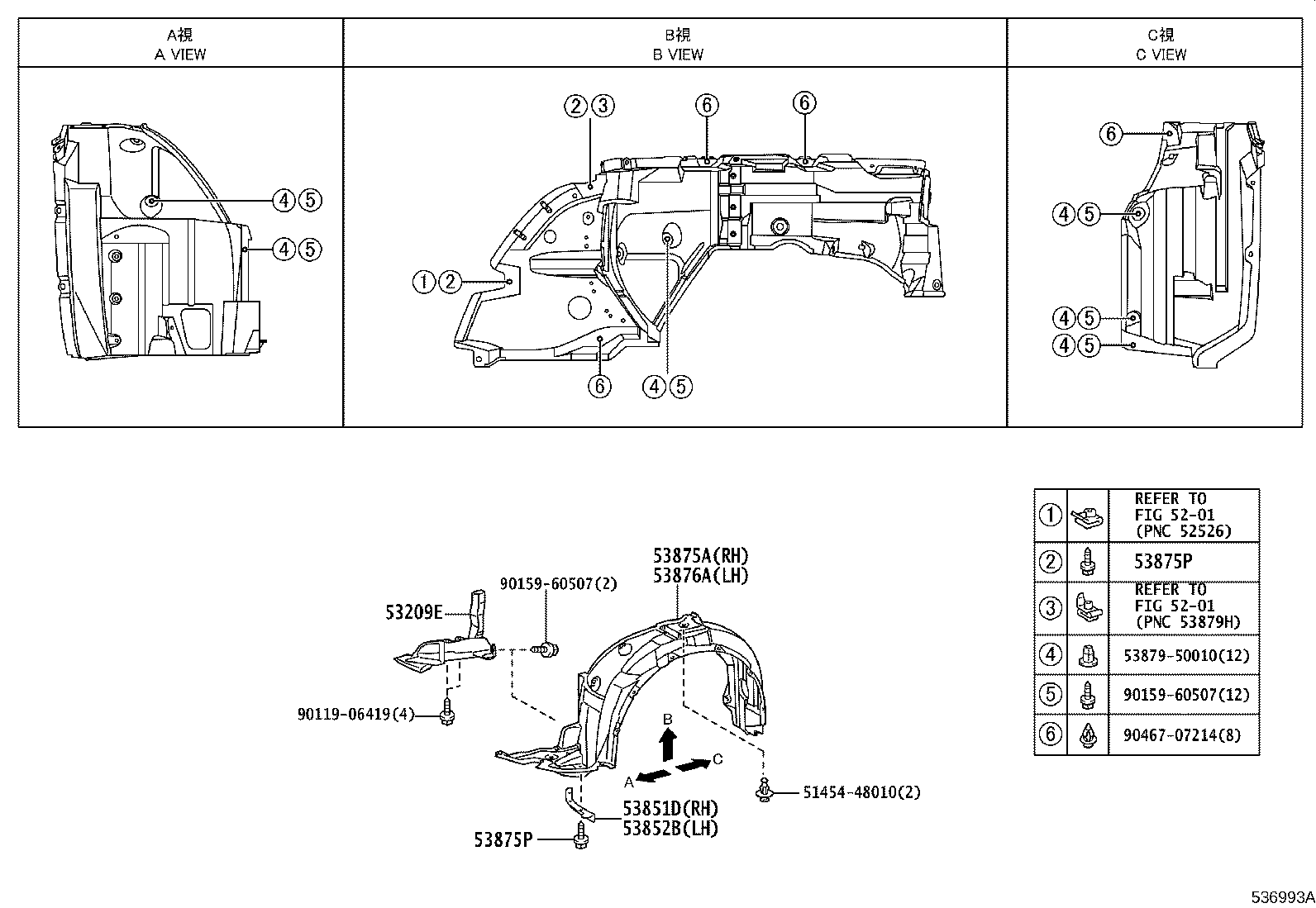

Figure 536992A 536992A 2007-12 → — Figure 536993A 536993A 2007-12 → —

Part groups

PNCDescription
53209E Duct Sub-assy, Cool Air Intake, NO.3
53301 Hood Sub-assy
53341B Insulator, Hood
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53835C Bracket, Front Side Panel, RH
53836B Bracket, Front Side Panel, LH
53851C Pad, Front Wheel Opening Extension, NO.1
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53875P Screw, NO.1
53876A Liner, Front Fender, LH
53878C Spacer, Front Fender
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
