Toyota Lexus IS F

2007-12 → 2014-08 · chassis USE20 · catalogue 245110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

19 part groups · 3 illustrations

Illustrations

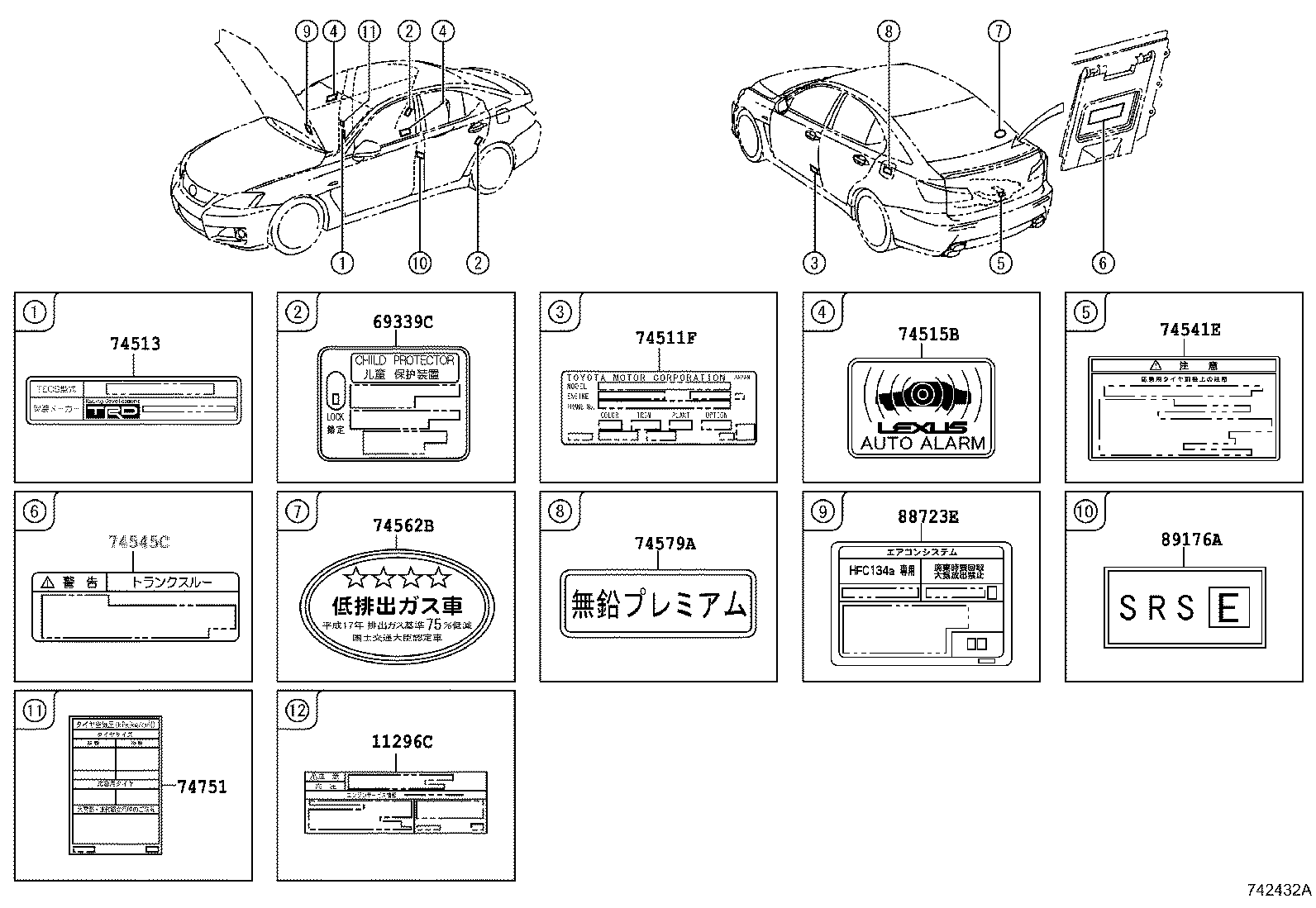

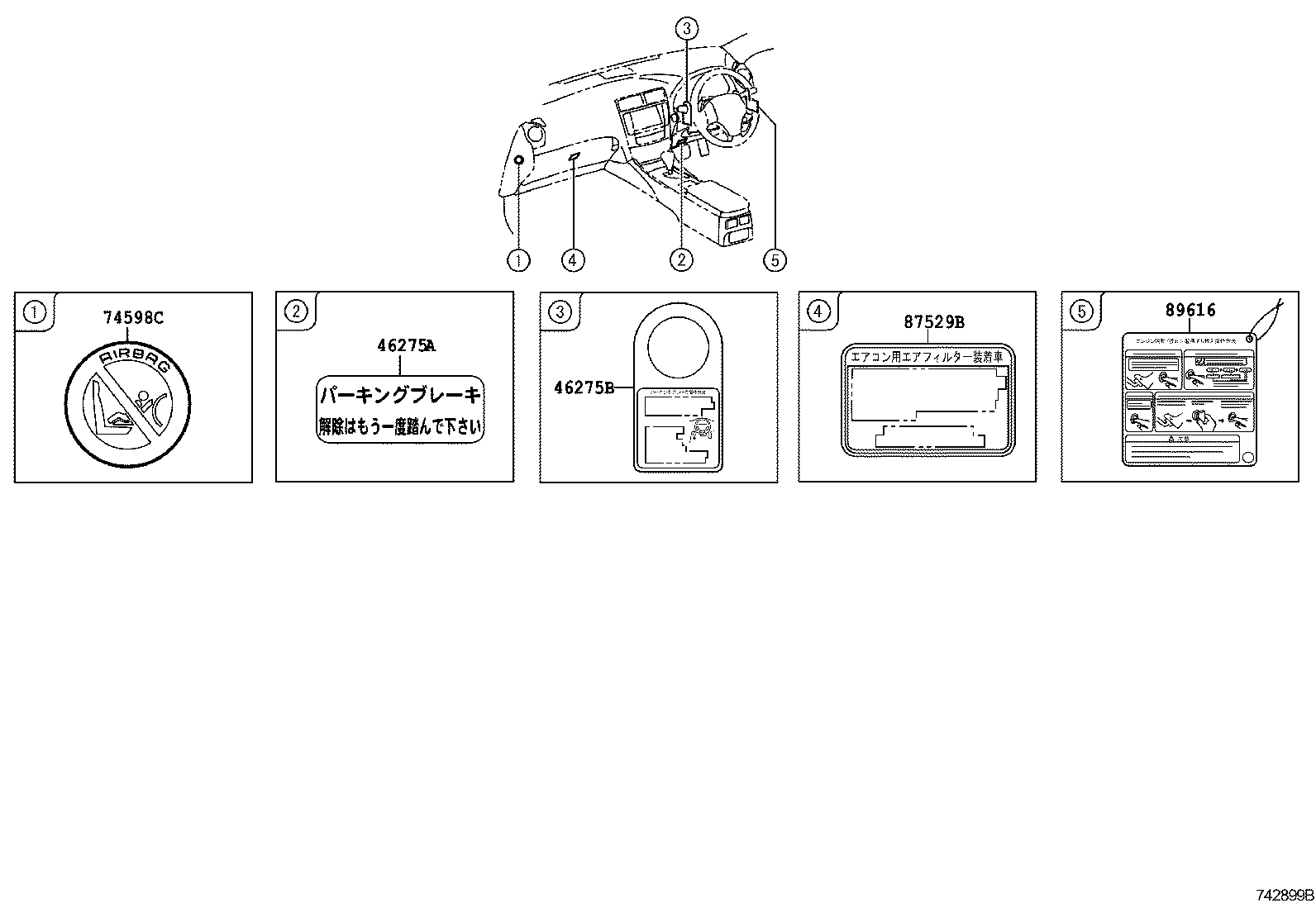

Figure 745799 745799 2007-12 → — Figure 742432A 742432A 2007-12 → — Figure 742899B 742899B 2007-12 → —

Part groups

PNCDescription
11285F Label, Coolant System Caution
11296C Label, Engine Service Information
16793E Label, Cooling Fan Caution
46275A Label, Parking Brake Release Information, NO.1
46275B Label, Parking Brake Release Information, NO.2
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74513 Label, Identification Number Information
74515B Plate, Theft Warning
74541E Plate, Compact Spare Tire Caution
74545C Label, Luggage Door
74562B Label, Emission Information
74579A Label, Unleaded Fuel Information
74598C Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
89616 Label, Push Start Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
