Toyota Lexus IS F

2007-12 → 2014-08 · chassis USE20 · catalogue 245110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

7 part groups · 2 illustrations

Illustrations

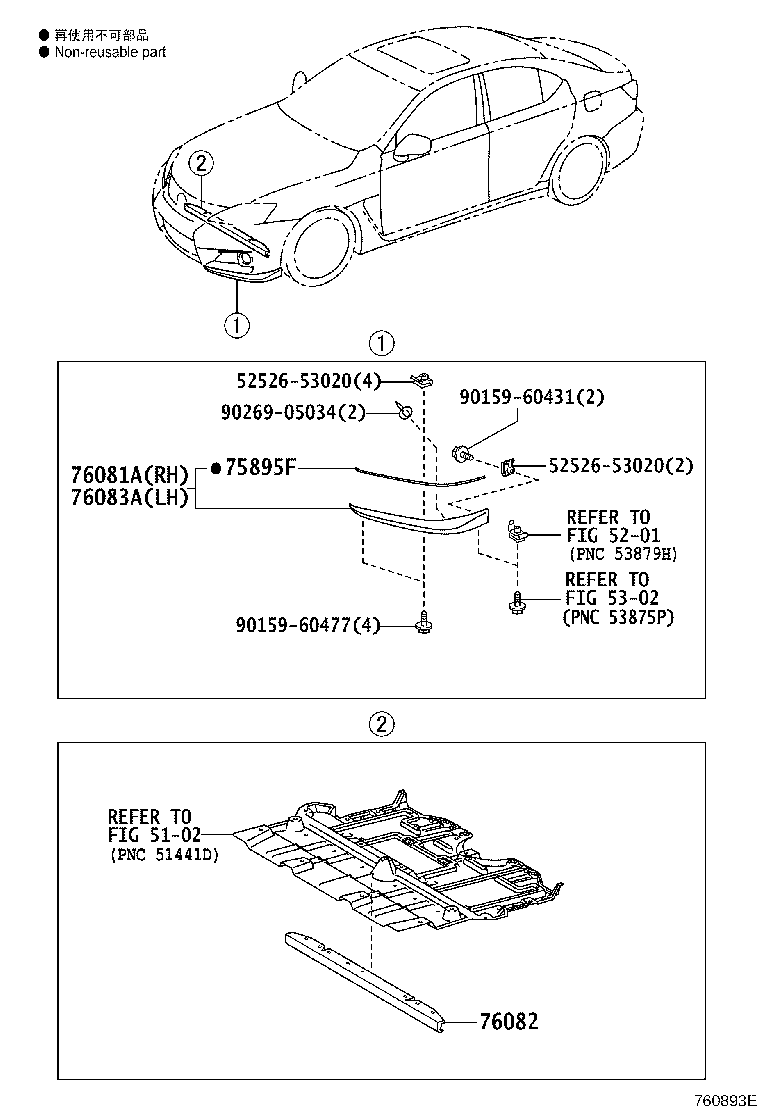

Figure 760630C 760630C 2007-12 → — Figure 760893E 760893E 2013-09 → 2014-08

Part groups

PNCDescription
75895F Tape, Moulding, NO.1
75896B Tape, Moulding, NO.2
76081A Spoiler Sub-assy, Front RH
76082 Spoiler Sub-assy, Front Center
76083A Spoiler Sub-assy, Front LH
76085 Spoiler Sub-assy, Rear
76971D Cover, Rear Under
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
