Toyota Lexus IS F
2007-12 → 2014-08 · chassis USE20 · catalogue 245110 · Japan
Supported model
Data version 2015-01
Navigation & Front Monitor Display
10 part groups · 3 illustrations

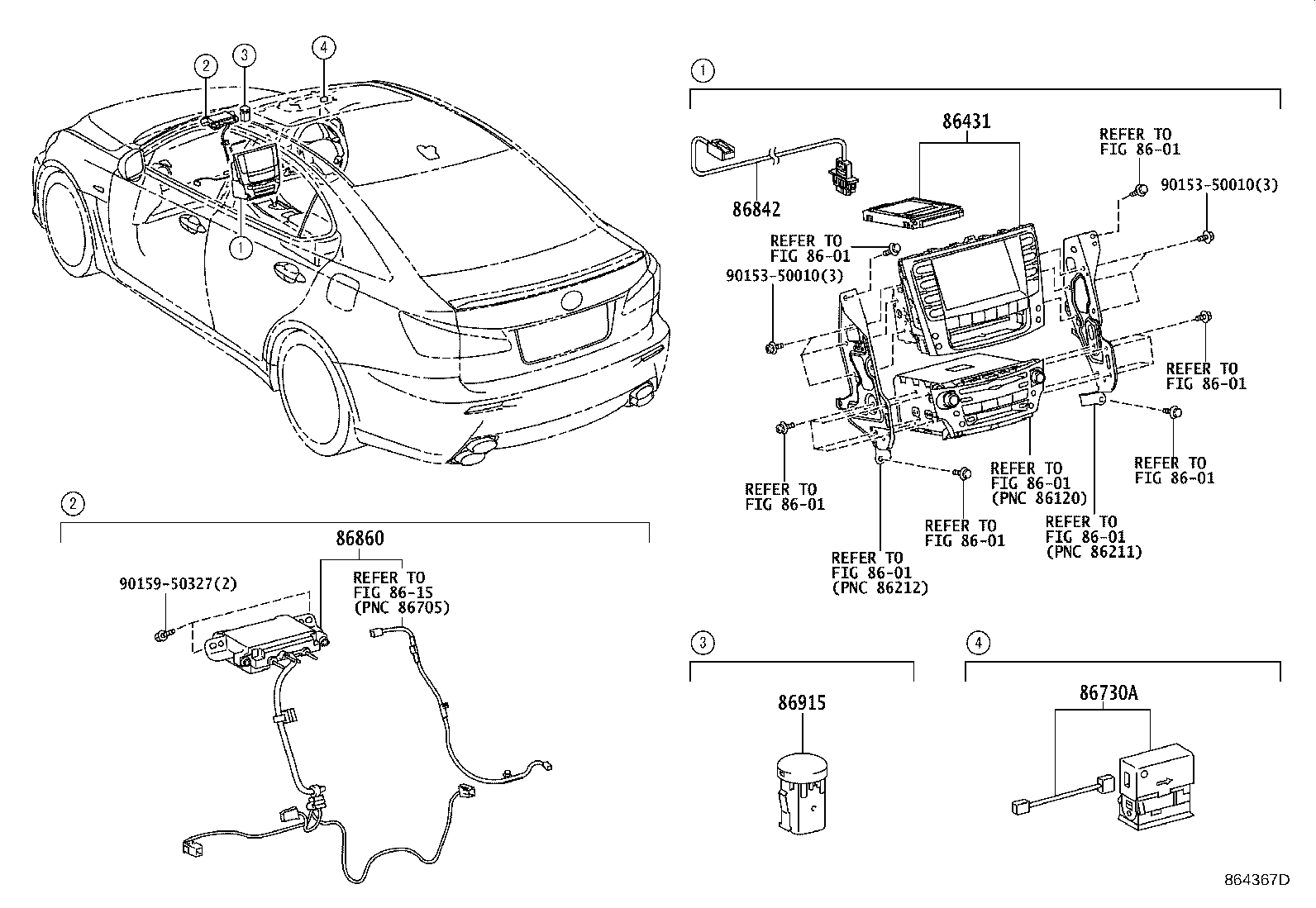

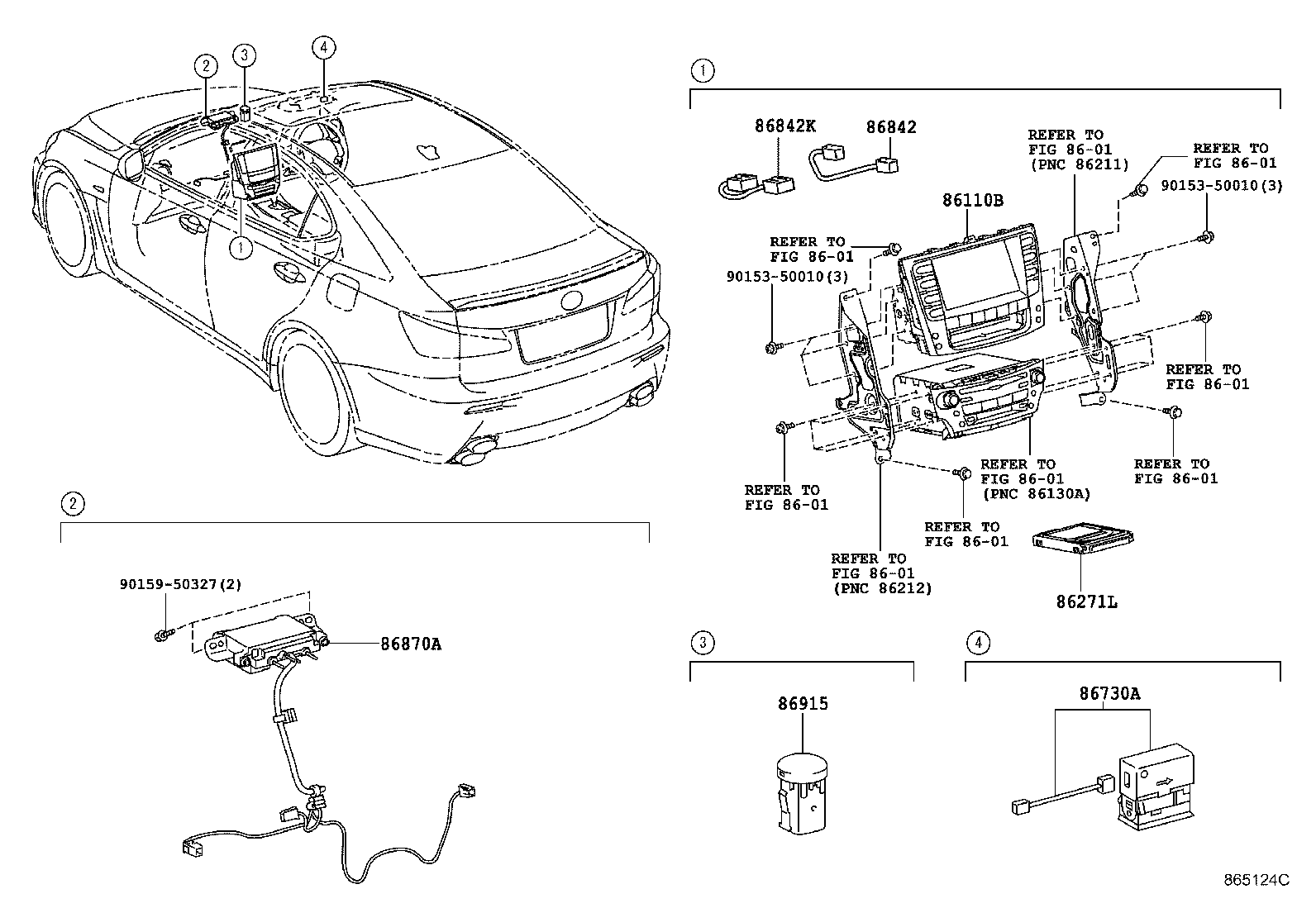

Part groups
| PNC | Description |
|---|---|
| 86110B | Multi-display Assy |
| 86250E | Microphone Assy, Amplifier |
| 86271L | Hard Disc |
| 86431 | Display, Display & Navigation Module |
| 86730A | Microphone Assy, Telephone |
| 86842 | Wire, Navigation, NO.1 |
| 86842K | Wire, Navigation, NO.3 |
| 86860 | Antenna Assy, Navigation |
| 86870A | Antenna Assy, Gps & Vics |
| 86915 | Transceiver, Optical Beacon |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
