Toyota Lexus IS F

2007-12 → 2014-08 · chassis USE20 · catalogue 245110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

5 part groups · 3 illustrations

Illustrations

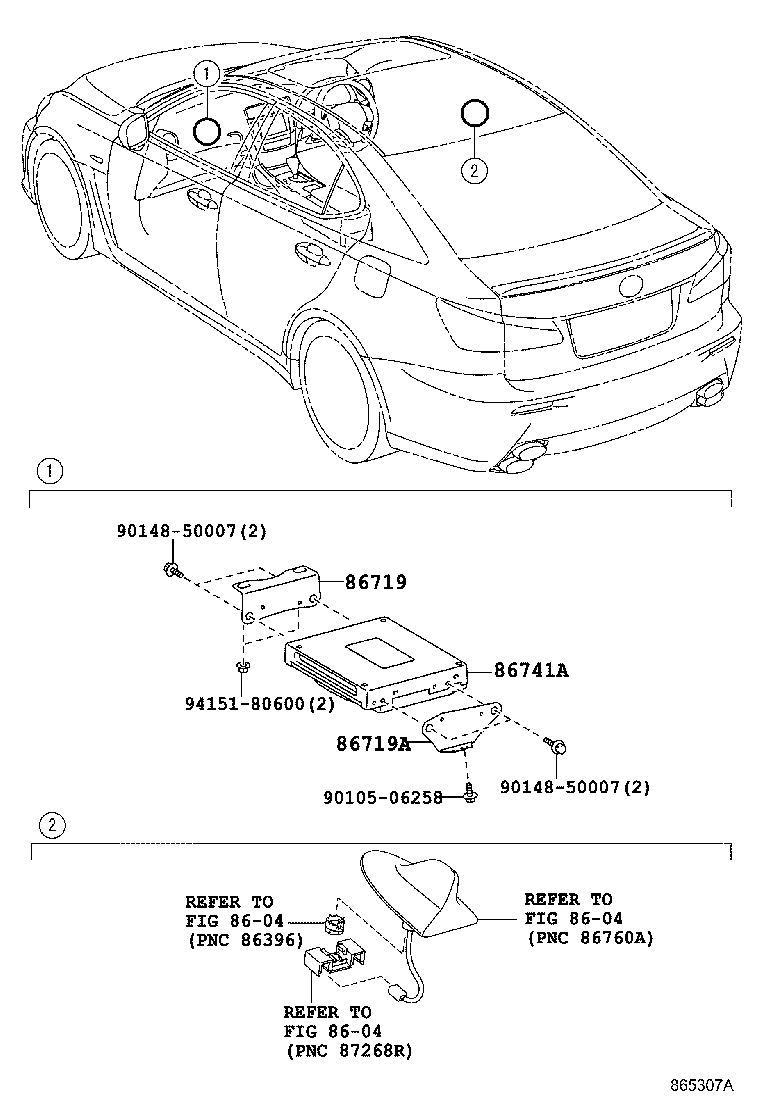

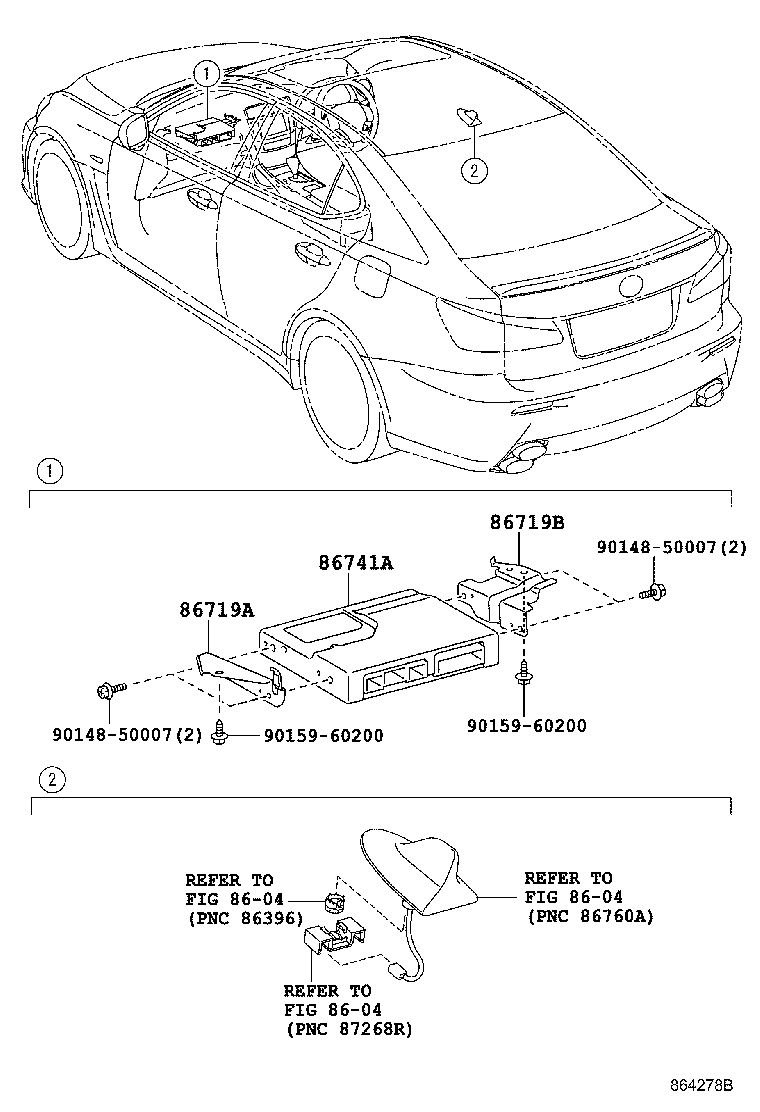

Figure 863415D 863415D 2007-12 → 2009-08 Figure 864278B 864278B 2009-08 → 2012-08 Figure 865307A 865307A 2012-08 → —

Part groups

PNCDescription
86705 Cord Sub-assy, Telephone Antenna
86719 Bracket, Telephone
86719A Bracket, Telephone NO.1
86719B Bracket, Telephone NO.2
86741A Transceiver, Telematics
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
